BluStream Custom Pro Hub 16 Quick Reference Manual

Custom Pro Hub 16
Introduction
FEATURES:
• Custom Pro Matrix with 12 x modular bays for population of input, output and control boards
• Supports up to 16 x video inputs and 16 x video outputs using a combination of 2-way and 4-way interchangeable input and
output boards
• Supports 4K UHD video up to 4K 60Hz 4:4:4*
• Optional Colour Space Conversion (CSC) boards support HDMI 2.0 18Gbps specification including HDR over HDBaseT™
featuring Smart-Scale technology that allows for a display only capable of supporting lower video resolutions (limited to 4K
60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 or 4K 60Hz 4:2:0 video content while still showing the native 4K UHD resolution
through a HDMI output. Please note: Smart-Scale does not support 4K 4:2:2 signals to be converted to 1080p
• 16 x analogue L/R audio inputs which can be embedded onto corresponding HDMI / HDBaseT™ zone outputs
• 16 x IR outputs for routed control of local source equipment
• 16 x IR inputs for distribution of IR to compatible Blustream HDBaseT™ receivers
• Optional RS-232 control board for bi-directional IR control with HDBaseT™ Receiver
• Optional audio breakout board with line-level volume control
• Control and configuration of Matrix via front panel, RS-232, TCP/IP and Web GUI
• Supports PoC (Power over Cable) when used with compatible HDBaseT™ receivers
• 3rd Party drivers available for major control brands
• Advanced EDID management and HDCP 2.2 compliant
* Full 4K 60Hz 4:4:4 support is subject to input / output boards specified
contact:
support@blustream.com.au | support@blustream.co.uk
Quick Reference Guide

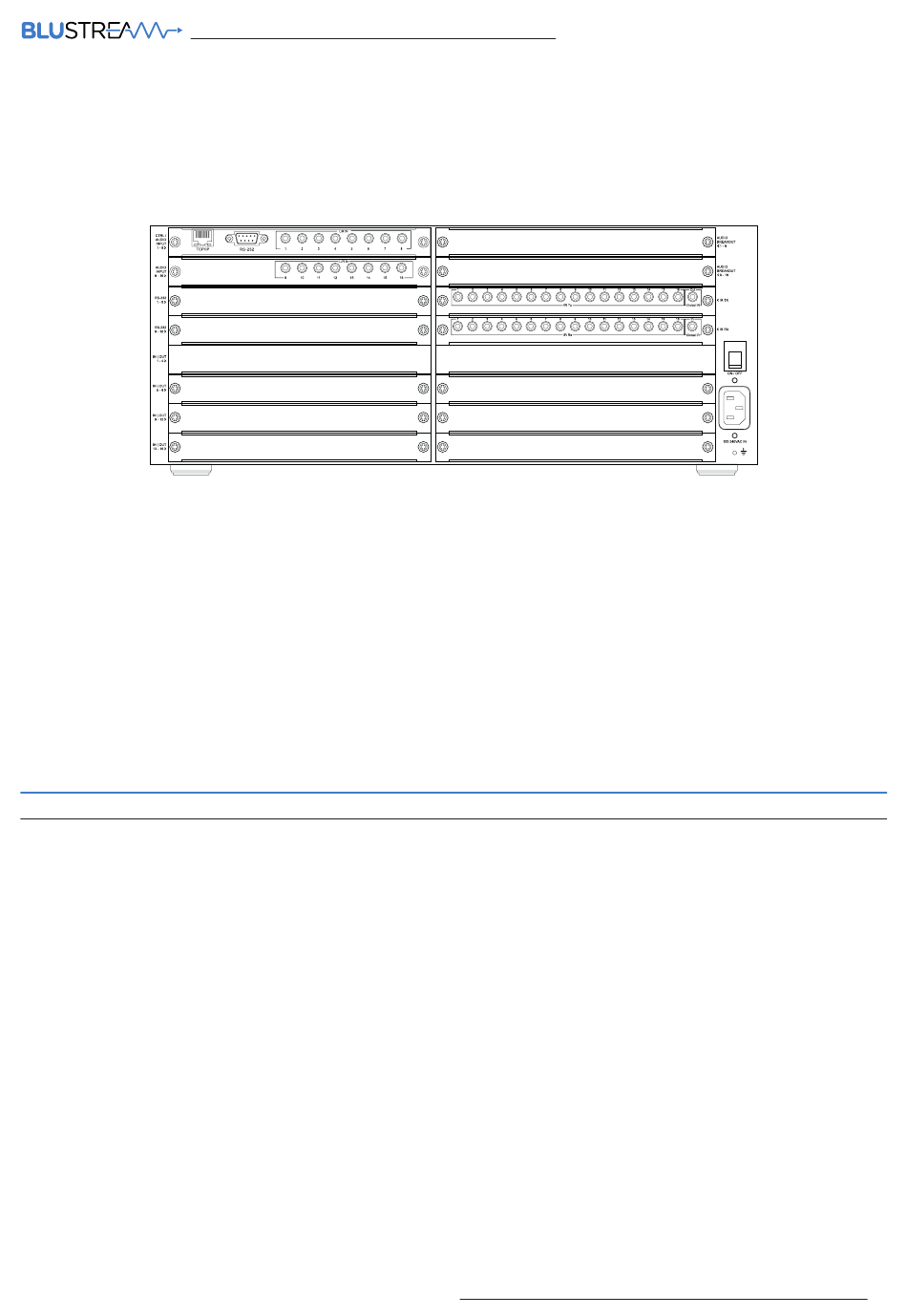

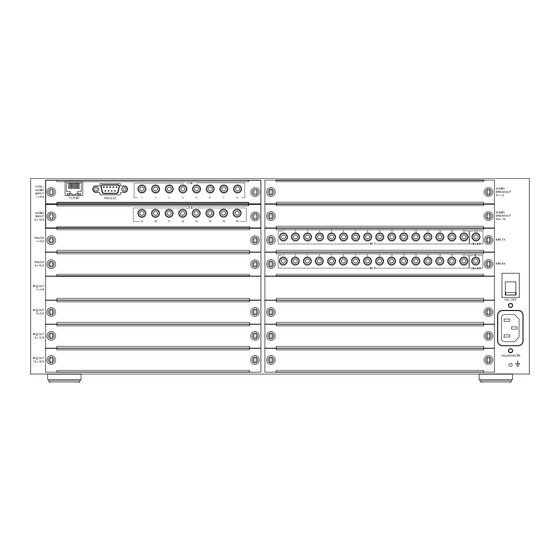

The Custom Pro Hub 16 features 12 x modular bays allowing AV integrators to easily specify their
desired I/O structure and choose additional control features required for a specific project.
Its robust housing and interlocking board configuration make installation and maintenance
a seamless experience. Advanced optional features include HDMI and HDBaseT™ boards
featuring CSC (Colour Space Conversion) for support of all the latest 4K resolutions including
4K 60Hz 4:4:4 & resolutions including HDR. Supporting independent Smart-Scaling of 4K video
inputs on CSC HDBaseT™ outputs, the Custom Pro Hub 16 allows displays only capable of
supporting lower video resolutions to receive 4K video while still showing maximum original
4K UHD resolution on higher-definition displays. The comprehensive range of available input,
output and control boards allow audio breakout with variable line level outputs, simultaneous
HDBaseT™ / HDMI outputs, 2-way routed IR and RS-232 pass through. A web browser interface
module for control and configuration of the matrix is included as standard as well as analogue
audio embedding per zone.
CUSTOM PRO HUB 16 QUICK REFERENCE GUIDE
01
