- Page 1 SW42DA User Manual RevA3_SW42DA_USER_MANUAL...
- Page 2 SW42DA PRODUCT MANAUL Contents Introduction Thank you for purchasing this product. Features For optimum performance and safety, please read these instructions care- fully before connecting, operating or Front Panel Description adjusting this product. Please keep this manual for future reference.
- Page 3 PRODUCT MANUAL Introduction The Blustream SW42DA is a 4-Way HDMI switch that has been designed to convert and downmix embedded Dolby Audio or DTS Audio within a HDMI switching environment, HDMI audio capabilities include the selection and manipulation of formats across both a multichannel and 2ch downmixed Dante®...

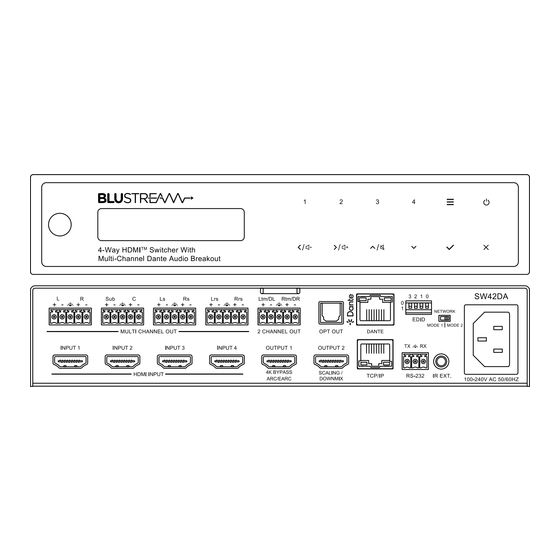

- Page 4 IR Receiver Window - For control of SW42DA via remote control LCD Display – Shows the status of input /output selection, EDID etc... Selection Buttons - Multi-use buttons Power Button – Press and hold for 3 seconds to power ON / OFF the SW42DA Rear Panel Connections: HDMI Input 1-4 - Connect to HDMI source device L/R Analogue Audio Outputs –...
- Page 5 The SW42DA will act as an ‘end point’ in the HDMI signal path. Using the EDID dip-switches predetermines the video resolution and audio format of the source, regardless of the video output resolution that the SW42DA scales to.
- Page 6 Default IP Address is: 192.168.0.200 If the SW42DA is connected to a pre-existing network then it will be provided an IP Address via DHCP. There are several ways in which you can find the IP address of the device as follows: •...
- Page 7 SW42DA PRODUCT MANUAL Control Page This tab allows master control of the SW42DA From within this page it is possible to: Navigate to new pages via the menu Change source selection on both HDMI Output 1 and Output 2 (mirrored) Adjust the levels of the Analogue and Dante®...
- Page 8 Bypass - video signal in = video signal out Auto - video support of display will be used for the SW42DA to output the best possible video format Force 1080p - video will be downscaled to 1080p format, with HDCP 1.x compliance The Actions button allows for adjustment of the following output settings: •...
- Page 9 • Master Output - The Master Output allows adjustment of ALL audio outputs of the SW42DA at the same time. To adjust the master output, open the drop down box and from here you can turn On/Off each group of Analogue or Dante®...
- Page 10 SW42DA PRODUCT MANAUL For each of the audio outputs, expand the window to show further advanced control options: For each of the 7.1ch outputs (Analogue audio and Dante® audio) you can turn On/Off each of the 7.1ch outputs and independently control the audio level for each channel. With both Analogue and Dante®...
- Page 11 Click Update when complete to apply the settings. Create new user - To add a new user login to the SW42DA, press the ‘NEW USER’ button and the following pop-up will appear: With each new user created, add an individual username and password (and confirm password), then configure the privilages for that user.
- Page 12 PRODUCT MANAUL Settings Page The Settings page allows for the configuration of the settings within the SW42DA. It also provides the ability to reboot / factory reset the system, and update the firmware: The Settings section shows the following information, where applicable the Update button will allow for the configuration of variable functions: Web Module Information - This section allows configuration of the SW42DA network.
- Page 13 TCP-IP port - This is a secondary port for communication, mainly used by 3rd party control solutions. This can be changed and turned On/Off by pressing the Update button • RS-232 Baud rate - For the RS-232 communcation port on the SW42DA. This can be changed by pressing the Update button • Telnet - Displays if Telnet is turned On/Off •...
- Page 14 / routed independently. Dante® Controller Dante® Controller software is required in order to configure the SW42DA as well as control your Dante® network. Audinate provide extensive training videos and documentation on their website. This can be found here: http://www.
- Page 15 By default, the SW42DA is shipped with the network settings set to obtain an IP Address automatically on the Dante® port. This means that if a DHCP server is present on the network, the SW42DA will be provided with an IP Address. If no DHCP server is present, then the SW42DA will receive a default IP Address in the 169.254.xxx.xxx range.
- Page 16 SW42DA PRODUCT MANAUL Certifications FCC NOTICE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 17 32°F to 104°F (0°C to 40°C) Storage Temperature: - 4°F to 140°F (- 20°C to 60°C) Power Supply: Internal 100-240V AC Package Contents • 1 x SW42DA • 1 x IEC Mains Cable • 1 x Mounting Kit • 4 x Rubber Feet •...
- Page 18 SW42DA PRODUCT MANAUL Installer Notes www.blustream.com.au www.blustream-us.com www.blustream.co.uk...
- Page 19 SW42DA PRODUCT MANUAL Installer Notes Contact: support@blustream.com.au support@blustream-us.com support@blustream.co.uk...
- Page 20 www.blustream.co.uk...
