- Page 1 SM11 SM11 User Manual...
-
Page 2: Table Of Contents
Maintenance Performance Notice Do not substitute or use any other power Installer notes supply other than the enclosed unit, or a Blustream approved replacement. Do not disassemble Blustream hardware for any reason. Doing so will void the manufacturer’s warranty. www.blustream.co.uk... -
Page 3: Introduction
SM11 also features de-embedding and embedding audio within the HDMI signal path, allowing you to breakout up to 7.1 channel audio signals. The SM11 supports full HDMI 2.0 and HDCP 2.2 with video resolutions up to and including 4K @ 60Hz 4:4:4. -

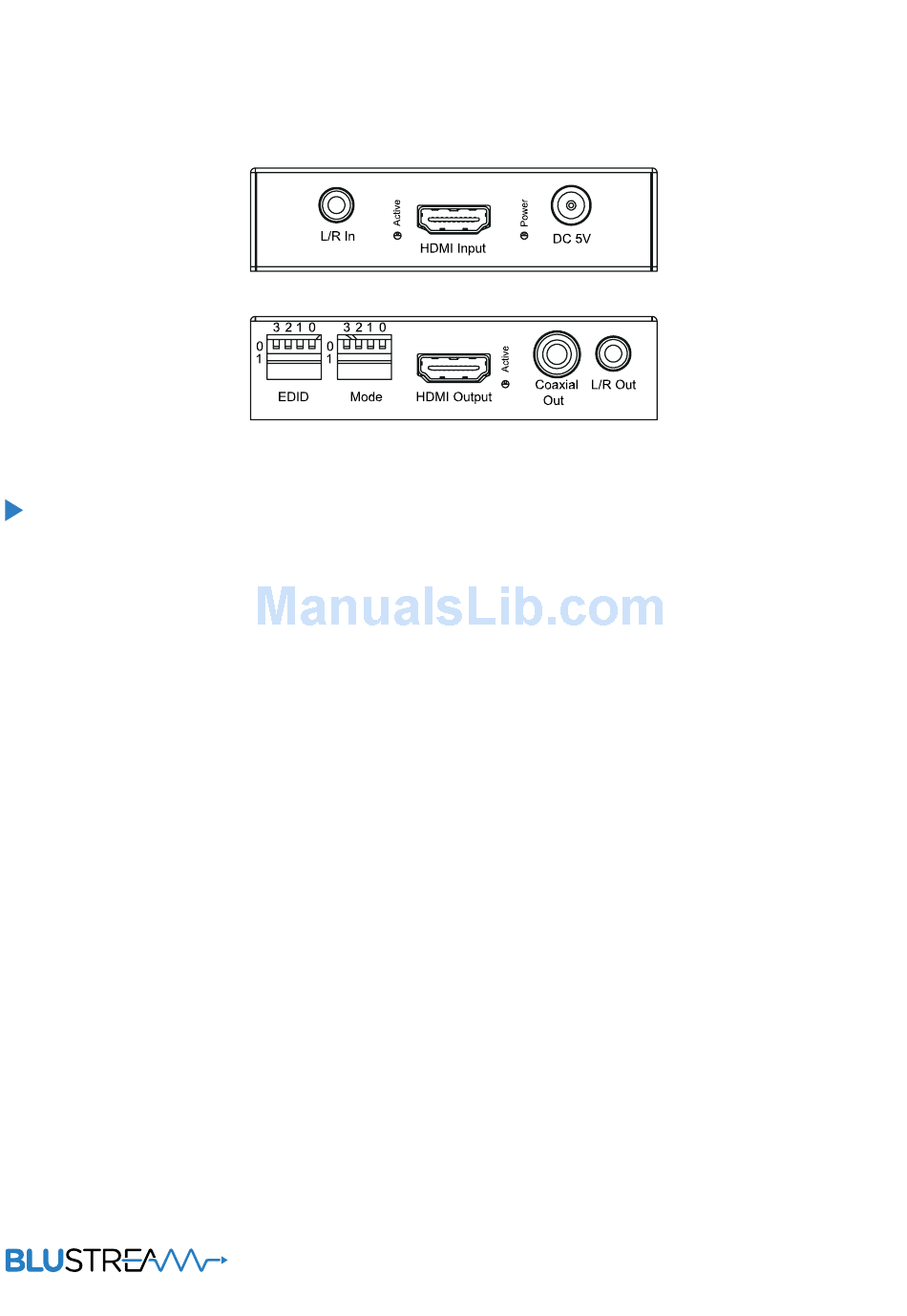

Page 4: Front Panel
Coaxial digial audio output (RCA) Left/Right analogue audio output. De-embedded audio from the HDMI signal input. Note - source input must be PCM 2ch audio for analogue audio outputs to work. The SM11 does not down-mix multi-channel audio signals. www.blustream.co.uk... -
Page 5: Edid Control
EDID hand shaking thus making switching quicker and more reliable. Configuration of extender EDID settings can be acheived using the product dip-switches on the end panel of the SM11. Note: You must power cycle the product after making EDID changes. For some sources it may be necessary to power cycle the source after EDID changes have been made for the source to update its video &... -
Page 6: Mode Dip Switch Settings
When Hotplug mode is turned OFF the SM11 will use the HPD of the connected display on the HDMI output. When Hotplug mode is turned ON the SM11 will complete the HPD back to the source connected to the HDMI input, no longer requiring a HPD from a connected display. - Page 7 SM11 USER MANUAL contact support@blustream.co.uk / support@blustream.com.au...
- Page 8 SM11 USER MANUAL www.blustream.co.uk...
-
Page 9: Specifications
• Operating Temperature: 32°F to 104°F (0°C to 40°C) • Storage Temperature: -4°F to 140°F (-20°C to 60°C) Package Contents • 1 x SM11 • 1 x 5V / 1A DC power supply • 1 x Mounting kit • 1 x User manual Maintenance Clean this unit with a soft, dry cloth. -
