AMF41W
QUICK REFERENCE GUIDE

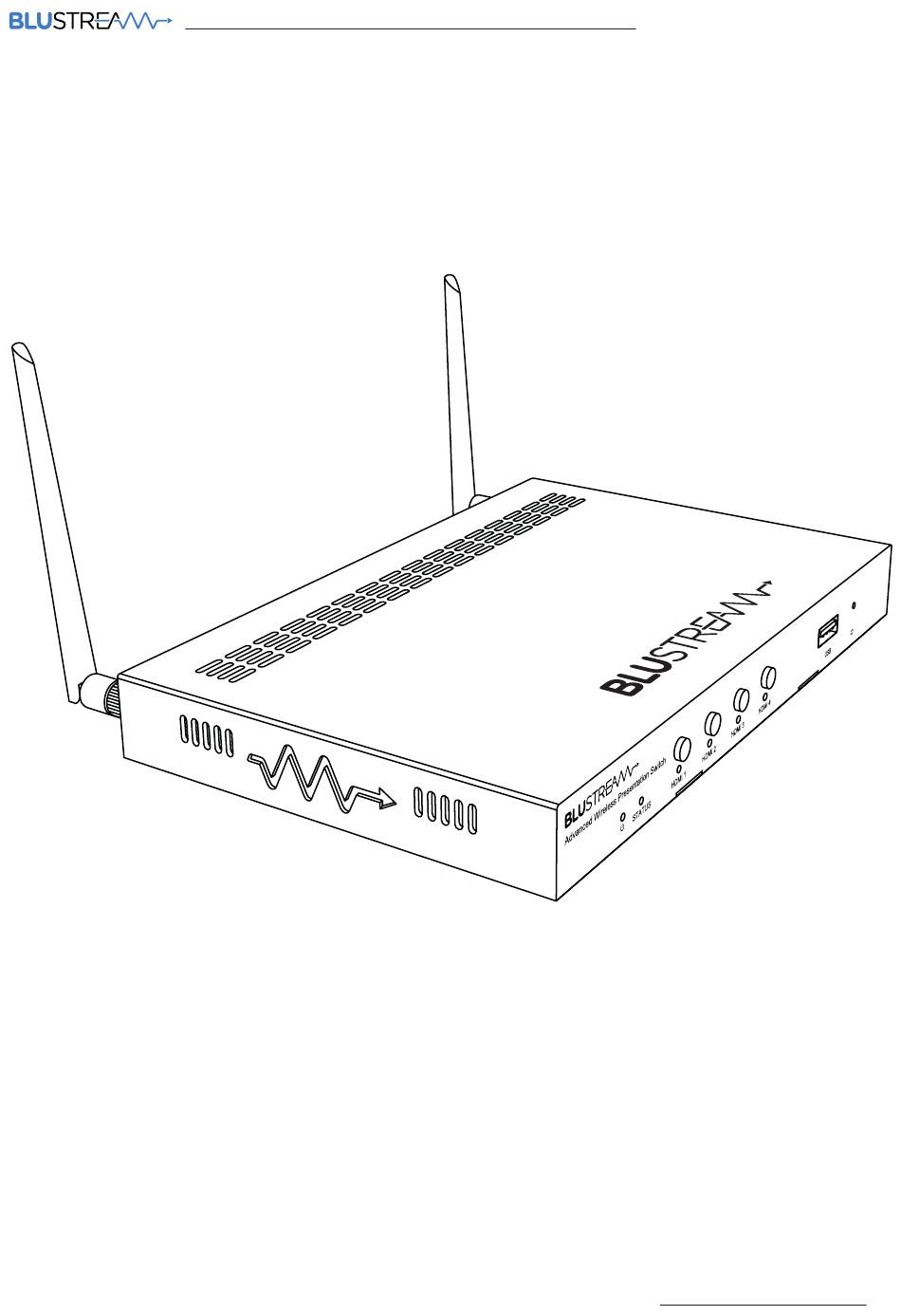

AMF41W
Quick Reference Guide
Introduction

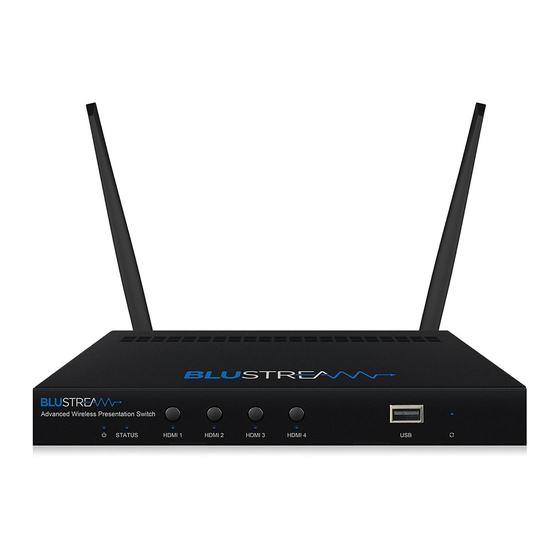

The AMF41W is an advanced 4K multi-format presentation switch featuring 4 x
HDMI, AirPlay and Miracast® inputs to a single HDMI output. The AMF41W provides
enhanced features including localised 2.4/5G WiFi hotspot, seamless switching,
multiview presentation, video scaling and Web GUI for control and configuration.
The AMF41W also features auto display control via RS-232, manual or automated
source selection and control via front panel and TCP/IP. The AMF41W is an ideal
product for your boardroom, classroom or huddle-space application.
Contact:
|
|
01
support@blustream.com.au
support@blustream-us.com
support@blustream.co.uk
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for BluStream AMF41W
Summary of Contents for BluStream AMF41W
- Page 1 Web GUI for control and configuration. The AMF41W also features auto display control via RS-232, manual or automated source selection and control via front panel and TCP/IP. The AMF41W is an ideal product for your boardroom, classroom or huddle-space application.
- Page 2 • Features 4 x HDMI, AirPlay and Miracast® inputs which can be switched to a single HDMI output • Localised 2.4G/5G WiFi hotspot to host AirPlay and Miracast® local streaming to AMF41W • Multiview presentation with up to 7 concurrent video signals and configurable screen layout •...
- Page 3 TCP/IP Port - RJ45 connector to connect to LAN for TCP/IP control of device and to access Web GUI RS-232 Port - 4-pin Phoenix connector for control of source or display from the AMF41W, also includes a 12V output pin to trigger local device WiFi Antenna Connection 2 - Connect to supplied WiFi antenna NOTE: The distance between user and products should be no less than 20cm.
- Page 4 1234 192.168.0.200 If the AMF41W is connected to a pre-existing network then it will be provided an IP Address via DHCP. There are several ways in which you can find the IP address of the device as follows: • The On Screen Display shows the IP address of the product in the lower right corner of the screen (item A in the image below).
- Page 5 AMF41W QUICK REFERENCE GUIDE Installation and Wiring Note: Before installation, please ensure the device is disconnected from the power source. Steps to install the device: Attach the mounting brackets to the chassis using the screws provided. The mounting brackets are attached to the chassis as shown below: Repeat steps 1-2 for the second mounting bracket on the other side of the chassis.
- Page 6 AMF41W QUICK REFERENCE GUIDE RS-232 Configuration The RS-232 port is used for control of source or display from the AMF41W. The default RS-232 communication settings are: Baud Rate: 57600 Data Bit: Stop Bit: Parity Bit: none Specifications • Video Input Connectors: 4 x HDMI Type A, 19-pin, female •...
- Page 7 AMF41W QUICK REFERENCE GUIDE Certifications FCC NOTICE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 8 AMF41W QUICK REFERENCE GUIDE Notes www.blustream.com.au www.blustream-us.com www.blustream.co.uk REVA4_QRG_AMF41W_210603...
