Summary of Contents for BluStream SW41AB-V2
-

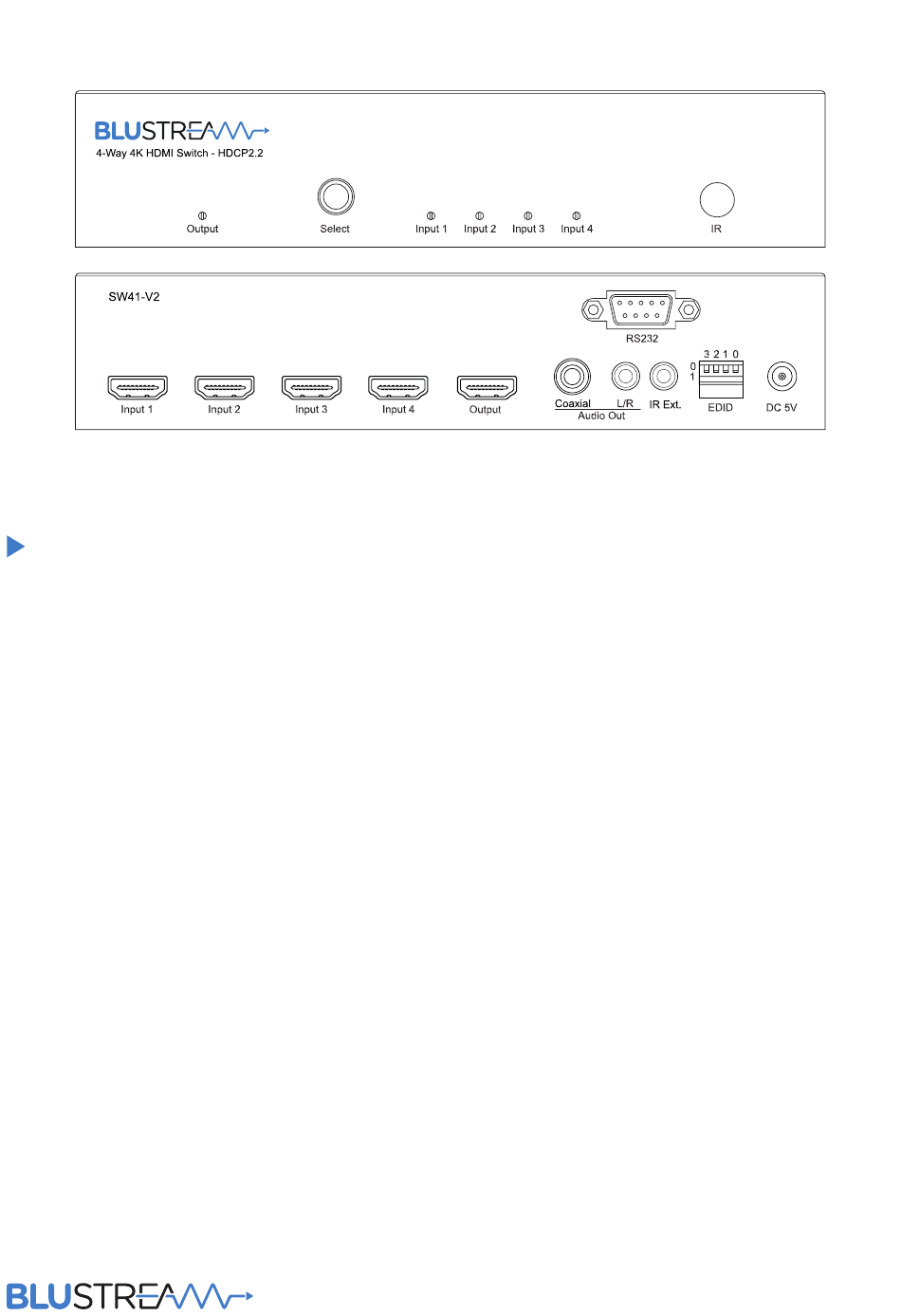

Page 1: User Manual
SW41AB-V2 User Manual Revision: 1.1 - November 2019... -
Page 2: Table Of Contents
Package Contents Performance Notice Do not substitute or use any other power Maintenance supply other than the enclosed unit, or a Blustream approved replacement. RS-232 Control Do not disassemble the unit for any reason. Doing so will void the manufacturer’s warranty. -
Page 3: Introduction

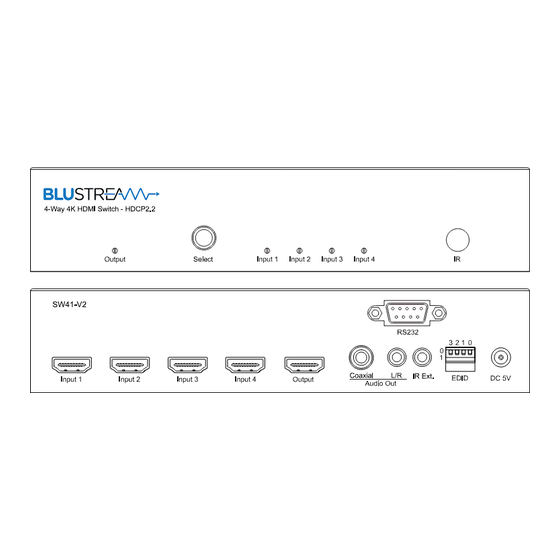

SW41AB-V2 USER MANUAL Introduction The SW41AB-V2 is a 4-way HDMI switch with integrated audio breakout and the ability to auto-switch. The switch supports full HDMI 2.0 and HDCP 2.2 with video resolutions up to and including 4K @ 60Hz 4:4:4. -
Page 4: Panel Descriptions
Analogue audio Left/Right output (3.5mm stereo jack) - de-embedded from the selected HDMI input. Source input must be PCM 2 channel audio for the analogue output to work. The SW41AB-V2 does not down-mix multi-channel audio signals External IR port - connect supplied Blustream 5V IR receiver, or control processor to control the switcher... -
Page 5: Infrared Remote Control
The Blustream range of HDMI products include multiple options for control and routing of IR. IMPORTANT: Blustream Infrared products are all 5V and NOT compatible with alternative manufacturers Infrared solutions. When using third party 12V IR control solutions please use the Blustream IRCAB cable for IR conversion (12V to 5V) - sold separately. -
Page 6: Edid Control
By pre-determining the video resolution and audio format of the sources and display device you can reduce the time needed for EDID hand shaking thus making switching quicker and more reliable. Configuration of the switcher EDID settings can be achieved using the product dip-switches on the SW41AB-V2. EDID dip-switch settings are shown below. -
Page 7: Application Diagram
SW41AB-V2 USER MANUAL Application Diagram contact support@blustream.co.uk / support@blustream.com.au... -
Page 8: Specifications
• Power Supply: 1x 5V/2A DC NOTE: Specifications are subject to change without notice. Weights and dimensions are approximate. Package Contents • 1 x SW41AB-V2 • 1 x REMSW41 remote control • 1 x 5V/2A DC power supply • 1 x IR receiver (IRR) •... -
Page 9: Rs-232 Control
Some other examples that other control systems deploy include \r or 0D (in hex) • Spaces – Blustream commands do not require space between commands unless specified. There may be some programs that require spacing in order to work. -
Page 10: Rs-232 Commands
OUTON/OFF Set OUTPUT Port On or Off OUT AUTO ON/OFF Set OUTPUT Port to Auto Switch On or Off SW41AB-V2 IR Commands SW41 NEC IR: CUSTOMER CODE 1898 HEX IR 0000 006D 0000 0022 0157 00AC 0016 0016 0016 0016 0016 0016 0016 0041 0016... -
Page 11: Installer Notes
SW41AB-V2 USER MANUAL Installer Notes: contact support@blustream.co.uk / support@blustream.com.au... - Page 12 www.blustream.com.au...
