Page 1: User Manual
Matrix Switching 7 input Multi-format Presentation Switch MFP72 User Manual... -
Page 2: Panel Descriptions
MFP72 USER MANUAL Contents Thank you for purchasing this product. Features For optimum performance and safety, please read these instructions care- fully before connecting, operating or Panel Descriptions 04/05 adjusting this product. Please keep this manual for future reference. Remote Control Descriptions... - Page 3 Our MFP72 is a multi-format presentation switcher with in-built video scaling, audio embedding, audio de-embedding and EDID management. The MFP72 works in 2 modes, first as a 7 input dual output switcher, alternatively each output can work independently with output 1 routing the 4x HDMI inputs only and Output 2 switching all 7 video/audio inputs.

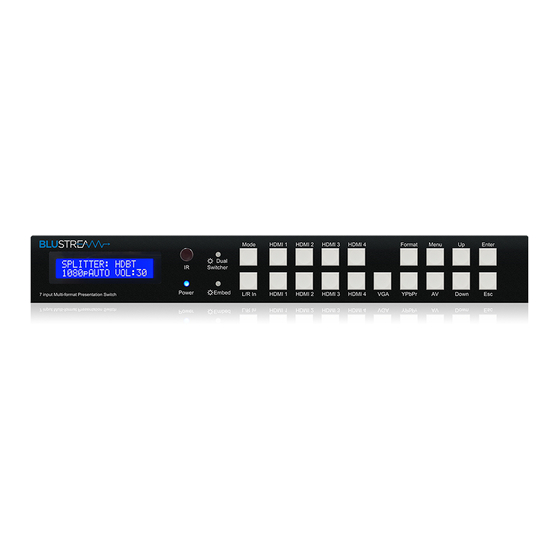

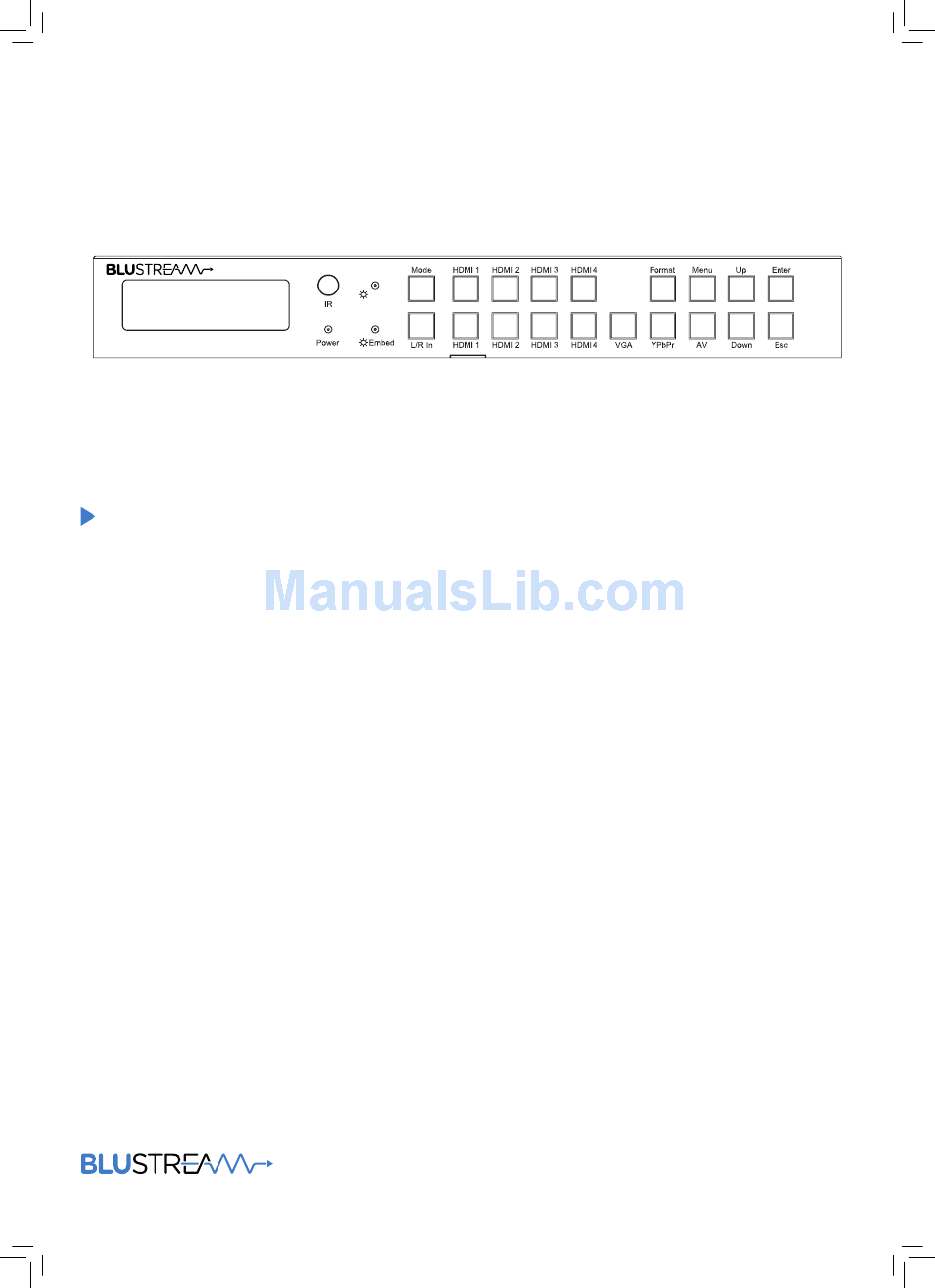

- Page 4 MFP72 USER MANUAL Front Panel Matrix Switching 7 input Multi-format Presentation Switch LCD display - Shows the status of Up selection button - Press to HDMI input selection buttons 1 to input-output selection, EDID info etc. change segment’s value. 4 - Press to select the HDMI input IR receiver window.
- Page 5 Source selection for HDMI output 2 when in Matrix Switcher mode or both HDMI outputs when in Splitter mode. VIDEO OUTPUT RESOLUTION The MFP72 includes in-built video scaler. To change the HDMI output video resolution press the required resolution button on the bottom of the Blustream remote control. Settings Bypass: Audio on HDMI outputs is from HDMI input selected.
- Page 6 IMPORTANT: Blustream Infrared products are all 5v and NOT compatible with alternate manufacturers Infrared solutions. When using third party 12v IR control solutions please use Blustream IRCAB cable for IR conversion (sold separately). Each Blustream Matrix and HDBaseT receiver is supplied with all necessary IR hardware required and includes: IR Emitter Infrared 3.5mm Pin-Out...
- Page 7 HDMI 1080p@60Hz, Audio 5.1CH PCM/DTS/Dolby [DIP]=1110: HDMI 1080p@60Hz, Audio 7.1CH PCM/DTS/Dolby/HD [DIP]=1111: HDMI EDID copy (EDID copied from HDMI output 2 display) NOTE: If the source selected is a VGA input the switcher will automatically output the best resolution possible. contact support@blustream.co.uk / support@blustream.com.au...
- Page 8 MFP72 USER MANUAL www.blustream.co.uk...
-
Page 9: Package Contents
Operating Temperature: 32°F to 104°F (0°C to 40°C) Storage Temperature : -4°F to 140°F (-20°C to 60°C) Power Supply: DC 5V/2A Package Contents: • 1x MFP72 • 1x 5V/2A power supply • 1x Remote control • 1x IR Receiver •... -
Page 10: Rs232 And Telnet Commands
MFP72 USER MANUAL RS-232 Pin Assignment RS232 and Telnet Commands MFP72 REMOTE CONTROL CONSOLE Command Action Print Help Information Assignment Assignment HELP Print Help Information STATUS Print System Status And Port Status Power On, System Run On Normal State POFF... - Page 11 www.blustream.com.au...
