- Page 1 MFP62 User Manual RevA1 MFP62 User Manual...
-
Page 2: Table Of Contents
MFP62 USER MANUAL Contents Thank you for purchasing Introduction this product. Features For optimum performance and safety, please read these instructions carefully before connecting, operating or Panel Descriptions adjusting this product. Please keep this manual for future reference. Microphone Input & Audio Mixing... -
Page 3: Introduction

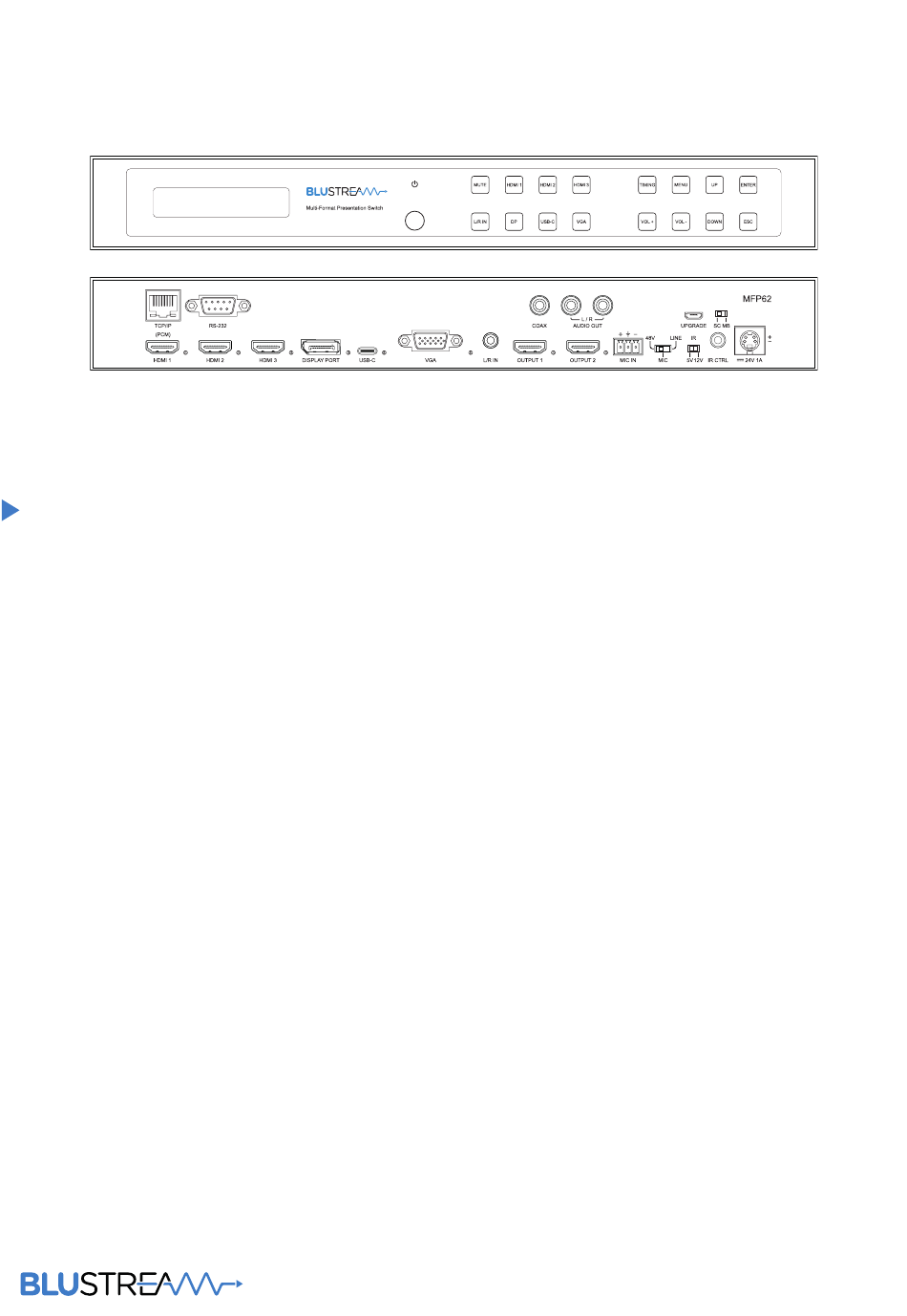

Our MFP62 is an advanced 4K multi format presentation switch featuring 3 x HDMI, 1 x USB-C, 1 x DisplayPort™ and 1 x VGA input to dual HDMI outputs. The MFP62 provides enhanced features including video scaling on outputs, MIC input with phantom power and audio mixing. - Page 4 MFP62 USER MANUAL Panel Description - Front LCD display – Shows the status of input/output selection, Up selection button – Press to change segment’s value EDID etc Enter button – Press to select current menu item. Power button – Press to power on/off the Switcher.
-
Page 5: Microphone Input & Audio Mixing
It also features auto audio ducking where by the input source’s audio decreases in volume and the microphone audio is mixed over the top. This feature is enabled by default and can be customised via the MFP62’s web GUI or RS- 232. -
Page 6: Edid Control
EDID hand shaking. Configuration of switcher’s EDID settings can be achieved using the Menu button on the front panel of the MFP62, RS-232 or via its Web GUI. -
Page 7: Infrared (Ir) Distribution
IMPORTANT: Blustream Infrared products are all 5V and NOT compatible with alternative manufacturers Infrared solutions. When using third party 12V IR control solutions please use Blustream IRCAB cable for IR conversion. Each Blustream product is supplied with all necessary IR hardware required and includes: IR Emitter - IRE1 &... -
Page 8: Remote Control
EDID Setup The MFP62 provides a comprehensive range of EDID settings. To deploy the desired EDID setting when using the supplied remote, simply select the button correspnding to the desired video resolution. Note that audio format will default to 2ch PCM via the remote control. -
Page 9: Rs-232 Control Port
USER MANUAL RS-232 Control Port The MFP62 can be controlled via a 3-pin Phoenix to serial RS-232 cable (supplied). All RS-232 commands must be terminated with a carriage return <CR> or \r. The communication settings and commands are as follows:... - Page 10 MFP62 USER MANUAL RS-232 COMMAND DESCRIPTION Set Input xx EDID Copy From Output yy EDID xx CP yy EDID xx DF zz Set Input xx EDID To Default EDID zz (EDID Dip Switch Must Be Switched To EDID Software) xx=00: Select All INPUT Port xx=[01...06]: Select One INPUT Port...
-
Page 11: Specification
Power Supply: 24V/1A DC NOTE: Specifications are subject to change without notice. Weights and dimensions are approximate. Package Contents MFP62 • 1 x MFP62 • 1 x Remote Control • 1 x 24V/1A DC Power Supply • 1 x Rack Mounting Kit •... -
Page 12: Schematic
MFP62 USER MANUAL Schematic www.blustream.com.au www.blustream.co.uk... -
Page 13: Installer Notes
MFP62 USER MANUAL Installer Notes: contact support@blustream.com.au support@blustream.co.uk... - Page 14 www.blustream.com.au...
