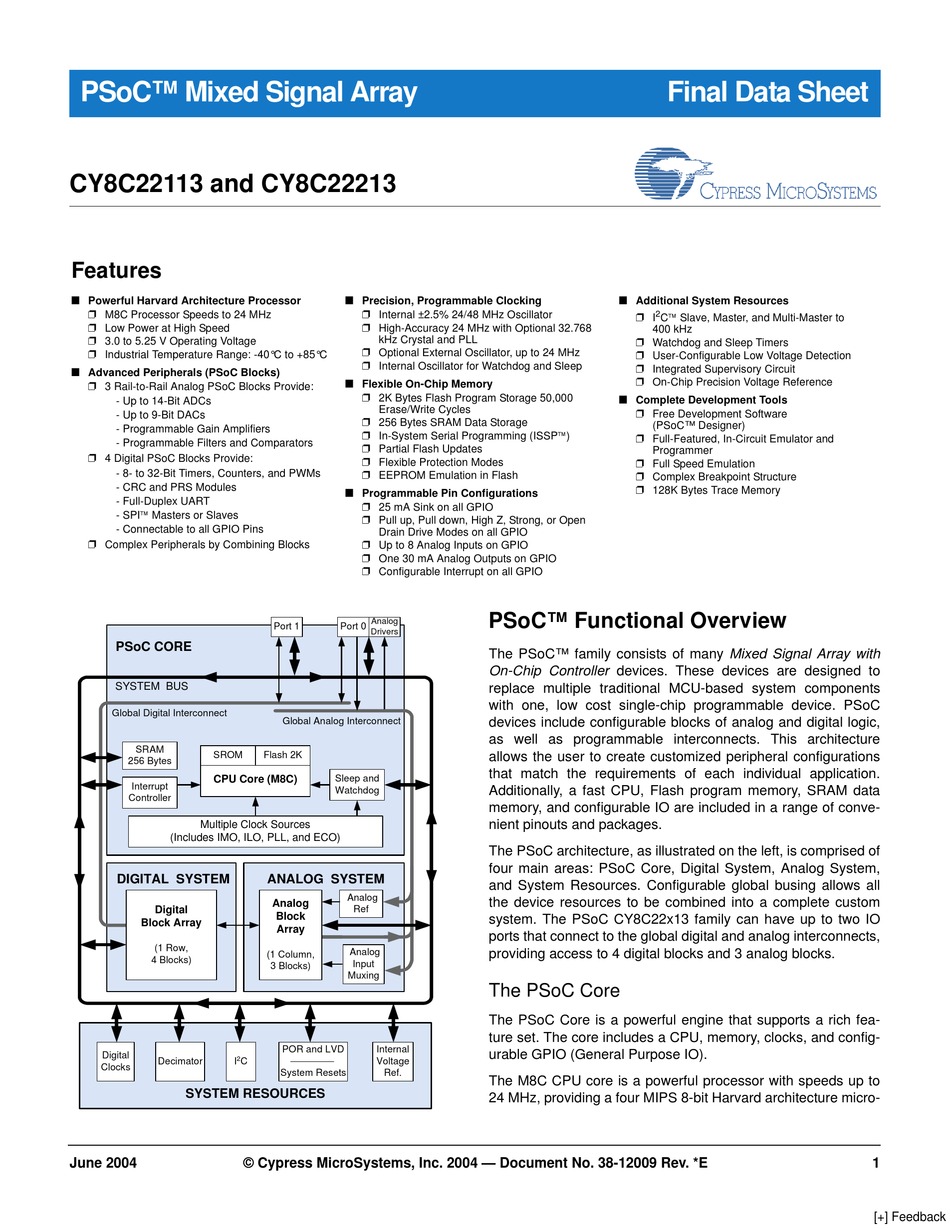

PSoC™ Mixed Signal Array
CY8C22113 and CY8C22213
Features
■ Powerful Harvard Architecture Processor
❐ M8C Processor Speeds to 24 MHz
❐ Low Power at High Speed
❐ 3.0 to 5.25 V Operating Voltage
❐ Industrial Temperature Range: -40°C to +85°C
■ Advanced Peripherals (PSoC Blocks)
❐ 3 Rail-to-Rail Analog PSoC Blocks Provide:
- Up to 14-Bit ADCs
- Up to 9-Bit DACs
- Programmable Gain Amplifiers
- Programmable Filters and Comparators
❐ 4 Digital PSoC Blocks Provide:
- 8- to 32-Bit Timers, Counters, and PWMs
- CRC and PRS Modules
- Full-Duplex UART
- SPI Masters or Slaves
- Connectable to all GPIO Pins
❐ Complex Peripherals by Combining Blocks
PSoC CORE
SYSTEM BUS
Global Digital Interconnect
SRAM
SROM
256 Bytes
CPU Core (M8C)
Interrupt
Controller
Multiple Clock Sources
(Includes IMO, ILO, PLL, and ECO)
DIGITAL SYSTEM
Digital
Block Array
(1 Row,
4 Blocks)
Digital
Decimator
I
2
C
Clocks
SYSTEM RESOURCES
June 2004
© Cypress MicroSystems, Inc. 2004 — Document No. 38-12009 Rev. *E
■ Precision, Programmable Clocking
❐ Internal ±2.5% 24/48 MHz Oscillator
❐ High-Accuracy 24 MHz with Optional 32.768
kHz Crystal and PLL
❐ Optional External Oscillator, up to 24 MHz
❐ Internal Oscillator for Watchdog and Sleep
■ Flexible On-Chip Memory
❐ 2K Bytes Flash Program Storage 50,000
Erase/Write Cycles
❐ 256 Bytes SRAM Data Storage
❐ In-System Serial Programming (ISSP)
❐ Partial Flash Updates
❐ Flexible Protection Modes
❐ EEPROM Emulation in Flash
■ Programmable Pin Configurations
❐ 25 mA Sink on all GPIO
❐ Pull up, Pull down, High Z, Strong, or Open
Drain Drive Modes on all GPIO
❐ Up to 8 Analog Inputs on GPIO
❐ One 30 mA Analog Outputs on GPIO
❐ Configurable Interrupt on all GPIO
Analog
Port 1
Port 0
Drivers
Global Analog Interconnect
Flash 2K
Sleep and
Watchdog
ANALOG SYSTEM
Analog
Analog
Ref
Block
Array
Analog
(1 Column,
Input
3 Blocks)
Muxing
POR and LVD
Internal
Voltage
System Resets
Ref.
Final Data Sheet
■ Additional System Resources
❐ I
2
C Slave, Master, and Multi-Master to
400 kHz
❐ Watchdog and Sleep Timers
❐ User-Configurable Low Voltage Detection
❐ Integrated Supervisory Circuit
❐ On-Chip Precision Voltage Reference
■ Complete Development Tools
❐ Free Development Software
(PSoC™ Designer)
❐ Full-Featured, In-Circuit Emulator and
Programmer
❐ Full Speed Emulation
❐ Complex Breakpoint Structure
❐ 128K Bytes Trace Memory
PSoC™ Functional Overview
The PSoC™ family consists of many Mixed Signal Array with
On-Chip Controller devices. These devices are designed to
replace multiple traditional MCU-based system components
with one, low cost single-chip programmable device. PSoC
devices include configurable blocks of analog and digital logic,
as well as programmable interconnects. This architecture
allows the user to create customized peripheral configurations
that match the requirements of each individual application.
Additionally, a fast CPU, Flash program memory, SRAM data
memory, and configurable IO are included in a range of conve-
nient pinouts and packages.
The PSoC architecture, as illustrated on the left, is comprised of
four main areas: PSoC Core, Digital System, Analog System,
and System Resources. Configurable global busing allows all
the device resources to be combined into a complete custom
system. The PSoC CY8C22x13 family can have up to two IO
ports that connect to the global digital and analog interconnects,
providing access to 4 digital blocks and 3 analog blocks.
The PSoC Core
The PSoC Core is a powerful engine that supports a rich fea-
ture set. The core includes a CPU, memory, clocks, and config-
urable GPIO (General Purpose IO).
The M8C CPU core is a powerful processor with speeds up to
24 MHz, providing a four MIPS 8-bit Harvard architecture micro-
1
