BUSCH MINK MV 0310 B Instruction Manual

Claw vacuum pumps
Hide thumbs Also See for MINK MV 0310 B:

Advertisement

Quick Links

MINK
Claw Vacuum Pumps
MV 0310 B
Instruction Manual
2000207685 | -_en-US | Original instructions
6/27/2024

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MINK MV 0310 B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for BUSCH MINK MV 0310 B

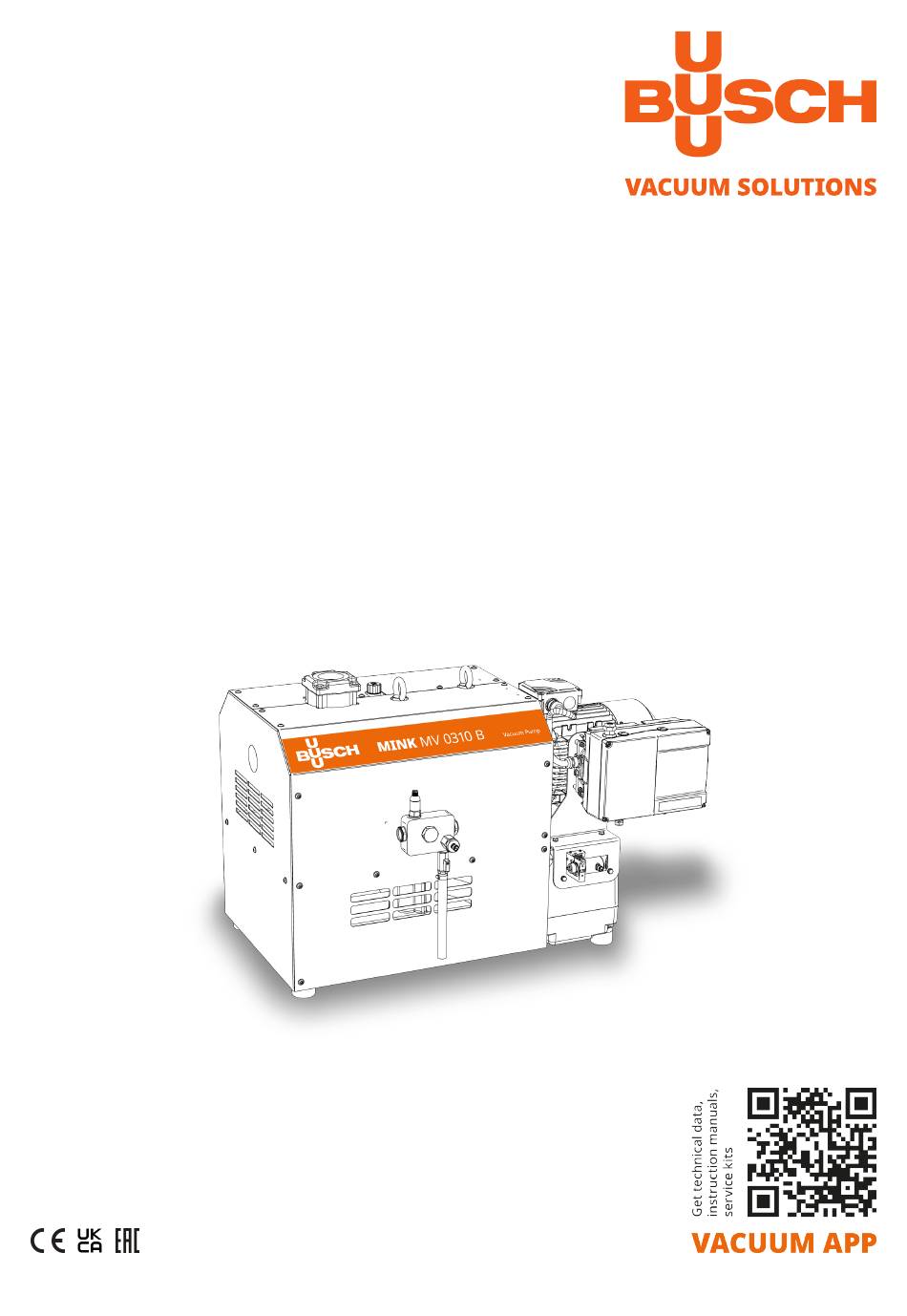

  • Page 1 MINK Claw Vacuum Pumps MV 0310 B Instruction Manual 2000207685 | -_en-US | Original instructions 6/27/2024...
  • Page 2: Table Of Contents

    Oil Change................................Overhaul ................................Decommissioning ..............................10.1 Dismantling and Disposal ..........................Spare Parts ................................Troubleshooting ..............................Technical Data ..............................Oil ................................... EU Declaration of Conformity ..........................UK Declaration of Conformity..........................2 | 36 Instruction Manual MINK MV 0310 B AMAZON_EN_en...
  • Page 3: Safety

    Safety Prior to handling the machine, this instruction manual should be read and understood. If anything needs to be clarified, please contact your Busch representative. Read this manual carefully before use and keep for future reference. This instruction manual remains valid as long as the customer does not change anything on the product.
  • Page 4: Product Description

    In this instruction manual, we consider that the term ‘machine’ refers to the ‘vacuum pump’. NOTE Illustrations. In this instruction manual, the illustrations may differ from the appearance of the machine. 4 | 36 Instruction Manual MINK MV 0310 B AMAZON_EN_en...
  • Page 5: Operating Principle

    Busch. The machine is intended for the placement in a non-potentially explosive environment. The machine is designed for indoor installations. For outdoor installations, consult your Busch repre- sentative for special precautions. The machine is not capable of maintaining ultimate pressure.
  • Page 6: Standard Features

    Optional Accessories 2.4.1 Inlet Filter The inlet filter protects the machine against dust and other solids in the process gas. The inlet filter is available with a paper or polyester cartridge. 6 | 36 Instruction Manual MINK MV 0310 B AMAZON_EN_en...
  • Page 7: Transport

    Description Use both transport eye bolts! ● Check the machine for transport damage. If the machine is secured to a base plate: ● Remove the machine from the base plate. Instruction Manual MINK MV 0310 B AMAZON_EN_en 7 | 36...
  • Page 8: Storage

    ● Wrap the machine in a corrosion inhibitor film. ● Store the machine indoors, in a dry place, away from dust and vibrations and if possible, in original packaging, preferably at temperatures between 0 ... 40 °C. 8 | 36 Instruction Manual MINK MV 0310 B AMAZON_EN_en...
  • Page 9: Installation

    ● Make sure that all provided covers, guards, hoods, etc. are mounted. If the machine is installed at an altitude greater than 1000 meters above sea level: ● Contact your Busch representative, the motor must be derated or the ambient temperature limited.
  • Page 10: Connecting Lines / Pipes

    . ● Busch recommends the use of the optional horizontal inlet filter and the water separator to col- lect the condensate and prevent it from flowing into the machine 5.2.1...
  • Page 11: Discharge Connection

    Risk of premature failure! Loss of efficiency! ● Only use an oil type which has previously been approved and recommended by Busch. For oil type and oil capacity see Technical Data [➔ 29] and Oil [➔ 30]. The oil level should stay constant over the lifetime of the oil. If the level does fall, this indicates a leak and the machine requires repair.
  • Page 12: Electrical Connection

    ● Make sure that the motor of the machine will not be affected by electric or electromagnetic dis- turbance from the mains. If necessary, contact your Busch representative for more information. ● Make sure that the EMC of the machine is compliant with the requirements of your supply net- work system, if necessary, provide further interference suppression (EMC of the machine, see EU Declaration of Conformity [➔ 31] or UK Declaration of Conformity [➔ 32]).
  • Page 13 Electrical Connection​ | 6 Delta connection (low voltage): Star connection (high voltage): Double star connection, multi-voltage motor with 9 pins (low voltage): Star connection, multi-voltage motor with 9 pins (high voltage): Instruction Manual MINK MV 0310 B AMAZON_EN_en 13 | 36...
  • Page 14: Wiring Diagram Variable Speed Drive (Vsd)

    The 5,5 kW KOSTAL Variable Speed Drive is equipped with an LQ quick release circular power connector type XTEC-15M to connect power supply to it without having to open up the Vari- able Speed Drive’s cover. The female counter part to this connector is not in Busch scope of supply along with the machine.
  • Page 15 Electrical Connection​ | 6 Instruction Manual MINK MV 0310 B AMAZON_EN_en 15 | 36...
  • Page 16: Electrical Connection Of The Monitoring Devices

    Connector: 1 x M12; 4-pin Protection: IP66 / IP67 and IP69 (NEMA type 6P) Switching voltage: <34 V DC 1 = Brown; 2 = White; 3 = Blue; 4 = Black/IO-Link 16 | 36 Instruction Manual MINK MV 0310 B AMAZON_EN_en...
  • Page 17: Wiring Diagram Resistance Thermometer

    Connector: 1 x M12; coding: A; Contacts: gold-plated Protection: IP 67 Ex-work trip signal: T : 115 °C trip 1 = Brown; 2 = White; 3 = Blue; 4 = Black Instruction Manual MINK MV 0310 B AMAZON_EN_en 17 | 36...
  • Page 18: Commissioning

    ● Maximum permissible number of starts by using the digital signal: unlimited As soon as the machine is operated under normal operating conditions: ● Measure the motor current and record it as reference for future maintenance and trouble- shooting work. 18 | 36 Instruction Manual MINK MV 0310 B AMAZON_EN_en...
  • Page 19: Parameter Settings For Variable Speed Drive (Vsd)

    Aqua version is able to convey up to 100% saturated water vapor. The conveyance of other vapors than water vapor shall be agreed upon with Busch. ● Make sure that any condensate from the suction side will not enter the non-operating machine.
  • Page 20: Maintenance

    Risk of injuries! Risk of premature failure and loss of efficiency! ● Maintenance work must only be executed by qualified personnel. ● Respect the maintenance intervals or ask your Busch representative for service. NOTICE Using inappropriate cleaners. Risk of removing safety stickers and protective paint! ●...
  • Page 21: Maintenance Schedule

    5000 operating hours. Other oils may reduce the change interval. Every 40000 hours or after 6 years ● Have a major overhaul on the machine (contact Busch). Oil Level Inspection ● Stop the machine.
  • Page 22: Cleaning From Dust And Dirt

    Oil Change NOTICE Use of an inappropriate oil. Risk of premature failure! Loss of efficiency! ● Only use an oil type which has previously been approved and recommended by Busch. 22 | 36 Instruction Manual MINK MV 0310 B AMAZON_EN_en...
  • Page 23 For oil type and oil capacity see Technical Data [➔ 29] and Oil [➔ 30]. The oil level should stay constant over the lifetime of the oil. If the level does fall, this indicates a leak and the machine requires repair. Instruction Manual MINK MV 0310 B AMAZON_EN_en 23 | 36...
  • Page 24: Overhaul

    ● Decontaminate the machine as much as possible and state the contamination status in a ‘Declaration of Contamination’. Busch will only accept machine accompanied by a signed, fully completed and legally binding "decla- ration of contamination", downloadable from the following link: buschvacuum.com/declaration-of- contamination.
  • Page 25: Decommissioning

    ● Make sure that no oil drips onto the floor. ● Separate special waste from the machine. ● Dispose of special waste in compliance with applicable regulations. ● Dispose of the machine as scrap metal. Instruction Manual MINK MV 0310 B AMAZON_EN_en 25 | 36...
  • Page 26: Spare Parts

    NOTICE Use of non-Busch original spare parts. Risk of premature failure! Loss of efficiency! ● Use only original Busch spare parts, consumables and supplies to ensure correct operation of the machine and to validate the warranty. Spare part Description Part no.
  • Page 27: Troubleshooting

    The motor or the variable ● Replace the motor or the speed drive (VSD) is defective. variable speed drive (VSD). The coupling (CPL) is defective. ● Replace the coupling (CPL). Instruction Manual MINK MV 0310 B AMAZON_EN_en 27 | 36...
  • Page 28 Tech- nical Data [➔ 29]. Oil level too low. ● Top up oil. For resolution of problems not listed in the troubleshooting table, please contact your Busch repre- sentative. 28 | 36 Instruction Manual MINK MV 0310 B AMAZON_EN_en...
  • Page 29: Technical Data

    Dimensions (L x W x H) 970 x 575 x 650 inches 39 x 23 x 26 * In case of higher or lower temperatures, please consult your Busch representative. Instruction Manual MINK MV 0310 B AMAZON_EN_en 29 | 36...
  • Page 30: Oil

    0831 164 884 To find out which oil needs to be filled into the machine, please refer to the nameplate (NP). Oil suitability ● Oil VS 150: Suitable for standard applications. 30 | 36 Instruction Manual MINK MV 0310 B AMAZON_EN_en...
  • Page 31: Eu Declaration Of Conformity

    EU Declaration of Conformity This Declaration of Conformity and the CE-markings affixed to the nameplate are valid for the machine within the Busch scope of delivery. This Decla- ration of Conformity is issued under the sole responsibility of the manufacturer.
  • Page 32: Uk Declaration Of Conformity

    UK Declaration of Conformity This Declaration of Conformity and the UKCA-markings affixed to the nameplate are valid for the machine within the Busch scope of delivery. This Dec- laration of Conformity is issued under the sole responsibility of the manufacturer.
  • Page 33 ​ N otes Notes Instruction Manual MINK MV 0310 B AMAZON_EN_en 33 | 36...
  • Page 34 Notes 34 | 36 Instruction Manual MINK MV 0310 B AMAZON_EN_en...
  • Page 35 Notes Instruction Manual MINK MV 0310 B AMAZON_EN_en 35 | 36...
  • Page 36 With a network of over 60 companies in more than 40 countries and agencies worldwide, Busch has a global presence. In every country, highly competent local personnel delivers custom-tailored support backed by a global network of expertise. Wherever you are.
