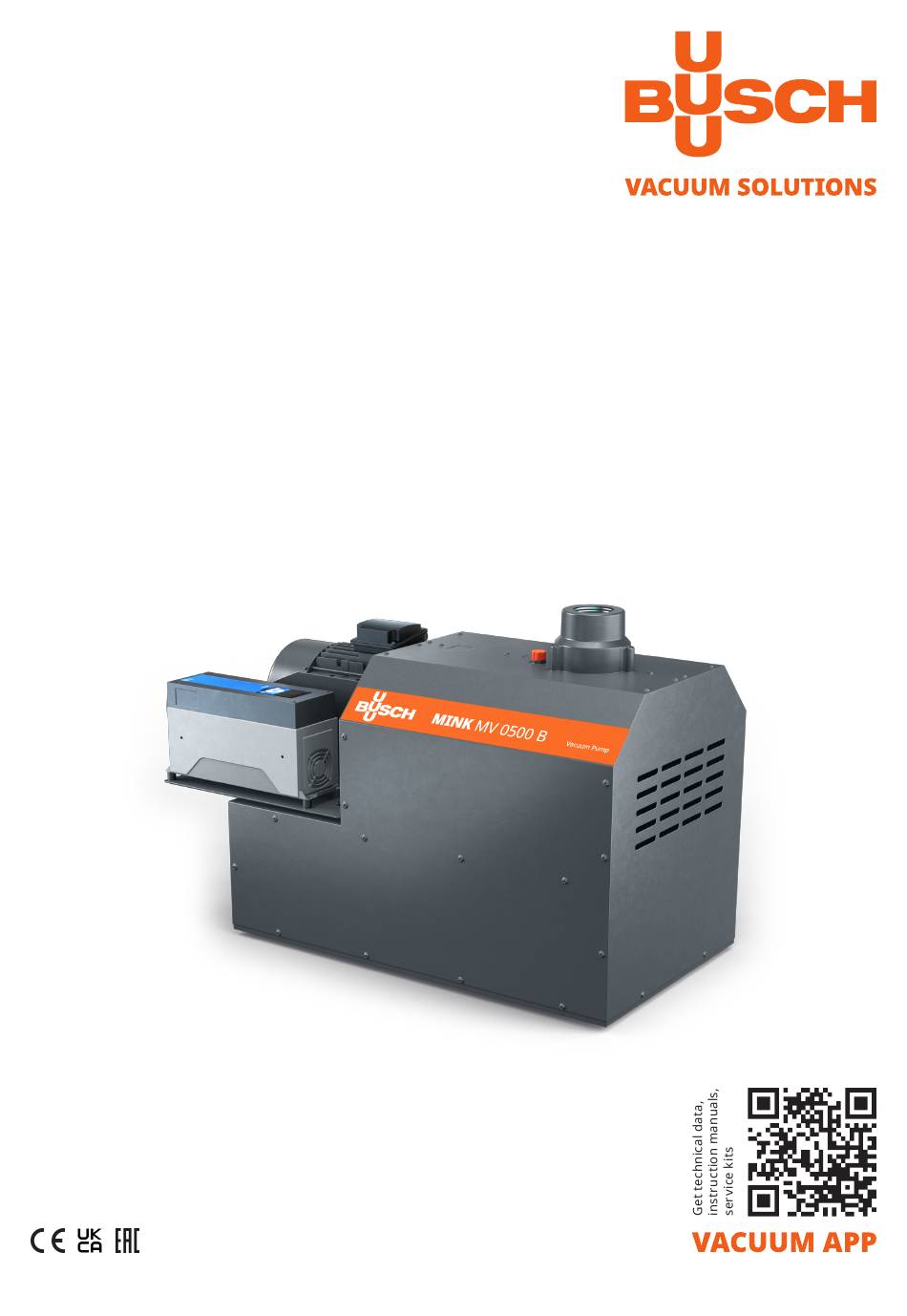

- Page 1 MINK Claw Vacuum Pumps MV 0500 B, MV 0600 B Instruction Manual 0870168621 | A0003_en-US | Original instructions 1/25/2023...
-
Page 2: Table Of Contents
Cleaning from Dust and Dirt..........................Oil Change................................Overhaul................................Decommissioning..............................10.1 Dismantling and Disposal ..........................Spare Parts................................Troubleshooting..............................Technical Data ..............................Oil ................................... EU Declaration of Conformity..........................UK Declaration of Conformity ..........................2 | 40 Instruction Manual MINK MV 0500-0600 B_EN_en... -
Page 3: Safety
Safety Prior to handling the machine, this instruction manual should be read and understood. If anything needs to be clarified, please contact your Busch representative. Read this manual carefully before use and keep for future reference. This instruction manual remains valid as long as the customer does not change anything on the product. -
Page 4: Product Description
Discharge connection Oil fill plug (=Venting valve) Oil drain plug Cooling ait inlet Cooling air outlet Oil sight glass Non-return-valve (integrated) Motor terminal box Variable speed drive Eye bolt Directional arrow Nameplate 4 | 40 Instruction Manual MINK MV 0500-0600 B_EN_en... - Page 5 Technical term. In this instruction manual, we consider that the term ‘machine’ refers to the ‘vacuum pump’. NOTE Illustrations In this instruction manual, the illustrations may differ from the machine appearance. Instruction Manual MINK MV 0500-0600 B_EN_en 5 | 40...
-
Page 6: Operating Principle
Busch. The machine is intended for the placement in a non-potentially explosive environment. The machine is designed for indoor installation, in case of outdoor installation, ask your Busch rep- resentative in order to take specific precautions. -
Page 7: Standard Features
Optional Accessories 2.4.1 Inlet Filter The inlet filter protects the machine against dust and other solids in the process gas. The inlet filter is available with a paper or polyester cartridge. Instruction Manual MINK MV 0500-0600 B_EN_en 7 | 40... -
Page 8: Transport
● Make sure that the eye bolt(s) (EB) is/are in faultless condition, fully screwed in and tightened by hand. Description Use both eye bolts! ● Check the machine for transport damage. If the machine is secured to a base plate: ● Remove the machine from the base plate. 8 | 40 Instruction Manual MINK MV 0500-0600 B_EN_en... -
Page 9: Storage
● Wrap the machine in a corrosion inhibiting film. ● Store the machine indoors, dry, dust free and if possible in original packaging preferably at temperatures between 0 ... 40 °C. Instruction Manual MINK MV 0500-0600 B_EN_en 9 | 40... -
Page 10: Installation
● Make sure that all provided covers, guards, hoods, etc. are mounted. If the machine is installed at an altitude greater than 1000 meters above sea level: ● Contact your Busch representative, the motor should be derated or the ambient temperature limited. -
Page 11: Connecting Lines / Pipes
● Busch recommends the use of the optional horizontal inlet filter and the water separator to col- lect the condensate and prevent it from flowing into the pump. -
Page 12: Discharge Connection
Risk of premature failure! Loss of efficiency! ● Only use an oil type which has previously been approved and recommended by Busch. For oil type and oil capacity see Technical Data [➔ 35] and Oil [➔ 36]. The oil level should stay constant over the lifetime of the oil. If the level does fall, this indicates a leak and the machine requires repair. -
Page 13: Electrical Connection
● If the machine is equipped with a power connector, install a residual current protective device to protect persons in case of isolation default. ● Busch recommends installing a type B residual protective device suitable for the electrical in- stallation. -
Page 14: Wiring Diagram Three-Phase Motor
● Switch any two of the motor phase wires. Delta connection (low voltage): Star connection (high voltage): Double star connection, multi-voltage motor Star connection, multi-voltage motor with 9 with 9 pins (low voltage): pins (high voltage): 14 | 40 Instruction Manual MINK MV 0500-0600 B_EN_en... -
Page 15: Wiring Diagram Variable Speed Drive (Vsd)
● Connect the additional protective earth conductor (PE2). Use at least the same cross section as for PE. Installation requirement for protection class IP54: The cable and gasket must be secured against shifting. ● Use cable-tie or insulation-tape to secure the cable and gasket from shifting. Instruction Manual MINK MV 0500-0600 B_EN_en 15 | 40... -
Page 16: Commissioning
● Maximum permissible number of starts by using the digital signal: unlimited As soon as the machine is operated under normal operating conditions: ● Measure the motor current and record it as reference for future maintenance and trouble- shooting work. 16 | 40 Instruction Manual MINK MV 0500-0600 B_EN_en... -
Page 17: Variable Speed Drive Overview
Reset faults with long press Change control place; Access control Mover cursor left page; Change direction Move cursor right Start button Scroll menu down; decrease value Stop button Enter active level/item; Confirm selec- tion Instruction Manual MINK MV 0500-0600 B_EN_en 17 | 40... - Page 18 Status field STOP/RUN Direction Status field ALARM READY/NOT READY/FAULT Control place: Location field PC/I0/KEYPAD/FIELDBUS (Parameter ID number and current menu lacation) Activated group/item Number of items in the group Press OK to enter 18 | 40 Instruction Manual MINK MV 0500-0600 B_EN_en...
-
Page 19: Overview I/0 Connection
Commissioning | 7 7.1.1 Overview I/0 Connection * Selectable signals via DIP-Switch between voltage and current Instruction Manual MINK MV 0500-0600 B_EN_en 19 | 40... - Page 20 I/O terminal signals for relay and thermistor terminals and connection example. From Relays and thermistor standard I/O Terminal Signal From term. From term. Description Relay output 1 Relay output 2 Thermistor input 20 | 40 Instruction Manual MINK MV 0500-0600 B_EN_en...
-
Page 21: Dip-Switch
0 = Connection resistance 120 Ohm is connected 1 = Pull-Up and Pull-Down resistance of 10k Ohm for bias voltage is connected 2 = No timing settings and no bias voltage resistance are connect- Instruction Manual MINK MV 0500-0600 B_EN_en 21 | 40... -
Page 22: Speed Control
Risk of damage to the machine! ● Check the Technical Data [➔ 35] for permitted motor speed range. ● Make sure to comply with it. Change Values Range of settings: 20 Hz … 60 Hz 22 | 40 Instruction Manual MINK MV 0500-0600 B_EN_en... -
Page 23: Pressure Control
– MV 0600 B - T434215939 Piping and Instrumentation Diagram Process PSA1 process (included) PSA2 inlet gas VFD* *also termed VSD Description Non-return valve Pressure transmitter 1 Pressure transmitter 2 Variable-frequency drive Motor Coupling Discharge connection Instruction Manual MINK MV 0500-0600 B_EN_en 23 | 40... - Page 24 7 | Commissioning Change Values 24 | 40 Instruction Manual MINK MV 0500-0600 B_EN_en...
-
Page 25: Conveying Condensable Vapors
Aqua version is able to convey up to 100% saturated water vapor. The conveyance of other vapors than water vapor shall be agreed upon with Busch. ● Make sure that any condensate from the suction side will not enter the non-operating machine. -
Page 26: Maintenance
Risk of injuries! Risk of premature failure and loss of efficiency! ● Maintenance work must only be executed by qualified personnel. ● Respect the maintenance intervals or ask your Busch representative for service. NOTICE Using inappropriate cleaners. Risk of removing safety stickers and protective paint! ●... -
Page 27: Maintenance Schedule
5000 operating hours. Other oils may reduce the change interval. Every 6 years ● Have a major overhaul on the machine (contact Busch). Oil Level Inspection ● Shut down the machine. ● When the machine is stopped, wait 1 minute before checking the oil level. -
Page 28: Cleaning From Dust And Dirt
Oil Change NOTICE Use of an inappropriate oil. Risk of premature failure! Loss of efficiency! ● Only use an oil type which has previously been approved and recommended by Busch. 28 | 40 Instruction Manual MINK MV 0500-0600 B_EN_en... - Page 29 For oil type and oil capacity see Technical Data [➔ 35] and Oil [➔ 36]. The oil level should stay constant over the lifetime of the oil. If the level does fall, this indicates a leak and the machine requires repair. Instruction Manual MINK MV 0500-0600 B_EN_en 29 | 40...
-
Page 30: Overhaul
● Decontaminate the machine as much as possible and state the contamination status in a ‘Dec- laration of Contamination’. Busch will only accept machines that come with a completely filled in and legally binding signed ‘Declaration of Contamination’ (form downloadable from www.buschvacuum.com). -
Page 31: Decommissioning
● Make sure that no oil drips onto the floor. ● Separate special waste from the machine. ● Dispose of special waste in compliance with applicable regulations. ● Dispose of the machine as scrap metal. Instruction Manual MINK MV 0500-0600 B_EN_en 31 | 40... -
Page 32: Spare Parts
Use of non-Busch genuine spare parts. Risk of premature failure! Loss of efficiency! ● The exclusive use of Busch genuine spare parts and consumables is recommended for the correct functioning of the machine and to validate the warranty. Spare part Description Part no. -
Page 33: Troubleshooting
The motor or the variable ● Replace the motor or the speed drive (VSD) is defective. variable speed drive (VSD). The coupling (CPL) is defective. ● Replace the coupling (CPL). Instruction Manual MINK MV 0500-0600 B_EN_en 33 | 40... - Page 34 Tech- nical Data [➔ 35]. Oil level too low. ● Top up oil. For resolution of problems not listed in the troubleshooting table, please contact your Busch repre- sentative. 34 | 40 Instruction Manual MINK MV 0500-0600 B_EN_en...
-
Page 35: Technical Data
Supply network: TN- and TT-network (cannot be used with corner grounded networks) Immunity: EN 61800-3, 1st and 2nd environment Emissions: EN 61800-3, category C2 as standard * In case of higher or lower temperatures, please consult your Busch representative. Instruction Manual MINK MV 0500-0600 B_EN_en 35 | 40... -
Page 36: Oil
90°C; 12 = Suitable for Harsh application; 13 = Standard application up to 80°C To know which oil has been filled in the machine, please refer to the nameplate (NP). 36 | 40 Instruction Manual MINK MV 0500-0600 B_EN_en... -
Page 37: Eu Declaration Of Conformity
EU Declaration of Conformity This Declaration of Conformity and the CE-markings affixed to the nameplate are valid for the machine within the Busch scope of delivery. This Decla- ration of Conformity is issued under the sole responsibility of the manufacturer. -
Page 38: Uk Declaration Of Conformity
UK Declaration of Conformity This Declaration of Conformity and the UKCA-markings affixed to the nameplate are valid for the machine within the Busch scope of delivery. This Dec- laration of Conformity is issued under the sole responsibility of the manufacturer. - Page 39 N otes Notes Instruction Manual MINK MV 0500-0600 B_EN_en 39 | 40...
- Page 40 With a network of over 60 companies in more than 40 countries and agencies worldwide, Busch has a global presence. In every country, highly competent local personnel delivers custom-tailored support backed by a global network of expertise. Wherever you are.
