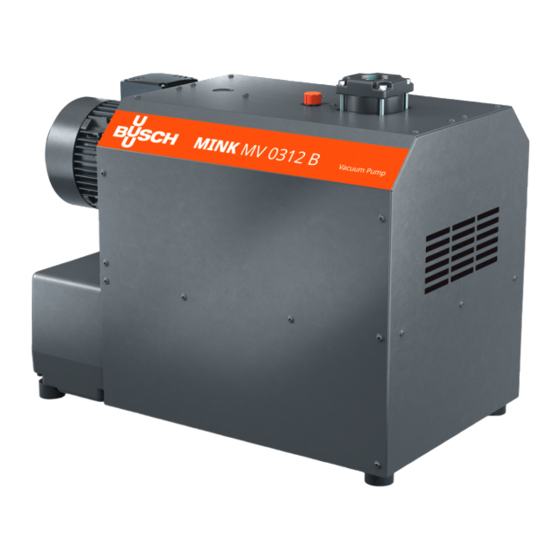

BUSCH MINK MV 0312 B Instruction Manual

BUSCH MINK MV 0312 B Instruction Manual

Claw vacuum pumps
Hide thumbs Also See for MINK MV 0312 B:

Advertisement

Instruction Manual
MINK
Claw Vacuum Pumps
MV 0312 B
0870166451/B0004_en / Original instructions / Modifications reserved
22/06/2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MINK MV 0312 B and is the answer not in the manual?

Questions and answers

Summary of Contents for BUSCH MINK MV 0312 B

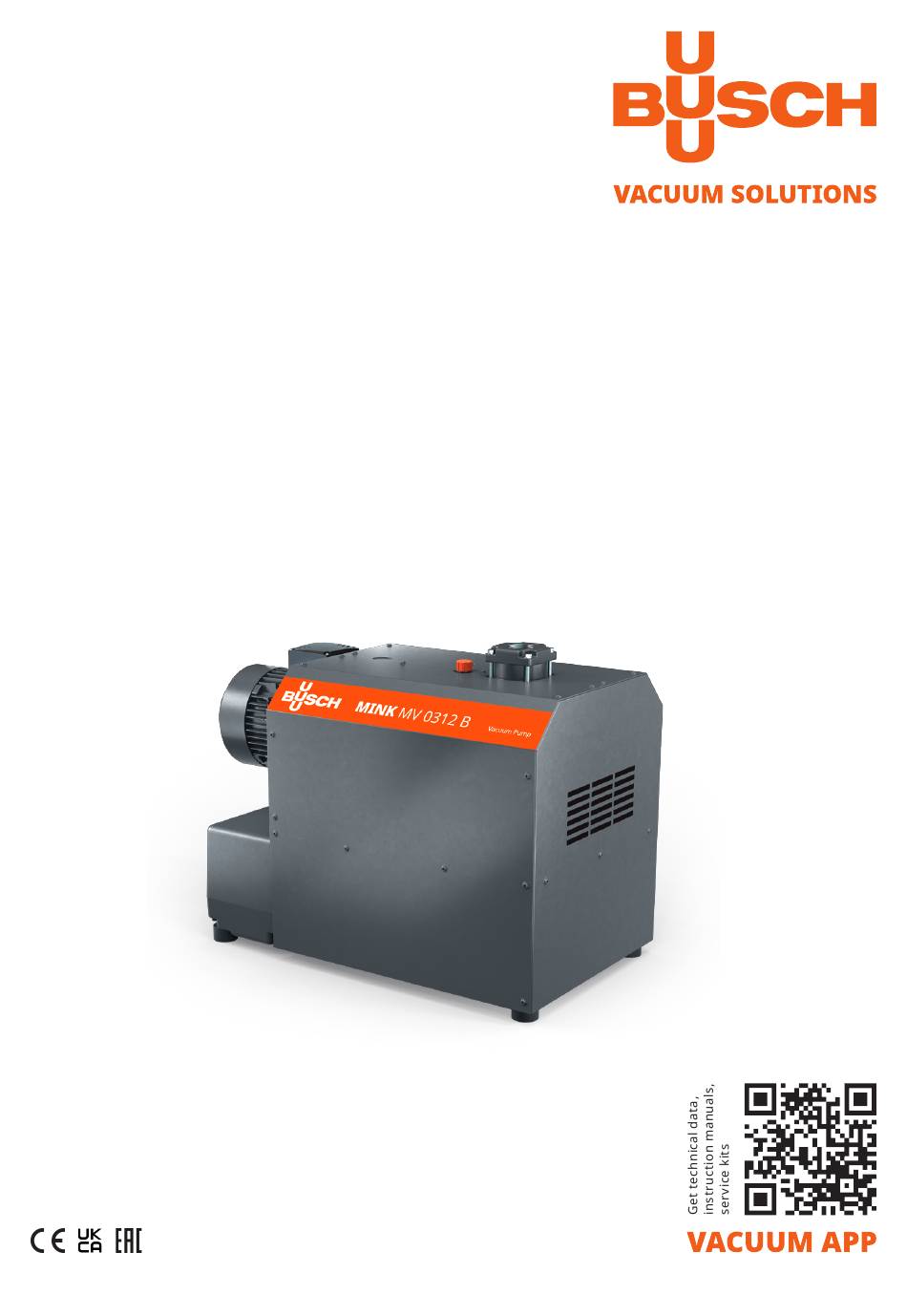

  • Page 1 Instruction Manual MINK Claw Vacuum Pumps MV 0312 B 0870166451/B0004_en / Original instructions / Modifications reserved 22/06/2021...
  • Page 2: Table Of Contents

    Table of Contents Table of Contents 1 Safety ............................3 2 Product Description.......................4 2.1 Operating Principle......................5 2.2 Application........................5 2.3 Start Controls ........................5 2.4 Standard Features ......................5 2.4.1 Vacuum Relief Valve .................... 5 2.5 Optional Accessories ...................... 6 2.5.1 Inlet Filter......................
  • Page 3: Safety

    Safety Prior to handling the machine, this instruction manual should be read and understood. If anything needs to be clarified, please contact your Busch representative. Read this manual carefully before use and keep for future reference. This instruction manual remains valid as long as the customer does not change any- thing on the product.
  • Page 4: Product Description

    2 | Product Description Product Description Suction connection Oil drain plug Discharge connection Cooling air inlet Oil fill plug (=Venting valve) Cooling air outlet Oil sight glass Nameplate Directional arrow NOTE Technical term. In this instruction manual, we consider that the term ‘machine’ refers to the ‘vacuum pump’.
  • Page 5: Operating Principle

    Conveying of other media leads to an increased thermal and/or mechanical load on the machine and is permissible only after a consultation with Busch. The machine is intended for the placement in a non-potentially explosive environment. The machine is not capable of maintaining ultimate pressure.
  • Page 6: Optional Accessories

    2 | Product Description 2.5 Optional Accessories 2.5.1 Inlet Filter The inlet filter protects the machine against dust and other solids in the process gas. The inlet filter is available with a paper or polyester cartridge. 6 / 24 0870166451_MV0312B_B0004_IM_en_MD...
  • Page 7: Transport

    Transport | 3 Transport WARNING Suspended load. Risk of severe injury! • Do not walk, stand or work under suspended loads. WARNING Lifting the machine using the motor eye bolt. Risk of severe injury! • Do not lift the machine using the eye bolt fitted to the motor. Only lift the machine as shown.
  • Page 8: Installation

    • Make sure that all provided covers, guards, hoods, etc. are mounted. If the machine is installed at an altitude greater than 1000 meters above sea level: • Contact your Busch representative, the motor should be derated or the ambient temperature limited.
  • Page 9: Connecting Lines / Pipes

    In case of long connection lines it is advisable to use larger line sizes in order to avoid a loss of efficiency. Seek advice from your Busch representative. 5.2.1 Suction Connection Connection size(s): –...
  • Page 10: Filling Oil

    Risk of premature failure! Loss of efficiency! • Only use an oil type which has previously been approved and recommended by Busch. For oil type and oil capacity see Technical Data [► 21] and Oil [► 21]. Check oil level The oil level should stay constant over the lifetime of the oil. If the level does fall, this indicates a leak and the machine requires repair.
  • Page 11: Electrical Connection

    • Busch recommends installing a D-curve circuit breaker. • Make sure that the motor of the machine will not be affected by electric or electro- magnetic disturbance from the mains; if necessary seek advice from Busch. • Connect the protective earth conductor.
  • Page 12: Commissioning

    6 | Commissioning Double star connection, multi-voltage Star connection, multi-voltage motor motor with 9 pins (low voltage): with 9 pins (high voltage): Commissioning NOTICE Lubricating a dry running machine (compression chamber). Risk of damage to the machine! • Do not lubricate the compression chamber of the machine with oil or grease. CAUTION During operation the surface of the machine may reach temperatures of more than 70°C.
  • Page 13: Conveying Condensable Vapours

    The machine in Aqua version is able to convey up to 100% saturated water va- pour. The conveyance of other vapours than water vapour shall be agreed upon with Busch. • Make sure that any condensate from the suction side will not enter the non-operat- ing machine.
  • Page 14: Maintenance Schedule

    Every 20000 hours • Change the oil. The change interval of 20000 operating hours is valid for Busch approved oils only. The change interval de- pends very much on the operating conditions. Border- line operation may reduce the change interval down to approximately 5000 operating hours.
  • Page 15 Maintenance | 7 7.3 Cleaning from Dust and Dirt 4 mm hex key Clean the ventilation grilles, cooling fins and inlet screen (IS) 0870166451_MV0312B_B0004_IM_en_MD 15 / 24...
  • Page 16: Oil Change

    Use of an inappropriate oil. Risk of premature failure! Loss of efficiency! • Only use an oil type which has previously been approved and recommended by Busch. Drain pan Cleaning cloth For oil type and oil capacity see Technical Data [► 21] and Oil [► 21].
  • Page 17: Overhaul

    • Decontaminate the machine as much as possible and state the contamination status in a ‘Declaration of Contamination’. Busch will only accept machines that come with a completely filled in and legally bind- ing signed ‘Declaration of Contamination’ (form downloadable from www.buschvacuum.com).
  • Page 18: Spare Parts

    Use of non-Busch genuine spare parts. Risk of premature failure! Loss of efficiency! • The exclusive use of Busch genuine spare parts and consumables is recommended for the correct functioning of the machine and to validate the warranty. Spare part Description Part no.
  • Page 19: Troubleshooting

    (VRE) is misadjusted or de- lief valve (VRE) fective. The inlet filter cartridge (op- • Replace the inlet filter tional) is partially clogged. cartridge. Internal parts are worn or • Repair the machine (con- damaged. tact Busch). 0870166451_MV0312B_B0004_IM_en_MD 19 / 24...
  • Page 20 (CPL). Oil level too low. • Top up oil. Defective bearings. • Repair the machine (con- tact Busch). The machine runs too hot. Insufficient cooling. • Remove dust and dirt from the machine. Ambient temperature too • Observe the permitted high.
  • Page 21: Technical Data

    Technical Data | 12 12 Technical Data MV 0312 B Nominal pumping speed (50Hz / 60Hz) m³/h 290 / 345 ACFM Ultimate pressure hPa (mbar) abs./ see nameplate (NP) Torr abs. Nominal motor rating (50Hz / 60Hz) 5.5 / 6.5 Nominal motor speed (50Hz / 60Hz) 3000 / 3600 Permitted motor speed range...
  • Page 22: Eu Declaration Of Conformity

    This Declaration of Conformity and the CE-mark affixed to the nameplate are valid for the machine within the Busch scope of delivery. This Declaration of Conformity is issued under the sole responsibility of the manufacturer. When this machine is integrated into a superordinate machinery the manufacturer of the superordinate machinery (this can be the operating company, too) must conduct the conformity assessment process for the superordinate machine or plant, issue the Declaration of Conformity for it and affix the CE-mark.
  • Page 23 Note...
  • Page 24 Busch Vacuum Solutions We shape vacuum for you. Argentina Denmark Malaysia South Africa info@busch.com.ar info@busch.dk busch@busch.com.my info@busch.co.za Australia Finland Mexico Spain sales@busch.com.au info@busch.fi info@busch.com.mx contacto@buschiberica.es Austria France Netherlands Sweden busch@busch.at busch@busch.fr info@busch.nl info@busch.se Bangladesh Germany New Zealand Switzerland sales@busch.com.bd info@busch.de sales@busch.co.nz...
