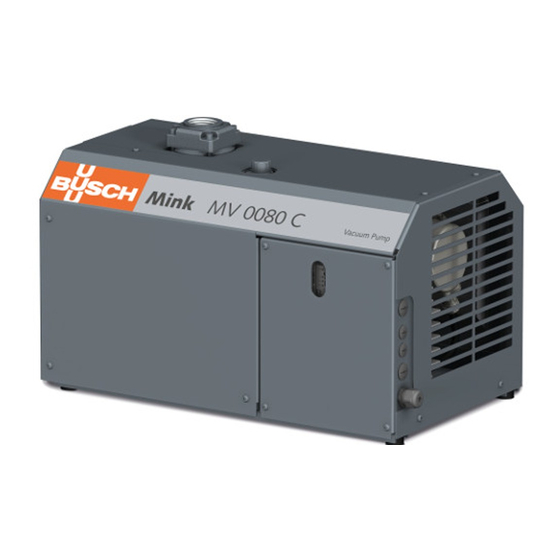

BUSCH Mink MV 0040 C Instruction Manual
Claw vacuum pumps
Hide thumbs
Also See for Mink MV 0040 C:
- Instruction manual (32 pages) ,
- Control instructions (56 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Related Manuals for BUSCH Mink MV 0040 C
Summary of Contents for BUSCH Mink MV 0040 C

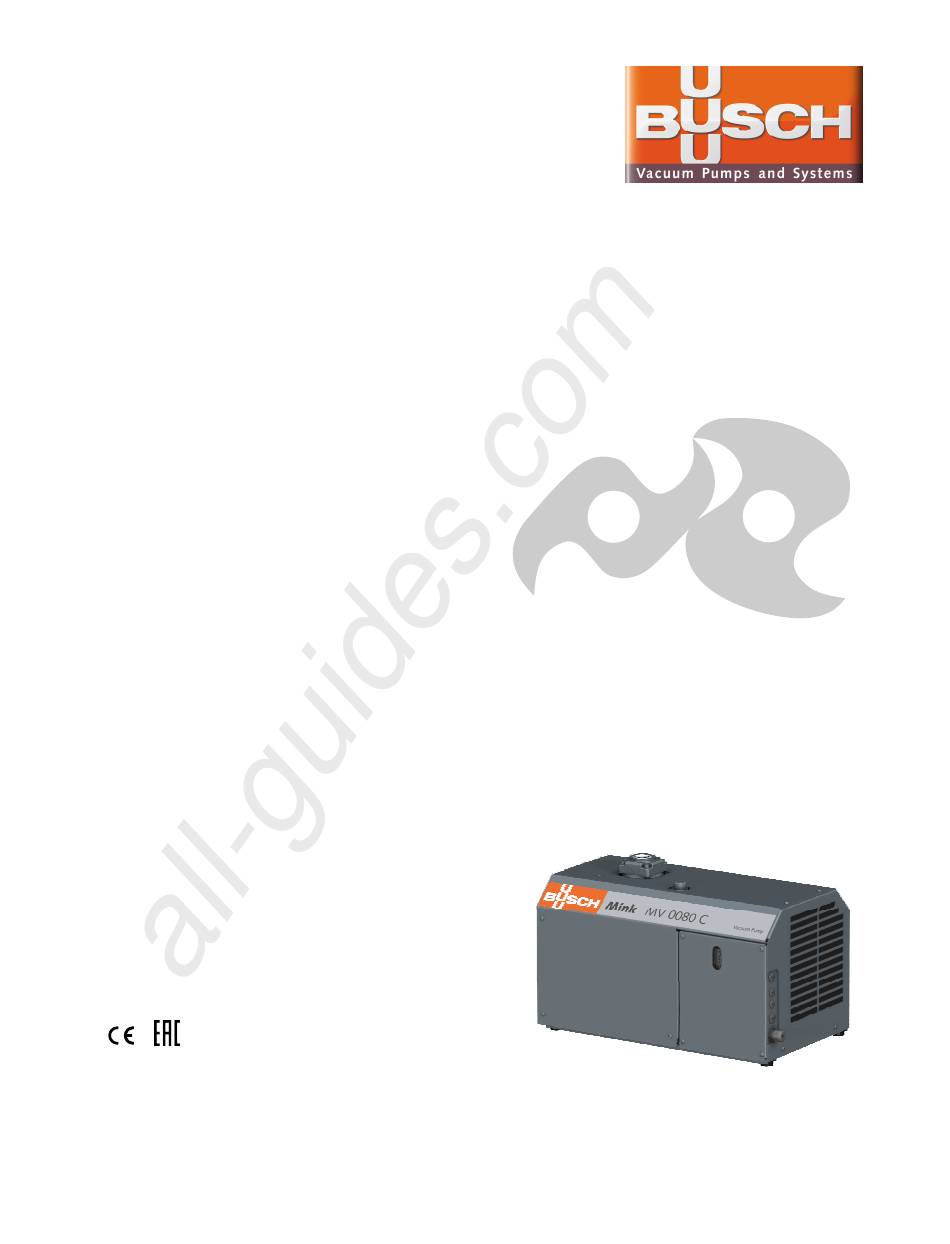

- Page 1 All manuals and user guides at all-guides.com Instruction Manual Mink Claw Vacuum Pumps MV 0040 C, MV 0060 C, MV 0080 C Busch Produktions GmbH Schauinslandstraße 1, 79689 Maulburg Germany 0870166200/A0004_en / Original instructions / Modifications reserved 19/06/2018...
-
Page 2: Table Of Contents
All manuals and user guides at all-guides.com Table of Contents Table of Contents 1 Safety........................... 3 2 Product Description ..................... 4 2.1 Operating Principle....................4 2.2 Application ......................5 2.3 Optional Accessories..................... 5 2.3.1 Inlet Filter ....................5 2.3.2 Pressure Transmitter ..................5 2.3.3 PC-Software ....................5 2.3.4 Manual Control Unit..................5 2.3.5 Fieldbus Option Board ................5... -
Page 3: Safety
Safety Prior to handling the machine, this instruction manual should be read and understood. If anything needs to be clarified, please contact your Busch representative. Read this manual carefully before use and keep for future reference. This instruction manual remains valid as long as the customer does not change anything on the product. -
Page 4: Product Description
All manuals and user guides at all-guides.com 2 | Product Description Product Description Suction connection Cooling air outlet Discharge connection Variable-frequency drive Oil fill plug (= oil dip stick) Condensate drain (Aqua version) Oil drain plug (under the hood) Mains connection Cooling air inlet NOTE Technical term. -
Page 5: Application
Conveying of other media leads to an increased thermal and/or mechanical load on the machine and is permissible only after a consultation with Busch. The machine is intended for the placement in a non-potentially explosive environment. The machine is capable of maintaining ultimate pressure, see Technical Data [► 27]. -
Page 6: Storage
All manuals and user guides at all-guides.com 4 | Storage Machine weight: see the technical data or the nameplate • Check the machine for transport damage. If the machine is secured to a base plate: • Remove the machine from the base plate. Storage •... -
Page 7: Installation
• Make sure that all provided covers, guards, hoods, etc. are mounted. If the machine is installed at an altitude greater than 1000 meters above sea level: • Contact your Busch representative, the motor should be derated or the ambient temperature limited. -
Page 8: Suction Connection
In case of very long connection lines it is advisable to use larger line sizes in order to avoid a loss of efficiency. Seek advice from your Busch representative. 5.2.1 Suction Connection NOTICE Ingress of foreign objects or liquids. -
Page 9: Electrical Connection
• Make sure that the motor of the machine will not be affected by electric or electro- magnetic disturbance from the mains; if necessary seek advice from Busch. • Make sure that the EMC-class of the machine confirms with the requirements of your supply network system, if necessary provide further interference suppression (EMC- Class of the machine see Technical Data [► 27]). -
Page 10: Wiring Diagram Variable-Frequency Drive
All manuals and user guides at all-guides.com 5 | Installation 5.4.1 Wiring Diagram Variable-Frequency Drive CAUTION The machine can start immediately when power is supplied. Risk of inadvertent start-up! • Make sure that a start-up will not lead to a dangerous situation. single-phase version three-phase... - Page 11 Digital In 5 freely available Digital In 4 Maintenance counter reset Digital Out Ground Ground Analogue In 2* Busch pressure transmitter 4 ... 20 mA 0 ..2 bar Digital In 3 Fault reset Digital In 2 open = speed control...
-
Page 12: Dip Switches
All manuals and user guides at all-guides.com 6 | Commissioning 5.4.3 DIP Switches DIP Switches Description Default Not available 0 = Analogue Input 2 works in current mode (4 ... 20 mA) 1 = Analogue Input 2 works in voltage mode (2 … 10 V) 0 = Analogue Input 1 works in current mode (4 ... -
Page 13: Variable-Frequency Drive Overview
All manuals and user guides at all-guides.com Commissioning | 6 CAUTION Noise of running machine. Risk of damage to hearing! If persons are present in the vicinity of a non noise insulated machine over extended periods: • Make sure that ear protection is being used. •... -
Page 14: Pressure Control
The machine in Aqua version is able to convey up to 100% saturated water va- pour. The conveyance of other vapours than water vapour shall be agreed upon with Busch. • Make sure that any condensate from the suction side will not enter the non-operating machine. -
Page 15: Maintenance
All manuals and user guides at all-guides.com Maintenance | 7 CD-L CD-R • Before process: • Warm up the machine by running the machine with closed suction side for ap- proximately 15 minutes. • After process: • During process condensate may occur in the machine. To remove the condensate from the machine convey dry air at 200-400 mbar with the machine’s maximum speed after the process. -
Page 16: Maintenance Schedule
Failing to properly maintain the machine. Risk of premature failure! Loss of efficiency! • Respect the maintenance intervals or ask your Busch representative for service. • Shut down the machine and lock against inadvertent start up. • Vent the connected lines to atmospheric pressure. -
Page 17: Oil Level Inspection
Clean the ventilation grilles and cooling fins 7.4 Oil Change NOTICE Use of an inappropriate oil. Risk of premature failure! Loss of efficiency! • Only use an oil type which has previously been approved and recommended by Busch. 0870166200_MV0040-0080C_A0004_IM_en 17 / 32... - Page 18 All manuals and user guides at all-guides.com 7 | Maintenance Drain pan Cleaning cloth For oil type and oil capacity see Technical Data [► 27] and Oil [► 27]. Check oil level The oil level should stay constant over the lifetime of the oil. If the level does fall, this in- dicates a leak and the machine requires repair.
-
Page 19: Filter Change Of Condensate Reservoir
All manuals and user guides at all-guides.com Maintenance | 7 7.5 Filter change of Condensate Reservoir Remove the cover from the filter and replace the filter cartridge if necessary 7.6 Drain Condensate Reservoir Drain the condensate reservoir Condensate reservoir Remove both hoses from the condensate reservoir 0870166200_MV0040-0080C_A0004_IM_en 19 / 32... -
Page 20: Overhaul
• Decontaminate the machine as well as possible and state the contamination status in a ‘Declaration of Contamination’. Busch will only accept machines that come with a completely filled in and legally binding signed ‘Declaration of Contamination’. (Form downloadable from www.buschvacuum.com) -
Page 21: Decommissioning
Use of non-Busch genuine spare parts. Risk of premature failure! Loss of efficiency! • The exclusive use of Busch genuine spare parts and consumables is recommended for the proper function of the machine and for granting of warranty. Spare parts kit Description Part no. -
Page 22: Troubleshooting
• Check the power supply. with the correct voltage. The motor is defective. • Repair the machine (con- tact Busch). The machine does not reach The inlet screen (IS) is par- • Clean the inlet screen (IS). the usual pressure on the tially clogged. - Page 23 Technical Data [► 27]. Oil level too low. • Top up oil. For the solution of problems not mentioned in the troubleshooting chart contact your Busch representative. 0870166200_MV0040-0080C_A0004_IM_en 23 / 32...
-
Page 24: Circuit Diagram
All manuals and user guides at all-guides.com 12 | Circuit Diagram 12 Circuit Diagram 24 / 32 0870166200_MV0040-0080C_A0004_IM_en... - Page 25 All manuals and user guides at all-guides.com Circuit Diagram | 12 0870166200_MV0040-0080C_A0004_IM_en 25 / 32...
-
Page 26: Electrical Data Of Control Unit Terminals
All manuals and user guides at all-guides.com 13 | Electrical Data of Control Unit Terminals 13 Electrical Data of Control Unit Terminals Terminal Technical Information Digital Out Open collector max. 35 V / 50 mA Analogue Out 0 … 10 V (max. 30 mA); Short-circuit protected;... -
Page 27: Technical Data
All manuals and user guides at all-guides.com Technical Data | 14 14 Technical Data MV 0040 C MV 0060 C MV 0080 C Nominal pumping speed (60Hz) m³/h Ultimate pressure hPa (mbar) abs. see nameplate Nominal rating (motor + fan) (50Hz / 60Hz) Nominal current for 3~ 380-480 V... -
Page 28: Eu Declaration Of Conformity
This Declaration of Conformity and the CE-mark affixed to the nameplate are valid for the machine within the Busch scope of delivery. This Declaration of Conformity is issued under the sole responsibility of the manufacturer. When this machine is integrated into a superordinate machinery the manufacturer of the superordinate machinery (this can be the operating company, too) must conduct the conformity assessment process for the superordinate machine or plant, issue the Declaration of Conformity for it and affix the CE-mark. - Page 29 All manuals and user guides at all-guides.com Note...
- Page 30 All manuals and user guides at all-guides.com Note...
- Page 31 All manuals and user guides at all-guides.com Note...
- Page 32 Czech Republic Netherlands Turkey www.buschvacuum.cz www.busch.nl www.buschvacuum.com Denmark New Zealand United Arab Emirates www.busch.dk www.busch.com.au www.busch.ae Finland Norway United Kingdom www.busch.fi www.busch.no www.busch.co.uk France Peru www.busch.fr www.busch.com.pe www.buschusa.com Germany Poland www.busch.de www.busch.com.pl www.buschvacuum.com 0870166200/A0004_en / © Busch Produktions GmbH...
