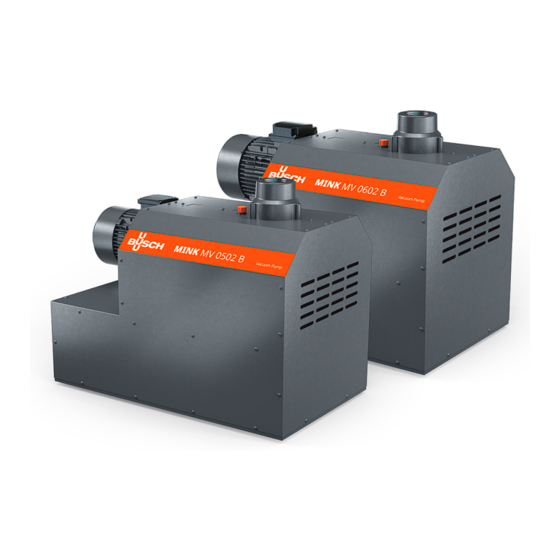

BUSCH MINK MV 0602 B Instruction Manual
Claw vacuum pumps
Hide thumbs
Also See for MINK MV 0602 B:
- Installation and operating instructions manual (21 pages) ,
- Instruction manual (24 pages) ,
- Instruction manual (28 pages)
Related Manuals for BUSCH MINK MV 0602 B
Summary of Contents for BUSCH MINK MV 0602 B

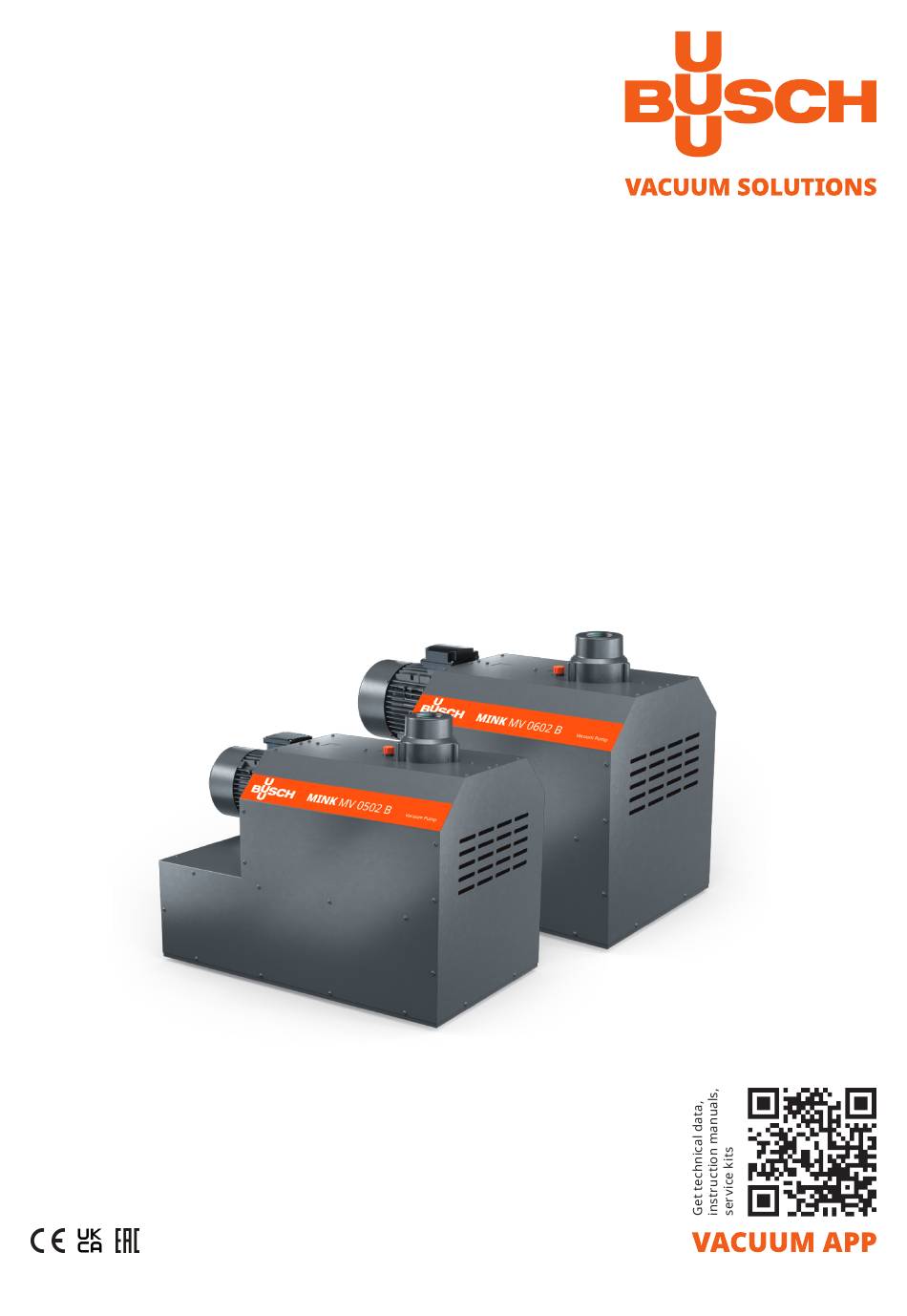

- Page 1 MINK Claw Vacuum Pumps MV 0502 B, MV 0602 B Instruction Manual 0870167098 | B0004_en-US | Original instructions 1/25/2023...
-
Page 2: Table Of Contents
Table of Contents Table of Contents Safety..................................Product Description ............................. Operating Principle ............................. Intended Use ............................... Start Controls ............................... Standard Features............................... 2.4.1 Vacuum Relief Valve..........................Optional Accessories............................2.5.1 Inlet Filter ............................... Transport ................................Storage .................................. Installation ................................Installation Conditions............................Connecting Lines / Pipes ............................ 5.2.1 Suction Connection.......................... -
Page 3: Safety
Safety Prior to handling the machine, this instruction manual should be read and understood. If anything needs to be clarified, please contact your Busch representative. Read this manual carefully before use and keep for future reference. This instruction manual remains valid as long as the customer does not change anything on the product. -
Page 4: Product Description
2 | Product Description Product Description OFP EB Description Suction connection Discharge connection Oil fill plug (=Venting valve) Oil drain plug Cooling ait inlet Cooling air outlet Oil sight glass Non-return-valve (integrated) Motor terminal box Eye bolt Directional arrow Nameplate NOTE Technical term. -
Page 5: Operating Principle
Busch. The machine is intended for the placement in a non-potentially explosive environment. The machine is designed for indoor installation, in case of outdoor installation, ask your Busch rep- resentative in order to take specific precautions. -
Page 6: Start Controls
2 | Product Description The machine is suitable for continuous operation. Note: The non-return valve (NRV) shouldn't be used as a non-return or shut off valve for the System. The non-return valve is only to protect the pump. If the machine needs to be maintained after shutdown: ●... -
Page 7: Transport
Transport | 3 Transport WARNING Suspended load. Risk of severe injury! ● Do not walk, stand or work under suspended loads. WARNING Lifting the machine using the motor eye bolt. Risk of severe injury! ● Do not lift the machine using the eye bolt fitted to the motor. Only lift the machine as shown. ●... -
Page 8: Storage
4 | Storage Storage ● Seal all apertures with adhesive tape or reuse provided caps. If the machine is to be stored for more than 3 months: ● Wrap the machine in a corrosion inhibiting film. ● Store the machine indoors, dry, dust free and if possible in original packaging preferably at temperatures between 0 ... -
Page 9: Installation
● Make sure that all provided covers, guards, hoods, etc. are mounted. If the machine is installed at an altitude greater than 1000 meters above sea level: ● Contact your Busch representative, the motor should be derated or the ambient temperature limited. -
Page 10: Connecting Lines / Pipes
● Busch recommends the use of the optional horizontal inlet filter and the water separator to col- lect the condensate and prevent it from flowing into the pump. -
Page 11: Discharge Connection
Risk of premature failure! Loss of efficiency! ● Only use an oil type which has previously been approved and recommended by Busch. For oil type and oil capacity see Technical Data [➔ 25] and Oil [➔ 26]. The oil level should stay constant over the lifetime of the oil. If the level does fall, this indicates a leak and the machine requires repair. -
Page 12: Electrical Connection
● Make sure that the motor of the machine will not be affected by electric or electromagnetic dis- turbance from the mains, if necessary seek advice from Busch. ● Make sure that the EMC of the machine is compliant with the requirements of your supply net- work system, if necessary provide further interference suppression (EMC of the machine, see EU Declaration of Conformity [➔ 27] or UK Declaration of Conformity [➔ 28]). -
Page 13: Wiring Diagram Three-Phase Motor
● If the machine is equipped with a power connector, install a residual current protective device to protect persons in case of isolation default. ● Busch recommends installing a type B residual protective device suitable for the electrical in- stallation. - Page 14 6 | Electrical Connection Double star connection, multi-voltage motor Star connection, multi-voltage motor with 9 with 9 pins (low voltage): pins (high voltage): Double star connection, multi-voltage motor Star connection, multi-voltage motor with 12 with 12 pins (low voltage): pins (high voltage): Delta connection, multi-voltage motor with 12 pins (middle voltage): 14 | 32...
-
Page 15: Commissioning
Aqua version is able to convey up to 100% saturated water vapor. The conveyance of other vapors than water vapor shall be agreed upon with Busch. ● Make sure that any condensate from the suction side will not enter the non-operating machine. -
Page 16: Maintenance
Risk of injuries! Risk of premature failure and loss of efficiency! ● Maintenance work must only be executed by qualified personnel. ● Respect the maintenance intervals or ask your Busch representative for service. NOTICE Using inappropriate cleaners. Risk of removing safety stickers and protective paint! ●... -
Page 17: Maintenance Schedule
5000 operating hours. Other oils may reduce the change interval. Every 6 years ● Have a major overhaul on the machine (contact Busch). Oil Level Inspection ● Shut down the machine. ● When the machine is stopped, wait 1 minute before checking the oil level. -
Page 18: Cleaning From Dust And Dirt
Oil Change NOTICE Use of an inappropriate oil. Risk of premature failure! Loss of efficiency! ● Only use an oil type which has previously been approved and recommended by Busch. 18 | 32 Instruction Manual MINK MV 0502-0602 B_EN_en... - Page 19 Maintenance | 8 For oil type and oil capacity see Technical Data [➔ 25] and Oil [➔ 26]. The oil level should stay constant over the lifetime of the oil. If the level does fall, this indicates a leak and the machine requires repair. Instruction Manual MINK MV 0502-0602 B_EN_en 19 | 32...
-
Page 20: Overhaul
● Decontaminate the machine as much as possible and state the contamination status in a ‘Dec- laration of Contamination’. Busch will only accept machines that come with a completely filled in and legally binding signed ‘Declaration of Contamination’ (form downloadable from www.buschvacuum.com). -
Page 21: Decommissioning
Decommissioning | 10 Decommissioning DANGER Live wires. Risk of electrical shock. ● Electrical installation work must only be executed by qualified personnel. CAUTION Hot surface. Risk of burns! ● Prior to any action requiring touching the machine, let the machine cool down first. ●... -
Page 22: Spare Parts
Use of non-Busch genuine spare parts. Risk of premature failure! Loss of efficiency! ● The exclusive use of Busch genuine spare parts and consumables is recommended for the correct functioning of the machine and to validate the warranty. Spare part Description Part no. -
Page 23: Troubleshooting
Troubleshooting | 12 Troubleshooting DANGER Live wires. Risk of electrical shock. ● Electrical installation work must only be executed by qualified personnel. CAUTION Hot surface. Risk of burns! ● Prior to any action requiring touching the machine, let the machine cool down first. Description Inlet screen Coupling... - Page 24 Tech- nical Data [➔ 25]. Oil level too low. ● Top up oil. For resolution of problems not listed in the troubleshooting table, please contact your Busch repre- sentative. 24 | 32 Instruction Manual MINK MV 0502-0602 B_EN_en...
-
Page 25: Technical Data
Installation altitude: 100% load capacity (no derating) up to 1000 m; Derating 1% / 100 m at 1000… 3000 m * In case of higher or lower temperatures, please consult your Busch representative. Instruction Manual MINK MV 0502-0602 B_EN_en 25 | 32... -
Page 26: Oil
14 | Oil VS 150 VSB 100 ISO-VG Part number 1 L packaging 0831 164 883 0831 168 351 Part number 5 L packaging 0831 164 884 0831 168 352 Remark 1 = Single-phase motor; 2 = Three-phase motor; 3 = Standard oil for non-demanding applications; 4 = Food applications (H1); 5 = Anti-corrosion; 6 = Suitable for continuous operation;... -
Page 27: Eu Declaration Of Conformity
EU Declaration of Conformity This Declaration of Conformity and the CE-markings affixed to the nameplate are valid for the machine within the Busch scope of delivery. This Decla- ration of Conformity is issued under the sole responsibility of the manufacturer. -
Page 28: Uk Declaration Of Conformity
UK Declaration of Conformity This Declaration of Conformity and the UKCA-markings affixed to the nameplate are valid for the machine within the Busch scope of delivery. This Dec- laration of Conformity is issued under the sole responsibility of the manufacturer. - Page 29 N otes Notes Instruction Manual MINK MV 0502-0602 B_EN_en 29 | 32...
- Page 30 Notes 30 | 32 Instruction Manual MINK MV 0502-0602 B_EN_en...
- Page 31 Notes Instruction Manual MINK MV 0502-0602 B_EN_en 31 | 32...
- Page 32 With a network of over 60 companies in more than 40 countries and agencies worldwide, Busch has a global presence. In every country, highly competent local personnel delivers custom-tailored support backed by a global network of expertise. Wherever you are.
