Samoa VEGA 45:1 EXT Instruction Manual

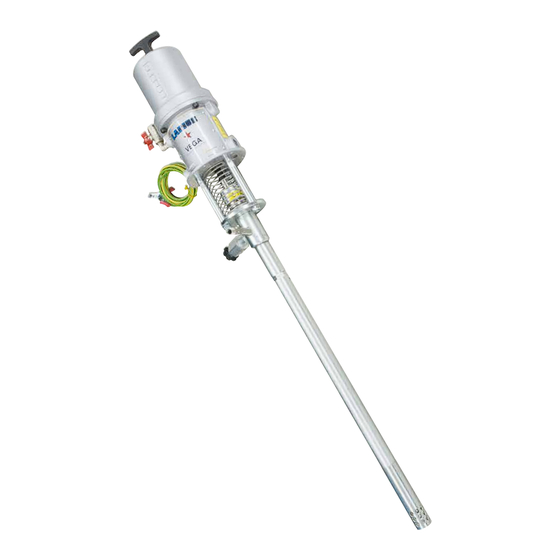

Airless pneumatic pump for extrusion
Hide thumbs Also See for VEGA 45:1 EXT:
Table of Contents

Advertisement

Quick Links

Download this manual
www.larius.com
IT
https://www.larius.com/wp-content/uploads/VEGA45_I.pdf
EN
https://www.larius.com/wp-content/uploads/VEGA45_UK.pdf
DE
https://www.larius.com/wp-content/uploads/VEGA45_D.pdf
FR
https://www.larius.com/wp-content/uploads/VEGA45_F.pdf
ES
https://www.larius.com/wp-content/uploads/VEGA45_SP.pdf
VEGA 45:1 EXT
EN
Airless pneumatic
pump for extrusion

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VEGA 45:1 EXT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Samoa VEGA 45:1 EXT

Summary of Contents for Samoa VEGA 45:1 EXT

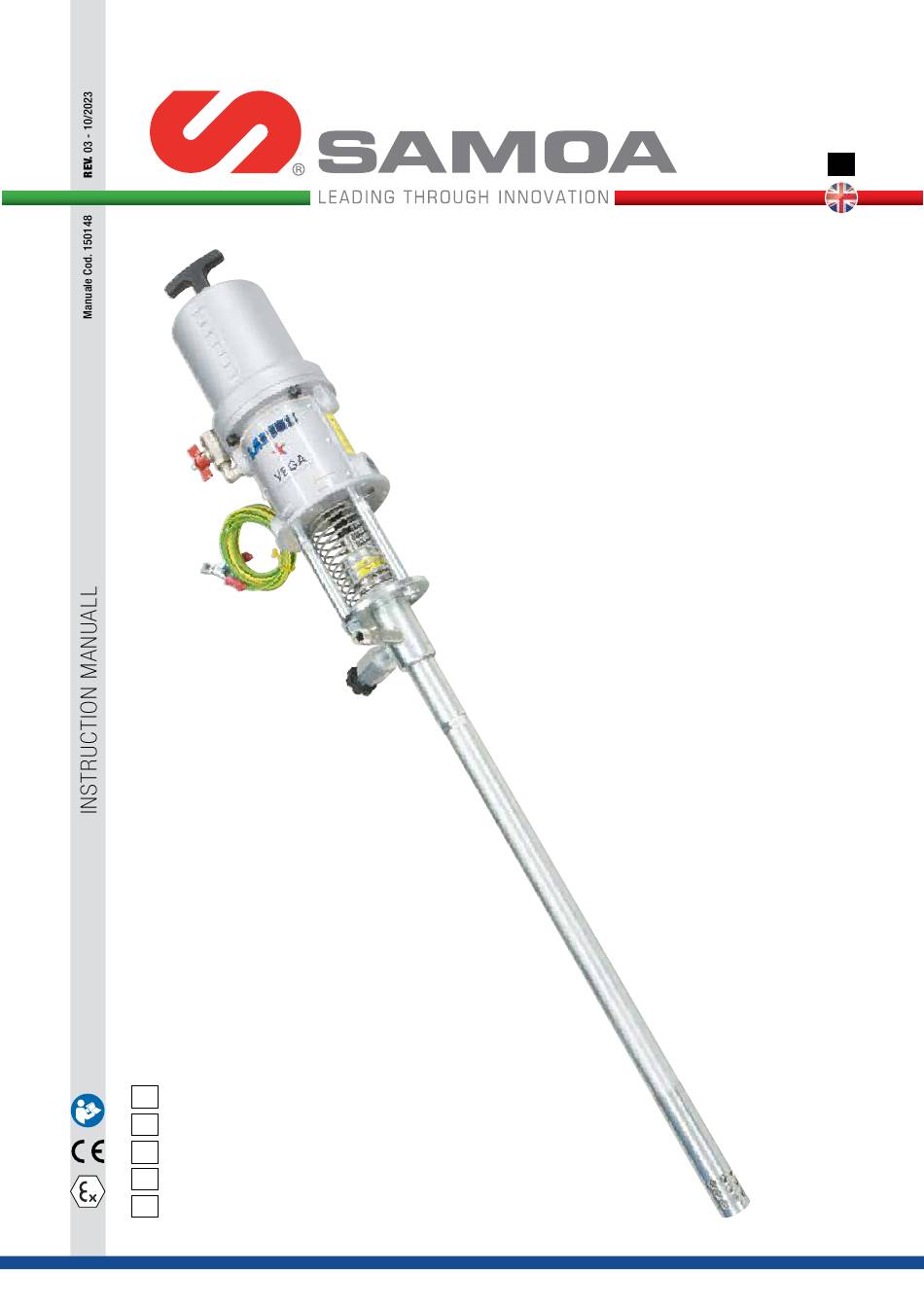

  • Page 1 VEGA 45:1 EXT Airless pneumatic pump for extrusion https://www.larius.com/wp-content/uploads/VEGA45_I.pdf https://www.larius.com/wp-content/uploads/VEGA45_UK.pdf https://www.larius.com/wp-content/uploads/VEGA45_D.pdf https://www.larius.com/wp-content/uploads/VEGA45_F.pdf https://www.larius.com/wp-content/uploads/VEGA45_SP.pdf...
  • Page 2 VEGA 45:1 EXT This manual is to be considered as an English language translation of the original manual in Italian. The manufacturer shall bear no responsibility for any damages or inconveniences that may arise due to the incorrect translation of the instructions contained within the original manual in Italian.

  • Page 3: Table Of Contents

    WE ADVISE THE USE OF THIS EQUIPMENT ONLY BY PROFESSIONAL OPERATORS. ONLY USE THIS MACHINE FOR USAGE SPECIFICALLY MENTIONED IN THIS MANUAL. Thank you for choosing a SAMOA. product. As well as the product purchased, you will receive a range of support services enabling you to achieve the results desired, quickly and professionally.

  • Page 4: Awarnings

    VEGA 45:1 EXT WARNINGS The table below provides the meaning of the symbols used in this manual in relation to using, earthing, operating, maintaining, and repairing of this equipment. • Read this operator’s manual carefully before using the equipment. • An improper use of this machine can cause injuries to people or things.

  • Page 5: Bworking Principle

    VEGA 45:1 EXT WORKING PRINCIPLE The VEGA 45:1 pump is a high-pressure pneumatic pump to be used for the transfer of non-corrosive viscous liquids. The pump is essentially composed of an air motor and a structure known as “Product Pumping Unit”, or simply the “Pumping Unit”.
  • Page 6 VEGA 45:1 EXT Long version Medium version Pump Code Weight Long 91950 1160 12,70 Kg Medium 91951 12,20 Kg Fig. 1C REV. 03 - 10/2023 - Cod. 150148...

  • Page 7: Ddescription Of The Equipment

    VEGA 45:1 EXT DESCRIPTION OF THE EQUIPMENT Fig. 1D Pos. Description Pos. Description Suction hose Handle Fluid pumping tube Pneumatic motor Pump feed air inlet Material outlet Opening-closing valve for air passage Drain valve REV. 03 - 10/2023 - Cod. 150148...

  • Page 8: Etransport And Unpacking

    VEGA 45:1 EXT SAFETY RULES TRANSPORT AND UNPACKING Read carefully and entirely the following instructions before using the product. Please save these • The packed parts should be handled as indicated in the symbols instructions in a safe place. and markings on the outside of the packing.

  • Page 9: Hconnections

    VEGA 45:1 EXT FOR CONNECTION BETWEEN PUMP, FLEXIBLE HOSE AND If the product to be used is toxic, avoid inhalation SPRAY GUN BEFORE USING THE EQUIPMENT. and contact by using protection gloves, goggles • ALWAYS USE THE FLExIBLE HOSE SUPPLIED WITH STAN- and proper face shields.

  • Page 10: Ioperation

    VEGA 45:1 EXT OPERATION Air inlet Check all the fittings for connection of the different components (pump, flexible hose, spray gun, etc.) before using the equipment. • Dip the fluid pumping hose (I1) into the product tank (I2). Material output •...

  • Page 11: Lroutine Maintenance

    VEGA 45:1 EXT ROUTINE MAINTENANCE Always close the compressed air supply and release the pressure in the plant before performing any check or maintenance of the pump. Periodically check the air supply line to the pump. Make sure that the air is always clean and lubricated.

  • Page 12: Mtroubleshooting

    VEGA 45:1 EXT TROUBLESHOOTING Inconveniente Causa Soluzione The pump does not start Feed air not sufficient Controllare la linea di fornitura dell'a- ria. Aumentare il diametro del tubo di alimentazione; Outlet product line clogged Pulire. Staccare il tubo di uscita del prodotto.

  • Page 13: Nmanual Reset Of The Pneumatic Motor

    VEGA 45:1 EXT MANUAL RESET OF THE PNEUMATIC MOTOR • The feed air pressure of the pump must never be higher than the maximum value indicated in the technical data (see p. 3). Exceed this value can block the valves of the pneumatic motor in the upper or lower position (Dead Center).
  • Page 14 VEGA 45:1 EXT • Check the condition of every part of the motor. Dado • For any replacement of the screws (O5) of the crosspiece, Rondella for their reassembly and correct adjustment see the drawing Guarnizione below and the exploded view on page 24.

  • Page 15: Pdisassembly Of The Motor From The Pumping Unit

    VEGA 45:1 EXT DISASSEMBLY OF THE MOTOR FROM THE PUMPING UNIT Necessary tools and equipment Always close the compressed air supply and release the pressure in the plant Procedure 1.1 Remove the three screws (P1), (P2) e (P3). Procedure 2.1 Lift the motor from the pumping unit...
  • Page 16 VEGA 45:1 EXT Necessary tools and equipment Procedure 3.1 Lift the spring 3.2 Remove the split pin (P4) Procedure 4.1 Unscrew the stem (P5) 4.2 Remove the motor REV. 03 - 10/2023 - Cod. 150148...

  • Page 17: Qdisassembly Of The Pumping Unit And Replacement Of Gaskets

    VEGA 45:1 EXT DISASSEMBLY OF THE PUMPING UNIT AND REPLACEMENT OF GASKETS Necessary tools and equipment Procedure 1.1 Unscrew material cylinder (Q1) Procedure 2.1 Remove material cylinder (Q1) Necessary tools and equipment Procedure 3.1 Remove the injection tube unscrewing from the stem with the key.
  • Page 18 VEGA 45:1 EXT Necessary tools and equipment Procedure 4.1 Loosen the two ends A and B REV. 03 - 10/2023 - Cod. 150148...
  • Page 19 VEGA 45:1 EXT Necessary tools and equipment Procedure 5.1 Unscrew the stem (Q2), with keys of 30 and remove it. Necessary tools and equipment Procedure 5.1 Unscrew the gasket holder connection using two keys for sobstitute the stem gaskets. REV. 03 - 10/2023 - Cod. 150148...
  • Page 20 VEGA 45:1 EXT Necessary tools and equipment Procedure 7.1 Clean and lubricate the gasket housings and replace them with new spare part. A: Ball Code 91915 B: Ring Code 91918 C: Gasket for pumping unit Code 91919 D: Ring Code 91921...

  • Page 21: Rreplacement Of The Upper Gaskets

    VEGA 45:1 EXT REPLACEMENT OF THE UPPER GASKETS Necessary tools and equipment Procedure 1.1 After having disassembled the motor from the pumping unit, unscrew and remove the oil cup (R1) Necessary tools and equipment Procedure 2.1 Remove the complete gasket pack 2.2 Clean and lubricate the gasket housings...

  • Page 23: Spare Parts

    VEGA 45:1 EXT SPARE PARTS Pump complete pneumatic motor Page 24 Pump complete pumping unit Page 26 REV. 03 - 10/2023 - Cod. 150148...

  • Page 24: Spump Complete Pneumatic Motor

    VEGA 45:1 EXT PUMP COMPLETE PNEUMATIC MOTOR WARNING: always indicate code and quantity for every part required. Fig. 1R1 REV. 03 - 10/2023 - Cod. 150148...
  • Page 25 VEGA 45:1 EXT Pos. Code Descripcion Q. ty Pos. Code Descripcion Q. ty 91952 Pneumatic motor VEGA 45:1 EXT 96024 Fork pin 91603 Handle plug 96006 Spring 91028 Motor cylinder 96017/2 Bushing for bush 95075 O-Ring 91042 Motor support 91029...

  • Page 26: Tpump Complete Pumping Unit

    VEGA 45:1 EXT PUMP COMPLETE PUMPING UNIT WARNING: always indicate code and quantity for every part required. Fig. 1R2 REV. 03 - 10/2023 - Cod. 150148...
  • Page 27 VEGA 45:1 EXT Pos. Code Descripcion Q. ty Pos. Code Descripcion Q. ty 91948 Medium pumping group 91932 Long material cylinder 91947 Long pumping group 91622 Copper gasket 91931 Injection tube 91942 Removable housing 91930 Pumping injector 98503 Flange 91929...

  • Page 28: Uordering Information

    VEGA 45:1 EXT ORDERING INFORMATION PUMP CODE DESCRIPTION 91950 VEGA 45:1 extrusion pump, long 91951 VEGA 45:1 extrusion pump, medium KIT COD. DESCRIPTION 40401 VEGA 45:1 extrusion pump motor exchange kit 40040 VEGA 45:1 pump motor seals kit 40402/1 VEGA 45:1 pump gaskets kit...

  • Page 30: Atex Certification

    VEGA 45:1 EXT ATEX CERTIFICATION ATEX CERTIFICATION SAFETEY INSTRUCTIONS FOR THE USE OF PISTON PNEUMATIC TRANSFER PUMPS VEGA SERIES IN POTENTIALLY EXPLOSIVE ENVIRONMENTS IN PRESENCE OF GAS OR VAPOURS. DESCRIPTION This safety instructions refer to the installation, use and maintenance of VEGA series piston pneumatic transfer pumps for the use in potentially explosive areas in presence of gas or vapours.

  • Page 31: Ymarking

    VEGA 45:1 EXT MARKING II 2 G c IIB T6 : -20°C ÷ + 60°C fluid: 60°C Tech. File: VEGA/ATX/08 max. Group II ( surface) Grade 2 (zone 1) Explosive environment with gas, vapour or mist Constructive safety "c" Class of temperature T6 - 20°C ÷...
  • Page 32 VEGA 45:1 EXT REV. 03 - 10/2023 - Cod. 150148...

  • Page 33: Ce Declaration Of Conformity

    VEGA 45:1 EXT CE DECLARATION OF CONFORMITY Company LARIUS srl Via Antonio Stoppani 21 - 23801 Calolziocorte (LC) ITALY Tel: +39 0341 621152 Fax: +39 0341 621243 E-mail: larius@larius.com Declares under his owns resonsibility that the product: VEGA 45:1 EXT...
  • Page 34 TEL.: +44 1942 850600 - FAX: +44 1942 812160 ©Copyright, SAMOA INDUSTRIAL, S.A. ©Copyright, SAMOA INDUSTRIAL, S.A. SAMOA Industrial, S.A. is an ISO 9001, ISO 14001 and ISO 45001 certified company. SAMOA Industrial, S.A. is an ISO 9001, ISO 14001 and ISO 45001 certified company. Contact us today! Contact us today! Visit www.samoaindustrial.com for more information.
