Samoa LARIUS VEGA 34:1 Operating And Maintenance Manual

Airless / air assisted airless pneumatic pump
Hide thumbs Also See for LARIUS VEGA 34:1:
Table of Contents

Advertisement

Quick Links

Download this manual
w w w . l a r i u s . c o m

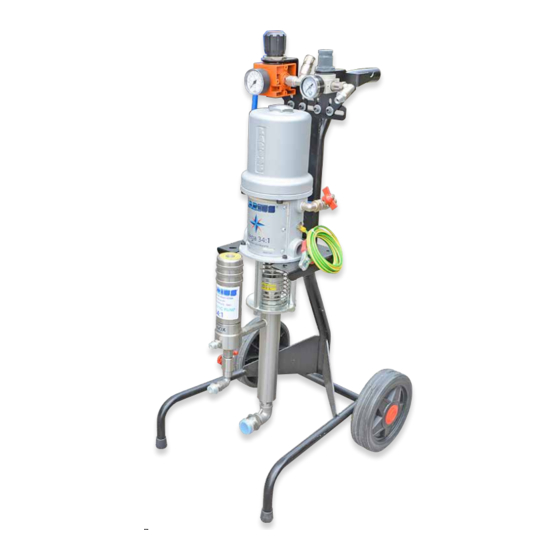

VEGA 34:1
Airless / Air assisted airless pneumatic pump
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LARIUS VEGA 34:1 and is the answer not in the manual?

Questions and answers

Related Manuals for Samoa LARIUS VEGA 34:1

Summary of Contents for Samoa LARIUS VEGA 34:1

  • Page 1 w w w . l a r i u s . c o m VEGA 34:1 Airless / Air assisted airless pneumatic pump...
  • Page 2 This manual is to be considered as an English language translation of the original manual in Italian. The manufacturer shall bear no responsibility for any damages or inconveniences that may arise due to the incorrect translation of the instructions contained within the original manual in Italian. Due to a constant product improvement programme, the factory reserves the right to modify technical details mentioned in this manual without prior notice.

  • Page 3: Table Of Contents

    VEGA 34:1 VEGA 34:1 Pneumatic piston pump WARNINGS ................................p. 2 WORKING PRINCIPLE ............................p. 3 TECHNICAL DATA ..............................p. 4 DESCRIPTION OF THE EQUIPMENT ........................p. 6 CARRIAGE AND UNPACKING ..........................p. 8 CONDITIONS OF GUARANTEE ..........................p. 8 SAFETY INSTRUCTIONS ............................

  • Page 4: Awarnings

    VEGA 34:1 WARNINGS The table below provides the meaning of the symbols used in this manual in relation to using, earthing, operating, maintaining, and repairing of this equipment. • Read this operator’s manual carefully before using the equipment. • An improper use of this machine can cause injuries to people or things. •...

  • Page 5: Bworking Principle

    VEGA 34:1 WORKING PRINCIPLE VEGA 34:1 pump is a pneumatic pump without the use of The ratio 34:1 means that the outlet pressure of the product is 34 compressed air (AIRLESS). The stainless steel version is particularly times higher than the pump feed air pressure. suitable for use with water-based paints.

  • Page 6: Ctechnical Data

    VEGA 34:1 TECHNICAL DATA VEGA 34:1 VEGA 34:1 Max delivery 1,4 l/m Motor diameter 76 mm (3’’) Max air pressure supply 7 bar Piston stroke 76 mm (3’’) Max working pressure 240 bar c.c. Cycle *Feed air inlet 3/8’’ GAS (F) N°...
  • Page 7 VEGA 34:1 Parts of the pumpt in contact with the product: These notes shall be kept in consideration in Pumping group: galvanized steel and aluminium or stainless steel case you need to evaluate the compatibility (according to versions) of a product to be used or when you need to Sealing balls: stainless steel AISI 420B dispose one or more components of the pump, Gaskets: PTFE...

  • Page 8: Ddescription Of The Equipment

    VEGA 34:1 DESCRIPTION Of THE EQUIPMENT Fig. 1D Pos. Description Pos. Description Motor unit Manometer for gun air pressure Paint suction system Feeding air gun Air regulation unit Open/close air pump valve Pump feeding air pressure regulator Grounding cable Compressed air inlet Product pumping unit Adjustment gun pressure Suction hose fitting...
  • Page 9 VEGA 34:1 Fig. 2D Pos. Description Pos. Description Equipment transport trolley Product exit fitting Pumping unit Recirculation tube fitting Wheels Flexible hose air-product Filter unit Recirculation tube Product exit high pressure filter Suction hose Recirculation tap Product suction filter www.larius.com REV.

  • Page 10: Ecarriage And Unpacking

    VEGA 34:1 SAfETY INSTRUCTIONS CARRIAGE AND UNPACKING • Strictly respect the orientation of the package indicated • THE EMPLOYER SHALL PROVIDE TO DULY TRAIN THE externally by labels or symbols. PERSONNEL REGARDING THE RISKS OF ACCIDENTS, • Before installing the equipment, prepare an environment THE SAFETY DEVICES AND THE GENERAL ACCIDENT suitable in terms of space, proper lighting, clean and PREVENTION GUIDELINES PROVIDED BY THE...

  • Page 11: Hconnections

    VEGA 34:1 Adopt suitable hearing protection measures when • NEVER MODIFY ANY EQUIPMENT COMPONENT. PERIO- working near the equipment. DICALLY CHECK THE COMPONENTS OF THE SYSTEM. REPLACE DAMAGED OR WORN COMPONENTS, IF ANY. • MAKE SURE YOU KNOW HOW TO STOP THE EQUIPMENT •...
  • Page 12 VEGA 34:1 CONNECT THE fEEDING AIR HOSE • Connect the adjustment group (H7) to the compressed air fitting (H8). Fig. 5H • Set the pump feeding pressure at about 3 bar and open the air valve. • The pump will start and will discharge the oil for the recirculation hose.

  • Page 13: Ioperation

    VEGA 34:1 • This table is for indication only. The adapatability of a certain Make sure that the product is suitable to be product to a determined nozzle changes according to different used with the materials employed for the unit aspects.
  • Page 14 VEGA 34:1 Daily check that the ring nut is covered with With an empty pump, a higher pressure might hydraulic oil (rif. 16325); the oil improves the cause a quick and violent movement of the piston, sliding of the piston and prevent the product, which could be dangerous.

  • Page 15: Jcleaning At The End Of The Work

    VEGA 34:1 • Plunge the suction (J1) and the recirculation hoses (J2) in the NEVER direct the gun towards yourself or anyone thinner container (J3). Set pressure to the mimimum and by else. keeping the nozzle below the thinner level in the container, Getting in touch with the jet might cause serious spray until the thinner has been recycled during three or five wounds.

  • Page 16: Kroutine Maintenance

    VEGA 34:1 ROUTINE MAINTENANCE CLEANING THE SUCTION fILTER • Disassemble and clean the product suction filter (K3). Periodically check the air supply line to the pump. Make sure that the air is always clean and lubricated. Before carrying out any control or maintenance operation on the pump, always close the compressed air supply and discharge the pressure in the circuit.

  • Page 17: Lreplacement Of The Pumping Unit Gaskets

    VEGA 34:1 REPLACEMENT Of THE PUMPING UNIT GASKETS • Unscrew the filter group (L1) from the pump housing (L2). Fig. 3L Fig. 1L • Unscrew the three self-locking nuts (L3) and remove the pumping unit (L4), by unscrewing it from the motor piston rod.

  • Page 18: Mcleaning And Repairing The Suction Valve

    VEGA 34:1 • Remove the piston (L8) from the pump housing and replace the gaskets, upper set (L9) or lower set (L10), respecting the assembly order of the same. When reassembling the seat of the valve (L11) in the piston (L8) the thread shall be covered with threads braking adhesive.

  • Page 19: Odisassembling The Motor

    VEGA 34:1 DISASSEMBLING THE UNIT MOTOR • Place the piston to the upper point of its run and unscrew the plug (O1). Block the guide rod (O2) with clamping pliers and replace the plug (O1) with a M8 nut (O3). Fig.
  • Page 20 VEGA 34:1 • Remove the valve screws (O9) and check the wear condition of the gaskets (O10). Fig. 10O Fig. 7O Fig. 8O • Block the roller (O11) with the pliers and by pressing on the spring (O12), remove it from its seat. In this way, it will be possible to remove all the run inversion group.

  • Page 21: Ptroubleshooting

    VEGA 34:1 TROUBLESHOOTING Faults Possible cause Solution The pump does not work Feeding air is not sufficient. Check the air supply line. Increase the diameter of the feeding air pipe; Product outlet line is clogged; Open the recirculation nozzle and check that the pump starts.
  • Page 22 VEGA 34:1 www.larius.com REV. 02 - 10/2020 - Cod. 150089...

  • Page 23: Spare Parts

    VEGA 34:1 SPARE PARTS Complete pneumatic motor Vega 34:1 pump pag. 24 Air regolation unit air assisted airless for trolley version pag. 28 Air regolation unit airless for trolley version pag. 29 Complete trolley pag. 31 Complete filter Vega 34:1 pump pag.

  • Page 24: Qvega 34:1 Pump Complete Pneumatic Motor

    VEGA 34:1 VEGA 34:1 PUMP COMPLETE PNEUMATIC MOTOR ATTENTION: always indicate code and quantity of each requested detail Supplied separately www.larius.com REV. 02 - 10/2020 - Cod. 150089...
  • Page 25 VEGA 34:1 Pos. Code Description Q. ty Pos. Code Description Q. ty Complete pneumatic motor pump 96027 Complete valve screw 98145 34:1 for base version 96014 Rubber valve Complete pneumatic motor pump 96015 Valve screw 98144 34:1 for trolley version 91036 Washer 96001...

  • Page 26: Rvega 34:1 Pump Complete Pumping Unit

    VEGA 34:1 VEGA 34:1 PUMP COMPLETE PUMPING UNIT ATTENTION: always indicate code and quantity of each requested detail. www.larius.com REV. 02 - 10/2020 - Cod. 150089...
  • Page 27 VEGA 34:1 Pos. Code Description Q. ty Pos. Code Description Q. ty 98650 Complete pumping unit 96023 Spring 98655 Female V ring 91001/1 Oil cup 98657 Polyethylene gasket 3429 O-ring 98658 Male V ring 98506 Gaskets ring nut 98378 Filter fitting 91001 Complete cup 98656...

  • Page 28: Svega 34:1 Pump Complete Filter

    VEGA 34:1 VEGA 34:1 PUMP COMPLETE fILTER ATTENTION: always indicate code and quantity of each requested detail. www.larius.com REV. 02 - 10/2020 - Cod. 150089...
  • Page 29 VEGA 34:1 Pos. Code Description Q. ty 98388 Complete line filter outlet M16x1,5 Airless version 98388/1 Complete line filter outlet Gj 1/4 Air assisted airless version 10107 Etichetta avvertenze 98384 Filter tank 96202 Sieve spring 95221 Filter sieve 200m 95220 Filter sieve 100m 95219 Filter sieve 60m...

  • Page 30: Tair Regulation Unit Air Assisted Airless For Trolley Version Ref. 91055/1

    VEGA 34:1 AIR REGULATION UNIT AIR ASSISTED AIRLESS fOR TROLLEY VERSION Ref. 91055/1 ATTENTION: always indicate code and quantity of each requested detail. Pos. Code Description Q. ty Pos. Code Description Q. ty 91055/1 Complete unit 91020 3/8 mm conic adapter 96216 3/8 tube Ø...

  • Page 31: Uair Regulation Unit Airless For Trolley Version Ref. 91019/1

    VEGA 34:1 AIR REGULATION UNIT AIRLESS fOR TROLLEY VERSION Ref. 91019/1 ATTENZIONE : per ogni particolare richiesto indicare sempre il codice e la quantità. Pos. Code Description Q. ty Pos. Code Description Q. ty 91019/1 Complete unit 98664 Bracket 510068 Ø...

  • Page 32: Vpaints Suction System Ref. 16611

    VEGA 34:1 PAINTS SUCTION SYSTEM Ref. 16611 ATTENTION: always indicate code and quantity of each requested detail. Pos. Code Description Q. ty Pos. Code Description Q. ty Paints suction system with 35020 Together foot filter 16111 stainless steel suction tubes 35005/1 Filter tank 16613...

  • Page 33: Wcomplete Trolley Ref. 96320/1

    VEGA 34:1 COMPLETE TROLLEY Ref. 96320/1 ATTENTION: always indicate code and quantity of each requested detail. Pos. Code Description Q. ty Pos. Code Description Q. ty 96320/1 Complete trolley 21653 Feet 91047 Washer 95159 Stopper 91023 Wheel 8018 Trolley www.larius.com REV.

  • Page 34: Atex Certification

    VEGA 34:1 ATEx CERTIfICATION ATEx CERTIfICATION SAfETEY INSTRUCTIONS fOR THE USE Of PISTON PNEUMATIC TRANSfER PUMPS VEGA SERIES IN POTENTIALLY ExPLOSIVE ENVIRONMENTS IN PRESENCE Of GAS OR VAPOURS. DESCRIPTION This safety instructions refer to the installation, use and maintenance of LARIUS piston pneumatic transfer pumps VEGA series for the use in potentially explosive areas in presence of gas or vapours.

  • Page 35: Zmarking

    VEGA 34:1 MARKING II 2 G c IIB T6 : -20°C ÷ + 60°C fluid: 60°C Tech. file: VEGA/ATx/08 max. Group II ( surface) Grade 2 (zone 1) Explosive environment with gas, vapour or mist Constructive safety "c" Class of temperature T6 - 20°C ÷...
  • Page 36 VEGA 34:1 www.larius.com REV. 02 - 10/2020 - Cod. 150089...
  • Page 37 VEGA 34:1 CE DECLARATION OF CONFORMITY Company LARIUS srl Via Antonio Stoppani 21 - 23801 Calolziocorte (LC) ITALY Tel: +39 0341 621152 Fax: +39 0341 621243 E-mail: larius@larius.com Declares under his owns resonsibility that the product: VEGA 34:1 Airless/Air assisted airless pneumatic pump complies with the directives: - EC Directive 2006/42 Machinery Directive furthermore to the...
  • Page 38 LARIUS srl Via Antonio Stoppani 21 - 23801 Calolziocorte (LC) ITALY TEL. +39 0341 621152 - Fax +39 0341 621243 - larius@larius.com www.larius.com...
