Samoa DF30 Operation And Maintenance Manual

Technical data
Warnings and cautions
Description
Capacity curves
Dimensions
Installation
Operating instructions
Composite body parts
Nomenclature of the pump
Alphanumeric pumps
repair kit codes
Troubleshooting
Maintenance guide
Declaration of conformity
Ratio
Maximum free flow
Delivery per stroke
Air pressure operating range
Solid in suspension max size
Maximum suction head
Weight
Fluid inlet (single inlet)
Fluid inlet (double inlet)
Fluid outlet
Air inlet
Wetted part materials
Noise level
Temperature range
(see material temperature range
on page 2).
SAMOA Industrial, S.A. · Pol. Ind. Porceyo, I-14 · Camino del Fontán, 831 · 33392 - Gijón - Spain · Tel.: +34 985 381 488 · www.samoaindustrial.com
1/2" DOUBLE DIAPHRAGM PUMP DF30 (38 l/min)
1/2" DOUBLE DIAPHRAGM PUMP DF50 (50 l/min)
1" DOUBLE DIAPHRAGM PUMP DF100 (100 l/min)
Operation and maintenance manual
1
2
2
3
4
5
6
7
14
15
17
19
96

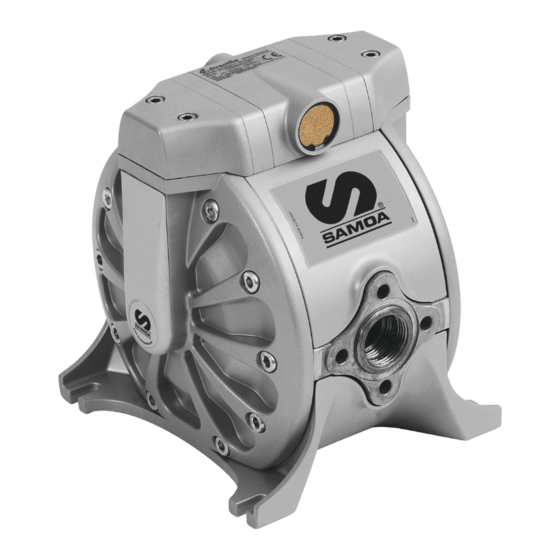

DF30
DF30
1:1
10 gal/min (38 l/min)
2.37 oz (0,07 l)
22 to 115 psi (1,5 to 8 bar)
0.12 in (3 mm)
13.2 ft (4 m) dry
26.25 ft (8 m) wet
4.19 lb (1,9 kg)
1/2" BSP - NPT (F)
2 x 3/8" BSP - NPT (F)
1/2" BSP - NPT (F)
3/8" NPSM (F)
View model specifications
80 db
32 - 158 ºF (0 - 70 ºC)
DF50
Technical data
DF50
1:1
13.21 gal/min (50 l/min)
3.38 oz (0,1 l)
22 to 115 psi (1,5 to 8 bar)
0.12 in (3 mm)
19.69 ft (6 m) dry
26.25 ft (8 m) wet
7.72 lb (3,5 kg) metallic series with aluminium body
4.85 lb (2,2 kg) non metallic series
1/2" NPSM (F) and flange with metallic body
(BSP- NPT (F) and flange with plastic body)
2 x 3/8" NPSM (F) with metallic body
(BSP - NPT (F) with plastic body)
1/2" NPSM (F) and flange with metallic body
(BSP - NPT (F) plastic body)
3/8" NPSM (F)
See model specifications
80 dB
32 - 158 ºF (0 - 70 ºC)
Codes:
DF30_-XXX-XX-XX-XX-X / 5530XX
DF50_-XXX-XX-XX-XX-X / 5520XX
DF100_-XXX-XX-XX-XX-X / 5510XX
DF100
DF100
1:1
26.5 gal/min (100 l/min)
32 oz (0,25 l)
22 to 115 psi (1,5 to 8 bar)
0.16 in (4 mm)
14.76 ft (4,5 m) dry
22.97 ft (7 m) wet
15.87 lb (7,2 kg) metallic series with
Aluminium body
24.69 lb (11,2 kg) metallic series with
Stainless steel body
11.24 lb (5,1 kg) non metallic series
1" BSP/NPT (F) and flange
_
1" BSP/NPT (F) and flange
3/8" NPSM (F)
See model specifications
80 dB
32 - 158 ºF (0 - 70º C)
* (oz, ft, gal/min) all in EEUU units
