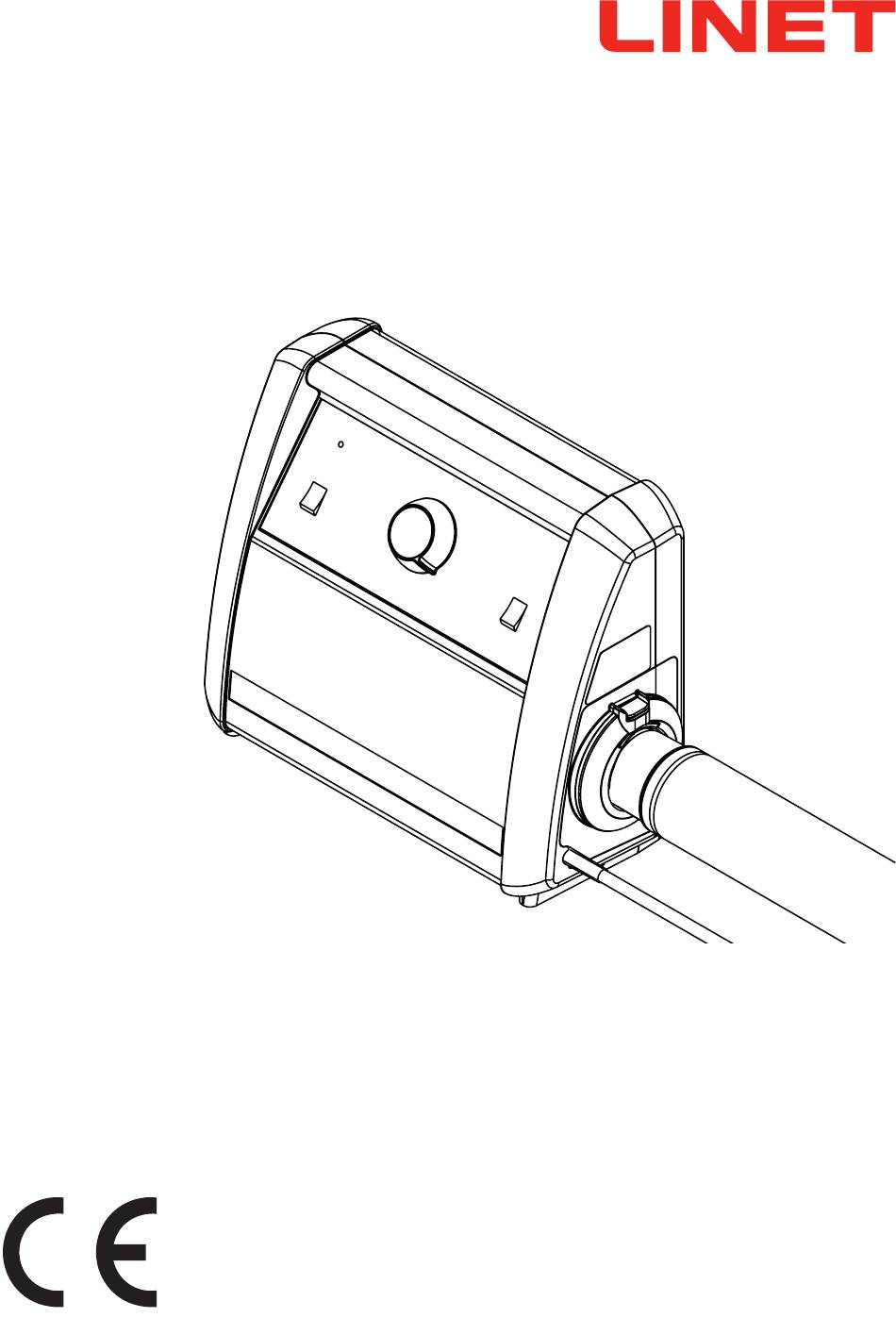

- Page 1 Instructions for Use and Technical Description HybriMatt ® Hybrid Mattress Replacement System D9U003VHM-0101 Version: 00 Publication Date: 2024-01...
- Page 2 Service department: service@linetgroup.com HybriMatt Hybrid Mattress Replacement System Author: L I N E T, s.r.o. Related links: www.linet.cz D9U003VHM-0101 Version: 00 Publication Date: 2024-01 Copyright © L I N E T, s.r.o., 2024 Translation © L I N E T, 2024 All rights reserved.
-
Page 3: Table Of Contents
7.2 Contents ..............23 8 Putting into Service .............24 8.1 Placing HybriMatt on the Bed ........24 8.1.1 Putting the HybriMatt 200 Mattress into Service ..24 8.1.2 Putting the compressor into Service ......24 8.2 Connecting Mattress to the compressor ..... 26 8.3 Inflation for mattress use in active mode .... - Page 4 List of Figures Fig. Wash label of the HybriMatt 200 mattress with Comfort Cover ..................10 Fig. Wash label of the HybriMatt 200 mattress with Endurance Cover or Zoned Cover ............10 Fig. Wash label of the X-ray Sleeve .............................10 Fig. Fire Resistance Label for HybriMatt 200 mattress ......................11 Fig.
-
Page 5: Symbols And Definitions
1 Symbols and Definitions 1.1 Warning Notices 1.1.1 Types of Warning Notices Warning notices are differentiated by the type of danger using the following signal words: ► CAUTION warns about the risk of material damage. ► WARNING warns about the risk of physical injury. ► DANGER warns about the risk of fatal injury. 1.1.2 Structure of Warning Notices DANGER! Type and source of risk! ►... -
Page 6: Symbols On The Package
1.4 Symbols on the Package FRAGILE, HANDLE WITH CARE THIS WAY UP KEEP DRY (PROTECT FROM HUMIDITY) PAPER RECYCLING SYMBOL DO NOT USE HAND TRUCK HERE DO NOT STACK DURING STORAGE D9U003VHM-0101_00... -
Page 7: Symbols And Labels On The Product
1.5 Symbols and Labels on the Product READ INSTRUCTIONS FOR USE. COVER MATERIALS ARE FIRE RETARDENT TO BS7175, SOURCES 0, 1 AND 5. DO NOT IRON. DO NOT USE A CLEANER CONTAINING PHENOL. DO NOT WRING. REGULARY INSPECT THE INSIDE OF THE COVER FOR CONTAMINATION. MACHINE WASH AT 71 DEG. - Page 8 ONLY SUITABLE FOR INDOOR USE. CE MARK OF CONFORMITY WITH EU REGULATION. GENERAL WARNING SIGN. APPLIED PARTS TYPE B. DOUBLE INSULATION. ALTERNATING CURRENT. WEEE SYMBOL (RECYCLE AS ELECTRONIC WASTE, DO NOT PUT INTO THE HOUSEHOLD WASTE). MEDICAL DEVICE (COMPATIBLE WITH MEDICAL DEVICE REGULATION). RECYCLING SYMBOL.
- Page 9 MANUFACTURER. MANUFACTURING DATE. MATTRESS FOOT PART. CAUTION SIGN. DANGER SIGN. UNIQUE DEVICE IDENTIFICATION (FOR MEDICAL DEVICES). REFERENCE NUMBER (PRODUCT TYPE DEPENDING ON CONFIGURATION). SERIAL NUMBER. EAC MARKING (EURASIAN CONFORMITY). POWER SWITCH I : ON O: OFF. D9U003VHM-0101_00...
-
Page 10: Serial Labels With Udi
Serial Number, Global Trade Item Number (GTIN), Unique Device Identification (UDI), symbols and electrical specifications. Serial label of the HybriMatt 200 mattress is placed at the mattress foot end. The serial label contains information about Address of Ma- nufacturer, Manufacturing Date (Year-Month-Day), Product Reference Number, Product Serial Number, Global Trade Item Number (GTIN), Unique Device Identification (UDI) and symbols. -
Page 11: Fire Resistance Label
1.8 Fire Resistance Label Fig. Fire Resistance Label for HybriMatt 200 mattress D9U003VHM-0101_00... -
Page 12: Abbreviations
1.9 Abbreviations AC ( ~ ) Alternating Current Alternating Pressure Therapy (Mode) European Conformity Cardiopulmonary Resuscitation Sound Intensity Unit Direct Current DC ( Constant Low Pressure (Mode) Configuration number Electromagnetic Compatibility Field-effect transistor High Frequency High Pressure Laminate Intensive Care Unit INT. -
Page 13: Safety Instructions
2 Safety Instructions DANGER! Risk of injury due to incorrect use! ► Ensure the mattress is clinically suitable for the patient if it is used without compressor! HybriMatt 200 mattress is necessary for full range of HybriMatt Hybrid Mattress Replacement System functions! WARNING! Any serious incident that has occurred in relation to the device should be reported to the manufacturer and the competent authority of the Member State in which the user and/or patient is established! WARNING! Only authorised and trained person using the tool is allowed to change fuses and power supplies! -
Page 14: Before Use
HybriMatt Hybrid Mattress Replacement System is compatible with a bed whose mattress support platform is in accordance „ with the HybriMatt 200 mattress and whose foot board can properly support the HybriMatt compressor. 2.2 Installation Ensure that installation is performed in accordance with the instructions in this manual. -
Page 15: Intended Use Of Hybrimatt
3 Intended use of HybriMatt The intended purpose of this pressure air mattress with foam cells is to provide a support surface for patients by pressu- re redistribution designed for management of tissue loads and Microclimate Maintenance. This mattress is intended to be used as mattress replacement. -
Page 16: Product Description

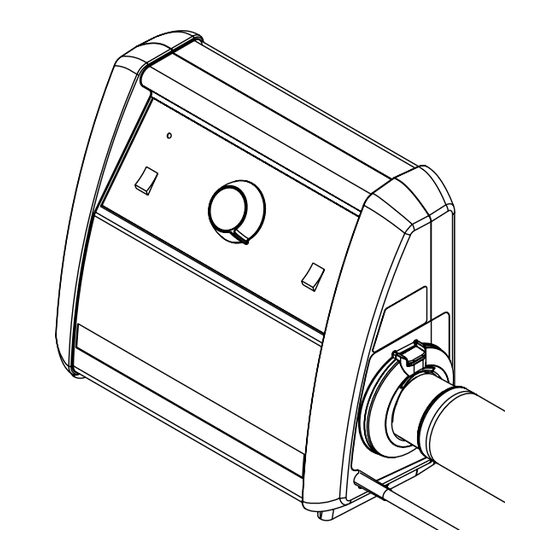

4 Product Description 4.1 Compressor (System Control Unit) The compressor inflates and deflates the air mattress. It is connected to the air mattress with a custom-designed air connector. The analogue electro-mechanical controlled compressor maintains the set pressure regardless of the patient’s weight distribution or position. -
Page 17: Fig. Back Side Of The Hybrimatt Compressor Witrh Unfolded Hooks
Fig. Back side of the HybriMatt Compressor witrh unfolded hooks Unfolded hooks for compressor placement Position of the HybriMatt Compressor serial label D9U003VHM-0101_00... -
Page 18: Fig. Folded Hooks On The Hybrimatt Compressor Back Side
Fig. Folded hooks on the HybriMatt Compressor back side Filter D9U003VHM-0101_00... -
Page 19: Technical Specification
5 Technical Specification 5.1 Mechanical Specification All technical data are rated data and are subject to construction and manufacturing tolerances. Parameter Value External Mattress Dimensions (length x width) Version 1 200 x 86 Version 2 200 x 90 Version 3 208 x 86 Version 4 208 x 90 Mattress Height... -
Page 20: Electrical Specifications Of The Compressor
5.2 Electrical Specifications of the Compressor Parameter Value Input Voltage, Frequency: Version 1 220 — 240 VAC, 50/60 Hz Version 2 100 — 127 VAC, 60 Hz Version 3 220 VAC, 60 Hz Maximum Power Input 15VA Ingress Protection according to EN 60529 IP3X Fuses 2x T0.2A 250V, type 5x20 mm Electric Protection Class... -
Page 21: Electromagnetic Compatibility
It is recommended to avoid the use of this device next to or in block with other device, because it could lead to improper operation. If such use is needed, this device and the other equipment should be under surveillan- ce to verify proper operation. (Does not apply for compatible LINET medical bed.) List of used cables: Mains cable, maximum length 6 m ►... -
Page 22: Manufacturer Instructions - Electromagnetic Emissions
5.4.2 Manufacturer Instructions - Electromagnetic Emissions Immunity Tests Compliance level Electrostatic discharge (ESD) ± 8 kV for contact discharge IEC 61000-4-2 ± 15 kV for air discharge Radiated RF 3 V/m IEC 61000-4-3 80 MHz – 2,7 GHz 80 % AM at 1 kHz Proximity fields from RF wireless communications equipment IEC 61000-4-3 See Table 1... -
Page 23: Use And Storage Conditions
Notify the carrier and supplier about any deficiencies or damages immediately as well as in writing or enter them on the delivery note. 7.2 Contents HybriMatt Hybrid Mattress Replacement System: ■ HybriMatt 200 mattress with mattress air hose and with mattress cover □ Comfort Cover □ Endurance Cover □ Zoned Cover ■ ... -
Page 24: Putting Into Service
Type and source of risk! ► Measures to avoid the risk, if necessary. 8.1.1 Putting the HybriMatt 200 Mattress into Service Before placing mattress on the bed: ► Unpack the mattress in area with clear, sufficient space for unfolding and expansion. -
Page 25: Fig. Compressor On The Foot Board Of The Essenza 300 Bed In Front View
If foot board of the bed is suitable for hanging the compressor: ► Hold the compressor in one hand and unfold hooks on the compressor back side with the other. ► Hang the compressor on the Foot Board of the bed. Fig. -
Page 26: Connecting Mattress To The Compressor
Fig. Compressor on the Foot Board of the Essenza 300 bed in back view 8.2 Connecting Mattress to the compressor Fig. Air connector at the end of the air hose D9U003VHM-0101_00... -
Page 27: Fig. Connecting The Mattress Air Connector To The Compressor
Installation: ► Insert air connector 1 in the socket 2 at an angle of approx. 45°. ► Push air connector 1 down until it clicks into place and air connector latch 3 secures the air connector against dropping off. Air connector Compressor air conne- ctor socket Air connector latch... -
Page 28: Inflation For Mattress Use In Active Mode
8.3 Inflation for mattress use in active mode To prepare the system for mattress inflation: ► Connect mattress to the compressor using air connector. ► Ensure that the compressor is not covered and air flow around the compressor is not obstructed in order to avoid overhea- ting. -
Page 29: Inflation Instructions
8.3.2 Inflation Instructions Inflation steps: Select required mode (see chapter Control Panel). ► ► After switching ON the mattress will start to inflate, the indicator is illuminated during inflation. Set the pressure control dial into middle – green position. ► Inflation may take up to 10 minutes. When inflation is complete, the indicator is no longer illuminated. -
Page 30: Manipulation
Ensure that no body fluids get into the mattress cover. ► Mattress must be cleaned thoroughly between patients and decontaminated after patients with known or suspected infections. ► If moisture gets into the system, notify LINET Service department. Preparation ► Inflate mattress. ►... -
Page 31: Correct Use Of The Hybrimatt 200 Mattress
9.2 Correct Use of the HybriMatt 200 mattress Intension Intended User Procedure Decision if HybriMatt system will Caregiver with educa- 1. Evaluate patient condition and evaluate risk of deve- be used in active mode or passive tion in pressure injury... - Page 32 Intension Intended User Procedure Transport Caregiver, technical 1. Turn off the compressor. personnel 2. Unplug the compressor from the mains. 3. Unplug the mattress air hose from the compressor. 4. Fold mattress air hose between the mattress and bed foot board. 5. Remove the compressor from the bed foot board. Caregiver 1.
- Page 33 Intension Intended User Procedure Cleaning Caregiver, technical 1. Turn off the compressor. personnel 2. Lower the bed siderails. 3. Clean the outside of the mattress. 4. Unzip the mattress top cover and also pocket con- taining the viscoelastic foam layer and inspect the top cover for staining.
- Page 34 Intension Intended User Procedure Mattress Cover Replacement Technical personnel 1. Turn off the compressor. who is trained to service 2. Disconnect the mattress air hose from the compressor. HybriMatt system 3. Unstrap mattress from the mattress support platform. 4. Remove the power supply cable from the cable loops with toggles on the mattress side.
-
Page 35: Control Panel
9.3 Control Panel The control panel of the compressor serves to control the mattress replacement system and shows errors. Warnings are signaled by illumination of the indicator 3. Fig. Compressor Control Panel – HybriMatt with MCM mode Position Description Function Power switch I : ON O : OFF... -
Page 36: Pressure Control
9.4 Pressure Control WARNING! Risk of injury due to incorrect pressure setting! ► Consult qualified hospital staff prior to adjusting pressure. ► The recommended pressure levels may not be the optimum for all situations but should be used in conjunc- tion with clinical judgement based on the individual patient;... -
Page 37: Clp Mode
The compressor will inflate the 8 air cells under the patients torso to the same pressure. 9.6 APT Mode The APT mode of the HybriMatt 200 mattress is a 2-cell alternating system with a 12 minute cycle time. This cycle offers periodic pressure relief and reduces peak pressures. -
Page 38: System Faults
200 mattress is necessary for full range of HybriMatt Hybrid Mattress Replacement System functions! HybriMatt compressor is compatible with HybriMatt 200 mattress which is its accessory. HybriMatt 200 is a hybrid foam mattress including a 2-cell alternating system. Cells are connected into two groups for pressure distribution. Air tubes inside the mattress are separate for these two groups. -
Page 39: Fig. Hybrimatt 200 Mattress
2. Mattress Viscoelastic Foam Layer with MCM Tubing System 3. X-ray Sleeve for X-ray Cassette 4. Cell Sleeve for eight cells 5. Eight Hybrid Cells Fig. HybriMatt 200 mattress 6. Mattress Foam Frame 7. Air Tubing 8. Base Mattress Cover 9. Loop for cell fixation to Base Mattress Cover via toggle... -
Page 40: Fig. Mattress Viscoelastic Foam Layer
Mattress Cover consists of the Top Mattress Cover and the Base Mattress Cover. Both parts of the Mattress Cover are connected by zip. The other zips on both mattress sides are intended for entering the X-ray Sleeve. Fig. Mattress Viscoelastic foam Layer Fig. -
Page 41: Fig. Description Of Hybrimatt 200 Mattress Bottom Side
HEAD END 2. Safety Straps with side release buckles (to fix mattress on the bed mattress support platform) 3. Transport Handles 4. Evacuation Straps for fixing the patient on the mattress 5. Evacuation Straps for emergency mattress transport Fig. Description of HybriMatt 200 mattress bottom side D9U003VHM-0101_00... -
Page 42: Microclimate Maintenance (Mcm)
10.1.1 Microclimate Maintenance (MCM) Microclimate Maintenance Mode that supports pressure injury prevention is available for HybriMatt 200 mattress. The HybriMatt Compressor delivers air by hoses that run up the inside of the mattress into a white pocket. This allows the air to flow through the top cover underneath the patient. -
Page 43: X-Ray Sleeve (Option)
The X-ray Sleeve is connected to the mattress cover by zip so it can be removed from the mattress cover when it is completely unzipped. The X-ray Sleeve is intended for a cassette needed for the x-ray examinations of patients while they are lying on the HybriMatt 200 mattress. -
Page 44: Fig. Access To The X-Ray Sleeve
Fig. Access to the X-ray Sleeve To use the X-ray Sleeve: 1. Unzip the X-ray Sleeve on any side of the mattress. 2. Insert X-ray cassette underneath the patient and capture required image. 3. Remove the X-ray cassette from the X-ray Sleeve after image was taken. 4. -
Page 45: Cleaning And Disinfection
11 Cleaning and Disinfection CAUTION! Incorrect cleaning/disinfection can damage the mattress and the compressor! ► Do not use pressure or steam cleaners. ► Follow the instructions and observe the dosages recommended by the manufacturer. ► Ensure that disinfectants are selected and applied by qualified hygiene experts only. ►... -
Page 46: Routine Cleaning And Disinfection
11.2 Routine Cleaning and Disinfection Read section “General Guidance” for more details of the recommended cleaning and disinfection processes. Cleaning the mattress: ► Check mattress cover top for any signs of damage or for liquid ingress. Any fluid contamination inside the mattress means the entire mattress must be replaced. -
Page 47: Machine Washing Of Hybrimatt Removable Top Mattress Cover
11.3.2 Machine washing of HybriMatt removable top mattress cover ► Remove the mattress top cover. ► DO NOT ATTEMPT TO DISMANTLE OR CLEAN THE INTERIOR COMPONENTS OF THE MATTRESS. ► Fully open the zipper in the white fabric to open the air space envelope. ►... -
Page 48: Troubleshooting
12 Troubleshooting DANGER! Risk of mortal injury due to electric shock! ► If a fault occurs, have the electric motor, power box or other electrical parts repaired by qualified personnel exclusively. ► Do not open the protective covers of the electric motor or the control unit. Problem with HybriMatt compressor Symptom Action... - Page 49 Problem with HybriMatt compressor Symptom Action No pressure alternating available Air cells are not alternating in APT mode. 1) Check inflation if the mattress air hose is connected to the compressor. 2) Check that the mattress has been ro- lled out flat and air hoses are not twisted or trapped in any part of the bed mattress support platform.
-
Page 50: Maintenance
13 Maintenance WARNING! Risk of injury when working on the mattress replacement system! ► Ensure that the mattress replacement system is disconnected from the mains power prior to installation, putting into service, maintenance and deinstallation. WARNING! Risk of injury due to defective mattress replacement system! ►... -
Page 51: Disposal
14.2 Disposal Materials used in this product and in the LINET® accessories burden the environment but at the same time the whole range of these materials can be very effectively reused and recycled. Mechanical disassembly of the product and material sorting into the basic waste types (plastic, metal, wooden materials) should be performed after the end of product life. -
Page 52: Warranty
15 Warranty LINET ® will only be held responsible for the safety and reliability of products that are regularly serviced, maintained and used in accordance with the safety guidelines included in the instructions for use. Should a serious defect arise that cannot be repaired during maintenance: ►...
