Summary of Contents for Roger RUD-3-DES

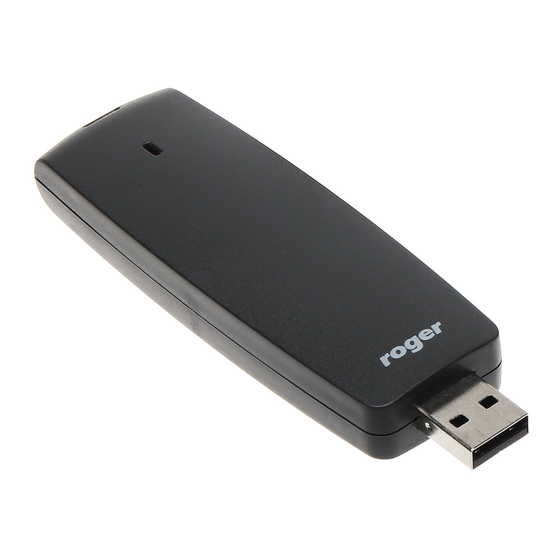

- Page 1 Roger Access Control System Operating Manual RUD-3-DES v2.1 Firmware version: v2.1.2.50 or newer Hardware version v2.1 Document version: Rev. D...
-
Page 2: Table Of Contents
RUD-3-DES Operating Manual.docx 2023-06-30 Table of contents Description and specification ..................3 1.1. General information ....................3 1.2. Features ........................3 1.3. Proximity Cards ......................3 1.4. Card numbers......................3 Working with PC programs ..................4 2.1. Roger MiniReader ..................... 4 2.2. -
Page 3: Description And Specification
Plus and DESFire standard proximity cards and is supplied from serial USB port which is also used for communication with the device. The RUD-3-DES can be used as card enroll reader for access control system or any other application which requires card reader. Card can be enrolled straight from the PR Master (version 4.4.6 or newer is required), VISO or using dedicated Roger... -
Page 4: Working With Pc Programs
PROGRAMS 2.1. Roger MiniReader The Roger MiniReader (v1.1.12 or newer) displays the list of available USB readers connected to the PC. In order to read a single card, you need to select the Read single card command, and then put a card close to the reader. When the code is read, it automatically appears in the Card codes window. -
Page 5: Racs 4 And Racs 5 Systems Support
Fig. 2 Configuration window. 2.2. RACS 4 and RACS 5 systems support RUD-3-DES is well suited for RACS systems and can be used as an administrator reader for entering new card numbers into access control applications. From the list of available readers for PR Master or VISO control program choose RUD-3-DES and follow application reading steps. -
Page 6: Third-Party Software
Fig. 4 VISO reader selection. 2.3. Third-party software Support for RUD-3-DES reader can also be implemented in other programs, in such case, the logic of reader handling depends completely on the program’s author. For integration purposes a RUD-3- DES software SDK has been released. SDK package contains DLL files dedicated for USB HID class RUD-3-DES device, .NET software example and programmer documentation. - Page 7 RUD-3-DES Operating Manual.docx 2023-06-30 Fig. 5 Device select window. RUD-3-DES will be initialized for communication, device configuration window will appear automatically: Fig.6 Device configuration window. Above window contains list of device configuration parameters which are explained in RogerVDM application. Note: reader parameter configuration applies to both write and read card number operation.
-
Page 8: Card Number Write And Read Operations
RUD-3-DES reader and present it on the list of available devices. The RUD-3-DES reader can be connected directly to the PCs USB socket or using a cable with magnetic stand provided together with the reader. Using this cable is convenient because when you use a magnetic stand, the reader can be located at computer’s case or any other metallic part of a desk or a table. -
Page 9: Firmware Update
RUD-3-DES Operating Manual.docx 2023-06-30 5. F IRMWARE UPDATE Firmware update can be performed with Roger firmware update tool RogerISP v4.3.4. Before beginning the firmware update process You need to download adequate for Your device firmware file from manufacturer’s website www.roger.pl and save it to known disk location. -
Page 10: Product History
The equipment’s weight is shown in the guide. Contact Roger sp. z o. o. sp. k. 82-400 Sztum Gosciszewo 59 Tel.: +48 55 272 01 32 Fax: +48 55 272 01 33...
