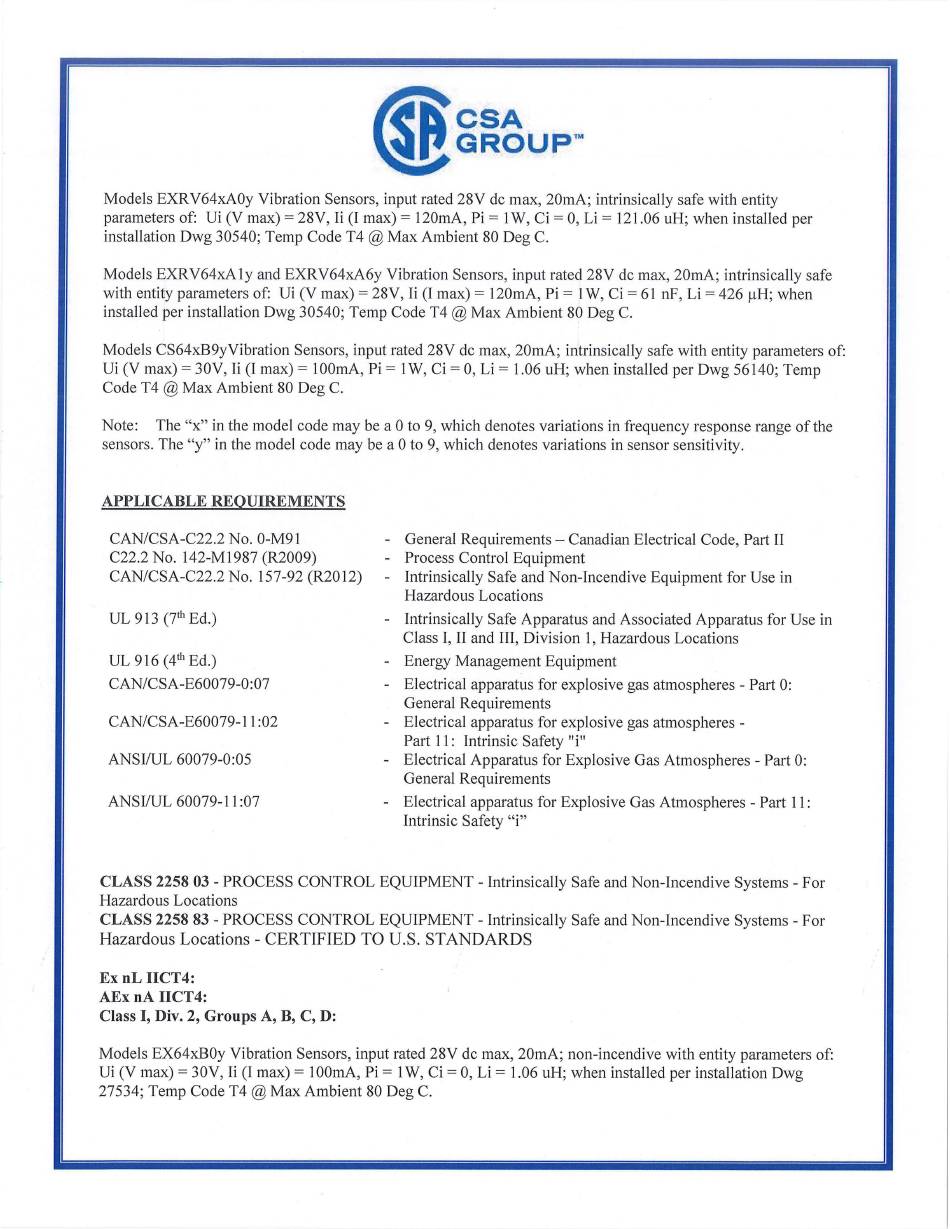

Cp
CSA
GROUP TM
Models EXRV64xA0y Vibration Sensors, input rated 28V dc max, 20mA; intrinsically safe with entity
parameters of: Ui (V max)
=
28V, Ii (I max)
=
120mA, Pi
=
1W, Ci
=
0, Li = 121.06 uH; when installed per
installation Dwg
30540;
Temp Code T4 @ Max Ambient 80 Deg C.
Models EXRV64xA1y and EXRV64xA6y Vibration Sensors, input rated 28V dc max, 20mA; intrinsically safe
with entity parameters of: Ui (V max)
=
28V, Ii (I max) 120rnA, Pi
=
1W, Ci = 61 nF, Li = 426 jiH; when
installed per installation Dwg 30540; Temp Code T4 @ Max Ambient 80 Deg C.
Models CS64xB9yVibration Sensors, input rated 28V dc max, 20mA; intrinsically safe with entity parameters of:
Ui (V max)
=
30V, Ii (I max)
=
lOOmA, Pi
=
1W, Ci
=
0, Li
=
1.06 uH; when installed per Dwg 56140; Temp
Code T4 @ Max Ambient 80 Deg C.
Note: The "x" in the model code may be a 0 to 9, which denotes variations in frequency response range of the
sensors. The "y" in the model code may be a 0 to 9, which denotes variations in sensor sensitivity.
APPLICABLE REQUIREMENTS
CAN/CSA-C22.2 No. 0-M91
-
General Requirements
-
Canadian Electrical Code, Part II
C22.2 No. 142-M 1987 (R2009)
-
Process Control Equipment
CAN/CSA-C22.2 No. 157-92 (R2012)
-
Intrinsically Safe and Non-Incendive Equipment for Use in
Hazardous Locations
UL
913 (7 111 Ed.)
-
Intrinsically Safe Apparatus and Associated Apparatus for Use in
Class I, II and III, Division 1, Hazardous Locations
UL 916 (4th Ed.)
-
Energy Management Equipment
CAN/CSA-E60079-0:07
-
Electrical apparatus for explosive gas atmospheres
-
Part 0:
General Requirements
CAN/CSA-E60079-1 1:02
-
Electrical apparatus for explosive gas atmospheres
-
Part 11: Intrinsic Safety 'i'
ANSI/UL 60079-0:05
-
Electrical Apparatus for Explosive Gas Atmospheres
-
Part 0:
General Requirements
ANSI/UL 60079-11:07
-
Electrical apparatus for Explosive Gas Atmospheres
-
Part 11:
Intrinsic Safety "i"
CLASS 2258 03
-
PROCESS CONTROL EQUIPMENT
-
Intrinsically Safe and Non-Incendive Systems
-
For
Hazardous Locations
CLASS 2258 83
-
PROCESS CONTROL EQUIPMENT
-
Intrinsically Safe and Non-Incendive Systems
-
For
Hazardous Locations
-
CERTIFIED TO U.S. STANDARDS
Ex nL IICT4:
AEx nA IICT4:
Class I, Div. 2, Groups A, B, C, D:
Models EX64xB0y Vibration Sensors, input rated 28V dc max, 20mA; non-incendive with entity parameters of:
Ui (V max)
=
30V, Ii (I max)
=
lOOmA, Pi
=
1W, Ci = 0, Li
=
1.06 uH; when installed per installation Dwg
27534; Temp Code T4 @ Max Ambient 80 Deg C.
