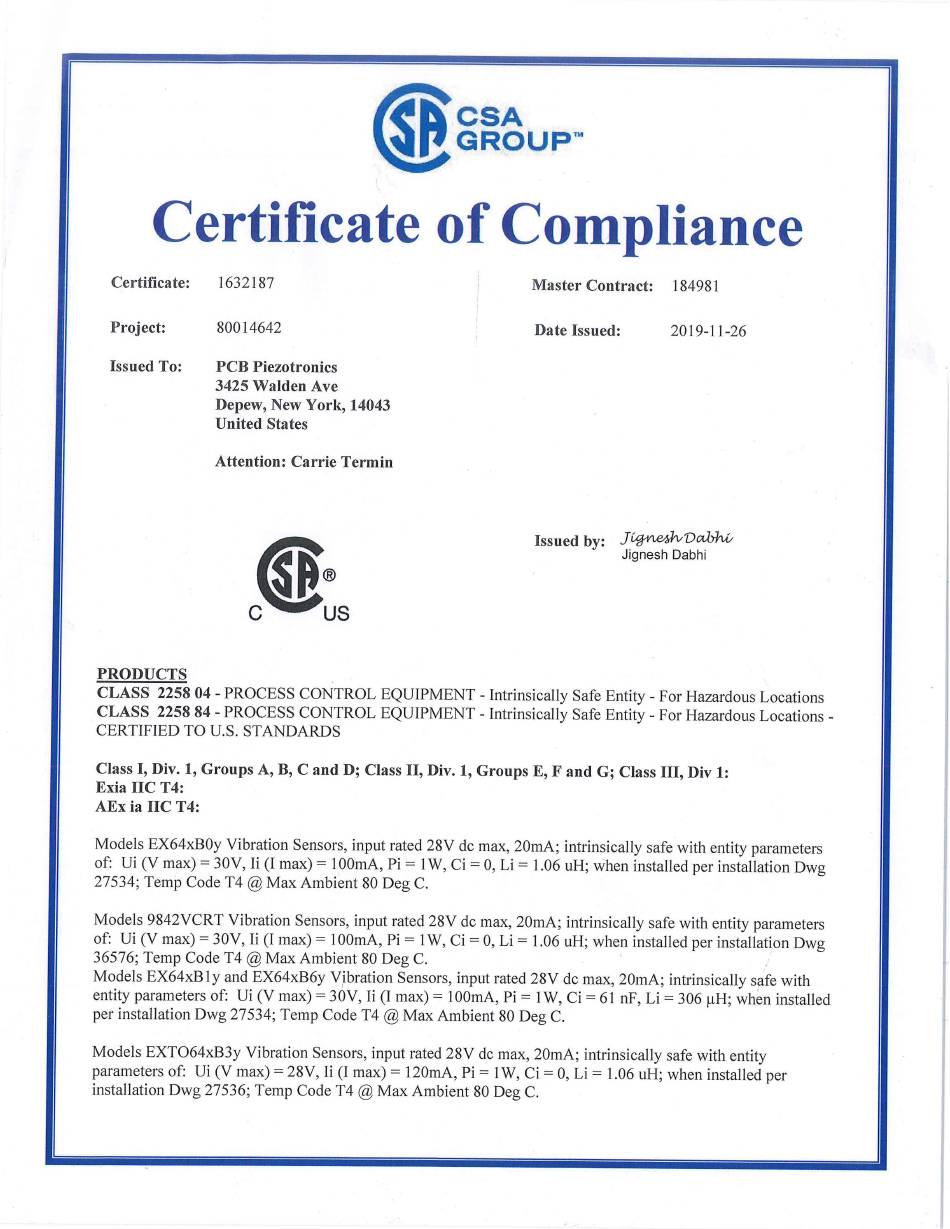

Certificate of Compliance
Certificate: 1632187
Master Contract:
184981
Project: 80014642
Date Issued:
2019-11-26
Issued To:
PCB Piezotronics
3425 Walden Ave
Depew, New York, 14043
United States
Attention: Carrie Termin
J4cLe4J1JDcthhL/
Issued by:
Jignesh
Dabhi
C US
PRODUCTS
CLASS 2258 04
-
PROCESS CONTROL EQUIPMENT
-
Intrinsically Safe Entity
-
For Hazardous Locations
CLASS 2258 84
-
PROCESS CONTROL EQUIPMENT
-
Intrinsically Safe Entity
-
For Hazardous Locations
-
CERTIFIED TO U.S. STANDARDS
Class I, Div. 1, Groups A, B, C and D; Class II, Div. 1, Groups E, F and G; Class III, Div 1:
Exia IIC T4:
AEx ia IIC T4:
Models EX64xB0y Vibration Sensors, input rated 28V dc max, 20mA; intrinsically safe with entity parameters
of: Ui (V max) 30V, Ii (I max)
=
lOOmA, Pi = 1W, Ci 0, Li = 1.06 uH; when installed per installation Dwg
27534; Temp Code T4 @ Max Ambient 80 Deg C.
Models 9842 VCRT Vibration Sensors, input rated 28V dc max, 20mA; intrinsically safe with entity parameters
of: Ui (V max)
=
30V, Ii (I max) = lOOmA, Pi
=
1W, Ci
=
0, Li = 1.06 uH; when installed per installation Dwg
36576; Temp Code T4 @ Max Ambient 80 Deg C.
Models EX64xB1y and EX64xB6y Vibration Sensors, input rated 28V dc max, 20mA; intrinsically safe with
entity parameters of: Ui (V max)
=
30V, Ii (I max) = lOOmA, Pi = 1W, Ci
=
61 nF, Li = 306 iH; when installed
per installation Dwg 27534; Temp Code T4
@
Max Ambient 80 Deg C.
Models EXT064xB3y Vibration Sensors, input rated 28V dc max, 20mA; intrinsically safe with entity
parameters of: Ui (V max) 28V, Ii (I max)
=
120mA, Pi
=
1W, Ci
=
0, Li
=
1.06 uH; when installed per
installation Dwg 27536; Temp Code T4 @ Max Ambient 80 Deg C.
