Model EX638A06

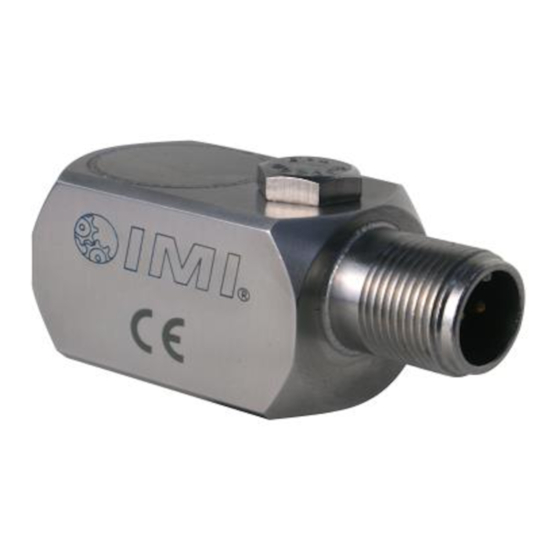

Intrinsically-safe, cryogenic, industrial, quartz shear ICP accel, 25mV/g, 4 to 1.5kHz, side exit, 2-

pin conn.

Installation and Operating Manual

For assistance with the operation of this product,

contact the PCB Piezotronics, Inc.

Toll-free: 800-959-4464

24-hour SensorLine: 716-684-0001

Fax: 716-684-3823

E-mail: imi@pcb.com

Web: www.imi-sensors.com

Need help?

Do you have a question about the IMI SENSORS EX637 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for PCB Piezotronics IMI SENSORS EX637 Series

Page 1 Intrinsically-safe, cryogenic, industrial, quartz shear ICP accel, 25mV/g, 4 to 1.5kHz, side exit, 2- pin conn. Installation and Operating Manual For assistance with the operation of this product, contact the PCB Piezotronics, Inc. Toll-free: 800-959-4464 24-hour SensorLine: 716-684-0001 Fax: 716-684-3823 E-mail: imi@pcb.com...
Page 2  Assistance is needed to safely operate equipment  PCB Piezotronics is an ISO-9001 certified company whose Damage is visible or suspected  calibration services are accredited by A2LA to ISO/IEC Equipment fails or malfunctions 17025, with full traceability to SI through N.I.S.T.
Page 3 CAUTION Refers to hazards that could damage the instrument. NOTE Indicates tips, recommendations and important information. The notes simplify processes and contain additional information on particular operating steps. The following symbols may be found on the equipment described in this manual: This symbol on the unit indicates that high voltage may be present.
Page 4 PCB工业监视和测量设备 - 中国RoHS2公布表 PCB Industrial Monitoring and Measuring Equipment - China RoHS 2 Disclosure Table 有害物质镉汞铅 (Pb) 六价铬 (Cr(VI)) 多溴联苯 (PBB) 多溴二苯醚 (PBDE) 部件名称 (Hg) (Cd) 住房 PCB板电气连接器压电晶体环氧铁氟龙电子厚膜基板电线电缆塑料焊接...
Page 5 Component Name Hazardous Substances Lead (Pb) Mercury (Hg) Cadmium (Cd) Chromium VI Polybrominated Polybrominated Compounds Biphenyls (PBB) Diphenyl Ethers (Cr(VI)) (PBDE) Housing PCB Board Electrical Connectors Piezoelectric Crystals Epoxy Teflon Electronics Thick Film Substrate Wires Cables Plastic Solder Copper Alloy/Brass This table is prepared in accordance with the provisions of SJ/T 11364.
Page 6 PCB PIEZOTRONICS INC. 3425 WALDEN AVE. DEPEW, NEW YORK 14043 INSTRUCTIONS FOR USE – EX(M)637XYYYZ and EX(M)638XYYYZ Series Model(s) EX(M)637XYYYZ and EX(M)638XYYYZ Series (M)-Represents an optional Metric Mounting Option X = is a letter that signifies family type. The letter will be from A to Z.
Page 7 Repair In the event that equipment becomes damaged or ceases to operate, arrangements should be made to return the equipment to PCB Piezotronics for repair. User servicing or repair is not recommended and, if attempted, may void the factory warranty.
Page 8 3425 Walden Avenue, Depew, New York. Same address, same manufacturing facility. Some of the documentation contained in the Technical File associated with this application is labeled IMI Sensors, A PCB Piezotronics Div. and some is labeled simply PCB Piezotronics. PCB Piezotronics labeled drawing are higher-level drawings, which are used across multiple divisions, while IMI labeled drawing are specific to IMI models.
Page 9 Piezoelectric ICP® Accelerometers Operating Guide Operating Guide with Enclosed Warranty Information 3424 Walden Avenue, Depew, New York 14043-2495 Phone (716) 684-0003 Fax (716) 684-3823 Toll Free Line 1-800-959-4IMI MANUAL NUMBER: 18405 MANUAL REVISION: A ECN NUMBER: 49766...
Page 10 General OPERATING GUIDE for use with PIEZOELECTRIC ICP® ACCELEROMETERS SPECIFICATION SHEET, INSTALLATION DRAWING AND CALIBRATION INFORMATION ENCLOSED IMI ASSUMES NO RESPONSIBILITY FOR DAMAGE CAUSED TO THIS PRODUCT AS A RESULT OF PROCEDURES THAT ARE INCONSISTENT WITH THIS OPERATING GUIDE 1.0 INTRODUCTION Congratulations on the purchase of a quality ICP®...
Page 11 The environment of the application is a critical input voltage. Also, the diode can be changed to supply consideration during program implementation. The higher currents for driving long cable lengths. Constant sensor chosen must be capable of surviving the wide current diodes, as shown in Figure 3, should be used in range of conditions to which it is subjected;...
Page 12 MS – Mine Safety Approved Sensors 4.1 STANDARD STUD MOUNT TO – Temperature Output Sensor This mounting technique requires smooth, flat contact surfaces for proper operation and is Note: Not all sensors are available with the optional recommended permanent and/or secure prefixes.
Page 13 semi-permanent mounting, substitute epoxy or another METHOD 2 – Direct Adhesive Mount type of adhesive. For restrictions of space or for convenience, most sensors STEP 3: Hand-tighten the sensor/mounting stud to the (with the exception of integral stud models) can be machine, then secure the sensor with a torque wrench to adhesive-mounted directly to the machine surface.
Page 14 ICP® accelerometers are internally amplified, two-wire accelerometers. Connections to the sensor require two leads: one for the power and signal, and the other for the common and signal return. Often, coaxial cables are used since only two conductors are needed. Coaxial cables are less expensive.
Page 15 �� (Equation 1) exceed its maximum temperature specification. For this 10 9 max= 2�� reason, do not supply excessive current over short cable runs [ �� −1 ] or when testing at elevated temperatures. Where, f = maximum frequency (hertz) 5.1 CABLE CONNECTOR PROCEDURE C = cable capacitance (picofarads) Care and attention to installation is essential, as the...
Page 16 6.0 POWERING the system still does not operate properly, consult All ICP® sensors require constant current excitation an IMI Application Engineer. for proper operation. For this reason only use approved constant-current sources. A typical system Note: Always operate the accelerometer within the schematic is shown in Figure 11.
Page 17 Periodic recalibration may be required by plants with piezoelectric accelerometers. This method relies on strict certification and traceability requirements. It is a simple comparison to a previously calibrated always recommended that the user has the sensor accelerometer, typically referred to as a reference recalibrated periodically, particularly if the sensor standard, as shown in Figure 12.
Page 18 ICP® sensors are two-wire sensors. They are powered with a constant current DC source. The power supply is typically 18 to 30 volts DC current limited via a constant current between 2 and 20 mA. Typical battery operated supplies offer 2mA of constant current to extend battery life while Figure 14.
Page 19: Return Material Authorization (Rma)
11.0 CUSTOMER SERVICE/WARRANTY IMI, a division of PCB Piezotronics, guarantees Total Customer Satisfaction. If, at any time, for any Figure 18. DC Bias Voltage Measurement reason, you are not completely satisfied with any IMI product, IMI will repair, replace or exchange it at no charge.
Page 21 PCB Piezotronics Inc. claims proprietary rights in REVISIONS the information disclosed hereon. Neither it nor any reproduction thereof will be disclosed to others DESCRIPTION without the written consent of PCB Piezotronics Inc. RELEASED TO DRAFTING 49059 SCHEDULE DRAWING NO MODIFICATIONS PERMITTED...
Page 22 PCB Piezotronics Inc. claims proprietary rights in REVISIONS the information disclosed hereon. Neither it nor any reproduction thereof will be disclosed to others DESCRIPTION without the written consent of PCB Piezotronics Inc. -SEE SHEET 1- SCHEDULE DRAWING NO MODIFICATIONS PERMITTED WITHOUT REFERENCE TO THE...
Page 23 All specifications are at room temperature unless otherwise specified. 3425 Walden Avenue, Depew, NY 14043 In the interest of constant product improvement, we reserve the right to change specifications without notice. ® is a registered trademark of PCB Piezotronics, Inc.
Page 24 PCB Piezotronics Inc. claims proprietary rights in REVISIONS the information disclosed hereon. Neither it nor any reproduction thereof will be disclosed to others DESCRIPTION without the written consent of PCB Piezotronics Inc. UPDATED MOUNTING BOLT CALLOUT 48965 1.00 [25.4] ELECTRICAL CONNECTOR...
Page 41 EU Declaration of Conformity PS023 In Accordance with ISO/IEC 17050 Manufacturer: PCB Piezotronics, Inc. Authorized PCB Piezotronics Europe GmbH 3425 Walden Avenue European Porschestrasse 20-30 Representative: 41836 Hückelhoven, Germany Depew, New York 14043 USA Certifies that type of equipment: ICP® Sensors...
Page 42 Test Reports EMC Reports GM29028c, GM29030c, GM29032c, GM29043c, GM29045c, GM29047c Safety Reports GM29029s, GM29031s, GM29033s, GM29044s, GM29046s, GM29048s I, the undersigned, hereby declare that the equipment specified above conforms to the above Directive(s) Standard(s) Place: Depew, NY Date: 08/25/2021 Signature: Name: Carrie Termin Title:...
Page 43 UK Declaration of Conformity PS023UK In Accordance with ISO/IEC 17050 Manufacturer: PCB Piezotronics, Inc. 3425 Walden Avenue Depew, New York 14043 USA Certifies that type of equipment: ICP® Sensors Whose Product Models Include: Y-Y1X-Xyxxx Series ICP Pressure Sensors Y-Y2X-Xyxxx Series ICP Force Sensors...
Page 44 Test Reports EMC Reports GM29028c, GM29030c, GM29032c, GM29043c, GM29045c, GM29047c Safety Reports GM29029s, GM29031s, GM29033s, GM29044s, GM29046s, GM29048s I, the undersigned, hereby declare that the equipment specified above conforms to the above Directive(s) Standard(s) Place: Depew, NY Date: 08/25/2021 Signature: Name: Carrie Termin Title:...
