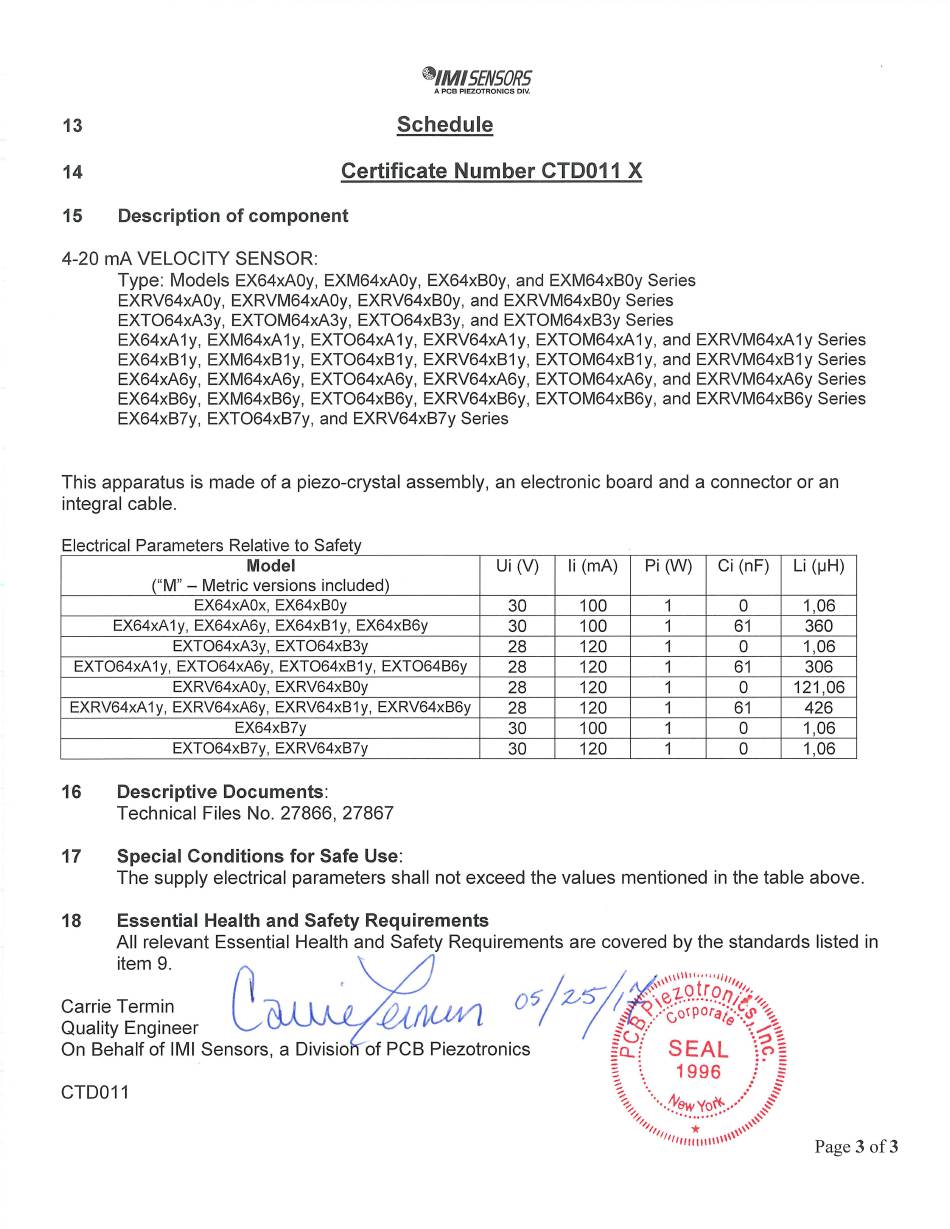

PCB Piezotronics IMI SENSORS EX640B00 Installation And Operating Manual page 43

IMI5EN5OR5
A PCB PIEZOTRONICS DIV.
13
Schedule
14
Certificate Number CTDO1 I X
15
Description of component
4-20 mA VELOCITY SENSOR:
Type: Models EX64xAOy, EXM64xAOy, EX64xB0y, and EXM64xB0y Series
EXRV64xA0y, EXRVM64xA0y, EXRV64xB0y, and EXRVM64xB0y Series
EXT064xA3y, EXTOM64xA3y, EXT064xB3y, and EXTOM64xB3y Series
EX64xAl y, EXM64xAl y, EXT064xAl y, EXRV64xAl y, EXTOM64xAl y, and EXRVM64xA1 y Series
EX64xBly, EXM64xBly, EXT064xBly, EXRV64xBly, EXTOM64xBly, and EXRVM64xBly Series
EX64xA6y, EXM64xA6y, EXT064xA6y, EXRV64xA6y, EXTOM64xA6y, and EXRVM64xA6y Series
EX64xB6y, EXM64xB6y, EXT064xB6y, EXRV64xB6y, EXTOM64xB6y, and EXRVM64xB6y Series
EX64xB7y, EXT064xB7y, and EXRV64xB7y Series
This apparatus is made of a piezo-crystal assembly, an electronic board and a connector or an
integral cable.
Electrical Parameters Relative to Safety
Model
(" M" -
Metric versions included)
UI (V) Ii (mA)
Pi (W) Ci (nF) Li (pH)
EX64xAOx, EX64xBOy
30 100 1 0 1 7 06
EX64xA1y, EX64xA6y, EX64xB1y, EX64xB6y
30 100 1 61 360
EXT064xA3y, EXT064xB3y
28 120 1 0 1 1 06
EXT064xA1 y, EXT064xA6y, EXT064xB1 y, EXT064B6y
28 120 1 61 306
EXRV64xAOy, EXRV64xBOy
28 120 1 0 121 7 06
EXRV64xA1y, EXRV64xA6y, EXRV64xB1y, EXRV64xB6y
28 120 1 61 426
EX64xB7y
30 100 1 0 1,06
EXT064xB7y, EXRV64xB7y
30 120 1 0 1 7 06
16 Descriptive Documents:
Technical Files No. 27866, 27867
17 Special Conditions for Safe Use:
The supply electrical parameters shall not exceed the values mentioned in the table above.
18
Essential Health and Safety Requirements
All relevant Essential Health and Safety Requirements are covered by the standards listed in
item 9.
Z
t ro/7
Carrie Termin
0
Quality Engineer
On Behalf of lMl Sensors, a Divisto of PCB Piezotronics
SEAL
cV"
-
CTDO1I
1996
* \\\\
Page 3 of 3
