Summary of Contents for Dentsply Sirona Digital Cure

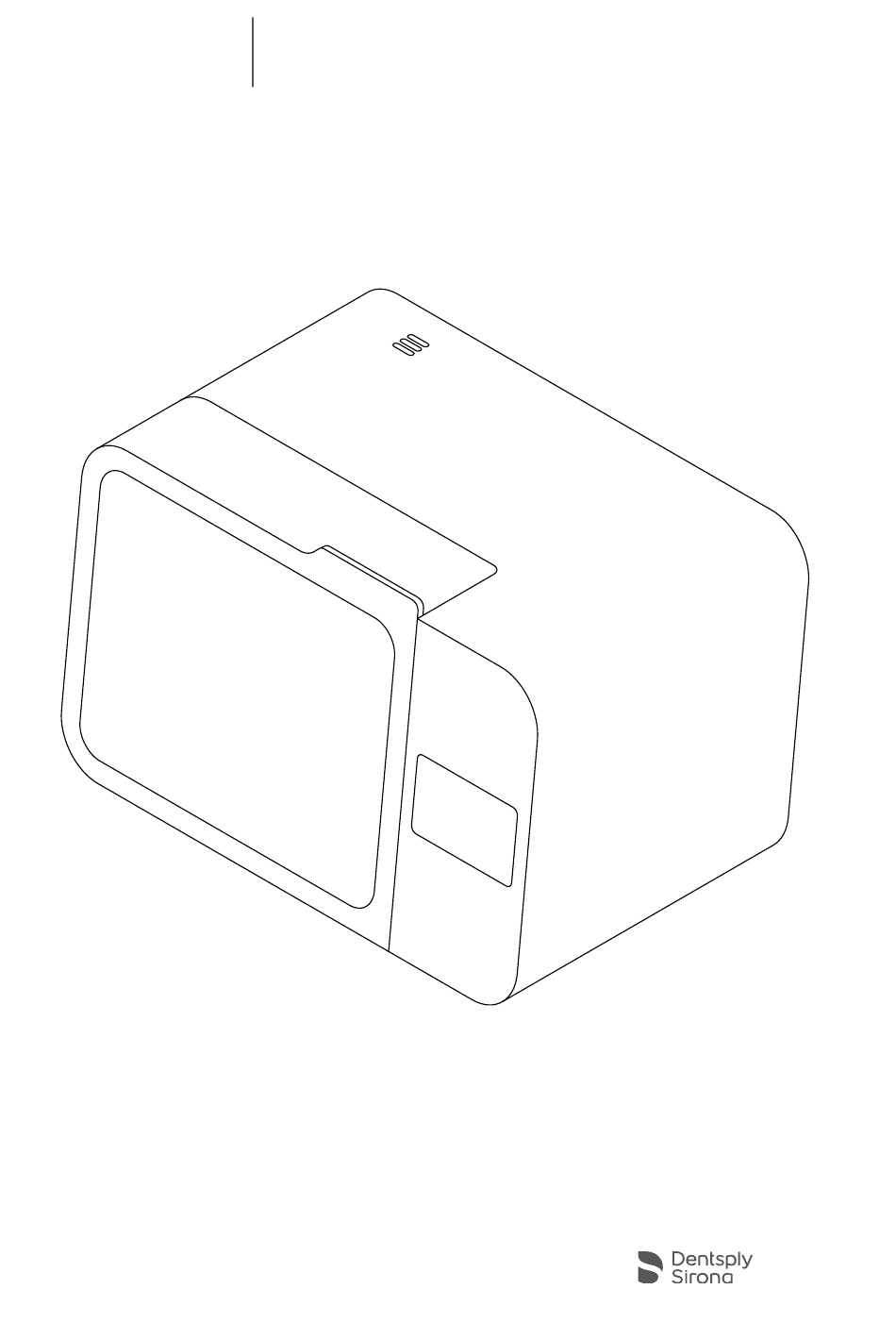

- Page 1 Digital Cure Manual Large Capacity Unit PN: 2201683 REV 01...
- Page 3 Installation and General Usage Instructions Refer to the Lucitone Digital Print Denture illustrated technical guides for detailed workflow instructions. Digital Cure - Large Capacity Unit Large-format desktop stereolithography post-cure chamber Original English instructions Read this manual carefully and keep it for future reference.
-
Page 4: Table Of Contents
Operating the Digital Cure . . . . . . . . . . . . . . . . . . - Page 5 Tasks between uses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Periodic maintenance .
- Page 7 Cure. Failure to do so can result in serious injury or death. WARNING DISCLAIMER Dentsply Sirona has made every effort to make these instructions as clear, complete, and correct as possible. The information provided in this documentation contains general descriptions and/or technical characteristics of the performance of the products contained herein.
-
Page 8: Preface
Preface Congratulations on purchasing the Dentaply Sirona Digital Cure - Large Capacity Unit, hereby referred to as the Digital Cure. On behalf of the Dentsply Sirona team, we thank you for your purchase. This manual explains how to set up, use, and properly maintain the Digital Cure. - Page 9 1.2.2 Warranty Preface | 7...
-
Page 10: Introduction
Introduction Intended use The Digital Cure post cures 3D printed parts with a unique combination of heat and light. The final performance characteristics of cured photopolymer resin may vary according to your compliance with the instructions for use, application, operating conditions, material combined with, end use, or other factors. -
Page 11: Technical Specifications
Technical specifications Parameter Unit Unit Digital Cure Installation surface Benchtop unit Minimum dimensions for convenient 90 × 85 × 55 cm access 35.5 × 33.5 × 21.7 in (W × D × H) Product dimensions (W × D × H) 69 ×... -
Page 12: Product Components
Wi-Fi antenna: Allows the machine to connect to a network via Wi-Fi. User interface The Digital Cure display is a touchscreen interface. The touchscreen displays information (time, temperature, and selected material), settings, and error messages. The touchscreen serves as the user interface for the machine. - Page 13 The following screens and options are accessible via the home screen on the Digital Cure display: Settings Connectivity Update Firmware Onboarding Machine Sounds Turntable Spinning Reboot Select Preheat Time and Select a preheat time and temperature. Temperature Select Post-Curing Time Select a post-curing time and temperature.
-
Page 14: Safety
MANDATORY ACTION: Wear thermal-insulating silicone gloves when handling hot build chambers. Component and subsystem safety 3.1.1 General The Digital Cure is a professional appliance that includes electronic components. As with any such appliance: • Do not operate the device with a damaged cord or plug. -
Page 15: Personal Protective Equipment (Ppe)
Accumulation of cured material creates the possibility of malfunction. The Digital Cure uses heat as well as 385 nm, 395 nm, and 470 nm light to post-cure 3D printed parts. The door includes an interlock system that is designed to automatically pause heating and extinguish the cure lights when the door is open. -
Page 16: Specification Of Tools To Be Used
• LED modules The Digital Cure uses LED modules to expose printed parts to a mix of 385 nm, 395 nm, and 470 nm light during post-curing. Refer to section 6.4.2 Maintaining the light diffusers for more information. -
Page 17: Power And Networking
4. Use the provided handles on the carrying slings to lift the machine out of its carrier tray. 5. Carefully move the machine onto its workspace. If you need to readjust the Digital Cure, use the carrying slings to pick the machine back up. Do not pick up the Digital Cure without the carrying slings. -
Page 18: Accessing The Serial Name
The serial name is a unique identifier used to track the history of manufacturing, sales, and repair. The serial name for the Digital Cure is located on the back of the unit in the format DLCL-01234. It is also accessible via the touchscreen. -
Page 19: Updating Firmware
2. Connect the other end of the USB cable to a computer’s USB port. Updating firmware Dentsply Sirona regularly releases updated firmware to fix bugs and improve functionality. To update the firmware: 1. The machine may automatically recognize that you have sent a firmware update. Tap Continue on the touchscreen to finish the installation. -
Page 20: Transporting The Machine
The Digital Cure is a heavy object. A two person lift is required to prevent injury and avoid damage to the machine. Always use the included cardboard slings when moving the device. - Page 21 Lifting hazard: The Digital Cure is a heavy object. A two-person lift is required to prevent injury and avoid damage to the machine. CAUTION 5. Place the two foam inserts on the top edges of the machine. 6. Lower the outer box onto the machine.
-
Page 22: Usage
5.2.2 Setting the cure cycle The Digital Cure has a preset material profile for Lucitone Digital Appliances. The unit may require periodic firmware updates. Refer to section 4.7 for step by step instructions on updating the firmware. -
Page 23: Time And Temperature Settings
2. Select the Lucitone Digital Appliances profile. The touchscreen automatically returns to the home screen. 3. Select Start. The printed part must be in the Digital Cure while it preheats. If the part is not placed inside the device until preheating is complete, the part may crack. NOTICE Once the program cycle starts: do not stop and restart, open the door, or add appliances;... -
Page 24: Managing The Machine
5.4.1 Turning off The Digital Cure is designed to remain powered on when not in use. Flip the breaker switch on the back of the unit to the OFF position to turn off the machine completely and conserve power. When moving or storing the machine, unplug the unit from its power source in addition... -
Page 25: Maintenance
• Unauthorized disassembly or repair procedures may damage the machine and void the warranty. Tools and supplies Only use tools, chemicals, or procedures to maintain the Digital Cure that are outlined in this manual, by prompts on the touchscreen, and on dentsplysirona.com. -
Page 26: Inspection And Maintenance
6.4.4 Tasks between uses Over time, debris or contaminants may collect in the Digital Cure or on its internal surfaces, particularly if printed parts are not fully dried before post-curing. In order to preserve the reliability of the Digital Cure, it is important to regularly inspect and clean its various components and assemblies. -
Page 27: Intermittent Maintenance
6.4.2 Maintaining the light diffusers The primary 385 nm, 395 nm, and 470 nm LEDs in the Digital Cure are covered by frosted light diffusing panels. These light diffusers spread the light from the LEDs and ensure that parts post- cure evenly. -
Page 28: Troubleshooting
Support to assist with troubleshooting. Troubleshooting errors or abnormal activity In the case of errors or abnormal activity with the Digital Cure, reference the following errors, causes, and proposed solutions. Complete the initial troubleshooting steps and carefully document all results. Contact Dentsply Sirona Support for additional guidance. - Page 29 The Digital Cure thermistor • Disconnect and reconnect the power. reported an error. • Disconnect the power. Remove the Digital Cure top shell and check that the thermistor wiring is secure. Contact Dentsply Sirona Support more information. Troubleshooting | 27...
- Page 30 The device failed to reach The Digital Cure did not Disconnect the power. Remove the the required temperature. reach its target temperature Digital Cure top shell and check that the within 30 minutes. thermistor and heater module wiring is secure. Contact Dentsply Sirona Support for more information.
-
Page 31: Disassembly And Repair
Disassembly and repair All steps that involve opening the machine and/or investigating internal components should be done by skilled persons under the guidance of Dentsply Sirona Support. WARNING Any damage resulting from attempting disassembly and/or repair without prior authorization from Dentsply Sirona Support is not covered by warranty. When removing the exterior paneling, disconnect the machine from its power source before maintenance. -
Page 32: Recycling And Disposal
Recycling and disposal Disposal of electronic components The symbol on the product, the accessories, or packaging indicates that this device shall not be treated as nor disposed of with household waste. When you decide to dispose of this product, do so in accordance with environmental laws and guidelines. Dispose of the device via a collection point for the recycling of waste electrical and electronic equipment. -
Page 33: Index
Index clean 13, 16, 20, 27, 28, 35 cleaning 13, 16, 20, 27, 28, 35 comply 8, 13, 35 compliance 8, 13, 35 display 10, 11, 26, 29, 30, 35, 36 disposal 5, 33, 34, 35 door 16, 18, 22, 23, 27, 28, 29, 31, 35, 36 environment 4, 9, 13, 17, 22, 27, 30, 34, 35 error 10, 29, 30, 31, 35 Ethernet 9, 18, 19, 20, 35, 36... - Page 34 solvent 5, 13, 14, 21, 22, 26, 30, 33, 34, 35 specifications 4, 8, 9, 35 technical data 8, 35 temperature 4, 9, 10, 11, 17, 22, 23, 24, 25, 29, 30, 31, 35, 36 heat 4, 9, 10, 11, 17, 22, 23, 24, 25, 29, 30, 31, 35, 36 touchscreen 9, 10, 18, 19, 20, 22, 23, 25, 26, 27, 28, 29, 35 tripropylene glycol monomethyl ether 14, 36 TPM 14, 36...
-
Page 35: Glossary
Fans There are seven fans in the Digital Cure. Two fans blow hot air from the heater modules into the post-cure chamber. One fan exhausts air from the post-cure chamber. Four fans bring in outside air to cool the LEDs and other electronics. -
Page 36: Product Compliance
Product compliance The Digital Cure complies with the following electronics and safety standards: UL 61010-1:2012 Machinery Directive 2006/42/EC CSA C22.2 No. 61010-1-12:2012 Radio Equipment Directive 2014/53/EU UL 61010-2-010:2019 RoHS Directive 2011/65/EU CSA C22.2 No. 61010-2-010:2019 EMC Directive 2014/30/EU Other IEC 61010-1:2010... - Page 37 Original English instructions June 2022 Product compliance | 35...
