2024-07
New as of:
Sirona Dental CAD/CAM System
CEREC Primescan AC, Primescan AC
Instructions for Use (valid for USA)
English

Advertisement

loading
Need help?

Need help?

Do you have a question about the CEREC Primescan AC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dentsply Sirona CEREC Primescan AC

Summary of Contents for Dentsply Sirona CEREC Primescan AC

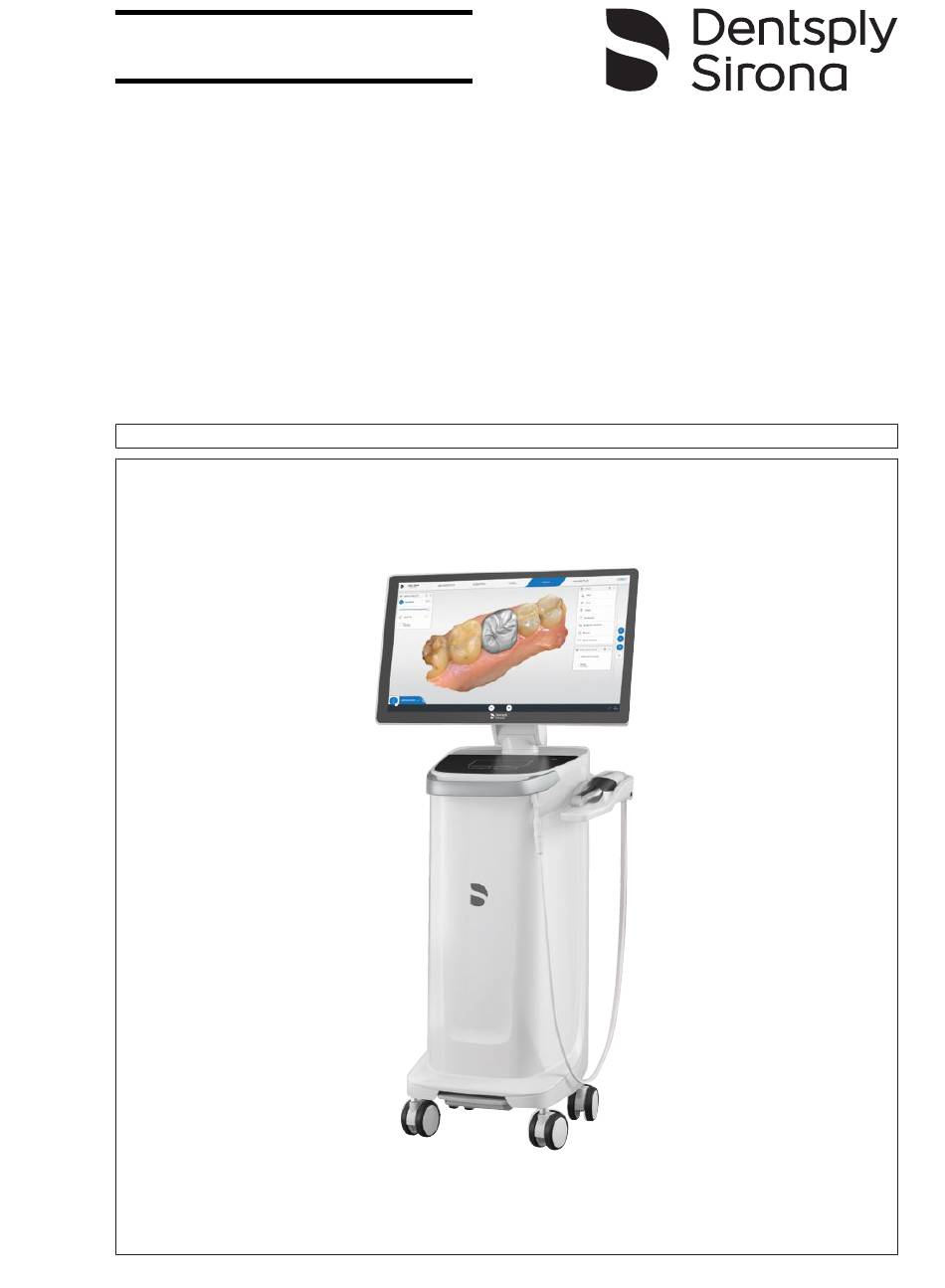

  • Page 1 2024-07 New as of: Sirona Dental CAD/CAM System CEREC Primescan AC, Primescan AC Instructions for Use (valid for USA) English...
  • Page 2 Table of Contents Dentsply Sirona Instructions for Use CEREC Primescan AC, Primescan AC Table of Contents General data....................Dear Customer, ......................Contact information ..................... General information about these instructionsfor use........... General conventions and structure of the document........... 1.4.1 Structure of the document................
  • Page 3 Dentsply Sirona Table of Contents Instructions for Use CEREC Primescan AC, Primescan AC Operating state LED....................Certification ......................... Electromagnetic compatibility..................3.6.1 Electromagnetic emission ................3.6.2 Interference immunity ................... 3.6.3 Working clearances ..................Installation and startup ..................Transport and unpacking..................... Disposal of packaging materials..................
  • Page 4 Table of Contents Dentsply Sirona Instructions for Use CEREC Primescan AC, Primescan AC 6.1.3 Scanner......................6.1.3.1 General information ..............6.1.3.2 Components of the scanner ............6.1.3.3 Removing the sleeve ..............6.1.3.4 Attaching the sleeve ..............6.1.3.5 Preliminary cleaning of the sleeve ..........
  • Page 5 Instructions for Use CEREC Primescan AC, Primescan AC 1.1 Dear Customer, General data Dear Customer, Thank you for your purchase of this CEREC Primescan AC / Primescan ® unit from Dentsply Sirona. The CEREC Primescan AC enables you to produce dental restorations, e.g.
  • Page 6 1 General data Dentsply Sirona 1.3 General information about these instructions for use Instructions for Use CEREC Primescan AC, Primescan AC General information about these instructions for use Observe the instructions for use. Please familiarize yourself with the unit by reading through these instructions for use before putting it into operation.
  • Page 7 Dentsply Sirona 1 General data Instructions for Use CEREC Primescan AC, Primescan AC 1.4 General conventions and structure of the document General conventions and structure of the document 1.4.1 Structure of the document 1.4.1.1 Identification of danger levels To prevent personal injury and material damage, please observe the warning and safety information provided in these operating instructions.
  • Page 8 1 General data Dentsply Sirona 1.4 General conventions and structure of the document Instructions for Use CEREC Primescan AC, Primescan AC 1.4.2 Operating conventions Example Meaning Tapping Pressing once and releasing the finger or the left touchpad key on the acquisition unit.
  • Page 9 Disclaimer If the operator does not meet the obligation to carry out such maintenance or error messages are ignored, Dentsply Sirona or its authorized dealer assumes no liability for resulting damage. 66 54 581 D3696...
  • Page 10 1 General data Dentsply Sirona 1.6 Indications for use Instructions for Use CEREC Primescan AC, Primescan AC Indications for use The Sirona Dental CAD/CAM System with CEREC SW Chairside Software or inLab Software is intended for use in partially or fully edentulous mandibles and maxillae in support of single or multiple-unit cement retained restorations.
  • Page 11 Dentsply Sirona 1 General data Instructions for Use CEREC Primescan AC, Primescan AC 1.6 Indications for use Manufacturer Name of Implant Implant Size System Platform Diameter Dentsply Sirona Osseospeed 3.5/4.0 3.5 S / 4.0 S Implants 4.5/5.0 4.5/5.0/5.0 S Xive...
  • Page 12 1 General data Dentsply Sirona 1.6 Indications for use Instructions for Use CEREC Primescan AC, Primescan AC Manufacturer Name of Implant Implant Size System Platform Diameter BioHorizons Tapered 3.0, 3.0/3.4/3.8 (Internal Tapered plus Connection) Tapered internal Tapered plus Tapered internal, 3.0/3.8...
  • Page 13 Battery pack recycling symbol (see "Disposal of the storage battery pack  [→ 92]"). The CEREC Primescan AC / Primescan AC acquisition unit may con- tain an HF transmitter in the form of a WLAN card or a separate wire- less module.
  • Page 14 1 General data Dentsply Sirona 1.8 Legend Instructions for Use CEREC Primescan AC, Primescan AC Symbols on the packaging Take note of the following symbols on the packaging: Keep dry. Fragile, handle with care. Temperature during storage and transport. Relative humidity during storage and transport Air pressure during storage and transport.
  • Page 15 In extreme cases, it will be impossible to establish a wireless connection at all. Dentsply Sirona has selected the best possible configuration for data communication via the wireless interface (CEREC Radio Device) or WLAN, which generally ensures perfect functioning of this connection.
  • Page 16 CAUTION Note on the prevention, recognition, and elimination of unintended electromagnetic effects: The CEREC Primescan AC / Primescan AC acquisition unit is Class B equipment (classified according to CISPR 11, EN 60601-1-2: 2015 based on IEC 60601-1-2: 2014). This unit may be used in professional equipment of health services.
  • Page 17 Dentsply Sirona 2 Safety instructions Instructions for Use CEREC Primescan AC, Primescan AC 2.2 Basic safety information NOTICE Danger posed by broken glass Stress to the glass surfaces of the control console and monitor from strong forces and impacts must be prevented, otherwise there is a risk of the glass breaking.
  • Page 18 2 Safety instructions Dentsply Sirona 2.2 Basic safety information Instructions for Use CEREC Primescan AC, Primescan AC 2.2.4 Movement and stability of the unit NOTICE The unit can overturn or slip away For reasons of tilt stability, the unit must be pulled by its front or rear handle when being moved.
  • Page 19 In order, to ensure product safety, this device may be operated only with original Dentsply Sirona accessories or third-party accessories expressly approved by Dentsply Sirona. In particular, only the power cable supplied or the corresponding original spare part may be used with the unit.
  • Page 20 2 Safety instructions Dentsply Sirona 2.3 Safety labels Instructions for Use CEREC Primescan AC, Primescan AC Plug connections of external interfaces CAUTION Adaptation of acquisition unit to external components Additional devices connected to external interfaces must be tested according to the relevant standards, e.g.: EN 60601-1:2006 + Cor.:2010 + A1:2013,...
  • Page 21 Dentsply Sirona 2 Safety instructions Instructions for Use CEREC Primescan AC, Primescan AC 2.4 Electrostatic charge Electrostatic charge 2.4.1 ESD warning labels ESD warning label CAUTION Risk of injury or damage to components from electrostatic discharge For electrical components labeled with an ESD warning label, observe the following instructions.
  • Page 22 2 Safety instructions Dentsply Sirona 2.5 Wireless phone interference with equipment Instructions for Use CEREC Primescan AC, Primescan AC Formation of an electrostatic charge Electrostatic charges generally build up whenever two bodies are rubbed against each other, e.g. when walking (shoe soles against the floor) or driving a vehicle (tires against the street pavement).
  • Page 23 Dentsply Sirona 2 Safety instructions Instructions for Use CEREC Primescan AC, Primescan AC 2.6 Integration in a network or connection to a modem Integration in a network or connection to a modem NOTICE Observe the following installation regulations The following installation regulations apply to integration of the...
  • Page 24 2 Safety instructions Dentsply Sirona 2.7 Disposal Instructions for Use CEREC Primescan AC, Primescan AC Disposal On the basis of the Directive 2012/19/EU and the country-specific disposal regulations on waste electrical and electronic equipment, we would like to stress that such equipment must be disposed of accordingly, within the European Union (EU).
  • Page 25 Dentsply Sirona 3 Product description Instructions for Use CEREC Primescan AC, Primescan AC 3.1 Technical description Product description Technical description CAD system for high-precision intraoral optical impressions ● High-resolution, heated oral scanner (3D scanner) with removable reflective sleeve ● Integrated image processing ●...
  • Page 26 3 Product description Dentsply Sirona 3.1 Technical description Instructions for Use CEREC Primescan AC, Primescan AC PC hardware Special PC with the following equipment: ® ● Processor: Intel ● RAM: 64 GB RAM ● Hard disks: 1x PCIe SSD, 1x SATA HDD ●...
  • Page 27 Dentsply Sirona 3 Product description Instructions for Use CEREC Primescan AC, Primescan AC 3.2 Technical data Technical data Type designation CEREC Primescan AC / Primescan AC Rated line voltage 100 - 240 VAC /50 - 60 Nominal current 5.0 – 2.1 A...
  • Page 28 3 Product description Dentsply Sirona 3.2 Technical data Instructions for Use CEREC Primescan AC, Primescan AC Dimensions and weight Dimensions W x H x D in mm 408 (537) x 1190 x 443 in inches 16.06 (21.14) x 46.85 x 17.44 Weight ●...
  • Page 29 Dentsply Sirona 3 Product description Instructions for Use CEREC Primescan AC, Primescan AC 3.3 Controls and functional elements Controls and functional elements 3.3.1 Overview of the front panel NOTICE CEREC Primescan / Primescan is calibrated The CEREC Primescan / Primescan scanner is calibrated ex works.
  • Page 30 3 Product description Dentsply Sirona 3.3 Controls and functional elements Instructions for Use CEREC Primescan AC, Primescan AC 3.3.2 Overview of the rear panel Fuses Power cable holder Main switch On button (operating state I = ON, 0 = OFF...
  • Page 31 Dentsply Sirona 3 Product description Instructions for Use CEREC Primescan AC, Primescan AC 3.4 Operating state LED Operating state LED To position the operating state LED, see chapter “Overview of the rear panel  [→ 30]”. LED lights up blue: Acquisition unit is connected with the socket.
  • Page 32 3 Product description Dentsply Sirona 3.5 Certification Instructions for Use CEREC Primescan AC, Primescan AC Certification CE marking This product is compliant with EU Medical Device Regulation 2017/745 including all amendments. This product bears the CE mark in accordance with the provisions of Directive 2014/53/EU (RED).
  • Page 33 EMC aspects. CEREC Primescan AC / Primescan AC complies with the requirements for electromagnetic compatibility (EMC) according to EN 60601-1-2: 2015 based on IEC 60601-1-2: 2014. CEREC Primescan AC / Primescan AC is hereinafter referred to as "UNIT". 3.6.1 Electromagnetic emission The UNIT is intended for operation in the electromagnetic environment specified below.
  • Page 34 3 Product description Dentsply Sirona 3.6 Electromagnetic compatibility Instructions for Use CEREC Primescan AC, Primescan AC 3.6.2 Interference immunity The UNIT is intended for operation in the electromagnetic environment specified below. The customer or user of the UNIT should make sure that it is used in such an environment.
  • Page 35 Dentsply Sirona 3 Product description Instructions for Use CEREC Primescan AC, Primescan AC 3.6 Electromagnetic compatibility Interference immu- IEC 60601-1-2 Test level Compliance level Electromagnetic environment - nity tests guidelines Conducted RF in- 3  V d= [1,2] √P terference 150 kHz to 80 MHz IEC 61000-4-6 6 ...
  • Page 36 3 Product description Dentsply Sirona 3.6 Electromagnetic compatibility Instructions for Use CEREC Primescan AC, Primescan AC Immunity to interference against high-frequency electromagnetic fields in the immediate vicinity of wireless com- munication devices IEC 61000-4-3 Test frequency Modulation Required immunity test...
  • Page 37 Dentsply Sirona 3 Product description Instructions for Use CEREC Primescan AC, Primescan AC 3.6 Electromagnetic compatibility 3.6.3 Working clearances Recommended working clearances The UNIT is intended for operation in an electromagnetic environment between portable and mobile RF where radiated RF interference is checked. The customer or the user of...
  • Page 38 Instructions for Use CEREC Primescan AC, Primescan AC Installation and startup Transport and unpacking All Dentsply Sirona units are carefully checked prior to shipment. Please perform an incoming inspection immediately after delivery. 1. Check the delivery note to ensure that the consignment is complete.
  • Page 39 ➢ Always place the sensitive scanner in its holder! NOTICE Risk of damage posed by pulling on the scanner cable If the CEREC Primescan AC / Primescan AC is moved by pulling on the scanner cable, there is a risk of damage to the cable, scanner and device.
  • Page 40 4 Installation and startup Dentsply Sirona 4.4 Initial startup Instructions for Use CEREC Primescan AC, Primescan AC Notes on network installation The network card is installed. The cable with the RJ-45 connectors establishes the network connection or is connected to the CEREC radio module.
  • Page 41 Dentsply Sirona 4 Installation and startup Instructions for Use CEREC Primescan AC, Primescan AC 4.4 Initial startup 4.4.2 Inserting the battery CAUTION Risk of fire or chemical injury Improper handling of the storage battery used in this unit can lead to a risk of fire or chemical injury.
  • Page 42 Dentsply Sirona 4.4 Initial startup Instructions for Use CEREC Primescan AC, Primescan AC 2. Slide in the storage battery using the guide rails and guide pins up to the stop and screw it in place with 2 fastening screws (C).
  • Page 43 CAUTION Use only the supplied power cord Use only the power cord supplied by Dentsply Sirona to connect the acquisition unit to the power supply. If the acquisition unit is switched on at the main switch, then it can be switched on at the ON button.
  • Page 44 4 Installation and startup Dentsply Sirona 4.4 Initial startup Instructions for Use CEREC Primescan AC, Primescan AC 3. Switch the milling unit on (see the instructions for use for the milling unit). 4. After loading the operating system, start the CEREC SW / Connect SW application by double-clicking on the CEREC SW / Connect SW icon.
  • Page 45 Dentsply Sirona 4 Installation and startup Instructions for Use CEREC Primescan AC, Primescan AC 4.4 Initial startup 4.4.6 Battery-backed operation Introduction The acquisition unit PC has a battery-backed power supply. It is thus possible to operate the acquisition unit for a short time with no line voltage connected.
  • Page 46 At least every six weeks the CEREC Primescan AC / Primescan AC acquisition unit should be connected to the mains supply to charge the storage batteries.
  • Page 47 Dentsply Sirona 4 Installation and startup Instructions for Use CEREC Primescan AC, Primescan AC 4.4 Initial startup Monitoring program The monitoring program is represented in the task bar by a symbol: The color of the symbol has the following meaning: ●...
  • Page 48 5 Operation Dentsply Sirona 5.1 Working with the touch monitor Instructions for Use CEREC Primescan AC, Primescan AC Operation Working with the touch monitor 5.1.1 Adjusting the position of the monitor You can guide the touch monitor to a position convenient for you. In doing so, there is the option to adjust the height/tilt position and a lateral pivot.
  • Page 49 Dentsply Sirona 5 Operation Instructions for Use CEREC Primescan AC, Primescan AC 5.1 Working with the touch monitor 5.1.2 Touch functionality You can activate the touch function with and without gloves. The following gestures are supported: Edit a 3D model with multi-touch You can edit the 3D model using multi-touch.
  • Page 50 Instructions for Use CEREC Primescan AC, Primescan AC 5.1.3 Adjusting touch-sensitivity and buzzer volume The CEREC Primescan AC / Primescan AC provides you with the following options: ● Adjusting the touch-sensitivity of the touchpad/trackball buttons ● Adjusting the volume for their acoustic feedback 1.
  • Page 51 Dentsply Sirona 5 Operation Instructions for Use CEREC Primescan AC, Primescan AC 5.2 Optical impressions with the scanner Optical impressions with the scanner CAUTION Hot tip of the scanner sleeve! The tip of the scanner sleeve heats continuously! The surface temperature of the sleeve may reach .
  • Page 52 5 Operation Dentsply Sirona 5.2 Optical impressions with the scanner Instructions for Use CEREC Primescan AC, Primescan AC CAUTION Potentially hazardous optical radiation The scanner transmits potentially hazardous optical radiation which may cause harm to the eyes. ➢ During operation, do not look directly at the scanner for long periods.
  • Page 53 Dentsply Sirona 5 Operation Instructions for Use CEREC Primescan AC, Primescan AC 5.2 Optical impressions with the scanner Proceeding with scanning procedure 1. Activate the foot control or click on the switch with the cursor. Ä The scanning procedure begins.
  • Page 54 5 Operation Dentsply Sirona 5.3 Scanner guide Instructions for Use CEREC Primescan AC, Primescan AC Scanner guide CAUTION After each use Prepare the scanner once again after each patient. ➢ Follow the instructions in the "Scanner  [→ 64]" section on cleaning, disinfection and sterilization in order to avoid cross- contamination between patients.
  • Page 55 Dentsply Sirona 5 Operation Instructions for Use CEREC Primescan AC, Primescan AC 5.3 Scanner guide 5.3.1 Occlusal scan Important: Ensure that the distance between the coated sapphire glass of the scanner and the scanned surface is observed. The distance must be between 0  -   2 0 mm (ideally: 2  m m). The scanner does not rest on the teeth or the gums.
  • Page 56 5 Operation Dentsply Sirona 5.3 Scanner guide Instructions for Use CEREC Primescan AC, Primescan AC 5.3.3 Lingual scan ü The scanner is on the tooth that is positioned next to the preparation in the distal direction. 1. Rotate the scanner to maximum 20° toward the lingual direction.
  • Page 57 Dentsply Sirona 5 Operation Instructions for Use CEREC Primescan AC, Primescan AC 5.3 Scanner guide 5.3.5 Single and multiple buccal registration The buccal registration establishes the allocation of jaw exposures. ü The jaw with the preparation is scanned. 1. Scan the occlusal, buccal and lingual view of the antagonist (see the section “Occlusal scan ...
  • Page 58 5 Operation Dentsply Sirona 5.3 Scanner guide Instructions for Use CEREC Primescan AC, Primescan AC 5.3.6 Square and full jaw scan You can use different scanning procedures for scanning a quadrant or a full jaw. The two methods below are examples.
  • Page 59 Dentsply Sirona 5 Operation Instructions for Use CEREC Primescan AC, Primescan AC 5.3 Scanner guide Procedure 2 1. Start occlusally on the distal tooth, tilt the scanner approx. 60° in an oral direction and move it orally along the dental arch up to the opposite distal tooth.
  • Page 60 5 Operation Dentsply Sirona 5.4 Software for the scanner Instructions for Use CEREC Primescan AC, Primescan AC Software for the scanner Use only software that is pre-installed on the system. Video tutorial Connect Software 5 Workflow from setting up a case to the transmission (en) https://youtube.com/Lj8dES60qPQ...
  • Page 61 Some countries have legal regulations which require regular safety inspections of electrical devices or systems by the operator. Dentsply Sirona would like to draw your attention to the fact that a so- called "retest" (repeat test) must be carried out for the CEREC Primescan AC / Primescan AC acquisition unit at least every three years.
  • Page 62 6 Maintenance Dentsply Sirona 6.1 Cleaning, disinfection and sterilization Instructions for Use CEREC Primescan AC, Primescan AC Cleaning, disinfection and sterilization NOTICE Approved cleaning agents and disinfectants Use only cleaning and disinfecting agents which have been approved by Dentsply Sirona! 6.1.1...
  • Page 63 Dentsply Sirona 6 Maintenance Instructions for Use CEREC Primescan AC, Primescan AC 6.1 Cleaning, disinfection and sterilization 6.1.2 Uncritical surfaces including monitor NOTICE Do not allow liquids to penetrate into the ventilation slots! NOTICE Never use corrosive cleaning agents, wax or solvents.
  • Page 64 6 Maintenance Dentsply Sirona 6.1 Cleaning, disinfection and sterilization Instructions for Use CEREC Primescan AC, Primescan AC 6.1.3 Scanner CAUTION Risk of injury An evidently damaged scanner must no longer be used on patients. If the CEREC Primescan / Primescan scanner accidentally falls off, check to make sure that the sapphire glass is not damaged.
  • Page 65 Dentsply Sirona 6 Maintenance Instructions for Use CEREC Primescan AC, Primescan AC 6.1 Cleaning, disinfection and sterilization 6.1.3.1 General information The CEREC Primescan / Primescan is a very sensitive optical device and must therefore be handled with the utmost care. Protect the coated...
  • Page 66 6 Maintenance Dentsply Sirona 6.1 Cleaning, disinfection and sterilization Instructions for Use CEREC Primescan AC, Primescan AC 6.1.3.2 Components of the scanner CAUTION Risk of cross-contamination The scanner must not be used inside the patient's mouth without a window sleeve/disposable sleeve/autoclavable sleeve. Without the...
  • Page 67 Dentsply Sirona 6 Maintenance Instructions for Use CEREC Primescan AC, Primescan AC 6.1 Cleaning, disinfection and sterilization 6.1.3.3 Removing the sleeve If it is necessary to remove the sleeve, proceed as follows: 1. Grip the sleeve in the marked area.
  • Page 68 6 Maintenance Dentsply Sirona 6.1 Cleaning, disinfection and sterilization Instructions for Use CEREC Primescan AC, Primescan AC 6.1.3.5 Preliminary cleaning of the sleeve Clean the camera immediately after use as follows: 1. Carefully wipe the sleeve while it is on the camera so that no dirt whatsoever can remain stuck and can harden on the surface of the sleeve.
  • Page 69 Dentsply Sirona 6 Maintenance Instructions for Use CEREC Primescan AC, Primescan AC 6.1 Cleaning, disinfection and sterilization 6.1.3.7 High-level disinfection of the sleeve (with HLD Set) NOTICE Dry heat sterilization and high-level disinfection must not be combined. The complete process for high-level disinfection is as follows:...
  • Page 70 6 Maintenance Dentsply Sirona 6.1 Cleaning, disinfection and sterilization Instructions for Use CEREC Primescan AC, Primescan AC 6. Slid the plug into the metal holder. 7. Press the sleeve onto the plug while holding the metal holder in order to ensure that no particle contamination or fluids penetrate the inside of the sleeve.
  • Page 71 Dentsply Sirona 6 Maintenance Instructions for Use CEREC Primescan AC, Primescan AC 6.1 Cleaning, disinfection and sterilization 9. Insert the metal holder with the sleeve. 10. Place the lid on the container and leave the sleeve at least 12 ®...
  • Page 72 Dentsply Sirona 6.1 Cleaning, disinfection and sterilization Instructions for Use CEREC Primescan AC, Primescan AC 11. Remove the lid and the holder with the sleeve from the container. 12. Thoroughly rinse the sleeve with tap water of potable water quality that meets Federal Clean Water Standards holding it with its holder (for at least 30 seconds).
  • Page 73 Dentsply Sirona 6 Maintenance Instructions for Use CEREC Primescan AC, Primescan AC 6.1 Cleaning, disinfection and sterilization 17. Dry the whole surface of the sleeve and also the lower part of the inner surface using a clean soft, lint-free cloth.
  • Page 74 6 Maintenance Dentsply Sirona 6.1 Cleaning, disinfection and sterilization Instructions for Use CEREC Primescan AC, Primescan AC 6.1.3.8 Dry heat sterilization of the sleeve NOTICE Dry heat sterilization and high-level disinfection must not be combined. The process for dry heat sterilization is as follows: 1.
  • Page 75 Dentsply Sirona 6 Maintenance Instructions for Use CEREC Primescan AC, Primescan AC 6.1 Cleaning, disinfection and sterilization 6.1.3.9 Using disposable sleeves The CEREC Primescan / Primescan scanner can be operated with disposable plastic sleeves in order to ensure maximum infection control.
  • Page 76 6 Maintenance Dentsply Sirona 6.1 Cleaning, disinfection and sterilization Instructions for Use CEREC Primescan AC, Primescan AC 6.1.3.10 Sterilizing autoclavable sleeves in the autoclave and using disposable windows The CEREC Primescan / Primescan scanner can be operated with autoclavable metal sleeves with replaceable disposable windows.
  • Page 77 Dentsply Sirona 6 Maintenance Instructions for Use CEREC Primescan AC, Primescan AC 6.1 Cleaning, disinfection and sterilization securely positioned on the CEREC Primescan / Primescan scanner. To prevent the CEREC Primescan / Primescan scanner from falling, hold the CEREC Primescan / Primescan scanner in other places, not just on the sleeve.
  • Page 78 6 Maintenance Dentsply Sirona 6.1 Cleaning, disinfection and sterilization Instructions for Use CEREC Primescan AC, Primescan AC 6.1.4 Cleaning the inside of the sleeve window NOTICE!  This process applies only to the window sleeve (standard sleeve). If you notice during the scanning process that the inside of the...
  • Page 79 Dentsply Sirona 6 Maintenance Instructions for Use CEREC Primescan AC, Primescan AC 6.2 Calibrating the scanner Calibrating the scanner NOTICE Always calibrate scanner with window sleeve (standard sleeve) or autoclavable sleeve The scanner must always be calibrated with the window sleeve (standard sleeve) or autoclavable sleeve.
  • Page 80 6 Maintenance Dentsply Sirona 6.2 Calibrating the scanner Instructions for Use CEREC Primescan AC, Primescan AC Calibrate scanner 1. Remove the protective cap from the calibration set. 2. Mount the calibration set on the tip of the scanner until it locks into place.
  • Page 81 Dentsply Sirona 6 Maintenance Instructions for Use CEREC Primescan AC, Primescan AC 6.2 Calibrating the scanner Measuring the position of the exit window 1. Mount the bottom side of the calibration set on the tip of the scanner. 2. Click on the "OK" button.
  • Page 82 6 Maintenance Dentsply Sirona 6.3 Color calibration Instructions for Use CEREC Primescan AC, Primescan AC Color calibration General information NOTICE Always perform color calibration with window sleeve (standard sleeve) The scanner must always be color-calibrated with the window sleeve (standard sleeve).
  • Page 83 Dentsply Sirona 6 Maintenance Instructions for Use CEREC Primescan AC, Primescan AC 6.3 Color calibration 5. Confirm the changes below with "Ok" . 6. Click the "Color Calibration" button and carry out the color calibration. Color-calibrating the scanner NOTICE Only use color calibration set with clean, dry CEREC Primescan /...
  • Page 84 6 Maintenance Dentsply Sirona 6.3 Color calibration Instructions for Use CEREC Primescan AC, Primescan AC ➢ Then restart the color calibration. Do not continue using a damaged color-calibration set; instead, contact your distributor to purchase a new one. Replacing the color calibration set...
  • Page 85 Dentsply Sirona 6 Maintenance Instructions for Use CEREC Primescan AC, Primescan AC 6.4 Replacing the main fuse Replacing the main fuse DANGER Potentially lethal shock hazard People can be injured or electrical components of the unit destroyed. ➢ Switch off the unit prior to beginning work.
  • Page 86 6 Maintenance Dentsply Sirona 6.5 Charging the battery Instructions for Use CEREC Primescan AC, Primescan AC Charging the battery NOTICE Information on back-up cycles The storage battery is designed for fully cable-free use of Scan, Design and Grinding at a power requirement of 250 W for 60 minutes.
  • Page 87 Dentsply Sirona 6 Maintenance Instructions for Use CEREC Primescan AC, Primescan AC 6.6 Replacing the battery Replacing the battery Service cover 2 guide rails Storage battery 2 guide pins 2 fastening screws 1. Open the service cover on the back panel.
  • Page 88 6 Maintenance Dentsply Sirona 6.7 Replacing the O-ring Instructions for Use CEREC Primescan AC, Primescan AC Replacing the O-ring Removing the worn O-ring ü The sleeve has been removed from the scanner body. 1. Hold the retaining ring firmly between your thumb and index finger.
  • Page 89 Dentsply Sirona 6 Maintenance Instructions for Use CEREC Primescan AC, Primescan AC 6.7 Replacing the O-ring 1. Slide the O-ring at one position into the O-ring groove. 2. Starting from this position, carefully use your thumb and index finger to push the O-ring into the groove (in a similar way to pushing it out but without any force).
  • Page 90 7 Disposal Dentsply Sirona Instructions for Use CEREC Primescan AC, Primescan AC Disposal In accordance with Directive 2012/19/EU and national disposal regulations regarding old electrical and electronic devices, please be advised that such items must be disposed of in a special way within the European Union (EU).
  • Page 91 Dentsply Sirona 7 Disposal Instructions for Use CEREC Primescan AC, Primescan AC IMPORTANT Operators of equipment with storage functions for customer and patient data are responsible for deleting all personal data before disposing of the equipment. 66 54 581 D3696...
  • Page 92 7 Disposal Dentsply Sirona 7.1 Disposal of the storage battery pack Instructions for Use CEREC Primescan AC, Primescan AC Disposal of the storage battery pack The storage battery pack must be subjected to recycling if it becomes defective or reaches the end of its service life. For country-specific information on disposal, contact your local dental dealers.
  • Page 93 Dentsply Sirona 8 Appendix Instructions for Use CEREC Primescan AC, Primescan AC 8.1 Making backup copies Appendix Making backup copies To increase the system's data security and protect themselves against data losses, users should make backup copies of the data regularly.
  • Page 94 Index Dentsply Sirona Instructions for Use CEREC Primescan AC, Primescan AC Index Acquisition unit Foot pedal, 29 Overview, 29 Fuse Air pressure Fuse type, 85 Operation, 27 Order number, 85 Storage, 27 Replacement, 85 Transport, 27 Fuses, 30 Ambient temperature Operation, 27 HUB, 23 Building installation, 15 Main fuses, 85 Main switch, 30, 43 CE mark, 32...
  • Page 95 Dentsply Sirona Index Instructions for Use CEREC Primescan AC, Primescan AC Protection against medicaments, 63 Protection class, 27 Protective earth conductor, 23 Rated line voltage, 27 Relative humidity Operation, 27 Storage, 27 Transport, 27 Repair, 19 Safety instructions, 7 Scanner window, 66 Scope of supply, 38 Screen, 8 Service cover, 30 Storage battery, 86 Storage battery pack Disposal, 92...
  • Page 96 We reserve the right to make any alterations which may be required due to technical improvements. © SIRONA Dental Systems GmbH Sprache: englisch Printed in Germany D3696.201.01.09.02      2024-07 Ä.-Nr.:  135 250 SIRONA Dental Systems GmbH 66 54 581 D3696 Fabrikstraße 31 Order No   ...
