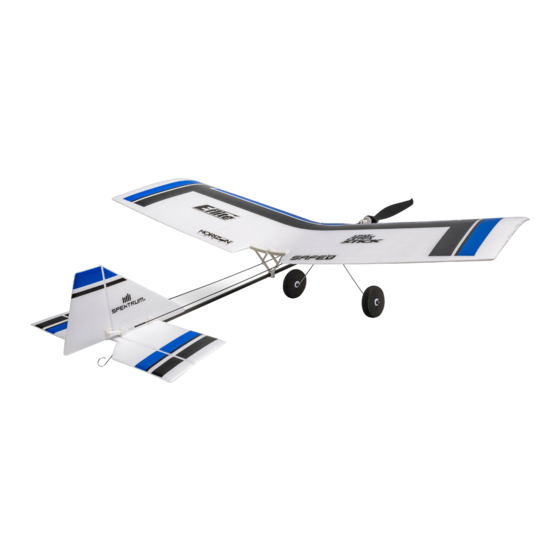

UMX Slow Ultra Stick
UMX Slow Ultra Stick
Instruction Manual
Bedienungsanleitung
Manuel d'utilisation
Manuale di Istruzioni
EFLU03000, EFLU03050
Created 02/24
Scan the QR code and select the Manuals and Support quick links
from the product page for the most up-to-date manual information.
Scannen Sie den QR-Code und wählen Sie auf der Produktseite
die Quicklinks Handbücher und Unterstützung, um die aktuellsten
Scannez le code QR et sélectionnez les liens rapides Manuals and
Support sur la page du produit pour obtenir les informations les plus
Scannerizzare il codice QR e selezionare i Link veloci Manuali e
Supporto dalla pagina del prodotto per le informazioni manuali più
Informationen zu Handbücher.
récentes sur le manuel.
EFLU03000 EFLU03050
aggiornate.
Advertisement
Table of Contents
Related Manuals for Horizon Hobby E-flite UMX Slow Ultra Stick
Summary of Contents for Horizon Hobby E-flite UMX Slow Ultra Stick

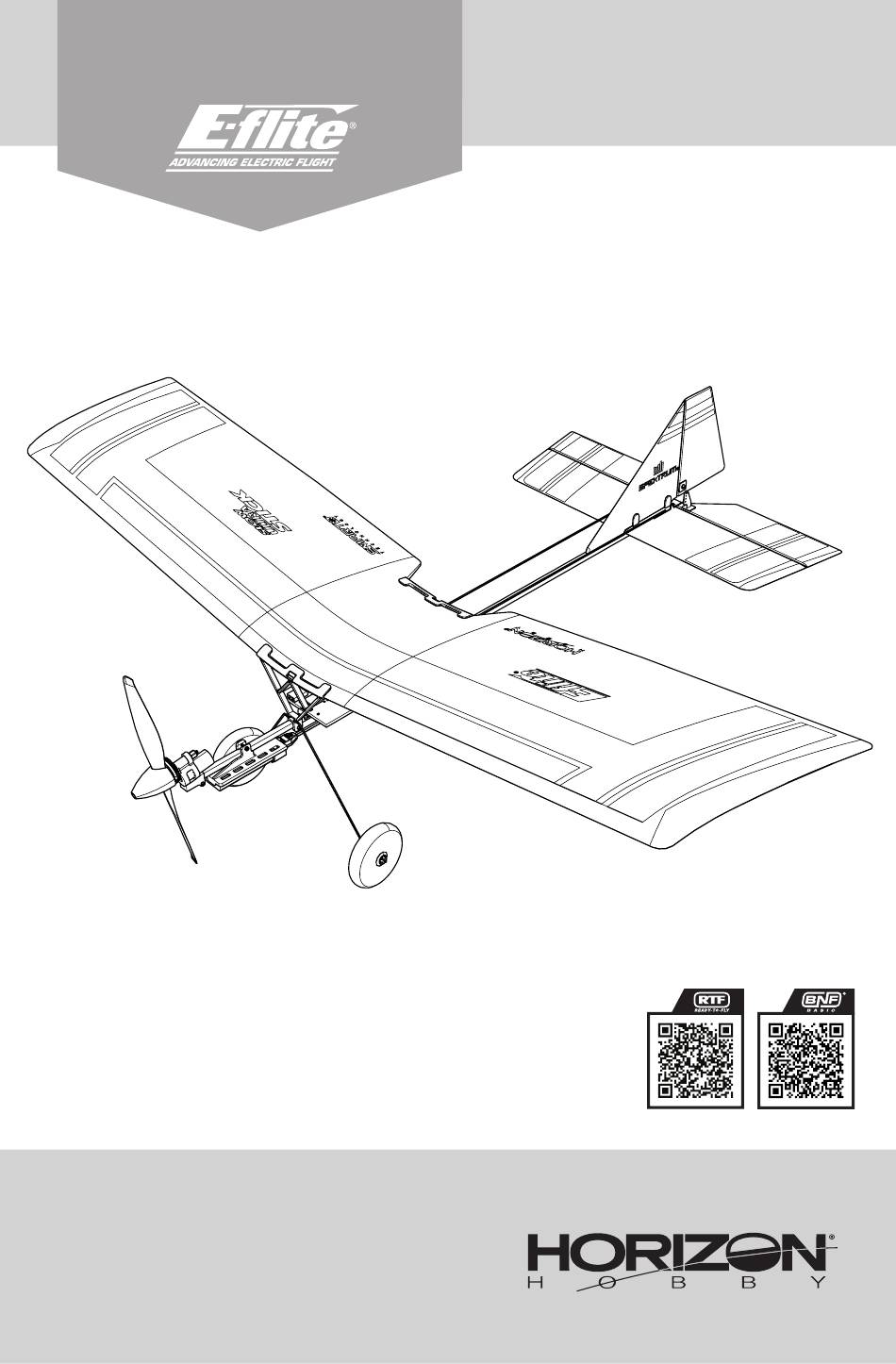

- Page 1 UMX Slow Ultra Stick UMX Slow Ultra Stick Scan the QR code and select the Manuals and Support quick links from the product page for the most up-to-date manual information. Scannen Sie den QR-Code und wählen Sie auf der Produktseite Instruction Manual die Quicklinks Handbücher und Unterstützung, um die aktuellsten Informationen zu Handbücher.
- Page 2 WARNING AGAINST COUNTERFEIT PRODUCTS: If you ever need to replace your Spektrum receiver found in a Horizon Hobby product, always purchase from Horizon Hobby, LLC or a Horizon Hobby authorized dealer to ensure authentic high-quality Spektrum product. Horizon Hobby, LLC disclaims all support and warranty with regards, but not limited to, compatibility and performance of counterfeit products or products claiming compatibility with DSM or Spektrum technology.
-
Page 3: Table Of Contents
Registration Specifications Wingspan 19.74" (501.5mm) Register your product today to join our mailing list and keep up Length 17.39" (441.5mm) to date with product updates, Without Battery: 1.48oz (42g) offers and E-flite news. ® Weight* With Recommended 1S 150mAh Flight Battery: 1.62oz (46g) Included Equipment Receiver / ESC... -
Page 4: Aircraft Assembly
Aircraft Assembly Install the Wing 1. Clip the front section of the wing into the front wing 2. Clip the rear section of the wing into the rear wing mount. mount. Install the Landing Gear The UMX Slow Ultra Stick includes landing gear that does not require hardware to hold it into place. -
Page 5: General Binding Tips And Failsafe, Bnf
General Binding Tips and Failsafe, BNF • The included receiver has been specifically pro- • Once bound, the receiver will retain its bind settings for grammed for operation of this aircraft. Refer to the that transmitter until you re-bind. receiver manual for correct setup if the receiver is •... -
Page 6: Transmitter Switches And Leds
Transmitter Switches and LEDs Bind/Panic Button: This button is used to control the Bind from the throttle stick is deactivated. This safety feature and Panic Recovery Mode functions. ensures any accidental bump of the throttle stick will not activate the motor while the flight battery is connected. See the Binding section for information on re-binding your transmitter and aircraft if necessary. -
Page 7: Transmitter Setup, Bnf
Transmitter Setup, BNF IMPORTANT: This aircraft is compatible with Spektrum Dual Rates transmitters. Binding to an SLT transmitter other than the Make the initial flights in low rate, changing to high rate Spektrum SLT6LP will not provide full functionality. elevator for landing. To use a Spektrum DSMX transmitter, follow the setup NOTICE: To ensure AS3X technology functions properly, instructions on this page which corresponds to your DX,... -
Page 8: Bind The Transmitter And Receiver
Once properly bound, the receiver and transmitter will retain their bind for future flights. If you encounter problems, refer to the troubleshooting guide. If necessary, contact the appropriate Horizon Hobby product support office. UMX Slow Ultra Stick... -
Page 9: Charge The Aircraft Battery
Charge the Aircraft Battery NOTICE: Inspect the battery to make sure it is not dam- CAUTION: Never exceed the recommended aged e.g., swollen, bent, broken or punctured. Charge charge rate. only batteries that are cool to the touch and are not CAUTION: Once charging is complete, damaged. -
Page 10: Control Direction Test
Control Surface Response tion. If you need more assistance, contact the appropriate Command (viewed from the rear) Horizon Hobby Product Support department. 1. Power on the transmitter. 2. Turn on throttle cut. 3. Set the flight mode switch to Experienced Mode. -
Page 11: Control Horn Settings
Control Horn Settings The illustration shows the factory settings for the control Elevator Rudder horns. Fly the aircraft at factory settings before making changes. After flying, you may choose to adjust the linkage positions for the desired control response. CAUTION: When these are incorrectly connected for the pilot’s skill level, unexpected aircraft response to controls can result. -
Page 12: Hand Launching
Hand Launching Grip We recommend holding the aircraft on the bottom of the fuselage, just behind the wings, as shown. Follow Through Use a gentle toss with the wings level and the nose of the model slightly upwards. Avoid an arcing toss which can pull the nose down at release. -
Page 13: As3X ® System Trouble Shooting Guide
AS3X System Trouble Shooting Guide ® Problem Possible Cause Solution Control surfaces may not have been Center control surfaces mechanically by Control surfaces not at mechanically centered from factory adjusting the U-bends on control linkages neutral position when transmitter controls are Aircraft was moved after the flight battery was Disconnect and reconnect the flight battery at neutral... -
Page 14: Replacement Parts
Troubleshooting Guide Problem Possible Cause Solution Less than a 5-second wait between first Leaving transmitter on, disconnect and recon- powering on transmitter and connecting flight nect flight battery to aircraft battery to aircraft Select correct model memory on transmitter Aircraft bound to different model memory and disconnect and reconnect flight battery to (ModelMatch radios only) -
Page 15: Important Federal Aviation Administration (Faa) Information
Product, (iv) attempted ser- right to inspect any and all Product(s) involved in a warranty vice by anyone other than a Horizon Hobby authorized service claim. Service or replacement decisions are at the sole discre- center, (v) Product not purchased from an authorized Horizon tion of Horizon. -
Page 16: Contact Information
2904 Research Rd (Product Technical Assistance) of America 877-504-0233 Champaign, Illinois, 61822 USA websales@horizonhobby.com Sales 800-338-4639 Horizon Technischer Service service@horizonhobby.eu Hanskampring 9 European Union D 22885 Barsbüttel, Germany Sales: Horizon Hobby GmbH +49 (0) 4121 2655 100 UMX Slow Ultra Stick... -
Page 17: Fcc Information
22885 Barsbüttel Germany EFL UMX Slow Ultra Stick BNF Basic (EFLU03050): WEEE NOTICE: Hereby, Horizon Hobby, LLC declares that the device is in compliance with the following: Radio Equipment Directive (RED) This appliance is labeled in accordance with 2014/53/EU; RoHS 2 Directive 2011/65/EU; RoHS 3 Directive European Directive 2012/19/EU concerning - Amending 2011/65/EU Annex II 2015/863. - Page 18 E-flite, Bind-N-Fly, BNF, the BNF logo, DSM, DSM2, DSMX, Spektrum AirWare, EC3, IC3, AS3X, SAFE, the SAFE logo, ModelMatch, and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc.
