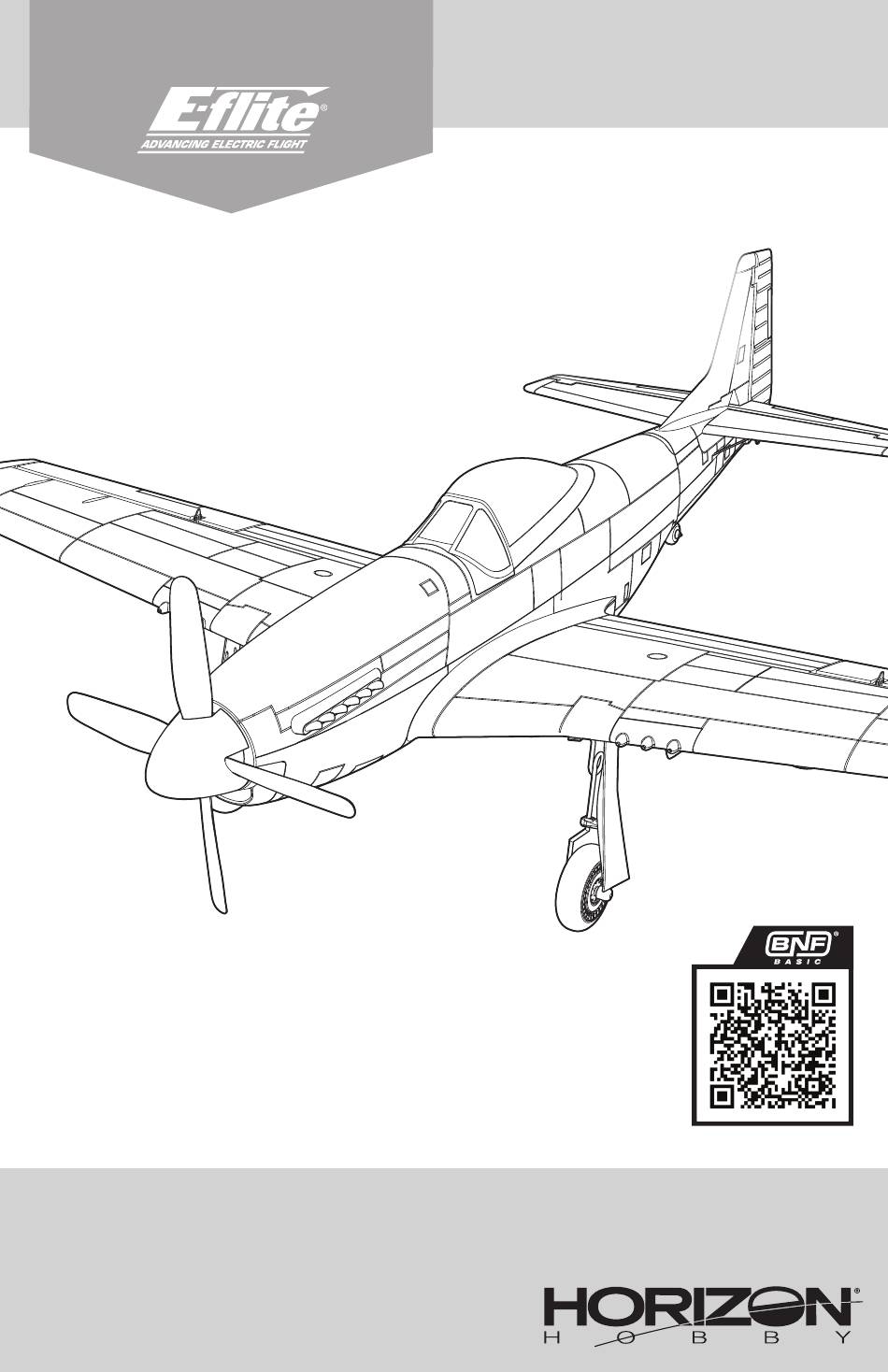

UMX
P-51D
™
Detroit Miss
Scan the QR code and select the Manuals and Support quick links
from the product page for the most up-to-date manual information.
Scannen Sie den QR-Code und wählen Sie auf der Produktseite die Quicklinks
Handbücher und Unterstützung, um die aktuellsten Informationen zu Handbücher.
Scannez le code QR et sélectionnez les liens rapides Manuals and Support sur la
page du produit pour obtenir les informations les plus récentes sur le manuel.
Scannerizzare il codice QR e selezionare i Link veloci Manuali e Supporto dalla
pagina del prodotto per le informazioni manuali più aggiornate.
EFLU7350
Instruction Manual
Bedienungsanleitung
Manuel d'utilisation
Manuale di Istruzioni
767301
Created 10/23
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Horizon Hobby E-flite UMX P-51D Detroit Miss
Summary of Contents for Horizon Hobby E-flite UMX P-51D Detroit Miss
- Page 1 P-51D ™ Detroit Miss Scan the QR code and select the Manuals and Support quick links from the product page for the most up-to-date manual information. Scannen Sie den QR-Code und wählen Sie auf der Produktseite die Quicklinks Handbücher und Unterstützung, um die aktuellsten Informationen zu Handbücher. Scannez le code QR et sélectionnez les liens rapides Manuals and Support sur la page du produit pour obtenir les informations les plus récentes sur le manuel.
- Page 2 WARNING AGAINST COUNTERFEIT PRODUCTS: If you ever need to replace your Spektrum receiver found in a Horizon Hobby product, always purchase from Horizon Hobby, LLC or a Horizon Hobby authorized dealer to ensure authentic high-quality Spektrum product. Horizon Hobby, LLC disclaims all support and warranty with regards, but not limited to, compatibility and performance of counterfeit products or products claiming compatibility with DSM or Spektrum technology.
-
Page 3: Table Of Contents
Registration Specifications Wingspan 19.4" (493mm) Register your product today to Length 17.3" (439mm) join our mailing list and keep up to date with product updates, Without Battery: 3.2 oz (92g) offers and E-flite news. ® Weight With Recommended 3S 300mAh Battery: 4 oz (112g) Included Equipment Spektrum... -
Page 4: Low Voltage Cutoff (Lvc)
Low Voltage Cutoff (LVC) When a Li-Po battery is discharged below 3V per cell, it about half capacity before storage. Make sure the battery will not hold a charge. The aircraft’s ESC protects the flight charge does not fall below 3V per cell. Failure to unplug a battery from over-discharge using Low Voltage Cutoff (LVC). - Page 5 DX Series Transmitter Setup 1. Power ON your transmitter, click on scroll wheel, roll to System Setup and click the scroll wheel. Select YES. 2. Go to Model Select and choose Add New Model at the bottom of the list. The system asks if you want to create a new model, select Create.
-
Page 6: Transmitter And Receiver Binding
Transmitter and Receiver Binding General Binding Tips and Failsafe • The included receiver has been specifically programmed • Once bound, the receiver will retain its bind settings for for operation of this aircraft. that transmitter until you re-bind. • Keep away from large metal objects while binding. •... -
Page 7: Safe ® Select Technology
SAFE Select Technology ® The E-flite UMX P-51D has two flight modes controlled by through a turn. To fly smoothly with SAFE, avoid making channel 5, SAFE and AS3X. Switch A is the Spektrum default frequent control changes and don’t attempt to correct for for channel 5. -
Page 8: Esc/Receiver Arming And Battery Installation
ESC/Receiver Arming and Battery Installation CAUTION: Always keep hands away from the propeller. When armed, the motor will turn the propeller in response to any throttle movement. Arming the ESC/receiver also occurs after binding as previously described, but subsequent connection of a flight battery requires the following steps. -
Page 9: Center Of Gravity (Cg)
Center of Gravity (CG) The CG location is 8mm forward of the panel line shown in the illustration. This CG location has been determined with the recommended battery. Check the CG with the model inverted. Adjust the battery forward or aft so the model balances level at the recommended point. -
Page 10: As3X Control Response Test
AS3X Control Response Test This test ensures that the AS3X control ® Aircraft Control Surface Reaction system is functioning properly. Movement 1. Advance the throttle above 25% to activate the AS3X system. 2. Fully lower the throttle and enable throttle cut. -
Page 11: Landing Gear Removal
Landing Gear Removal Main Gear 1. Unclip the landing gear cover from the strut, then pull it down and away from the wing. 2. Carefully rotate each strut until it snaps away from the gear plate. NOTICE: DO NOT damage the leading edge of the wing when removing the landing gear. -
Page 12: Control Horn Settings
Control Horn Settings The illustration shows the factory settings for the control horns. Aileron Elevator Rudder Fly the aircraft at factory settings before making changes. After flying, you may choose to adjust the linkage positions for the desired control response. CAUTION: When these are incorrectly connected for the pilot’s skill level, unexpected aircraft response to controls can result. -
Page 13: Post Flight Checklist
Post Flight Checklist 1. Disconnect the flight battery from the ESC. 3. Remove the flight battery from the aircraft. 2. Power OFF the transmitter. 4. Store the flight battery apart from the aircraft and monitor the battery charge. Power Components Service Disassembly CAUTION: DO NOT handle the propeller while the flight battery is connected to the ESC. -
Page 14: As3X ® System Trouble Shooting Guide
AS3X System Trouble Shooting Guide ® Problem Possible Cause Solution Control surfaces may not have been Center control surfaces mechanically by Control surfaces not at mechanically centered from factory adjusting the U-bends on control linkages neutral position when transmitter controls are Aircraft was moved after the flight battery Disconnect and reconnect the flight battery at neutral... -
Page 15: Replacement Parts
Problem Possible Cause Solution Control surface, control horn, linkage or servo Replace or repair damaged parts and adjust damage controls Do a check of wires and connections, connect Control surface does not Wire damaged or connections loose or replace as needed move Flight battery charge is low Fully recharge flight battery... -
Page 16: Important Federal Aviation Administration (Faa) Information
Product, (iv) attempted service, or (ii) replace, any Product determined by Horizon service by anyone other than a Horizon Hobby authorized to be defective. Horizon reserves the right to inspect any service center, (v) Product not purchased from an and all Product(s) involved in a warranty claim. -
Page 17: Contact Information
2904 Research Rd productsupport@horizonhobby.com Horizon Product Support United States Champaign, Illinois, 61822 (Product Technical Assistance) of America 877-504-0233 websales@horizonhobby.com Sales 800-338-4639 Horizon Technischer Service service@horizonhobby.eu Hanskampring 9 European Union D 22885 Barsbüttel, Sales: Horizon Hobby GmbH +49 (0) 4121 2655 100 Germany... -
Page 18: Fcc Information
EU Manufacturer of Record: Horizon Hobby, LLC EFL UMX P-51D BNF Basic (EFLU4350): 2904 Research Road Hereby, Horizon Hobby, LLC declares Champaign, IL 61822 USA that the device is in compliance with the following: EU Radio Equipment Directive 2014/53/EU, RoHS... - Page 19 ©2023 Horizon Hobby, LLC. E-flite, AS3X, UMX, DSM, DSM2, DSMX, ModelMatch, Bind-N-Fly, the Bind-N-Fly logo and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc.
