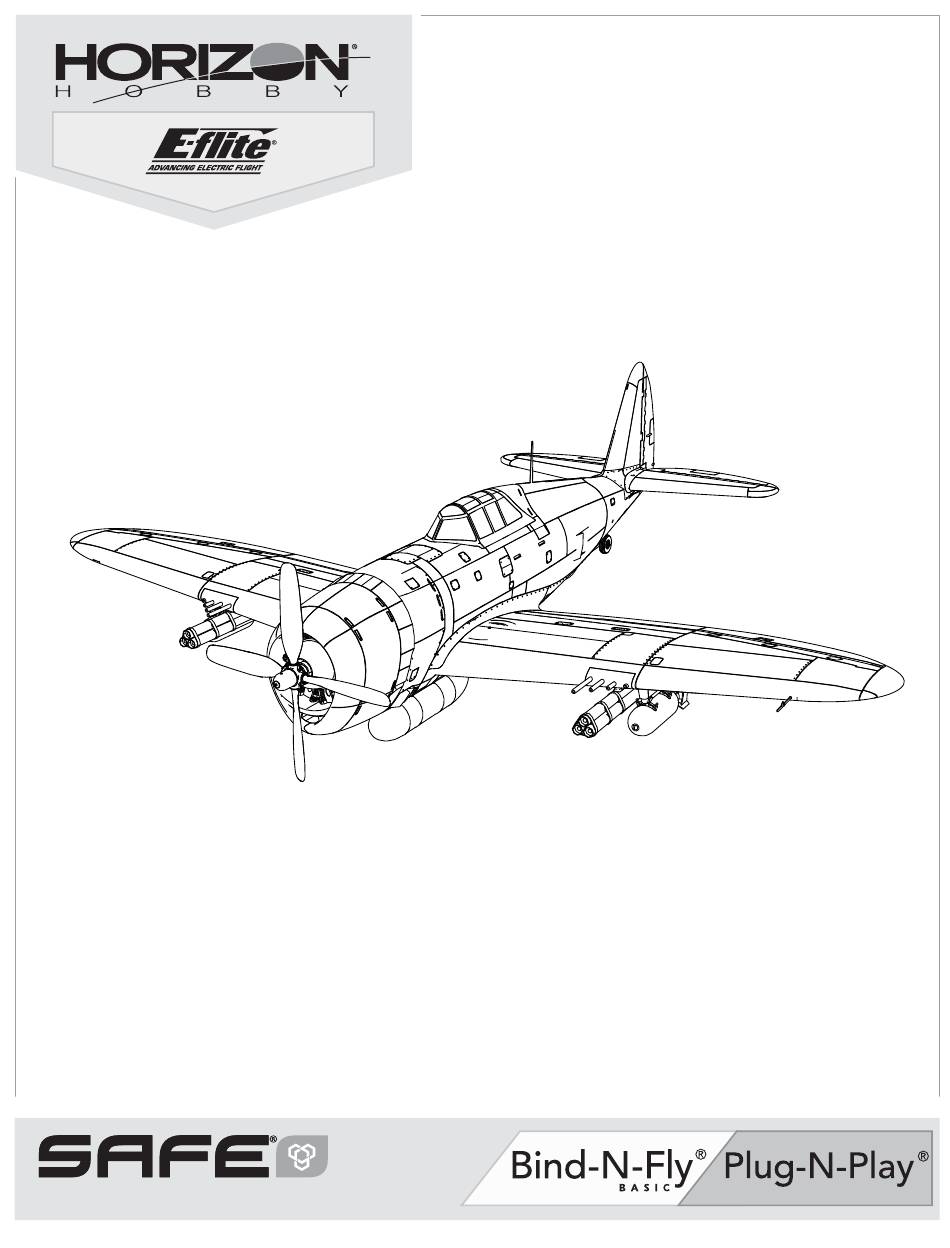

- Page 1 P-47 1.2m Instruction Manual Bedienungsanleitung Manuel d’utilisation Manuale di Istruzioni SAFE ® Select Technology, Optional Flight Envelope Protection...
- Page 2 NOTICE All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit www.horizonhobby.com and click on the support tab for this product. Meaning of Special Language: The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product: WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high probability of superfi...
-
Page 3: Table Of Contents
Box Contents Quick Start Information Transmitter Set up your transmitter using the Setup transmitter setup chart Hi Rate Low Rate 15mm 10mm 10mm 7mm Dual Rates 12mm 16mm 11mm Landing Takeoff Flaps =30mm =15mm Center of 65mm +/-3mm back from leading edge of Gravity (CG) wing at the fuselage. -
Page 4: Select Technology
® SAFE Select Technology ® The evolutionary SAFE Select technology can offer an extra level of protection so you can perform the fi rst fl ight with confi dence. No complex transmitter programming is required. Just follow the simple bind process to make the SAFE Select system active. When activated, bank and pitch limitations keep you from over-controlling and automatic self-leveling makes recovery from risky or confusing attitudes as simple as releasing the sticks. -
Page 5: Model Assembly
Model Assembly Horizontal Tail Installation 1. Slide the horizontal tail (A) into the slot in the rear of the fuselage. Ensure the control horn faces down. 2. Secure the horizontal tail piece in place using the included screw (B). Use caution to avoid over-tightening the screw. - Page 6 Model Assembly Continued Wing Installation 1. Remove the battery hatch by pulling up on each side of the back edges. 2. Guide the Flaps, Retracts and Aileron servo connectors (A) through the hole (B) located in the bottom of the fuselage as shown. Tip: If needed, use hemostats or pliers to pull the servo connectors into the fuselage.
- Page 7 Model Assembly Continued Propeller Installation WARNING: Disconnect the battery from the aircraft before installing the propeller or performing any propeller maintenance. Complete all system setups before starting the aircraft for the fi rst time. 1. Install back side of propeller hub (A), propeller (B), and front side propeller hub (C) onto the motor shaft (D).
-
Page 8: Transmitter And Receiver Binding / Switching On And Off Safe Select
Transmitter and Receiver Binding / Switching ON and OFF SAFE Select ™ Switching ON SAFE Select Binding Sequence ® ® This product requires an approved Spektrum DSM2 /DSMX compatible transmitter. Visit www.bindnfl y.com for a complete list of approved transmitters. The aircraft has an optional SAFE Select feature, which can be switched ON or OFF easily by binding in a specifi... -
Page 9: Select Switch Designation
® SAFE Select Switch Designation ® SAFE Select technology can be easily assigned to any open switch on your Mode 1 and 2 Transmitters transmitter. With this new feature, you now have the fl exibility to enable or dis- able the technology while in fl ight. IMPORTANT: Before assigning your desired switch, ensure that the travel for that channel is set at 100%. -
Page 10: Battery Installation And Esc Arming
Battery Installation and ESC Arming Battery Selection We recommend the E-fl ite ® 2200mAh 11.1V 3S 30C Li-Po battery (EFLB22003S30). Refer to the Optional Parts List for other recommended batteries. If using a battery other than those listed, the battery should be within the range of capacity, dimensions and weight of the E-fl... -
Page 11: Center Of Gravity (Cg)
Center of Gravity (CG) The CG location is measured from the leading edge of the wing at the root. This CG location has been determined with the recommended Li-Po battery (EFLB22003S30) installed all the way forward in the battery compartment. Tip: Measure the CG with the aircraft inverted. -
Page 12: Flying Tips And Repairs
Flying Tips and Repairs Consult local laws and ordinances before choosing a fl ying location. If landing on grass, it is best to hold full up elevator after WARNING: touchdown and when taxiing to prevent nosing over. Always decrease Range Check your Radio System Once on the ground, avoid sharp turns until the plane throttle at propeller has slowed enough to prevent scraping the wingtips. -
Page 13: Post Flight
Post Flight 1. Disconnect the fl ight battery from the ESC (Required for Safety and 5. Repair or replace all damaged parts. battery life). 6. Store the fl ight battery apart from the aircraft and monitor the 2. Power OFF the transmitter. battery charge. -
Page 14: Troubleshooting Guide
Troubleshooting Guide Problem Possible Cause Solution Throttle not at idle and/or throttle trim too high Reset controls with throttle stick and throttle trim at lowest setting Aircraft will not re- Throttle servo travel is lower than 100% Make sure throttle servo travel is 100% or greater spond to throttle but responds to other Throttle channel is reversed... -
Page 15: Ama National Model Aircraft Safety Code
AMA National Model Aircraft Safety Code Effective January 1, 2014 B. RADIO CONTROL A. GENERAL 1. All pilots shall avoid fl ying directly over unprotected people, vessels, vehicles or structures and shall avoid endangerment of life and property A model aircraft is a non-human-carrying aircraft capable of sustained fl ight of others. -
Page 16: Limited Warranty
Product, (iv) attempted service by offi ce. anyone other than a Horizon Hobby authorized service center, (v) Product not Warranty Requirements purchased from an authorized Horizon dealer, or (vi) Product not compliant... -
Page 17: Contact Information
RED and EMC Directives. EFL P47 1.2M PNP (EFL8475) EU Compliance Statement: Horizon Hobby, LLC hereby declares that this product is in compliance with the essential requirements and other relevant provisions of the EMC Directive. A copy of the EU Declaration of Conformity is available online at: http://www.horizonhobby.com/content/support-render-compliance. -
Page 18: Replacement Parts
Replacement Parts • Ersatzteile • Pièces de rechange • Pezzi di ricambio Part # | Nummer Description Beschreibung Description Descrizione Numéro | Codice EFL8451 Painted Fuselage W / Hatch: P-47 Rumpf lackiert mit Haube:P47 P-47 - Fuselage peint avec trappe Fusoliera verniciata c/capottina: P47 EFL8452 Painted Wing W / Screws: P-47... - Page 19 E-fl ite, AS3X, SAFE, the SAFE logo, DSM, DSM2, DSMX, the DSMX logo, Bind-N-Fly, Z-Foam, ModelMatch, Dynamite, EC3, Prophet and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc.
