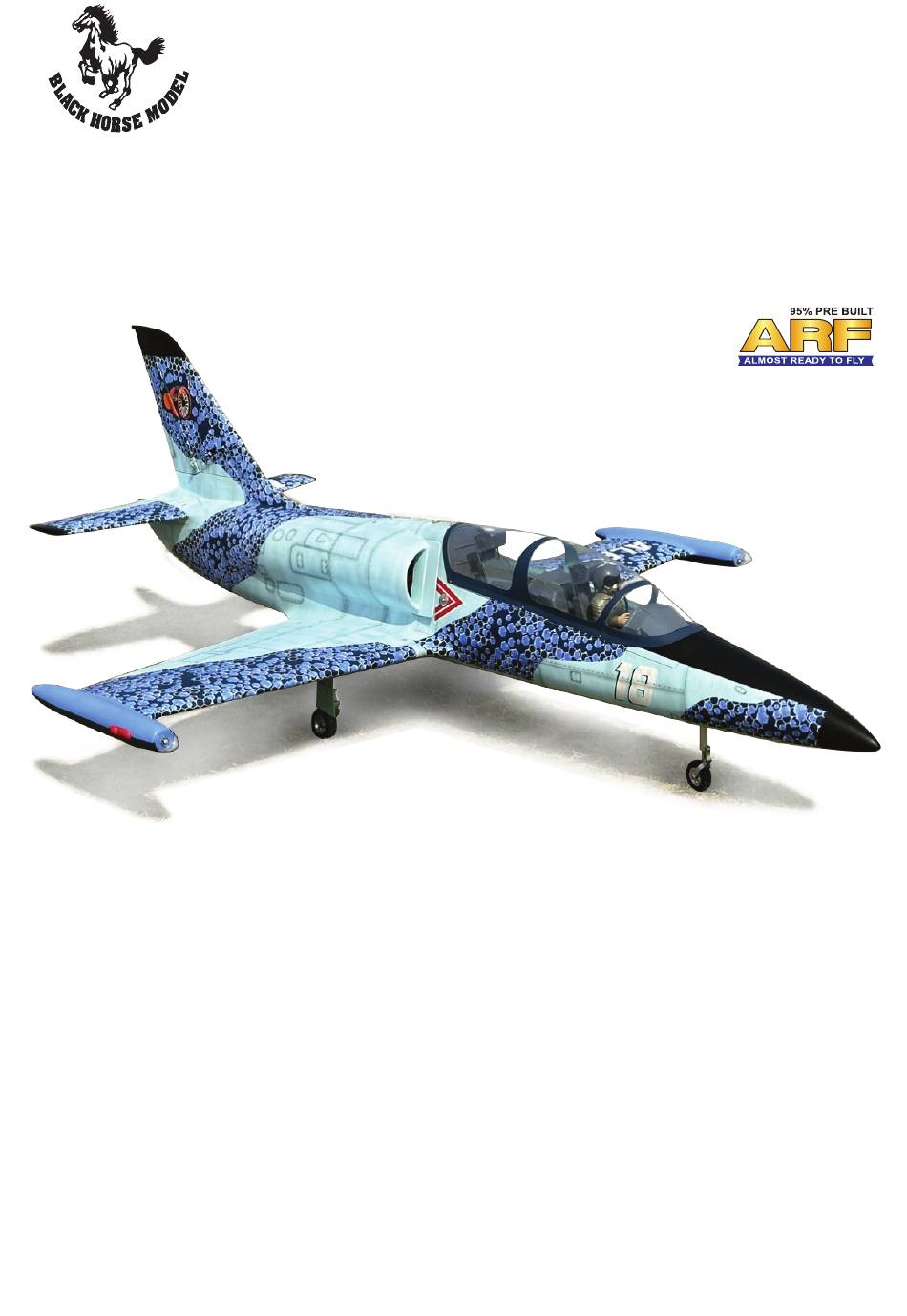

L-39 Albatros
95% ALMOST READY TO FLY
ALL BALSA - PLY WOOD CONSTRUCTION
SPECIFICATION:
- Wingspan: 1,890mm ( 74.4 in).
- Length: 2,410 mm (94.88 in).
- Weight: 13.8 – 14.9 kg ( 30.5 - 33lbs).
- Wing area: 73.5 dm2.
- Wing loading: 202.72 g/dm2.
- Wing type: Naca Airfoil.
- Servo mount: 41mm x 21mm.
- Gear type: Electric Retract Gear with
oleo struts and controller box.
Instruction Manual Book
Item code: BH190
Parts listing required (not included):
- Radio: 8 channels minimum.
- Servo: 9 (HV high torque servos),
size: (40 x 20)mm. + 1 size: (35 x 16)mm.
- Engine: Turbine Jet Engine with 100-140N
(not included).
Recommended Battery set up (not included):
- Battery receiver: 2S- 7.4V 2,200mAh - 3,200mAh.
Made in Vietnam.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L-39 Albatros and is the answer not in the manual?

Questions and answers

Related Manuals for Black Horse Model L-39 Albatros

Summary of Contents for Black Horse Model L-39 Albatros

  • Page 1 Instruction Manual Book Item code: BH190 L-39 Albatros 95% ALMOST READY TO FLY ALL BALSA - PLY WOOD CONSTRUCTION SPECIFICATION: Parts listing required (not included): - Wingspan: 1,890mm ( 74.4 in). - Radio: 8 channels minimum. - Length: 2,410 mm (94.88 in).

  • Page 2: Table Of Contents

    Thank you for purchasing Black Horse Model products. With over 18 years experience in production and fly testing, Black Horse Model is committed to bring the best quality products and good service to customers. Along with a team of creative engineers and skilled workers, we will always accompany with customers by our great experiences, fully enthusiasm...

  • Page 3: Warranty

    In that Black Horse Model has no control over the final assembly or material used for final assembly, SUGGESTION Black Horse Model is not responsible for loss of use , or other incidental or consequential damages. To avoid scratching your new airplane, do not...

  • Page 4: Covering Tools

    L-39 Albatros Item code:BH190 Instruction Manual FLIGHT WARNINGS ADHESIVES AND REQUIRED TOOLS When ready to fly, first extend the transmitter aerial. Thin CA Switch on the transmitter. 30-minute epoxy Switch on the receiver. 6-minute epoxy Check that the wings are correctly fitted to the Threadlocker thread locking cement fuselage.
  • Page 5 L-39 Albatros Item code:BH190 Instruction Manual • Officially designated AMA Air Show Teams (AST) are authorized to use devices and practices as defined within the Team AMA Program Document. (AMA Document #718.) (j) Not operate a turbine-powered aircraft, unless in compliance with the AMA turbine regulations. (AMA Document #510-A.)

  • Page 6: Parts Listing (Not Included)

    L-39 Albatros Item code:BH190 Instruction Manual PARTS LISTING (NOT INCLUDED). Servo extension leads. 920mm..2pcs. 620mm..7pcs. 190mm..2pcs. Turbine Jet Engine with thrust 13 kg 220mm..2pcs. 420mm..1pcs. LiPo: 3s....1 Packs LiPo: 2s....3 Packs Servos size: (39.9 x 20.12 x 37.1)mm...
  • Page 7 L-39 Albatros Item code:BH190 Instruction Manual 1: Fuselage set. 2: Cockpit set. 3: Wing set. 4: Horizontal stabilizer set 5: Vertical stabilizer set. 6: Nose gear set. 7: Main gear set. 8: Engine set. 9: Fuel tank set. 10: Controller box set.

  • Page 8: Installing The Ailerons And Flaps

    L-39 Albatros Item code:BH190 Instruction Manual INSTALLING THE AILERONS AND FLAPS 44mm Pinned Hinge Aileron 3x12mm Tp Screw Flap - - - 6 - - - 8 67mm Pinned Hinge Flap Horn - - - 8 - - - 2...

  • Page 9: Installing The Aileron And Flap Servor

    L-39 Albatros Item code:BH190 Instruction Manual INSTALLING THE AILERON AND FLAP SERVOS 2.6x65mm Pushrod Aileron - - - 4 2.6x65mm Pushrod Flap - - - 2 Ball Link for Aileron Servo - - - 8 - - - 8 Horn...
  • Page 10 L-39 Albatros Item code:BH190 Instruction Manual Horn 2x10mm Tp Screw 3mm Lock Nut 2x10mm Tp Screw 3x12mm Button Head Cap Screw For Flap Servo 3x12mm Button Head Cap Screw 2.6x65mm Pushrod 3mm Flat Washer 3mm Lock Nut 3mm Lock Nut...
  • Page 11 L-39 Albatros Item code:BH190 Instruction Manual 2x10mm Tp Screw 2x10mm Tp Screw Flap Cable Aileron Cable The number of times Assemble left and right the same way Assembly sides the same way. (in this case twice).

  • Page 12: Installing The Wings Tip

    L-39 Albatros Item code:BH190 Instruction Manual INSTALLING THE WINGS TIP Wing Tip - - - 2 6x50mm Aluminium 6x50mm Aluminium - - - 2 Light Cable Must be purchased Apply threadlocker Assemble left and right Apply epoxy glue. (screw cement).

  • Page 13: Installing The Main Landing Gear

    L-39 Albatros Item code:BH190 Instruction Manual INSTALLING THE MAIN LANDING GEAR 4mm Spring Washer 4x20mm Button Head Cap Screw Mounting gear - - - 8 - - - 8 Mounting gear 2x10mm Tp Screw - - - 8 2x10mm 4x20mm Button Head...

  • Page 14: Installing The Gear Door

    L-39 Albatros Item code:BH190 Instruction Manual INSTALLING THE GEAR DOOR Gear Door 3x6mm Button Head Cap Screw 3mm Flat Washer - - - 8 - - - 8 3x4mm Set Screw - - - 2 3x4mm Set Screw 3x6mm Button Head Cap Screw...

  • Page 15: Installing The Horizontal Stabilizer

    L-39 Albatros Item code:BH190 Instruction Manual INSTALLING THE HORIZONTAL STABILIZER 44mm Pinned Hinge - - - 3 6x50mm Aluminium - - - 2 44mm 6x50mm Aluminium The number of times the same way Assembly (in this case twice). Apply threadlocker...

  • Page 16: Installing The Horizontal Stabilizer Servo

    L-39 Albatros Item code:BH190 Instruction Manual INSTALLING THE HORIZONTAL STABILIZER SERVO Horn 2.6x50mm Pushrod 3x12mm Button Head Cap Screw - - - 2 - - -2 - - - 4 Ball Link 3mm Flat Washer - - - 2 - - - 4...

  • Page 17: Installing The Vertical Stabilizer

    L-39 Albatros Item code:BH190 Instruction Manual Ball link Lock Nut 3mm Flat Washer 2.6x 50mm Aluminium ball 3x12mm 3x16mm Button Head Button Head Cap Screw Cap Screw Left view INSTALLING THE VERTICAL STABILIZER 44mm Pinned Hinge Aileron - - - 4...

  • Page 18: Installing The Vertical Stabilizer Servo

    L-39 Albatros Item code:BH190 Instruction Manual INSTALLING THE VERTICAL STABILIZER SERVOS 2.6x70mm Pushrod 3x12mm Button Head Cap Screw Horn - - - 1 - - - 2 - - -1 Ball Link 3mm Flat Washer - - - 2 - - - 2...
  • Page 19 L-39 Albatros Item code:BH190 Instruction Manual Right view Ball link Ball link Aluminium ball 2.6x70mm Pushrod 3x12mm Button Head 3mm Flat Washer Cap Screw Lock Nut The number of times the same way Assembly (in this case twice).

  • Page 20: Installing The Fuselage

    L-39 Albatros Item code:BH190 Instruction Manual INSTALLING THE FUSELAGE Ø12x260mm Aluminium Tube - - - 2 4x10mm Button Head Cap Screw - - - 12 4mm Spring Washer Ø12x260mm Aluminium Tube - - - 12 Aluminum Fuselage - - - 3...

  • Page 21: Nose Door Installing

    L-39 Albatros Item code:BH190 Instruction Manual NOSE DOOR INSTALLING 3x12mm Button Head Cap Screw 2.6x70mm Pushrod 2x10mm Tp Screw - - - 1 - - - 8 - - - 1 Ball Link Platic Nose door 3mm Flat Washer 3x15mm Button Head Cap Screw...

  • Page 22: Installing Nose Door Servos

    L-39 Albatros Item code:BH190 Instruction Manual INSTALLING NOSE DOOR SERVOS 4x12mm Tp Screw Ball Link Ball Link 2.6x70mm Pushrod 3mm Flat Washer 3x12mm Button Head Cap Screw Must be purchased separately!
  • Page 23 L-39 Albatros Item code:BH190 Instruction Manual 3mm Lock Nut 3mm Flat Washer 3x15mm 3x15mm Button Head Cap Screw Button Head Cap Screw...

  • Page 24: Installing The Nose Gear Retract

    L-39 Albatros Item code:BH190 Instruction Manual INSTALLING THE NOSE GEAR RETRACT 2.6x32mm Pushrod 3mm Flat Washer - - - 1 Ball Link - - - 2 4mm Spring Washer - - - 2 - - - 4 - - - 2...
  • Page 25 L-39 Albatros Item code:BH190 Instruction Manual 4x20mm Button Head Cap Screw Spring Washer The number of times the same way Assembly (in this case twice).
  • Page 26 L-39 Albatros Item code:BH190 Instruction Manual 2x10mm Tp Screw - - - 4 - - - 1 The number of times the same way Assembly (in this case twice).

  • Page 27: Main Door Installing

    L-39 Albatros Item code:BH190 Instruction Manual MAIN DOOR INSTALLING Gear Door 3mm Lock Nut 2.6x65mm Pushrod ( L ) ( R ) - - - 2 - - - 2 3x12mm Button Head Ball Link Cap Screw - - - 4...
  • Page 28 L-39 Albatros Item code:BH190 Instruction Manual Ball Link Ball Link 2.6x 65mm Pushrod Elevator 3mm Flat Washer 3x12mm Button Head Cap Screw 3mm Lock Nut Assemble left and right sides the same way.

  • Page 29: Installing The Main Gear Door Servos

    L-39 Albatros Item code:BH190 Instruction Manual INSTALLING THE MAIN GEAR DOOR SERVOS 2.6x35mm Pushrod Steering arm 3mm Spring Washer - - - 1 - - - - 3 - - - 4 6x60mm Alignment Pins Aluminium 3mm Flat Washer Mount Set...
  • Page 30 L-39 Albatros Item code:BH190 Instruction Manual 3x4mm 3x12mm Set Screw 3x4mm Button Head Set Screw Cap Screw 3x12mm 3mm Flat Washer Button Head Cap Screw 3mm Flat Washer 3mm Flat Washer 3x12mm Button Head Cap Screw Apply threadlocker (screw cement).

  • Page 31: Installing The Wings To Fuselage

    L-39 Albatros Item code:BH190 Instruction Manual INSTALLING THE WINGS TO FUSELAGE Ø20x814mm Fiber Carbon Tube 6x50mm Aluminium - - - 1 - - - 4 Plastic - - - 4 6x50mm Aluminium Ø 20x814mm Fiber Carbon Tube 3mm Hex wrench...

  • Page 32: Installing The Horizontal Stabilizer To Fuselage

    L-39 Albatros Item code:BH190 Instruction Manual INSTALLING THE HORIZONTAL STABILIZER TO FUSELAGE Ø12x470mm Fiber Carbon Tube - - - 1 Plastic - - - 3 Ø12x470mm Fiber Carbon Tube 3mm Hex wrench servo extension lead Ø 12x470mm Fiber Carbon Tube...

  • Page 33: Installing The Vertical Stabilizer To Fuselage

    L-39 Albatros Item code:BH190 Instruction Manual INSTALLING THE VERTICAL STABILIZER TO FUSELAGE Ø12x222mm Fiber Carbon Tube - - - 1 Ø9x145mm Aluminium Tube - - - 1 6x50mm Aluminium - - - 2 Ø12x222mm Fiber Carbon Tube 3mm Hex wrench...

  • Page 34: Installing The Exhaust Pipe

    L-39 Albatros Item code:BH190 Instruction Manual INSTALLING THE EXHAUST PIPE Exhaust Tube 3x15mm Tp Screw - - - 1 - - - 10...
  • Page 35 L-39 Albatros Item code:BH190 Instruction Manual INSTALLING THE FUEL TANK Clunks Fiber glass - - - 1 - - - 1 - - - 1 - - - 1 - - - 2 - - - 1 - - - 1...

  • Page 36: Installing The Fuel Tank

    L-39 Albatros Item code:BH190 Instruction Manual Magnetic Anodized Fuel Dot - - - - - 1 Main Fuel Tank Alu. Anodized Fuel Vent Line Plug - - - - - 1 2x5mm Tp Screw Tygon Tubing - - - 9...

  • Page 37: Installing The Smoke Pump

    L-39 Albatros Item code:BH190 Instruction Manual FUEL SYSTEM To Turbine Fuel Vent Connection Safety Petcock Filter Main Fuel Tank Fuel Pump INSTALLING THE SMOKE PUMP 4x12mm Button Head Cap Screw - - - 1 4mm aluminum Washer Tygon Tubing - - - 1...
  • Page 38 L-39 Albatros Item code:BH190 Instruction Manual SMOKE SYSTEM To Exhaust Tube Fuel Supply Vent to Battery to Receiver Smoke Tank Smoke Pump...

  • Page 39: Installing The Engine

    L-39 Albatros Item code:BH190 Instruction Manual INSTALLING THE ENGINE Must be purchased separately!
  • Page 40 L-39 Albatros Item code:BH190 Instruction Manual 3x15mm Tp Screw The number of times Must be purchased the same way Assembly separately! (in this case twice).

  • Page 41: Installing The Receiver, Battery, Controller Box And Switch

    L-39 Albatros Item code:BH190 Instruction Manual INSTALLING THE RECEIVER, BATTERY, CONTROLLER BOX AND SWITCH Controller Box - - 1 Receiver Fuel Pump Smoke Pump Battery Controller Box UAT Tank INSTALLING THE COCKPIT FUSELAGE 2x10mm Tp Screw - - - 7...
  • Page 42 L-39 Albatros Item code:BH190 Instruction Manual 2x10 Tp Srew 2x10 Tp Srew The number of times Assemble left and right the same way Assembly sides the same way. (in this case twice).

  • Page 43: Balancing

    L-39 Albatros Item code:BH190 Instruction Manual BALANCING LATERAL BALANCE 1. It is critical that your airplane be balanced correctly. After you have balanced a plane on the C.G. Improper balance will cause your plane to lose You should laterally balance it. Doing this will control and crash.
  • Page 44 L-39 Albatros Item code:BH190 Instruction Manual Assemble left and right sides the same way.

  • Page 45: Control Throws

    L-39 Albatros Item code:BH190 Instruction Manual FLIGHT PREPARATION PRE FLIGHT CHECK CONTROL THROWS 1. We highly recommend setting up a plane using the control throws listed. 1. Completely charge your transmitter and receiver batteries before your first day of flying.

  • Page 46: For Your Radio Installation Basic Connection For Airplane And Adjustment Of Servos

    L-39 Albatros Item code:BH190 Instruction Manual...

  • Page 47: Main Gear Dimensional Detail

    L-39 Albatros Item code:BH190 Instruction Manual 47mm 30mm 27.5mm 107mm 16mm 50mm 107mm 27.5mm 40mm 18mm...

  • Page 48: Exploded View

    L-39 Albatros Item code:BH190 Instruction Manual...

  • Page 49: I/C Flingt Warnings

    L-39 Albatros Item code:BH190 Instruction Manual I/C FLINGT WARNINGS Keep all onlookers (especially small Always operate in open areas, away children and animals) well back from factories, hospitals, schools, from the area of operation. This is NEVER buildings and houses etc. NEVER...
