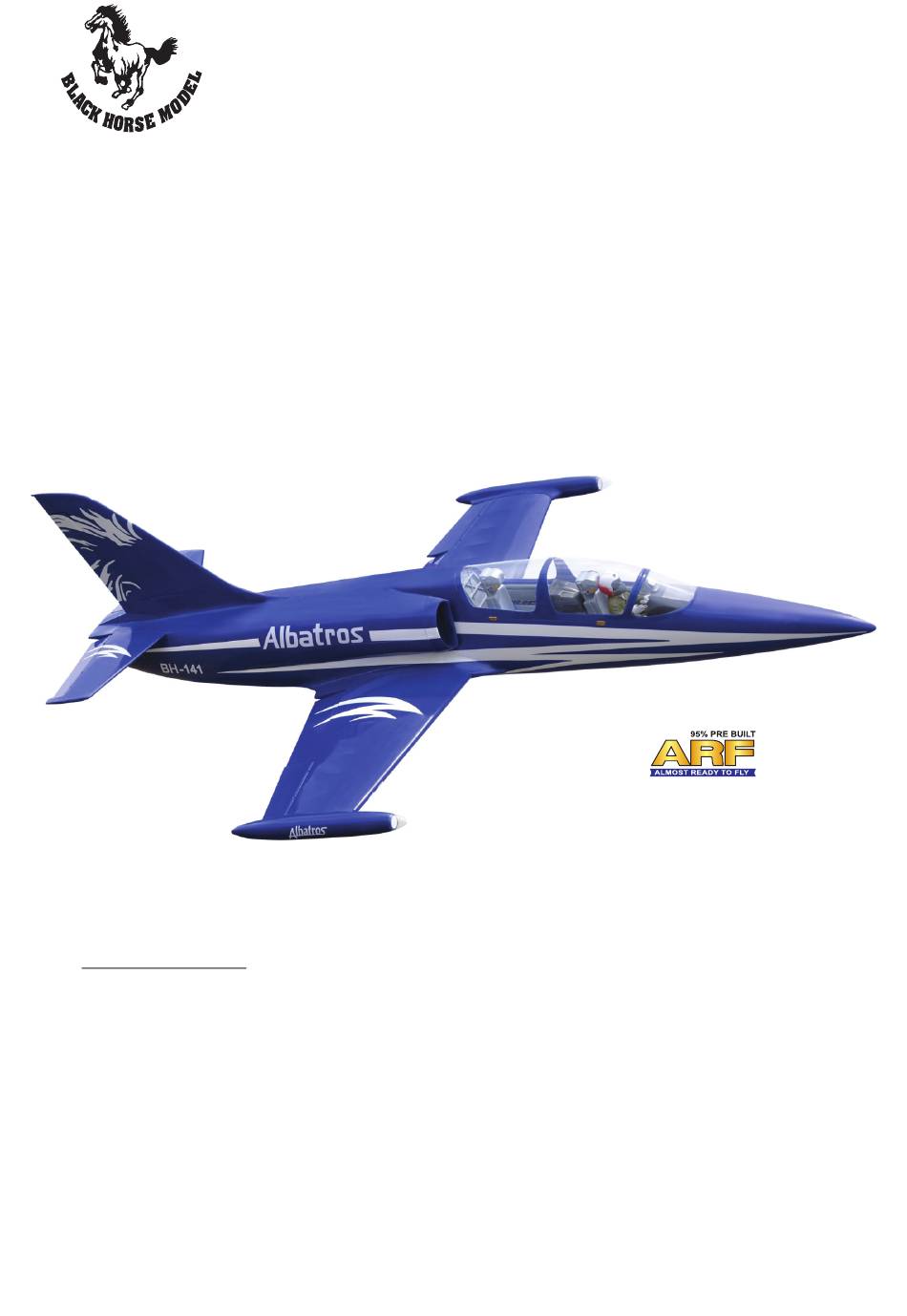

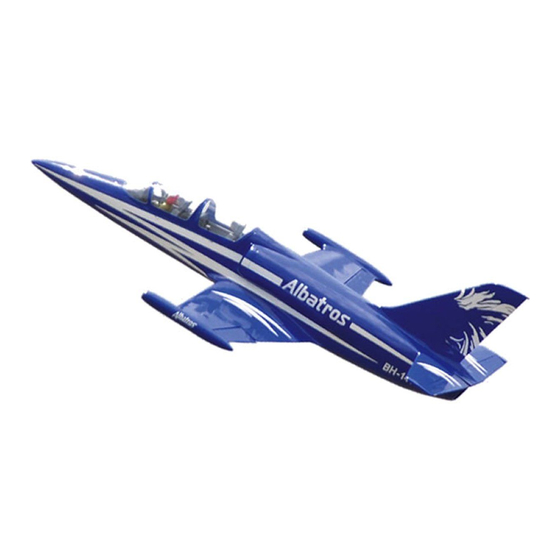

L-39 ALBATROS
NOT INCLUDING ELECTRIC RETRACT GEAR.
ONLY INCLUDING CNC SUSPENSION METAL STRUTS.
ALL BALSA - PLY WOOD CONSTRUCTION.
COVERED WITH ORACOVER
95% ALMOST READY TO FLY
SPECIFICATION:
- Wingspan: 1,450mm (57.09in).
- Length: 1,860mm (73.23in).
- Flying weight: 4.6-4.9kg (10.12-10.78lbs).
- Wing area: 43dm .
- Wing loading: 113g/dm .
- Wing type: Naca airfoils.
- Covering type: Genuine ORACOVER®.
- Gear type: Electric retract gear,
size: (73.5 x 44 x 28)mm (not included).
CNC Suspension Metal Struts (included).
Parts listing required (not included):
- Radio: 08 channels.
Instruction Manual Book
2
2
Item code: BH141.
- Servo: 08 standard high torque servos,
size: (29 x 13 x 30)mm.
- EDF: 90mm 10 Blade Impeller
- Battery: 2 Packs * 5 Cells LIPO 37V.
- Speed control: 120A.
Recommended EDF
and Battery set up (not included):
- EDF: DS51 - AXI - HDS 90mm 10 Blade Impeller,
Minimum thrust 4 kg.
- HET 700 - 68 - 1200KV.
- Lipo cell: 10 cells/5000mAh 55C.
- ESC: 120A Phoenix Castle.
Made in Vietnam.
