Black Horse Model L-13 Blank Instruction Manual

Black Horse Model L-13 Blank Instruction Manual

Aeroplane
Hide thumbs Also See for L-13 Blank:
Table of Contents

Advertisement

Quick Links

Download this manual
SPECIFICATION
     Wingspan :
     Length
     Weight
Parts listing required(not included).
     Radio
     Servo
     Electric motor: PULSAR 40
Battery :3S-LIPo-11.1V-3,250mAh




     Speed control : 60A

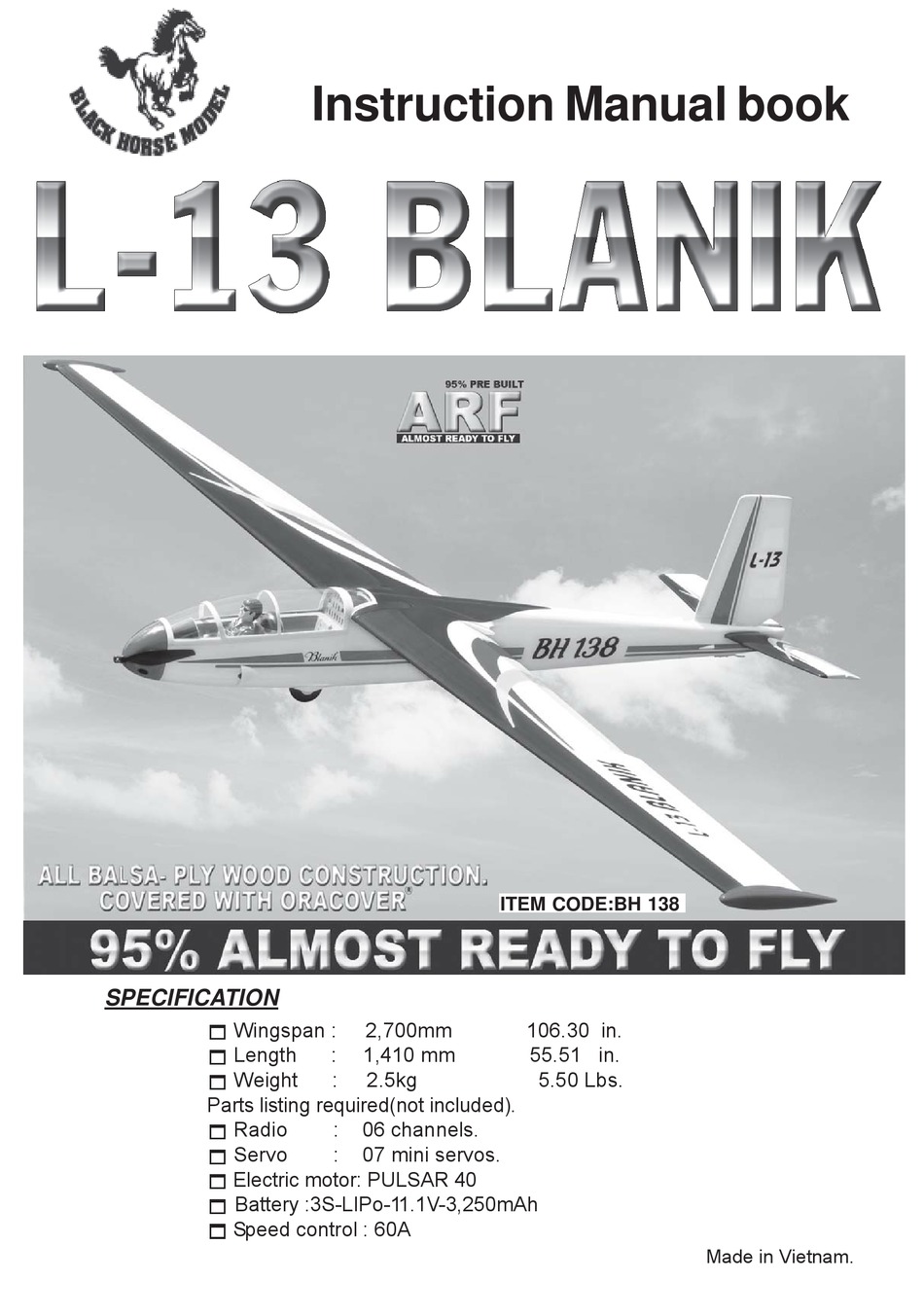

Instruction Manual book
2,700mm
:
1,410 mm
:
2.5kg
:
06 channels.
:
07 mini servos.
ITEM CODE:BH 138
106.30 in.
55.51 in.
5.50 Lbs.
Made in Vietnam.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L-13 Blank and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Black Horse Model L-13 Blank

Summary of Contents for Black Horse Model L-13 Blank

  • Page 1 Instruction Manual book ITEM CODE:BH 138 SPECIFICATION      Wingspan : 2,700mm 106.30 in.      Length 1,410 mm 55.51 in.      Weight 2.5kg 5.50 Lbs. Parts listing required(not included). ...

  • Page 2: Parts List

    L-13 BLANIK Instruction Manual Item code: BH138 This instruction manual is designed to help you build a great flying aeroplane. Please read this manual thoroughly before starting assembly of your Use the parts listing below to L-13 BLANIK. identify all parts. WARNING.

  • Page 3: Safety Precaution

    L-13 BLANIK Instruction Manual Item code: BH138 Caution: this model is not a toy! If you are a beginner to this type of powered model, please ask an experienced model flyer for help and support. If you attempt to operate the model without knowing what you are doing you could easily injure yourself or somebody else.

  • Page 4: Installing The Aileron Servos

    L-13 BLANIK Instruction Manual Item code: BH138 REPLACEMENT LARGE PARTS A. Fuselage. Top side B. Wing panel(B1,B2). C.Horizontal stabilizer(C1,C2). D. Vertical stabilizer. E. Carbon tube wing dihedral brace. Bottom side. F1. Carbon tube Horizontal stabilizer. F2. Carbon tube vertical stabilizer. Aileron G.
  • Page 5 L-13 BLANIK Instruction Manual Item code: BH138 Bottom side.  2) Using a modeling knife, remove the cov- ering at possition show below.  3) Using the thread as a guide and using masking tape, tape the servo lead to the end of the thread: carefully pull the thread out.

  • Page 6: Installing The Aileron Linkages

    L-13 BLANIK Instruction Manual Item code: BH138 Secure Aileron control horn Repeat the procedure for the other wing INSTALLING THE AILERON half. LINKAGES. INSTALLING THE AILERON CONTROL HORN. Installing the aileron linkages as pictures Aileron control horn below. 40 mm. A+B Epoxy PLUS glue Bottom side...
  • Page 7 L-13 BLANIK Instruction Manual Item code: BH138 II. FLAP 2x10mm. 1.INSTALLING THE FLAP SERVO Secure. Repeat the procedure for the other wing half. Flap. Bottom side 2.INSTALLING THE FLAP CONTROL HORN. Install flap control horn as same as pic- ture below. Control horn Flap.
  • Page 8 L-13 BLANIK Instruction Manual Item code: BH138 Control horn of the flap. 3.INSTALLING THE FLAP LINKAGES. Installing the flap linkages as pictures 4x12mm below. 35 mm. Secure. Left bottom side. Right bottom side.
  • Page 9 L-13 BLANIK Instruction Manual Item code: BH138 INSTALLING ELECTRIC MOTOR. See pictures below: Secure. Motor Rotor shaft Drill a hole 3.8mm diameter. Rotor shaft Motor Secure.

  • Page 10: Installing Propeller

    L-13 BLANIK Instruction Manual Item code: BH138 Front view INSTALLING PROPELLER. Propeller not included Secure. Secure. ELEVATOR SERVO INSTALLATION. 1. Install the rubber grommets and brass  collets into the elevator servo. Test fit the servo into the servo tray. 2.

  • Page 11: Horizontal Stabilizer

    L-13 BLANIK Instruction Manual Item code: BH138 Temporary pin to keep hinge centered. Assemble then apply drops of thin C/A to center of hinge,on both sides. Elevator servo HORIZONTAL STABILIZER. See pictures below: Top side. 152 mm. 152 mm. Bottom side. Bottom side.
  • Page 12 L-13 BLANIK Instruction Manual Item code: BH138 C/A glue. Right side stabilizer horizontal. Left side stabilizer horizontal. Epoxy g l u e . E p o x y g l u e .

  • Page 13: Elevator Control Horn Installation

    L-13 BLANIK Instruction Manual Item code: BH138 Bottom side E l e v a t o r control C/A glue. E l e v a t o r control. ELEVATOR PUSHROD INSTALLATION. ELEVATOR CONTROL HORN INSTALLATION. Elevator pushrod install as same as the way ...

  • Page 14: Rudder Servo Installation

    L-13 BLANIK Instruction Manual Item code: BH138 RUDDER SERVO INSTALLATION. Rudder servo install as same as method of elevator servo. See picture below: Rudder servo VERTICAL INSTALLATION. See picture below: Cut the covering away from the slot. Temporary pin to keep hinge centered.
  • Page 15 L-13 BLANIK Instruction Manual Item code: BH138 Assemble then apply drops of thin C/A to center of hinge,on both sides.

  • Page 16: Rudder Pushrod Installation

    L-13 BLANIK Instruction Manual Item code: BH138 Rudder control horn Right side. RUDDER PUSHROD INSTALLATION. Rudder pushrod install as same as the way  of aileron pushrod. RUDDER CONTROL HORN INSTALLA- TION. M2 lock nut. Rudder control horn install as same as the way of aileron control horn.

  • Page 17: Mounting The Tail Wheel Bracket

    L-13 BLANIK Instruction Manual Item code: BH138 Bottom side. R u d d e r pushrod. Bend and cut after MOUNTING THE TAIL WHEEL BRACKET.      1. Set the tail wheel assembly in place on the plywood plate. The pivot point of the tail wheel wire should be even with the rud- der hinge line and the tail wheel bracket should be centered on the plywood plate.
  • Page 18 L-13 BLANIK Instruction Manual Item code: BH138 Cut.      3. Secure the tail wheel bracket in place using three 3mm x 10mm wood screws. Be careful not to overtighten the screws. 3x10mm C/A glue. Secure. Bottom side. Bottom side.

  • Page 19: Wing Attachment

    L-13 BLANIK Instruction Manual Item code: BH138 2. Wrap the receiver and battery pack in  2. Attach the carbon tube into the fuse-       the protective foam to protect them from vi- lage. bration. Use a rubber band or masking tape to hold the foam in place.

  • Page 20: Installing Cockpit Fuselage

    L-13 BLANIK Instruction Manual Item code: BH138 Secure INSTALLING COCKPIT FUSELAGE . C/A glue. See picture below: C/A glue. A+B Epoxy PLus glue...
  • Page 21 L-13 BLANIK Instruction Manual Item code: BH138 Accurately mark the balance point on the top of the wing on both sides of the fuselage. The balance point is located 27mm back from the leading edge. This is the balance point at which your model should balance for your first flights.

  • Page 22: Control Throws

    L-13 BLANIK Instruction Manual Item code: BH138 PRE-FLIGHT CHECK. CONTROL THROWS. 1) Completely charge your transmitter and 1) We highly recommend setting up a             receiver batteries before your first day of fly- plane using the control throws listed.
