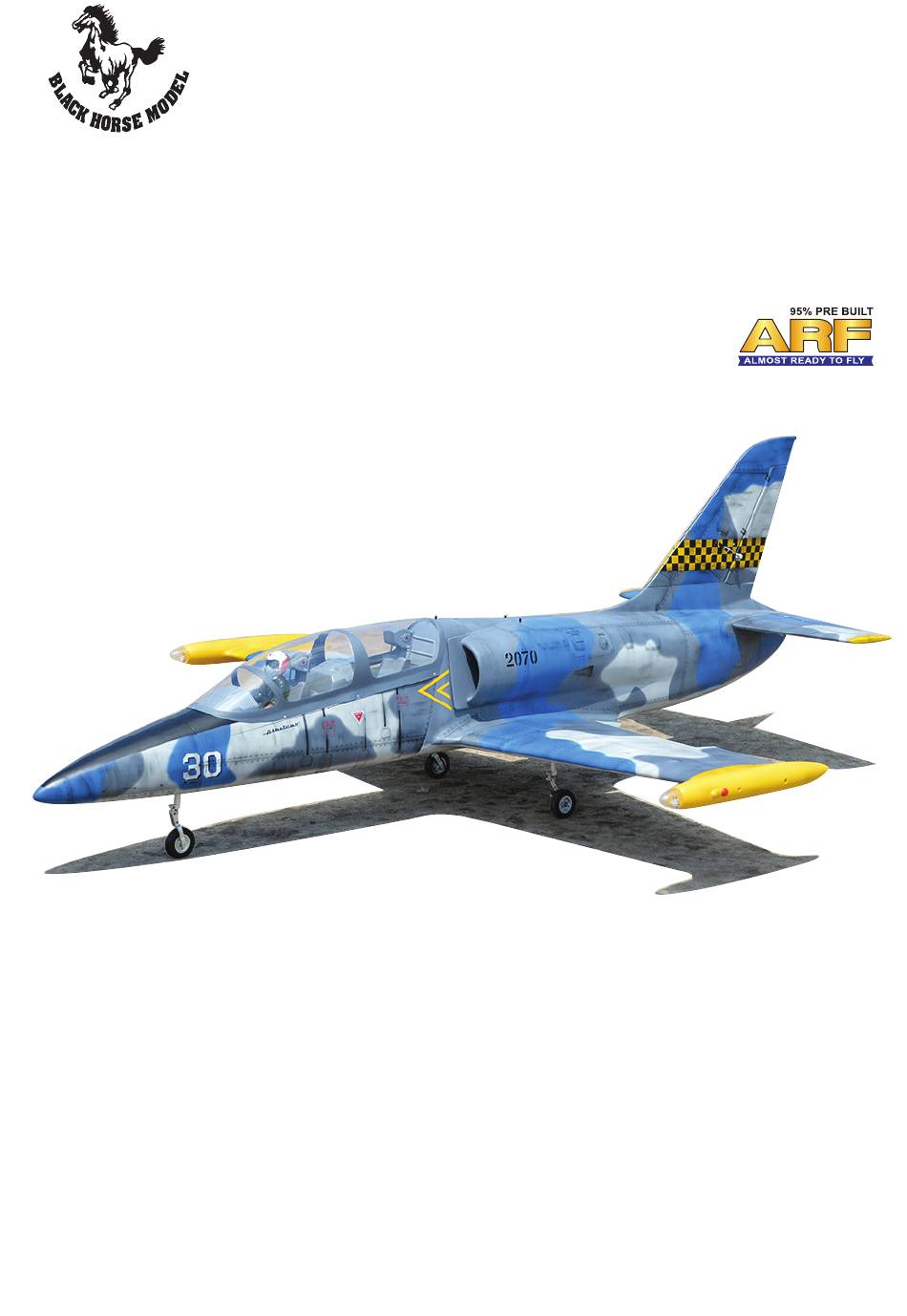

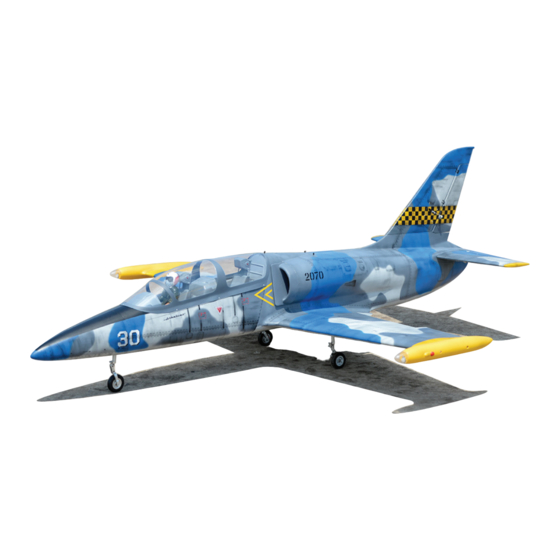

L-39 Albatros
95% ALMOST READY TO FLY
ALL BALSA - PLY WOOD CONSTRUCTION
COVERED IN A HEAT-SHRINK FILM WITH PRINTED.
SPECIFICATION:
- Wingspan: 1,720 mm (67.7 in).
- Length: 2,163 mm (85 in).
- Weight: 9.6 – 10.5 kg (21 - 23 lbs).
- Wing area: 60.7 dm².
- Wing loading: 158 g/dm².
- Wing type: Naca Airfoil.
- Gear type: Electric Retract Gear (included)
with controller box (included).
Instruction Manual Book
Item code: BH183
Parts listing required (not included):
- Radio: 8 channels minimum.
- Servo: 8 servos , size: (35 x 15)mm.
- Engine: Turbine Jet Engine with thrust 8kg
(not included).
Recommended Battery set up (not included):
- Battery receiver:
2S- 7.4V - 3,200mAh.
2S- 7.4V - 2,200mAh.
Made in Vietnam.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L-39 Albatros and is the answer not in the manual?

Questions and answers

Related Manuals for Black Horse Model L-39 Albatros

Summary of Contents for Black Horse Model L-39 Albatros

  • Page 1 Instruction Manual Book Item code: BH183 L-39 Albatros 95% ALMOST READY TO FLY ALL BALSA - PLY WOOD CONSTRUCTION COVERED IN A HEAT-SHRINK FILM WITH PRINTED. SPECIFICATION: Parts listing required (not included): - Wingspan: 1,720 mm (67.7 in). - Radio: 8 channels minimum.

  • Page 2: Table Of Contents

    Thank you for purchasing Black Horse Model products. With over 18 years experience in production and fly testing, Black Horse Model is committed to bring the best quality products and good service to customers. Along with a team of creative engineers and skilled workers, we will always accompany with customers by our great experiences, fully enthusiasm...

  • Page 3: Warranty

    In that Black Horse Model has no control over the final assembly or material used for final assembly, SUGGESTION Black Horse Model is not responsible for loss of use , or other incidental or consequential damages. To avoid scratching your new airplane, do not...

  • Page 4: Covering Tools

    L-39 Albatros Item code: BH183 Instruction Manual FLIGHT WARNINGS ADHESIVES AND REQUIRED TOOLS When ready to fly, first extend the transmitter aerial. Thin CA Switch on the transmitter. 30-minute epoxy Switch on the receiver. 6-minute epoxy Check that the wings are correctly fitted to the Threadlocker thread locking cement fuselage.
  • Page 5 L-39 Albatros Item code: BH183 Instruction Manual • Officially designated AMA Air Show Teams (AST) are authorized to use devices and practices as defined within the Team AMA Program Document. (AMA Document #718.) (j) Not operate a turbine-powered aircraft, unless in compliance with the AMA turbine regulations. (AMA Document #510-A.)

  • Page 6: Parts Listing (Not Included)

    L-39 Albatros Item code: BH183 Instruction Manual PARTS LISTING (NOT INCLUDED). Servo extension leads....pcs. 920mm ..3 pcs. 330mm ..2 pcs. Turbine Jet Engine with thrust 8kg 220mm ..9 pcs. 420mm ..4 pcs. LiPo: 2S- 7.4V - 3,200mAh....2 Packs LiPo: 2S- 4V - 2,200mAh....2 Packs...
  • Page 7 L-39 Albatros Item code: BH183 Instruction Manual 1: Fuselage set. 2: Cockpit set. 3: Wing set. 4: Horizontal stabilizer set 5: Vertical stabilizer set. 6: Nose gear set. 7: Main gear set. 8: Fuel tank set. 9: Engine set. 10: CG set.

  • Page 8: Installing The Ailerons And Flaps

    L-39 Albatros Item code: BH183 Instruction Manual INSTALLING THE AILERONS AND FLAPS 44mm Pinned Hinge Aileron 3x12mm Tp Screw Flap - - - 6 - - - 8 67mm Pinned Hinge Flap Horn - - - 8 - - - 2...

  • Page 9: Installing The Aileron And Flap Servo

    L-39 Albatros Item code: BH183 Instruction Manual INSTALLING THE AILERON AND FLAP SERVOS 2.6x75mm Pushrod Aileron - - - 2 2.6x100mm Pushrod Flap - - - 2 Ball Link - - - 8 - - - 8 for Aileron Servo...
  • Page 10 L-39 Albatros Item code: BH183 Instruction Manual 2x10mm 3x12mm Tp Screw Tp Screw Horn 2x10mm Tp Screw 3x12mm Button Head Cap Screw For Flap Servo 60⁰ 3x12mm Button Head Cap Screw 2.6x100mm Pushrod 3mm Flat Washer Screw 3mm Lock Nut...
  • Page 11 L-39 Albatros Item code: BH183 Instruction Manual 2x10mm Tp Screw 2x10mm Tp Screw Bottom view Flap Cable Aileron Cable Assemble left and right sides the same way.

  • Page 12: Installing The Wings Tip

    L-39 Albatros Item code: BH183 Instruction Manual INSTALLING THE WINGS TIP Wing Tip 4x12mm Button Head Cap Screw Spring Washer - - - 4 - - - 4 - - - 2 Light Spring Washer 4x12mm Button Head Cap Screw...

  • Page 13: Installing The Main Landing Gear

    L-39 Albatros Item code: BH183 Instruction Manual INSTALLING THE MAIN LANDING GEAR 4x16mm Button Head Cap Screw - - - 8 4mm Spring Washer - - - 8 - - - 1 4x16mm Button Head Cap Screw Spring Washer Gear Cable...

  • Page 14: Installing Horizontal Stabilizer

    L-39 Albatros Item code: BH183 Instruction Manual INSTALLING THE HORIZONTAL STABILIZER 44mm Pinned Hinge Aileron 6x50mm Aluminium - - - 6 - - - 2 Bottom view Elevator 44mm 6x50mm Aluminium INSTALLING THE HORIZONTAL STABILIZER SERVO 2.6x50mm Pushrod Elevator 3x12mm Button Head Cap Screw...
  • Page 15 L-39 Albatros Item code: BH183 Instruction Manual Horn Must be purchased Assemble left and right Cut off shaded portion Apply epoxy glue. separately! sides the same way. carefully.

  • Page 16: Installing The Vertical Stabilizer

    L-39 Albatros Item code: BH183 Instruction Manual Ball Link Lock Nut 2.6x50mm Push Rod Aluminium Ball Flat Washer 3x12mm Button Head Cap Screw INSTALLING THE VERTICAL STABILIZER 44mm Pinned Hinge Aileron - - - 4 6x50mm Aluminium - - - 1...

  • Page 17: Installing The Vertical Stabilizer Servo

    L-39 Albatros Item code: BH183 Instruction Manual INSTALLING THE VERTICAL STABILIZER SERVO 2.6x45mm Pushrod Elevator 3x12mm Button Head Cap Screw Horn - - - 1 - - - 2 Ball Link - - - 1 3mm Flat Washer - - - 2...
  • Page 18 L-39 Albatros Item code: BH183 Instruction Manual Left view Ball link 2.6x mm 2x10mm Tp Screw Aluminium ball Lock Nut 2x10mm Tp Screw Flat Washer 3x12mm Button Head Cap Screw Cut off shaded portion carefully.

  • Page 19: Installing The Wheel Well

    L-39 Albatros Item code: BH183 Instruction Manual INSTALLING THE WHEEL WELL Wheel Well Bottom view - - - 1 Cut off shaded portion Apply epoxy glue. carefully.

  • Page 20: Installing The Fuselage

    L-39 Albatros Item code: BH183 Instruction Manual INSTALLING THE FUSELAGE Ø12x198mm Aluminium Tube - - - 3 4x16mm Button Head Cap Screw 4mm Aluminium Washer - - - 4 - - - 4 Ø12x198mm Aluminium Tube 4mm Aluminium Washer 4x16mm Button Head Cap Screw...

  • Page 21: Installing The Wings To Fuselage

    L-39 Albatros Item code: BH183 Instruction Manual INSTALLING THE WINGS TO FUSELAGE Ø20x765mm Fiber Carbon Tube - - - 1 Screw Securely (after complete all) Ø20x765mm Screw Securely Fiber Carbon Tube (after complete all) Bottom view Must be purchased Wing...

  • Page 22: Installing The Nose Gear Retract

    L-39 Albatros Item code: BH183 Instruction Manual INSTALLING THE NOSE GEAR RETRACT 3x12mm Button Head 2.6x28mm Pushrod Cap Screw - - - 1 - - - 1 Ball Link 3mm Flat Washer - - - 2 - - - 1...
  • Page 23 L-39 Albatros Item code: BH183 Instruction Manual 4x16mm Button Head Cap Screw Spring Washer...

  • Page 24: Installing The Horizontal Stabilizer To Fuselage

    L-39 Albatros Item code: BH183 Instruction Manual INSTALLING THE HORIZONTAL STABILIZER TO FUSELAGE Ø12x345mm Fiber Carbon Tube - - - 1 600 Deg High Temperature Braided Soft Chemical Fiber Tubing Servo extension lead Ø12x345mm servo extension lead Fiber Carbon Tube...

  • Page 25: Installing The Vertical Stabilizer To Fuselage

    L-39 Albatros Item code: BH183 Instruction Manual INSTALLING THE VERTICAL STABILIZER TO FUSELAGE Ø12x172mm Fiber Carbon Tube - - - 1 Ø12x172mm Fiber Carbon Tube servo extension lead screws Securely...

  • Page 26: Installing The Engine

    L-39 Albatros Item code: BH183 Instruction Manual INSTALLING THE ENGINE Exhaust Tube 3x15mm Tp Screw - - - 1 - - - 10 Exhaust Tube Engine 3x15mm Tp Screw 10mm Must be purchased separately!

  • Page 27: Installing The Fuel Tank

    L-39 Albatros Item code: BH183 Instruction Manual INSTALLING THE FUEL TANK Clunks Fiber glass - - - 1 - - - 1 - - - 1 - - - 1 - - - 1 - - - 2 - - - 1...
  • Page 28 L-39 Albatros Item code: BH183 Instruction Manual Main Fuel Tank Tygon Tubing UAT Tank FUEL SYSTEM To Turbine Fuel Connection Safety Petcock Filter Fuel Pump Main Fuel Tank Must be purchased UAT Tank separately! Fuel Supply Vent...
  • Page 29 L-39 Albatros Item code: BH183 Instruction Manual Tygon Tubing To Exhaust Tube SMOKE SYSTEM Fuel Supply Vent to Battery to Receiver Smoke Tank Smoke Pump Must be purchased separately!

  • Page 30: Installing The Receiver, Battery, Controller Box And Switch

    L-39 Albatros Item code: BH183 Instruction Manual INSTALLING THE RECEIVER, BATTERY, CONTROLLER BOX AND SWITCH Controller Box Receiver - - - 1 Battery Smoke Pump Controller Box INSTALLING THE COCKPIT FUSELAGE Canopy Pilot Centre Stick - - - 1 - - - 1...
  • Page 31 L-39 Albatros Item code: BH183 Instruction Manual 2x10mm Tp Screw 2x10mm Tp Screw Assemble left and right sides the same way.

  • Page 32: Balancing

    L-39 Albatros Item code: BH183 Instruction Manual LATERAL BALANCE BALANCING 1. It is critical that your airplane be balanced correctly. After you have balanced a plane on the C.G. Improper balance will cause your plane to lose You should laterally balance it. Doing this will control and crash.
  • Page 33 L-39 Albatros Item code: BH183 Instruction Manual Assemble left and right Cut off excess. sides the same way.

  • Page 34: Control Throws

    L-39 Albatros Item code: BH183 Instruction Manual CONTROL THROWS FLIGHT PREPARATION PRE FLIGHT CHECK 1. We highly recommend setting up a plane using the control throws listed. 1. Completely charge your transmitter and receiver batteries before your first day of flying.
  • Page 35 L-39 Albatros Item code: BH183 Instruction Manual ELECTRIC RETRACT SYSTEM Brake - R Main Wheel Receiver Brake - L Main Wheel POWER 7.4v Power led Controller Box Test Front / Back Wheel Brake Adjust Gear Door Gear Door Gear Door...
  • Page 36 L-39 Albatros Item code: BH183 Instruction Manual...
  • Page 38 L-39 Albatros Item code: BH183 Instruction Manual...

  • Page 39: Decoration

    L-39 Albatros Item code: BH183 Instruction Manual DECORATION Top view Top view Side view <Right> Side view <Left> PRESS TO UNLOCK PRESS TO UNLOCK Decal...
  • Page 40 L-39 Albatros Item code: BH183 Instruction Manual Made in Vietnam...
  • Page 41 L-39 Albatros Item code: BH183 Instruction Manual...
