Azbil FSP136A User Manual

CP-SP-1212E

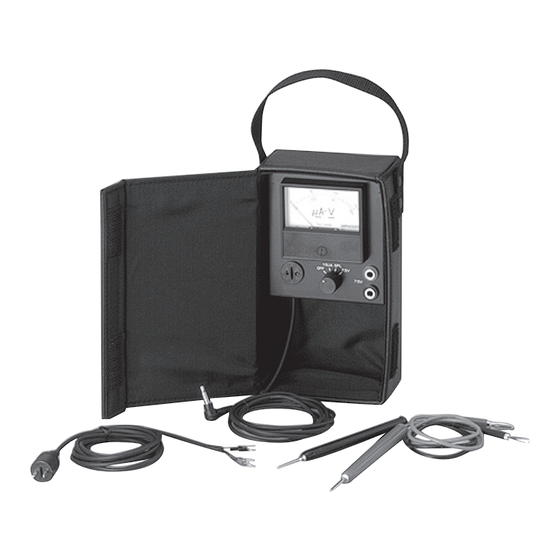

FSP136A
Analog Flame Meter
User's Manual
Thank you for purchasing the FSP136A.
This manual contains information for ensuring correct use
of the FSP136A. This manual should be read in advance by
those using the FSP136A, whether checking the flame out-
put of a Protectorelay or flame relay, or adjusting the flame
safeguard control devices of combustion equipment.
Be sure to keep this manual nearby for handy reference.
Please read the "Terms and Conditions" from the follow-
ing URL before ordering or use:
http://www.azbil.com/products/bi/order.html
NOTICE
Be sure that the user receives this manual before the product
is used.
Copying or duplicating this user's manual in part or in whole
is forbidden. The information and specifications in this manual
are subject to change without notice.
Considerable effort has been made to ensure that this manual
is free from inaccuracies and omissions. If you should find an
error or omission, please contact the azbil Group.
In no event is Azbil Corporation liable to anyone for any indi-
rect, special or consequential damages as a result of using this
product.
© 2006-2012 Azbil Corporation All Rights Reserved.
WARNING
Warnings are indicated when mishandling this product
SAFETY PRECAUTIONS
might result in death or serious injury to the user.
Safety precautions are for ensuring safe and correct use
CAUTION
of this product, and for preventing injury to the operator
and other people or damage to property. You must observe
Cautions are indicated when mishandling this product
these safety precautions. Also, be sure to read and under-
might result in minor injury to the user, or only physical
stand the contents of this user's manual.
damage to this product.
WARNING
Warnings are indicated when mishandling this product
might result in death or serious injury to the user.
CAUTION
Cautions are indicated when mishandling this product
might result in minor injury to the user, or only physical
damage to this product.
• When checking an instrumentation panel using the
FSP136A, do not touch other terminals. Doing so might
cause electric shock.
• Do not disassemble the FSP136A. Doing so might cause
faulty operation.
• Do not install the FSP136A in places such as the follow-
ing:
• Where corrosive chemicals or gases are present (am-
monia, sulfur, chlorine, ethylene compounds, acid, etc.).
• Where it is exposed to water drops or excessive damp-
ness.
• Where it is exposed to high temperature.
• Where vibration continues for an extended period of
time.
• Carefully wire and use the FSP136A while referring to this
user's manual and the manuals of each relevant device.
• Use the FSP136A within the specified ranges for operat-
ing conditions (vibration, shock, temperature, humidity,
etc.).
• When disposing of the FSP136A, follow local regulations.
HANDLING CAUTIONS
• When carrying the FSP136A, be sure to set the range selection
switch to OFF to prevent any damage.
• Do not subject the FSP136A to shock or impact.
• When measuring the flame current of the RA890F/G, R485B*,
R4750C, R4780B/C, R7257A*, R7258A*, R7259B*, R7247B/
C, or R7476A (*:discontinued model) while the equipment is
running, check that the current measurement plug is fully inserted
into the jack. If not, the flame signal may disappear, leading to a
flame failure signal that stops the combustion.
