- Page 1 MD 102A ESD TARGET SET USER MANUAL MD 102A ESD TARGET SET 1 of 11 V1.1...
- Page 2 MD 102A ESD TARGET SET USER MANUAL MD 102A ESD TARGET SET 2 of 11 V1.1...
-
Page 3: Table Of Contents
Responsibility for safety precautions ............5 Safety rules ..................5 Reduction of operational safety ...............5 THE ESD TARGET SET ................6 HANDLING OF THE TARGET SET ..............7 INSERTION LOSS ..................8 USING THE TARGET ................9 TECHNICAL SPECIFICATIONS ..............11 MD 102A ESD TARGET SET 3 of 11 V1.1... -
Page 4: Safety
User tips and other important or useful NOTE information and comments Warning of voltages that might involve the DANGER! risk of electric shock Warning of a danger spot (refer to the CAUTION! documentation) MD 102A ESD TARGET SET 4 of 11 V1.1... -
Page 5: Safety Of Operation
Moreover, you must mark or label the equipment appropriately so it will not inadvertently be put in operation again. You should then call authorized service personnel for assistance. MD 102A ESD TARGET SET 5 of 11 V1.1... -
Page 6: The Esd Target Set
A very important parameter of the target is the DC transfer impedance Z , this is the ratio between the voltage measured on the scope and the real current flowing through the target. For the exact value, please refer to the calibration certificate. MD 102A ESD TARGET SET 6 of 11 V1.1... -
Page 7: Handling Of The Target Set

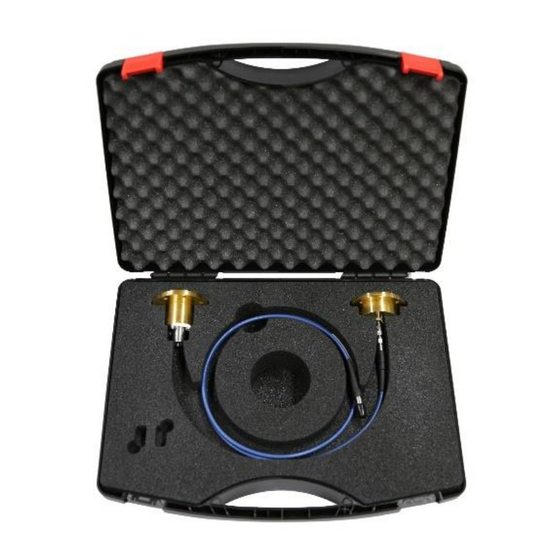

The case includes space for the optional INA 102A, which can be used to calibrate the target. MD 102A Includes: Carrying case User manual (this manual) Calibration certificate ESD Target Attenuator Coaxial cable MD 102A ESD TARGET SET 7 of 11 V1.1... -
Page 8: Insertion Loss
+/- 1 dB between 1 GHz and 4 GHz The MD 102A has a very good frequency response up to 4 GHz. The next figure shows the insertion loss of the permitted tolerances (red lines). MD 102A ESD TARGET SET 8 of 11 V1.1... -
Page 9: Using The Target
The plane should be at least 1.2 x 1.2 m in size and forms part of a HF-tight enclosure for cables, attenuators and the oscilloscope. Typical arrangement for calibration of ESD simulator performance. The following guide can be used for adapting/drilling the enclosure: MD 102A ESD TARGET SET 9 of 11 V1.1... - Page 10 Schematically, the measurement chain looks like this: MD 102A ESD TARGET SET 10 of 11 V1.1...
-
Page 11: Technical Specifications
±0.5dB up to 1 GHz and ±1.2dB up to 4GHz This must always be measured as a "Target-Attenuator-Cable" chain. The target itself must not be measured. ESD test voltage ±30kV Dimension 70mm (diameter) x 30mm Weight Approx. 400g MD 102A ESD TARGET SET 11 of 11 V1.1...
