Summary of Contents for Ametek Lloyd LS+Series

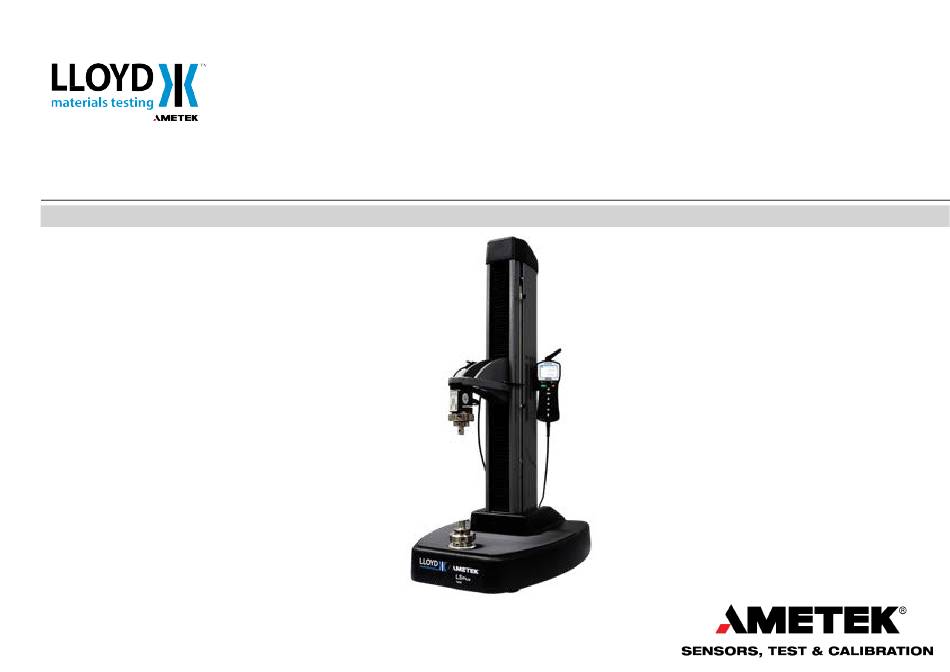

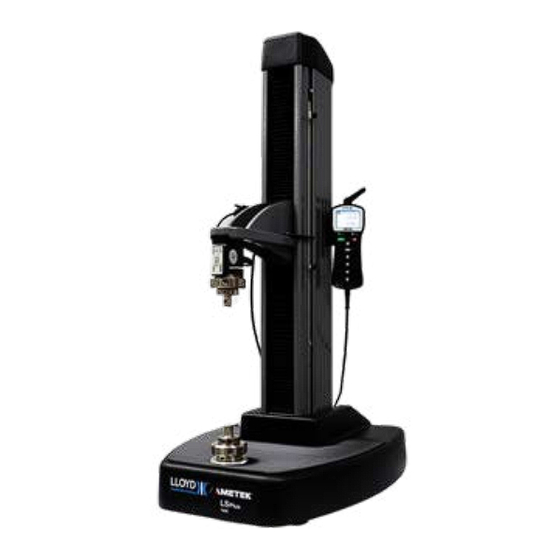

- Page 1 LS+/TA+ Series Operation Manual Single Column Test Stand Models LS1+, LS2.5+, LS5+, TA1+...
-
Page 2: Table Of Contents
Technical Specifications: ......................14 Contents CONTACT US ..........................15 Support ..............................15 RETURNING PRODUCT TO AMETEK ................15 Warnings ..............................1 WARRANTY ..........................15 Overview ..............................3 INTRODUCTION.......................... 3 MAIN COMPONENTS ......................4 ................................4 Handheld Controller ......................4 Assemblies and Features ....................4 Safety Features ........................... -
Page 3: Warnings
Warnings IMPORTANT: When the machine has been installed and before it is ready for use, the final user must conduct the final Risk Assessment on the machine, including all such safety measures (shields, guards, etc.) to satisfy the requirements of the Machinery Directive and EHSR (Essential Health Warning and Safety Requirements). - Page 4 LS+ Series Single Column Test Stand. If maintenance is required, please contact the risk of fatigue failure. AMETEK for service. Visually inspect highly stressed components such as grips and threaded adapters prior to every test for signs of wear or fatigue damage.
-
Page 5: Overview
We are confident that the LS+ Series will meet your expectations, and we are interested in any comments or suggestions you may have. Please send us a note at: test.sales@ametek.com. Many features in this and our other products are a direct result of your comments! -
Page 6: Main Components
Overview MAIN COMPONENTS Assemblies and Features Handheld Controller Adheres to International Standards Machine Stiffness The mechanical design of the LS Series adheres to international Rigid construction provides standards for industries including minimal deflection in the metal, composites, automotive, frame and crosshead. building materials, medical devices, and packaging. -
Page 7: Safety Features
Safety Features Safety Features EMERGENCY STOP The Emergency Stop Button is provided to immediately remove power from the motor drive and stop the machine. To re-enable the start- up sequence, release the button by turning it clockwise one quarter turn. Emergency Stop Button SAFE LINE BUTTON The safe line button is mounted on the left-hand side of the frame and is initially illuminated to indicate the crosshead motor circuit is ready but... -
Page 8: Crosshead Movement Limits
Safety Features CROSSHEAD MOVEMENT LIMITS The LS+ Series is fitted with two mechanically activated limit stops. These can be used as extra protection to stop load cells, grips or fixtures coming into contact, or to back up the tests upper and lower limits. Activating a limit stop will automatically stop the machine. To Adjust a Limit Stop ►... -
Page 9: Setting Up The Machine And Hardware
• 8mm Hex Key for Load cell If there is any damage or parts missing, please report this to your dealer or to AMETEK without delay. SETTING UP THE LS+ SERIES If this equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired. The LS+ Series should be installed in an area where adequate lighting is present in order to ensure safe use. -
Page 10: Lifting
Setting Up the Machine and Hardware LIFTING As the LS+ Series is heavy, use care when lifting. Lifting equipment should be used as necessary. Lifting With a Pallet The LS+ Series can have a pallet fitted under it so that it may be lifted to the desired position with a forklift hoist or suitable lifting trolley. Lifting by Hand The machine can be lifted manually using least 2 people as the machine weighs more than 50kg (110lb). -
Page 11: Pogo Testing
POGO TESTING AMETEK produces a range of Lloyd Instruments machines that can be mounted on specially designed frames that can be used for testing a wide range of bulky items such as cardboard cartons, crates, and furniture. Machines configured with the POGO option have a linear bearing fitted in the machine base. A rod running through the crosshead connects the load cell and compression platens which are mounted in the frame below the material testing machine. -
Page 12: Fitting The Hand-Held Remote
Setting Up the Machine and Hardware FITTING THE HAND-HELD REMOTE The height of the console can be adjusted to give the best position for viewing and operation. To Connect the Remote to the LS+ Series ► Plug the connector attached to the remote into the rear of the machine. Adjust the height of the remote using the position locking lever. -
Page 13: Mains Input Voltage Selection
Safety Features MAINS INPUT VOLTAGE SELECTION The LS+ Series can be used with mains power of either 230VAC ±10% or 115VAC ±10%, with frequency from 50Hz to 60Hz. CAUTION: Check to ensure the correct voltage of your mains power supply has been selected on the input connector BEFORE connecting power to the machine. -
Page 14: Load Cells And Grips
Safety Features LOAD CELLS AND GRIPS To Install a Load Cell Place the load cell adapter through the hole in the moving crosshead with the thread side down. Screw the load cell adapter into the load cell. Be careful not to overtighten low-capacity load cells. Note: Take care to ensure that the locating pin on the load cell fits in one of the holes on the underside of the moving crosshead. -
Page 15: Grips And Adapters
Safety Features Grips and Adapters We offer a complete line of grips and adapters to meet your specific needs. Each can be found on our website at ametektest.com with individual catalogs and specifications included. Installing the Grips ► When installing the heavy upper grips on the load cell, avoid bumping the eye end. If the grip is a close fit, DO NOT FORCE IT. Set, or re-set, the bottom limit stops so the grips will not ... -
Page 16: Technical Specifications
Specifications Specifications Dimensions: Standard Travel LS1+ LS2.5+ LS5+ 500 mm (19.7 in) 1400mm (55 1in) 800mm (31.5 in) Extended Travel LS1+ 800 mm(31.3 in) Width (excluding console) 460 mm (18.1 n) Depth 557 mm (21.9 in) Base Height 108 mm (4.3 in) Throat Depth LS1+ LS2.5+ &... -
Page 17: Contact Us
WARRANTY This instrument is warranted against defects in workmanship, material and design for one (1) year from date of delivery to the extent that AMETEK will, at its sole option, repair or replace the instrument or any part thereof which is defective, provided, however, that this warranty shall not apply to instruments subjected to tampering or, abuse, or exposed to highly corrosive conditions. - Page 18 © 2024 AMETEK Incorporated 5777. B 2024...
