Installation -

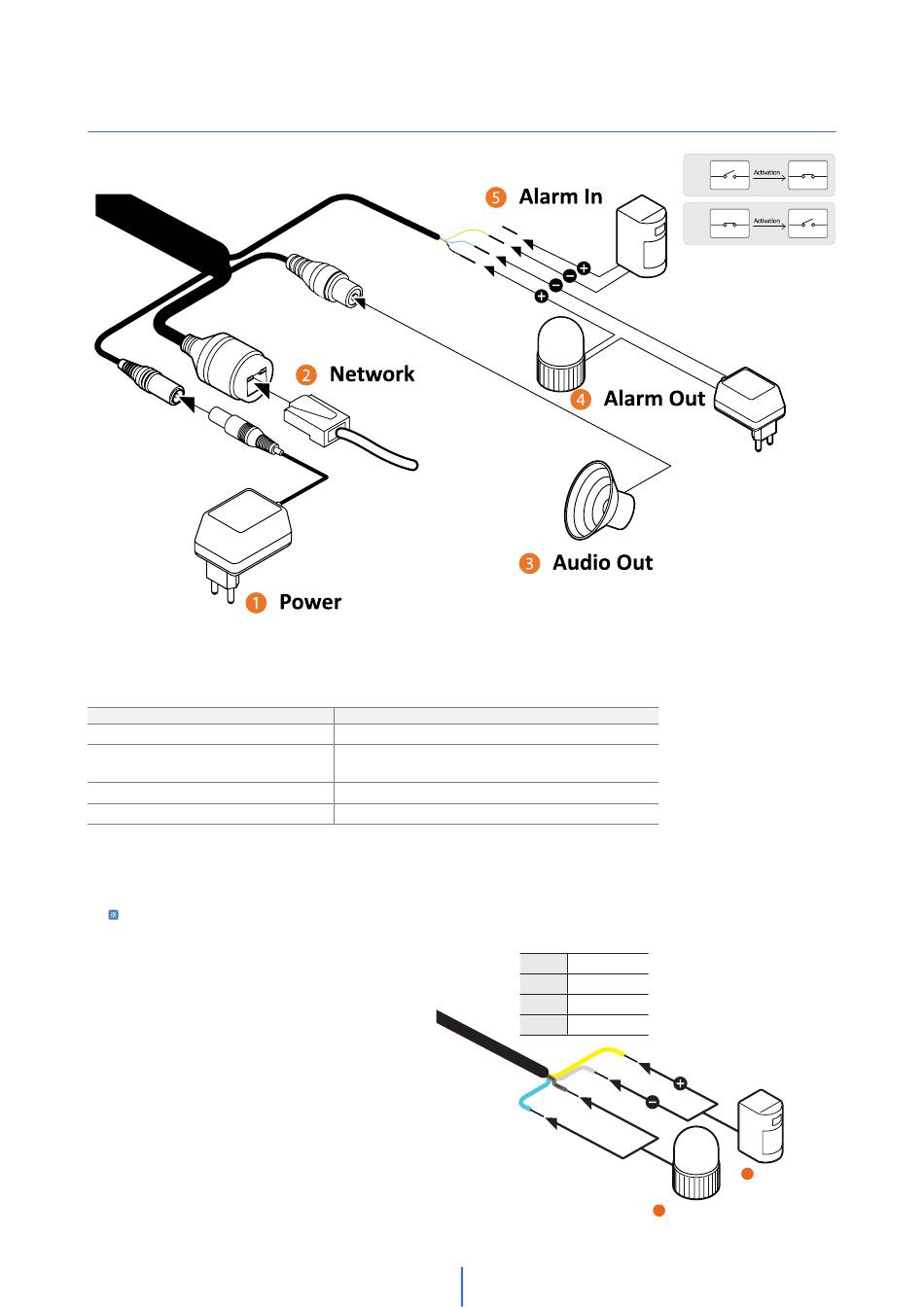

Cabling
1. Power
Use a non-PoE Switch to connect data using an Ethernet cable and use a power adapter to power the camera.
Power information
Power requirements
Power consumption
Maximum cable distance
Connector
2. Network Connection
See page 12 for connection options.
3. Audio out
Connect the 'audio out' port of the camera to the 'line in' port of the speaker.
If a speaker is connected to the audio output without an amplifier, it will not work properly. A speaker with
an amplifier or a separate amplifier is
needed.
4. Audio in
The camera has a built-in microphone
controlled by the camera's web viewer.
5. Alarm out/relay out (DO)
Connects to the alarm lights, siren or
lamps and the sensor types are normal
open and normal close.
6. Sensor/alarm input (DI)
The sensor/alarm input device's cable
should connect to the + and - of the
Terminal Block.
7. SD card slot
See page 14.
DC12V, PoE, adapter not included
12V DC: 10.4W, 866mA
PoE: 12.5W, 260mA
328' (100m)
RJ45
13
N.O
N.C
WHITE
DI (+)
YELLOW
DI (-)
SKY BLUE
DO (-)
GRAY +DOT
DO (+)
Alarm output
6
In 1 COM In 1 COM
In 1 In 1
COM COM
Alarm input
5
