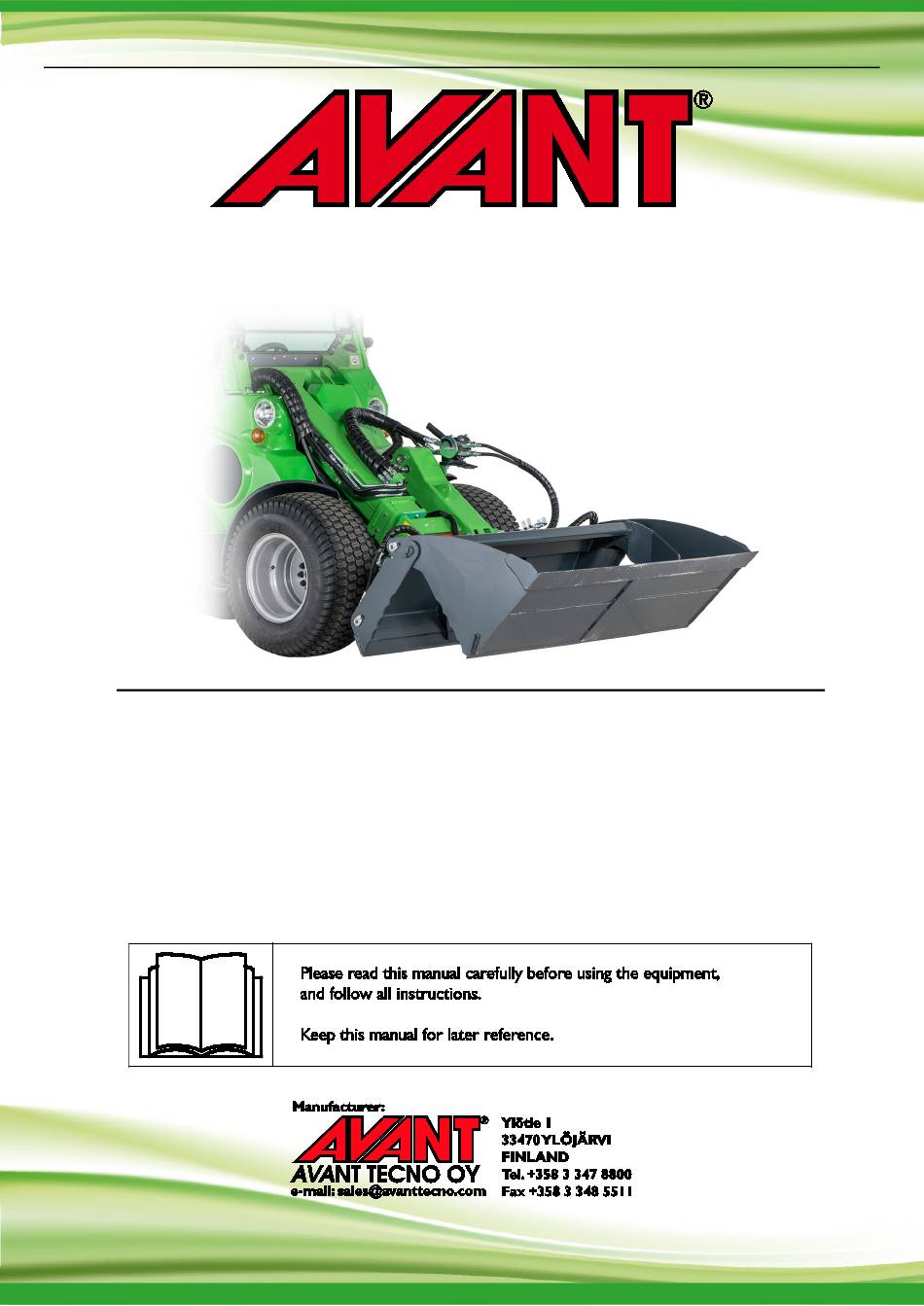

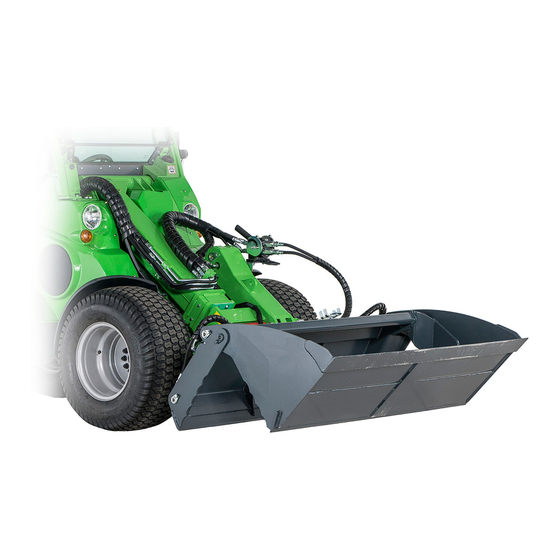

- Page 1 English 4 in 1 Bucket 2024 1 Operator's Manual for Attachment 4 in 1 Bucket Product number Straight edge Optional teeth 1150 mm A462542 A48608 (5 pcs) 1300 mm A457723 A48608 (5 pcs) www.avanttecno.com A469584 2024 1 EN 2024-...
- Page 2 4 in 1 Bucket 2024 1...
-
Page 3: Table Of Contents
4 in 1 Bucket 2024 1 CONTENTS 1. FOREWORD ............................4 Warning symbols used in this manual ........................... 5 2. DESIGNED PURPOSE OF USE......................6 3. SAFETY INSTRUCTIONS FOR USING THE ATTACHMENT ............7 Safe shutdown procedure ............................9 Personal protective equipment ..........................10 4. -
Page 4: Foreword
If you sell or transfer the equipment, be sure to hand over this manual to the new owner. If the manual is lost or damaged, you can request a new one from your Avant dealer or from the manufacturer. -
Page 5: Warning Symbols Used In This Manual
5 (28) Warning symbols used in this manual The following warning symbols are used throughout this manual. They indicate factors that must be taken into account to reduce the risk of personal injury or damage to property: WARNING SAFETY ALERT SYMBOL This symbol means: “Warning, be alert! Your safety is involved!”... -
Page 6: Designed Purpose Of Use
2. Designed purpose of use The AVANT 4 in 1 buckets are attachments that are intended to be used with AVANT compact loaders that are shown in Table 1. They are versatile buckets for general earth-moving tasks, material handling, levelling, and snow clearing work. -
Page 7: Safety Instructions For Using The Attachment
7 (28) 3. Safety instructions for using the attachment Please bear in mind that safety is the result of several factors. The loader-attachment combination is highly powerful and improper or careless use or maintenance may cause serious personal injury or property damage. - Page 8 Observe the local regulations concerning the use of the equipment on public roads. The loader may need to be registered for road use. Contact your local Avant dealer or local authorities for more information. Crushing hazard - Never allow anyone to get under a lifted attachment or loader boom.
-
Page 9: Safe Shutdown Procedure
9 (28) Pinching hazard - Keep hands and feet away from moving parts. Set the bucket to a safe position (closed), before leaving the driver's seat as described in this manual. WARNING Operate the attachment only from the driver’s seat. Never climb on the bucket. -
Page 10: Personal Protective Equipment
10 (28) 3.2 Personal protective equipment Remember to wear proper personal protective equipment: The noise level at the driver's seat may exceed 85 dB(A) depending on loader model and operating cycle. Extended exposure to loud noise can cause hearing impairment. Wear hearing protection while working with the loader. ... -
Page 11: Technical Specifications
11 (28) 4. Technical specifications Table 2 - 4 in 1 Bucket - Specifications Product number A462542 A457723 Working width: 1150 mm 1300 mm Type: Straight edge With optional teeth Straight edge With optional teeth Weight: 206 kg 213 kg... - Page 12 A463515 / Attachment identification plate A458322 Table 4 - 4 in 1 Bucket - Main components Frame with Avant quick coupling brackets Bucket opening cylinders (2 cylinders) Reinforced cutting edge Grille Teeth [(5 pcs) option]...
-
Page 13: Lifting
13 (28) 4.2 Lifting Make sure that the attachment is properly secured against unintended movements during lifting operation. Use appropriate type of lifting accessories, lifting straps, chains or hooks, for example. Do not use lifting accessories if there are signs of damage, deformation, or otherwise unsafe conditions. Lift the attachment by using the lifting point, that is shown in the adjacent figure. -
Page 14: Assembling The Attachment
Do not stay in the area between the attachment and the loader. Mount the attachment only on level surface. WARNING Never move or lift an attachment that has not been locked. Avant quick coupling system: Step 1: Lift the locking pins of the quick coupling plate of the loader up, and turn them backwards into the slot, so that they are locked in the upper position. -
Page 15: Connecting And Disconnecting Hydraulic Hoses
5.1 Connecting and disconnecting hydraulic hoses On Avant loaders the hydraulic hoses are connected using the multi connector system. If you have an older model Avant 300-700 series loader with the conventional quick couplers, and you want to change to the multi connector system, contact your Avant dealer or service point for instructions or installation services. - Page 16 16 (28) Keep all fittings as clean as possible; use the protective caps on both the attachment and the loader. Dirt, ice, etc. may make using the fittings significantly more difficult. Never leave the hoses hanging on the ground; place the couplings onto the holder on the attachment.
-
Page 17: Instructions For Use
17 (28) 6. Instructions for use Practise the use of the attachment and the controls of the loader in a safe area. If you are unfamiliar with the particular loader model, it is recommended to practice its use without any attachments. Risk of tipping over - Avoid overload. -
Page 18: Checks Before Use
18 (28) 6.1 Checks before use Ensure that bystanders are at a safe distance when operating the equipment. Do not let anyone to enter danger area of the boom or to stay directly in front of the loader. Also make sure that it is safe to reverse with the loader. -
Page 19: Using A Bucket
19 (28) 6.3 Using a bucket Correct working method is important when lifting material from a pile, as lifting material from a pile requires the most power from the loader. Use high engine rpm and read the instructions how to operate the loader correctly from the operator’s manual of the loader. -
Page 20: Transport Position
20 (28) To operate the 4-in-1 bucket: Move auxiliary hydraulics control lever towards locking position electric buttons of the optional electric joystick) to open the bucket. The lever should not be left locking position. Move the lever away from the locking position to close the bucket. -
Page 21: Material Handling
21 (28) 6.5 Material handling Use maximum load indicated in the diagram of the operator’s manual of the loader as a guideline. Remember that the actual load carrying capacity varies according to operating conditions, especially unevenness of operating area has a great effect. Be especially careful when the load sensor indicator is activated. Also, make sure that the ground surface is firm and follow recommended tire pressures. -
Page 22: Teeth (Option)
Read the instructions provided with the tilt adapter or in the operator's manual of the loader. More information about the tilt adapters is available from your AVANT retailer or from the AVANT web pages at www.avanttecno.com. Adapter plates reduce lifting capacity - Do not use adapters with heavy loads or attachments. -
Page 23: Storing The Attachment
23 (28) 6.9 Storing the attachment Uncouple and store the attachment on level surface so, that it will stand firmly on its frame. Also make sure that water will not stay in the bucket. The best storage place for the attachment is an area that is protected from rain and direct sunlight. -
Page 24: Maintenance And Service
Finding any fault means that the hydraulic hose or component must be replaced and the equipment must not be used until it is repaired. Spare parts are available from your nearest AVANT retailer or authorised service point. Leave the repair work to professional service technicians, if you don’t have adequate knowledge and experience about hydraulic assemblies and how to perform the repairing safely. -
Page 25: Inspection Of Metal Structures
25 (28) 7.3 Inspection of metal structures Also the metal structures of the attachment must be inspected regularly. Check visually for damages and inspect the quick coupling brackets and their surrounding area carefully. The attachment must not be used if it is deformed, cracked, torn or damaged in any other way. -
Page 26: Warranty Terms
26 (28) 8. Warranty terms Avant Tecno Oy grants a warranty of one year (12 months) from the date of purchase for the attachment it manufactures. The warranty covers repair costs as follows: Work costs are covered, if the repair is not performed at the factory. - Page 27 2006/42/EC as amended). The following harmonized standards have been applied: SFS-EN ISO 12100, SFS-EN ISO 4413 Mallit / Modeller / Models Avant Hydraulitoiminen nelitoimikauha; Avant-kuormaajan työlaite Hydraulisk kombiskopa; arbetsredskap för Avant lastare 1150 A462542 Hydraulic bucket; attachment for Avant loaders 1300 A457723 1.7.2024 Ylöjärvi, Finland...
