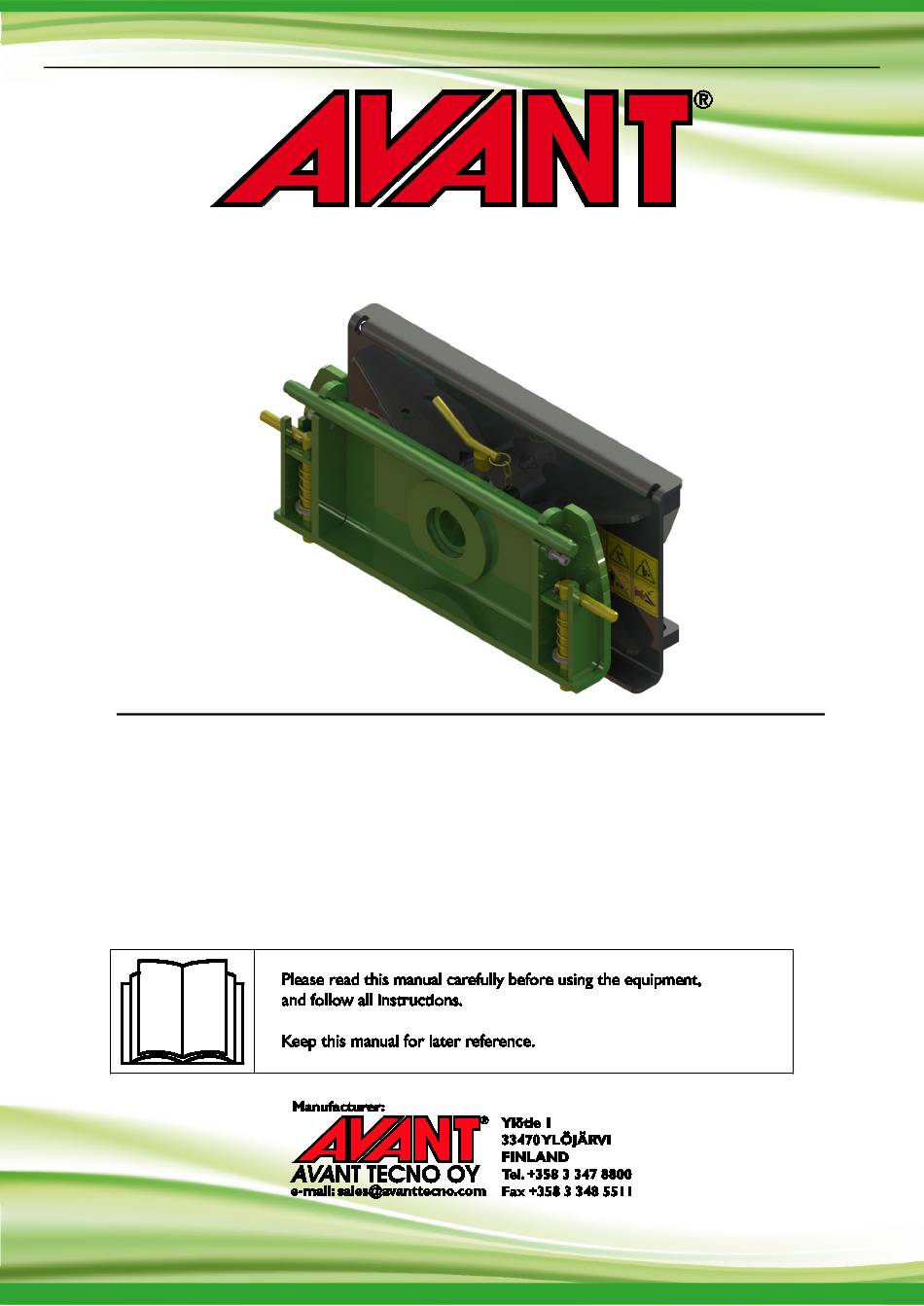

- Page 1 English Mechanical tilt adapter 360° 2024 1 Operator's Manual for Attachment Mechanical tilt adapter 360° Product number: A463997 www.avanttecno.com A466288 2024 1 EN 2024-...
- Page 2 Mechanical tilt adapter 360° 2024 1...
-
Page 3: Table Of Contents
Mechanical tilt adapter 360° 2024 1 CONTENTS 1. FOREWORD ............................4 Warning symbols used in this manual ........................... 5 2. DESIGNED PURPOSE OF USE......................6 3. SAFETY INSTRUCTIONS FOR USING THE ATTACHMENT ............7 Personal protective equipment ..........................9 Safe shutdown procedure ............................10 4. -
Page 4: Foreword
If you sell or transfer the equipment, be sure to hand over this manual to the new owner. If the manual is lost or damaged, you can request a new one from your Avant dealer or from the manufacturer. -
Page 5: Warning Symbols Used In This Manual
5 (26) Warning symbols used in this manual The following warning symbols are used throughout this manual. They indicate factors that must be taken into account to reduce the risk of personal injury or damage to property: WARNING SAFETY ALERT SYMBOL This symbol means: “Warning, be alert! Your safety is involved!”... -
Page 6: Designed Purpose Of Use

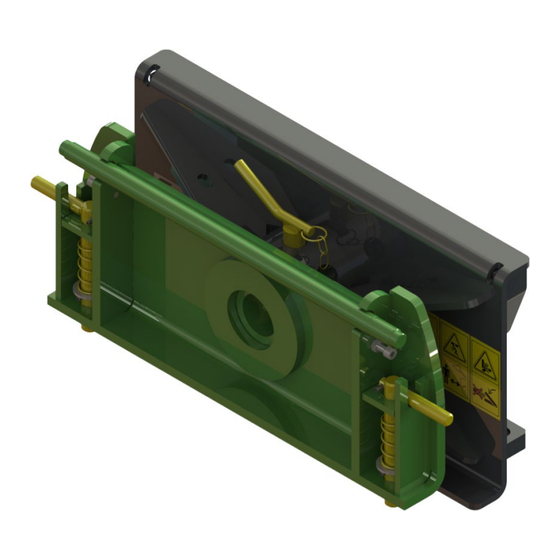

2. Designed purpose of use The AVANT Mechanical tilt adapter 360° is a coupling adapter that is suitable for use with AVANT compact loaders that are shown in Table 1. The tilt adapter makes it possible to tilt an attachment sideways in both directions. -
Page 7: Safety Instructions For Using The Attachment
7 (26) 3. Safety instructions for using the attachment Please bear in mind that safety is the result of several factors. The loader-attachment combination is highly powerful and improper or careless use or maintenance may cause serious personal injury or property damage. - Page 8 8 (26) Risks of collision, electric shock, and tipping over - Make sure that overhead clearance is sufficient. Hitting an overhead obstacle may cause the loader to tip over. Keep a safe distance from electric cables, lamps, or other electric systems; hitting live parts may cause electric shock.
-
Page 9: Personal Protective Equipment
9 (26) Using a tilt adapter increased risks of tipping over and roll over - Use the tilt adapter only when necessary to complete specific tasks. Tilt adapter moves the attachment further away from the loader, which increase the risk of tipping over. Also, WARNING tilting an attachment sideways can cause the loader to roll over (turn over to its side). -
Page 10: Safe Shutdown Procedure
10 (26) 3.2 Safe shutdown procedure Safe stopping of the attachment, before going near the attachment: Always stop the attachment following safe stopping procedure before leaving the driver's seat. Safe stopping procedure prevents all unintentional movements of the attachment. Note that the loader boom can move down even if the engine of the loader is turned off. -
Page 11: Technical Specifications
1000 kg Attachment displacement: 155 mm Compatible Avant loaders: See Table 1 on page 4.1 Safety labels and main components of the attachment Listed below are the labels and markings on the attachment. They must be visible and readable on the equipment. - Page 12 4 A466182 Attachment identification plate Table 4 - Mechanical tilt adapter 360° - Main components Avant quick coupling brackets Attachment coupling plate to couple an attachment to the tilt adapter Locking pins to lock an attachment to the tilt adapter...
-
Page 13: Lifting
13 (26) 4.2 Lifting Make sure that the attachment is properly secured against unintended movements during lifting operation. Use appropriate type of lifting accessories, lifting straps, chains or hooks, for example. Do not use lifting accessories if there are signs of damage, deformation, or otherwise unsafe conditions. -
Page 14: Assembling The Attachment
Do not stay in the area between the attachment and the loader. Mount the attachment only on level surface. WARNING Never move or lift an attachment that has not been locked. Avant quick coupling system: Step 1: Lift the locking pins of the quick coupling plate of the loader up, and turn them backwards into the slot, so that they are locked in the upper position. -
Page 15: Assembling An Attachment To The Tilt Adapter
If your loader is not listed in Table 1 on page, ask your Avant dealer before using this attachment. 5.1 Assembling an attachment to the tilt adapter Attaching an attachment to the tilt adapter is easiest, when the tilt adapter is first mounted on the quick attach plate of the loader. -
Page 16: Instructions For Use
16 (26) 6. Instructions for use Check the attachment and the operating environment once more before starting to work, and that all obstacles have been removed from the operating area. Quick inspection of the equipment and the operating area before use are parts of ensuring safety and the best performance of the equipment. -
Page 17: Checks Before Use
17 (26) 6.1 Checks before use Drive carefully on uneven terrain and note the effect of heavy load at the front of the loader to the stability and handling of the loader. Practise the use of the attachment and the controls of the loader in a safe area. If you are unfamiliar ... -
Page 18: Operating The Tilt Adapter
18 (26) 6.3 Operating the tilt adapter Before starting the attachment: Read all safety instructions. Operating position: Set and adjust the attachment to correct operating position. Correct position depends on the attachment that is fitted to the tilt adapter. The adjacent figure describes the use of the tilt adapter with ice rink scraper blade. -
Page 19: Rotating An Attachment
19 (26) Risk of impact or loss of stability - Pay attention to the coupling of the attachment. When using the tilt adapter with an attachment, which is equipped with a floating system, pay special attention when setting the attachment to correct operating position. Never WARNING turn the attachment equipped with the floating system sideways or upside down in order to avoid impact caused by the attachment, or sudden swing or loss of stability caused by... -
Page 20: Maximum Load
20 (26) Step 4 When the desired position is achieved, reinstall the locking pin (1) and lock it with cotter pin (2). 6.3.2 Maximum load Maximum load for the tilt adapter is 1000 kg when handling a load on standard pallet forks (with the centre of the load at 500 mm front from the vertical part of fork arms). -
Page 21: Transport Position
21 (26) 6.3.4 Transport position Keep the loader stable. Always transport the attachment as low and close to the ground as possible, and keep the hydraulic boom completely retracted. Also keep the tilt adapter in straight (middle) position during transport drive, as shown in adjacent figure. Risk of tipping over - Keep the loader stable. -
Page 22: Storage
22 (26) 6.4.1 Storage When storing the tilt adapter for longer periods than temporary uncoupling from the loader, the attachment should be disconnected from the tilt adapter and stored separately. Avoid leaving the tilt adapter laying directly on the ground. Place it on blocks of wood or on a pallet, for example. -
Page 23: Maintenance And Service
23 (26) 7. Maintenance and Service The attachment has been designed to be as maintenance free as possible. Continuous maintenance includes regular cleaning and lubrication, and monitoring the condition of the attachment. Because of the crushing hazard caused by lowering machine parts, all maintenance work must be done when moving parts have been lowered down completely and the attachment is lowered flat against the ground. -
Page 24: Warranty Terms
24 (26) 8. Warranty terms Avant Tecno Oy grants a warranty of one year (12 months) from the date of purchase for the attachment it manufactures. The warranty covers repair costs as follows: Work costs are covered, if the repair is not performed at the factory.
