- Page 1 English Leveller 2018 1 Operator's Manual for Attachment Leveller Product number A427450 www.avanttecno.com A432160 2018 1 EN 2018-...
- Page 2 Leveller 2018 1...
-
Page 3: Table Of Contents
Leveller 2018 1 CONTENTS 1. FOREWORD ............................4 Warning symbols used in this manual ..........................5 2. DESIGNED PURPOSE OF USE ......................6 3. SAFETY INSTRUCTIONS FOR USING THE ATTACHMENT ............7 Personal protective equipment ........................... 9 Safe shutdown procedure ............................ 9 4. TECHNICAL SPECIFICATIONS ......................10 Safety labels and main components of the attachment.................. -
Page 4: Foreword
If you sell or transfer the equipment, be sure to hand over this manual to the new owner. If the manual is lost or damaged, you can request a new one from your Avant dealer or from the manufacturer. -
Page 5: Warning Symbols Used In This Manual
5 (24) Warning symbols used in this manual The following warning symbols are used throughout this manual. They indicate factors that must be taken into account to reduce the risk of personal injury or damage to property: WARNING: SAFETY ALERT SYMBOL This symbol means: “Warning, be alert! Your safety is involved!”... -
Page 6: Designed Purpose Of Use

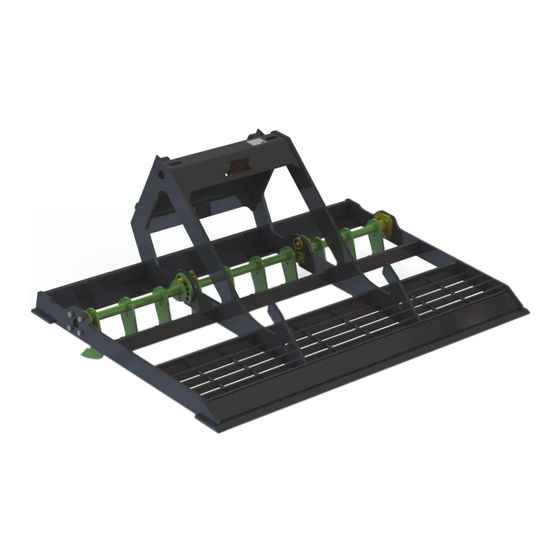

2. Designed purpose of use The AVANT Leveller is an attachment suitable for use with all AVANT multi purpose loaders, as shown in Table 1. The Leveller is intended for spreading piles of soil. The attachment can also be used for lifting job site materials, such as sod rolls, tools etc. -
Page 7: Safety Instructions For Using The Attachment
7 (24) 3. Safety instructions for using the attachment Please bear in mind that safety is the result of several factors. The loader-attachment combination is highly powerful and improper or careless use or maintenance may cause serious personal injury or property damage. - Page 8 8 (24) Pay attention to the surroundings and any other persons and machines moving in the vicinity. Pay attention to the contours of the terrain and other hazards, such as branches and trees that can reach to the driver's area, loose rocks, and slippery surfaces.
-
Page 9: Personal Protective Equipment
9 (24) 3.1 Personal protective equipment Remember to wear proper personal protective equipment: The noise level at the driver's seat may exceed 85 dB(A) depending on loader model and operating cycle. Extended exposure to loud noise can cause hearing impairment. Wear hearing protection while working with the loader. ... -
Page 10: Technical Specifications
700 kg Blade axle: Adjustable, stationary Compatible AVANT loaders: See Table 1, Designed purpose of use 4.1 Safety labels and main components of the attachment Listed below are the labels and markings on the attachment. They must be visible and readable on the equipment. - Page 11 11 (24) Table 3 - Decal locations and warning messages Decal Warning message 1 A46771 Misuse hazard - Read instructions before use. 2 A46772 Crushing hazard - Do not go under a raised attachment; stay away from raised equipment. 3 A427644 Attachment identification plate Table 4 - Leveller - Main components Frame with quick attach brackets...
-
Page 12: Attaching The Attachment
Do not stay in the area between the attachment and the loader. Mount the attachment only on level surface. WARNING Never move or lift an attachment that has not been locked. Avant quick coupling system: Step 1: Lift the quick attach plate locking pins up and turn them backwards into the slot so that they are locked in the upper position. - Page 13 If your loader is not listed in Table 1 on page 6, ask your Avant dealer before using this attachment.
-
Page 14: Operating The Attachment
14 (24) 6. Operating the attachment Check the attachment and the operating environment once more before starting to work, and that all obstacles have been removed from the operating area. Quick inspection of the equipment and the operating area before use are parts of ensuring safety and the best performance of the equipment. -
Page 15: Checks Before Use
15 (24) 6.1 Checks before use Use only when all pins are locked and secured in place. Check the general condition of the attachment and the loader. Drive carefully on uneven terrain and note the effect of heavy load at the front of the loader to the ... -
Page 16: Use
16 (24) 6.2 Use The leveller is intended to be used by reversing with the loader. This way the wheels of the loader do not leave track marks on levelled surface. Using the Leveller 1. Set the attachment to working position, as shown in adjacent figure. -
Page 17: Operation With The Tilt Adapter
The adapter allows the attachment to be tilted sideways for efficient levelling or grading work. Read the instructions provided with the tilt adapter. More information about the tilt adapter is available from your AVANT dealer or from the AVANT web pages at www.avanttecno.com. -
Page 18: Material Handling
18 (24) Risk of tipping over - Avoid overload and keep heavy load close to the machine. Keep loads close to the ground whenever driving, especially during turns and uneven terrain. Pay attention that a heavy load or long distance between the loader and WARNING the centre of gravity of the load will affect the balance and handling of the loader. -
Page 19: Storing The Attachment
19 (24) 6.6 Storing the attachment Uncouple and store the attachment on level ground. The best way to store the attachment is a place where it is protected from direct sunlight, rain, and extreme temperatures. Avoid leaving the attachment laying directly on the ground. Place it on blocks of wood or on a pallet, for example. -
Page 20: Maintenance And Service
20 (24) 7. Maintenance and Service The attachment has been designed to be as maintenance free as possible. Continuous maintenance includes regular cleaning and lubrication, and monitoring the condition of the attachment. Because of the crushing hazard caused by lowering machine parts, all maintenance work must be done when moving parts have been lowered down completely and the attachment is lowered flat against the ground. -
Page 21: Lubrication
21 (24) 7.3 Lubrication A small amount of lubricant should be added to the lubrication points regularly. Correct lubrication interval depends heavily on operating conditions but lubricant must be added at least after every 10 hours of use. Clean the end of the nipple before greasing and add only a small amount of grease at a time. All lubrication nipples are standard R1/8"... -
Page 22: Warranty Terms
22 (24) 8. Warranty terms Avant Tecno Oy grants a warranty of one year (12 months) from the date of purchase for the attachment it manufactures. The warranty covers repair costs as follows: Work costs are covered, if the repair is not performed at the factory.
