Summary of Contents for AVANT A436347

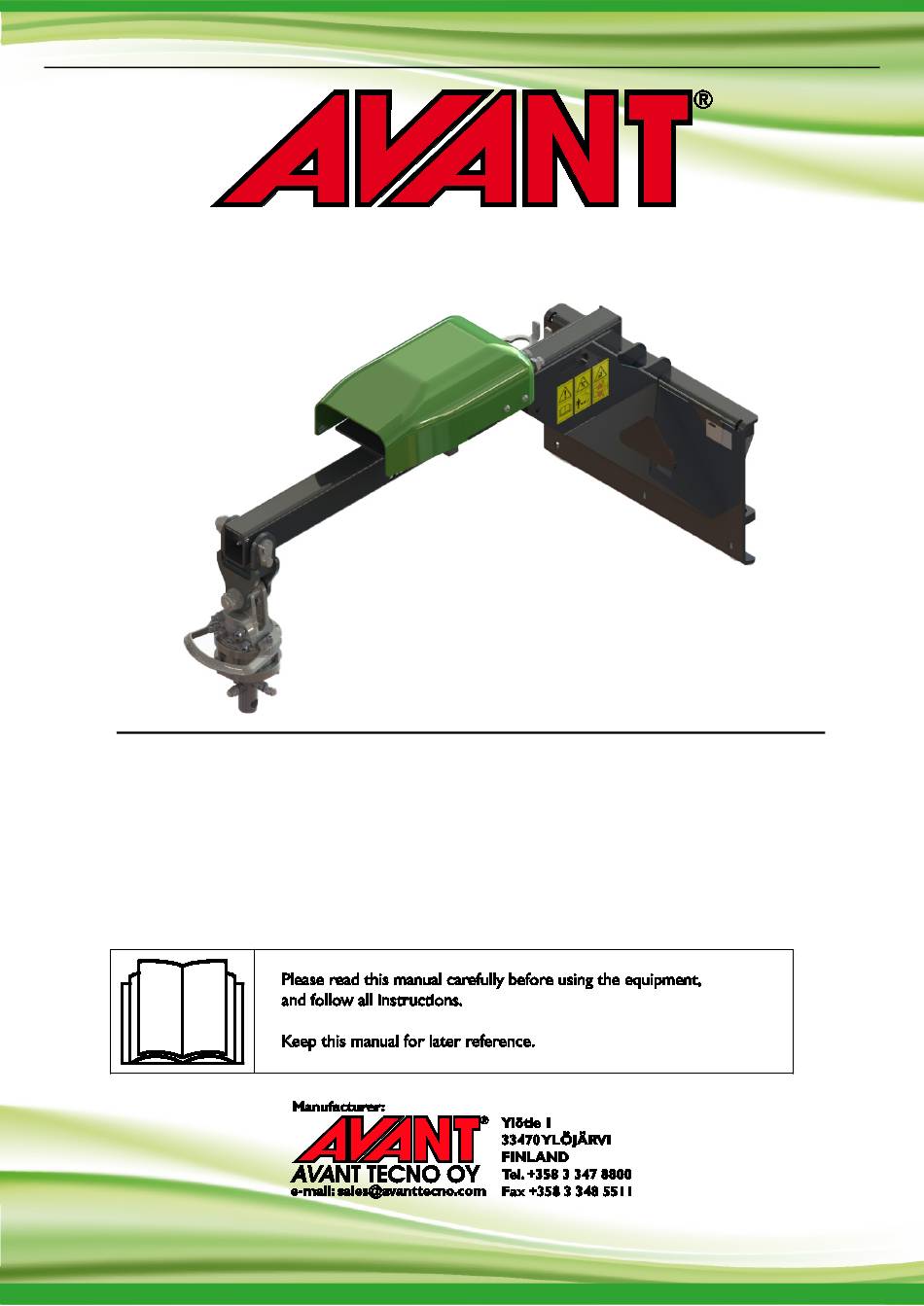

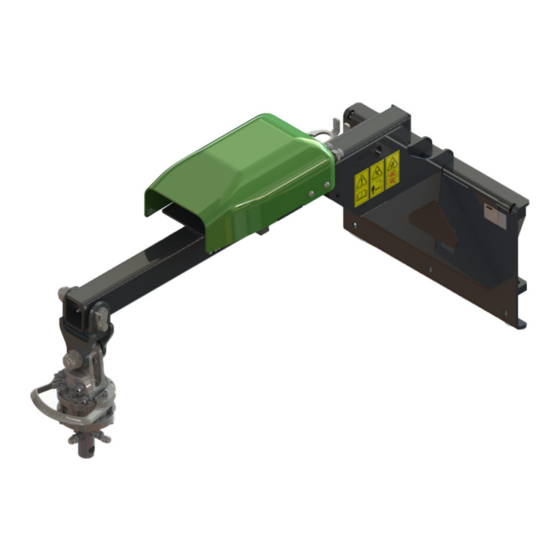

- Page 1 English Mounting kit for stone installation clamp 2020 1 Operator's Manual for Attachment Mounting kit for stone installation clamp Product number A436347 www.avanttecno.com A437548 2020 1 EN 2019-...
- Page 2 Mounting kit for stone installation clamp 2020 1...
-
Page 3: Table Of Contents
Mounting kit for stone installation clamp 2020 1 CONTENTS 1. FOREWORD ............................4 2. DESIGNED PURPOSE OF USE ......................5 3. SAFETY INSTRUCTIONS ........................6 4. TECHNICAL SPECIFICATIONS ......................9 Outreach ................................. 9 Safety labels and main components of the attachment.................. 10 5. ASSEMBLING THE ATTACHMENT ....................12 Connecting and disconnecting hydraulic hoses .................... -
Page 4: Foreword
If you sell or transfer the equipment, be sure to hand over this manual to the new owner. If the manual is lost or damaged, you can request a new one from your Avant dealer or from the manufacturer. -
Page 5: Designed Purpose Of Use
2. Designed purpose of use The AVANT Mounting kit for stone installation clamp is an attachment that is intended to be used with AVANT multi purpose loaders that are listed in Table 1 below. It is intended to be used together with a hydraulic stone installation clamp. -
Page 6: Safety Instructions
Do not use the Hydraulic stone installation clamp if you don't have the operator's manual available. Contact your Avant dealer. Sudden movements can cause the loader to tip over - Operate the controls of the loader in a slow and calm manner. - Page 7 7 (32) Shut down the loader and place the attachment to a safe position as shown in Safe stopping procedure before any cleaning, maintenance, or adjustments. Pay attention to the surroundings and any other persons and machines moving in the vicinity.
- Page 8 8 (32) Remember to wear proper personal protective equipment: The noise level at the driver's seat may exceed 85 dB(A) depending on loader model and operating cycle. Extended exposure to loud noise can cause hearing impairment. Wear hearing protection while working with the loader. ...
-
Page 9: Technical Specifications
10-20 l/min Maximum input of hydraulic energy: 25 l/min 22,5 MPa (225 bar) Compatible AVANT loaders: See Table 1 *) It is also possible to rotate the Stone clamp manually by opening check valve completely. The check valve is located under the control valve of the rotator, see page 4.1 Outreach... -
Page 10: Safety Labels And Main Components Of The Attachment
10 (32) 4.2 Safety labels and main components of the attachment Listed below are the labels and markings on the attachment. They must be visible and readable on the equipment. Replace any unclear or missing label. New labels are available via your retailer or contact information provided on the cover. - Page 11 A437307 Attachment identification plate Table 4 - Mounting kit for stone installation clamp - Main components Frame with Avant quick coupling brackets Rotator and hydraulic fittings for stone installation clamp Control valve Boom...
-
Page 12: Assembling The Attachment
Do not stay in the area between the attachment and the loader. Mount the attachment only on level surface. WARNING Never move or lift an attachment that has not been locked. Avant quick coupling system: Step 1: Lift the quick attach plate locking pins up and turn them backwards into the slot so that they are locked in the upper position. -
Page 13: Connecting And Disconnecting Hydraulic Hoses
See instructions to connect hydraulic fittings in this manual. On Avant loaders the hydraulic hoses are connected using the multi connector system. If you have an Avant 300-700 series loader with the conventional quick couplers and wish to change to the multi connector system,... - Page 14 14 (32) Risk of movement of the attachment and ejection of hydraulic oil - Never connect or disconnect quick couplings or other hydraulic components while the control lever of the auxiliary hydraulics control lever is locked on or if the system is WARNING pressurized.
-
Page 15: Coupling An Attachment To The Mounting Kit
15 (32) 5.2 Coupling an attachment to the mounting kit Connect the stone installation clamp to the rotator of the mounting kit after after the mounting kit is fully locked to the quick coupling of the loader. 1. Drive the loader close to the attachment. - Page 16 16 (32) Hydraulic diagram for Mounting kit hydraulics...
-
Page 17: Safety Instructions For Hydraulic Assemblies
17 (32) 5.3.1 Safety instructions for hydraulic assemblies High-pressure ejection of fluid may penetrate skin and cause serious injuries: Risk high pressure fluid injection through skin - High-pressure ejection of fluid may penetrate skin and cause serious DANGER injuries. Before handling hydraulic components, make sure that hydraulic... -
Page 18: Tightening Hydraulic Fittings
18 (32) 5.3.2 Tightening hydraulic fittings Tighten the fittings carefully according to given instructions and safety procedures. Keep in mind that over tightening will break a fitting. Tighten basic fittings carefully with hand tools using moderate torque. The elbow fittings should be tightened at last, after hoses have been fitted to their clamps. Allow the hydraulic systems of the loader and of the attachment to cool down completely before any work on hydraulic systems. -
Page 19: Electric Connection
19 (32) 5.4 Electric connection Electric functions of the attachment: To control the hydraulic functions of a Stone installation attachment that is connected to the Mounting kit, the loader must be equipped with the Opticontrol system (optional equipment for loaders). When you push the ®... -
Page 20: To Connect The Electric Harness Of The Attachment To The Loader
20 (32) 5.4.1 connect the electric harness of the attachment to the loader Starting from year 2016, there is an integrated electric plug in the multiconnector of all attachments that have electric functions. If your loader is equipped with the Opticontrol system, and ®... -
Page 21: Using The Mounting Kit
21 (32) 6. Using the Mounting kit Check the attachment and the operating environment once more before starting to work, and that all obstacles have been removed from the operating area. Quick inspection of the equipment and the operating area before use are parts of ensuring safety and the best performance of the equipment. -
Page 22: Checks Before Use
22 (32) 6.1 Checks before use Before starting work, remove all obstacles from the operating area and prepare lifted paving stones beforehand. Remember correct working methods and avoid leaving the driver’s seat unnecessarily. Before first use, check the hydraulic fittings and all possible movements of the attachment. Move the ... -
Page 23: Controlling The Stone Installation Clamp - Different Functions Of The Attachment
23 (32) 6.3 Controlling the stone installation clamp - different functions of the attachment To use the different functions of the Stone installation clamp, the loader must be equipped with Opticontrol ® attachment control system. Alternatively, the wire harness A437338 must be retrofitted if the loader is equipped with the old attachment control switch pack. -
Page 24: Using The Hydraulic Functions Of The Mounting Kit
24 (32) 6.3.1 Using the hydraulic functions of the Mounting kit 1. Switch on the Opticontrol mode with the separate selection switch ® on the loader. See the adjacent figure. 2. Use the switches of the attachment control switch pack to control the different functions of the attachments. -
Page 25: Material Handling
25 (32) 6.4 Material handling Use maximum load indicated in the diagram of the operator’s manual of the loader as a guideline. Remember that the actual load carrying capacity varies according to operating conditions, especially unevenness of operating area has a great effect. Be especially careful when the load sensor indicator is activated. Also, make sure that the ground surface is firm and follow recommended tire pressures. -
Page 26: Storing The Attachment
26 (32) 6.6 Storing the attachment The Mounting kit can be uncoupled from the loader and placed for storage with an attachment fitted. 6.6.1 Storage Uncouple and store the Mounting kit on level surface. The best way to store the attachment is a place where it is protected from direct sunlight, rain, and extreme temperatures. -
Page 27: Maintenance And Service
Finding any fault means that the hydraulic hose or component must be replaced and the equipment must not be used until it is repaired. Spare parts are available from your nearest AVANT retailer or authorised service point. Leave the repair work to professional service technicians, if you don’t have adequate knowledge and... -
Page 28: Cleaning The Attachment
28 (32) 7.2 Cleaning the attachment Clean the attachment regularly to prevent accumulation of dirt which is more difficult to remove. A pressure washer and mild detergent can be used for cleaning. Do not use strong solvents, and do not spray directly at the hydraulic components, or at the labels on the attachment. -
Page 29: Warranty Terms
29 (32) 8. Warranty terms Avant Tecno Oy grants a warranty of one year (12 months) from the date of purchase for the attachment it manufactures. The warranty covers repair costs as follows: Work costs are covered, if the repair is not performed at the factory. - Page 30 Mallit / Modeller / Models Avant Asennussarja kivilatojalle; Avant-kuormaajan työlaite Monteringsbyggsats för stenläggningsmaskin; arbetsredskap för Avant lastare A436347 Mounting kit for stone installation clamp; attachment for Avant loaders 17.9.2019 Ylöjärvi, Finland Risto Käkelä, Toimitusjohtaja / Verkställande direktör / Managing Director...
