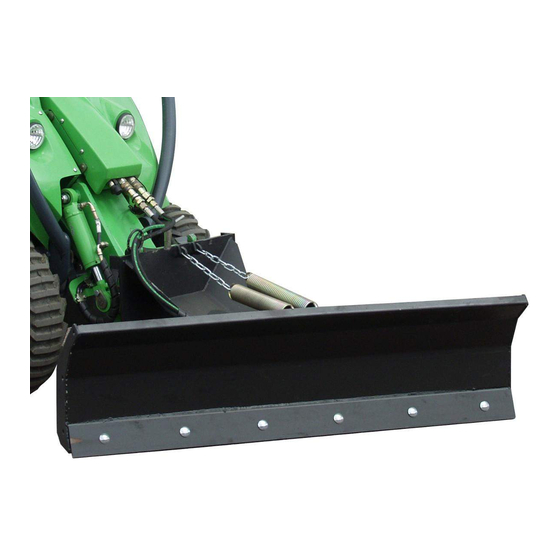

- Page 1 Operator’s Manual for Attachment Manual for Attachment Manual for Attachment Dozer blade Product number: 300-700-series loaders: A2867 A2944 A410365 200-series loaders: A21093 Please read this manual carefully before using the equipment, and follow all instructions. Keep this manual for later reference.
-
Page 2: Table Of Contents
7.1. Cleaning and lubrication .........................10 Warranty terms...........................10 Appendix 1: EC Declaration of Conformity Dozer blade models A2867, A2944, A21093 Appendix 2: EC Declaration of Conformity Dozer blade model A410365 This manual uses the following warning symbols to indicate factors that must be taken into account to reduce the risk of personal injury or property damage: This safety symbol refers to important safety information in this manual. -
Page 3: Foreword
3(14) 1. Foreword Avant Tecno Oy would like to thank you for your purchase of this Avant attachment. It has been designed and manufactured on the basis of years of product development and experience. By familiarising yourself with this manual and following the instructions, you ascertain your safety and ensure the reliable operation and long service life of the equipment. - Page 4 4(14) • Do not drive at high speed unless you can be sure that there are no obstacles at the working area. The loader may stop suddenly if it hits an obstacle, regardless of the spring release mechanism. Remember that there may be hidden obstructions or fragile surfaces under the snow.
-
Page 5: Dozer Blade Specifications
22,5 MPa (225 bar) of hydraulic energy: 70 l/min 300-600 (300) (400-500) Suitable Avant loader 216, 218, 220 (700) 400-700 600-700 Listed below are the labels and markings, which must be visible on the equipment. Replace any warning label, that has become unclear or has detached completely. New labels are available via your retailer or contact information provided on the cover. -
Page 6: Assembly Of The Dozer Blade
These instructions are applicable to mounting the attachment to the boom quick attach plate of Avant loaders that have standard quick attach locking. If your machine is equipped with a hydraulic locking and/or serial quick attach system, refer to the relevant manuals for additional mounting instructions. -
Page 7: Connecting And Disconnecting The Hydraulic Fittings
7(14) Step 3: • Lift the boom slightly – pull the boom control lever backward to raise the attachment off the ground. • Turn the boom control lever left to turn the bottom section of the quick attach plate onto the attachment. -
Page 8: Instructions For Use
8(14) When removing the attachment, always disconnect the hydraulic fittings before detaching the quick attach plate, to prevent hose damage and any oil spills. Reinstall the protective caps on the fittings to prevent impurities from entering the hydraulic system. Keep the fittings as clean as possible. Use the protective caps for the quick couplings on both the attachment and the loader. -
Page 9: The Edge Of The Dozer Blade
Finding any of these faults means that the hydraulic hose or component in question must be replaced. Repair all leaks immediately after detecting them; a small leak can quickly grow into a big one. Spare parts are available from your nearest AVANT retailer or service point. -
Page 10: Cleaning And Lubrication
8. Warranty terms Avant Tecno Oy grants a warranty of one year (12 months) from the date of purchase for the attachment it manufactures. The warranty covers repair costs as follows: •... - Page 11 SFS-EN ISO 12100, SFS-EN ISO 4413, SFS-EN 13021 Kuvaus: Avant-kuormainten kanssa käytettävä puskulevy Beskrivning: Schaktblad; arbetsredskap för Avant lastare Description: Dozer blade; attachment for Avant loaders Beschreibung: Planierschild; Anbaugerät für Avant Radlader Mallit / Modeller / Models / Modellen: Avant 200 series...
- Page 12 Dozer Blade 2011 2...
