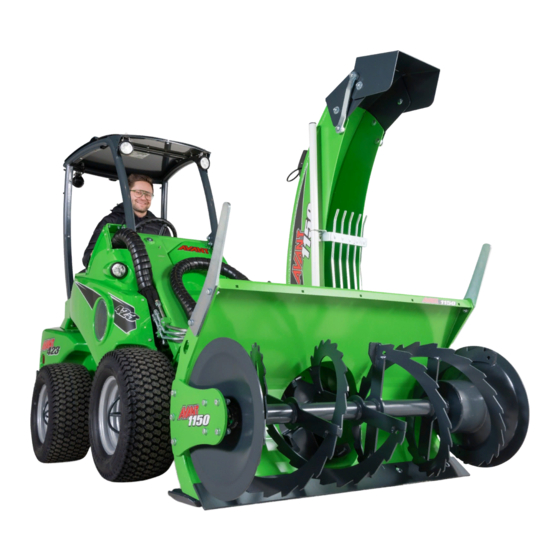

- Page 1 English Snow blower 1150/1500 2019 2 Operator's Manual for Attachment Snow blower 1150/1500 Product number: Snow Blower 1150 A434731 Snow Blower 1500 A428062 www.avanttecno.com A432274 2019 2 EN 2019-...
- Page 2 Snow blower 1150/1500 2019 2...
-
Page 3: Table Of Contents
Snow blower 1150/1500 2019 2 CONTENTS 1. FOREWORD ............................4 Warning symbols used in this manual ........................... 5 2. DESIGNED PURPOSE OF USE ......................6 3. SAFETY INSTRUCTIONS FOR USING THE SNOW BLOWER ............7 4. TECHNICAL SPECIFICATIONS ......................10 Safety labels and main components of the attachment ..................10 5. -
Page 4: Foreword
If you sell or transfer the equipment, be sure to hand over this manual to the new owner. If the manual is lost or damaged, you can request a new one from your Avant dealer or from the manufacturer. -
Page 5: Warning Symbols Used In This Manual
5 (32) Warning symbols used in this manual The following warning symbols are used throughout this manual. They indicate factors that must be taken into account to reduce the risk of personal injury or damage to property: WARNING SAFETY ALERT SYMBOL This symbol means: “Warning, be alert! Your safety is involved!”... -
Page 6: Designed Purpose Of Use
As an option, electric throwing height adjustment is also available, which can be operated only with the optional electric attachment control switch pack of the loaders. The Snow blower 1150/1500 is not designed for any other use than what is specified in this manual and must not be used for any other purposes than intended. -
Page 7: Safety Instructions For Using The Snow Blower
Never lift or move an unlocked attachment. The Snow blower 1150/1500 is designed to be used by one operator at a time. Do WARNING not let others near the danger area of the equipment when it is in use. - Page 8 8 (32) Pay attention to the surroundings and any other persons and machines moving in the vicinity. Pay attention to the contours of the terrain and other hazards, such as branches and trees that can reach to the driver's area, loose rocks, and slippery surfaces.
- Page 9 9 (32) Beware of entanglement and crushing hazards especially when removing blockages. Near the snow blower the hazards of entanglement and severing are present. The snow blower must be stopped following the safe stopping procedure before WARNING going near it. Never put your hand inside the discharge chute or the auger; always use a brush or other suitable medium.
-
Page 10: Technical Specifications
10 (32) 4. Technical specifications Table 2 - Snow blower 1150/1500 - Specifications Product number A434731 A428062 Working width 1150 mm 1500 mm Total width: 1215 mm 1580 mm Weight: 246 kg 296 kg Electric discharge chute rotation: Standard equipment, 260º... - Page 11 Stop the machine before going near it. A434313 / Attachment identification plate A426665 Table 4 - Snow blower 1150/1500 - Main components Quick coupling plate with Avant quick coupling brackets 2 Discharge rotor 3 Feed auger 4 Standing supports / Side skid...
-
Page 12: Assembling The Attachment
Do not stay in the area between the attachment and the loader. Mount the attachment only on level surface. WARNING Never move or lift an attachment that has not been locked. Avant quick coupling system: Step 1: Lift the quick attach plate locking pins up and turn them backwards into the slot so that they are locked in the upper position. -
Page 13: Connecting And Disconnecting Hydraulic Hoses
5.1 Connecting and disconnecting hydraulic hoses On Avant loaders the hydraulic hoses are connected using the multi connector system. If you have an Avant 300-700 series loader with the conventional quick couplers and wish to change to the multi connector system, contact your Avant dealer or service point for instructions or installation services. - Page 14 14 (32) Keep all fittings as clean as possible; use the protective caps on both the attachment and the loader. Dirt, ice, etc. may make using the fittings significantly more difficult. Never leave the hoses hanging on the ground; place the couplings onto the holder on the attachment.
-
Page 15: Electric Connection
15 (32) 5.2 Electric connection Electric functions of the attachment: As standard, the snow blower is equipped with electrically controlled chute rotation. Electrically controlled throwing height adjustment is available as an option. The electric discharge chute rotation can be controlled with the standard electric harness that is supplied with the snow blower. - Page 16 16 (32) If your loader is equipped with the attachment control switch pack, and the loader is manufactured in 2016 or later: electric socket integrated multiconnector. electric harness attachment is connected when the multiconnector is coupled. Clean both multiconnectors before connecting the multiconnector.
-
Page 17: Operating The Attachment
17 (32) 6. Operating the attachment Check the attachment and the operating environment once more before starting to work, and that all obstacles have been removed from the operating area. Quick inspection of the equipment and the operating area before use are parts of ensuring safety and the best performance of the equipment. -
Page 18: Checks Before Use
18 (32) 6.1 Checks before use Read all instructions before use. Make sure you have the Operator's manual of the loader available. Check the general condition of the attachment and the loader, and check for possible hydraulic oil leaks. -
Page 19: Use
19 (32) 6.2 Use Using the snow blower: Set the attachment to working position. The snow blower works in the most efficient way, when it is tilted slightly forward, or when it is kept lightly on the ground in upright position, as shown in figure below. -
Page 20: Using The Electric Functions Of The Snow Blower
Contact service to check the operation of the system if necessary. Adjusting the hydraulic system of the attachment is allowed only for authorized Avant service. 6.3 Using the electric functions of the Snow Blower 1. -
Page 21: Discharge Chute Rotation
21 (32) 6.3.1 Discharge chute rotation The electric discharge chute can be used when the ignition key of the loader is turned to switch on the electric outlet of the loader. The chute will rotate 260°. Turning directly towards the loader is blocked. Make sure that the chute is directed to safe direction at all times. -
Page 22: Scraper Plate And Skids
22 (32) 6.4 Scraper plate and skids Adjust the scraper plate (1) and side skids (2) shown in the adjacent figures so, that the snow blower runs smoothly on the surface without the frame touching the ground. The side skids (2) can be adjusted by setting them to the desired height parallel on both sides. -
Page 23: Removing A Blockage
23 (32) 6.5 Removing a blockage Clogging of the feed auger is in most cases caused by drive speed. If the auger can’t throw the snow fast enough, drive speed must be reduced. Clogging of the discharge chute is also affected by the type of snow in addition to hydraulic oil flow (loader engine rpm). -
Page 24: Transport Position
24 (32) 6.6 Transport position Keep the loader stable. Always transport the attachment as low and close to the ground as possible. Keep the telescopic boom retracted during transport drive. CAUTION 6.7 Storing the attachment Uncouple and store the snow blower on level surface so, that it will stand firmly on its two standing supports under the attachment. - Page 25 25 (32) Ensure the stability of the snow blower during its storage. Climbing on the snow blower is prohibited. Clean the attachment before long storage periods, touch up the paint where needed and grease the lubrication point to prevent rust damage. Oil the rotation rim of the discharge chute slightly.
-
Page 26: Maintenance And Service
Finding any fault means that the hydraulic hose or component must be replaced and the equipment must not be used until it is repaired. Spare parts are available from your nearest AVANT retailer or authorised service point. Leave the repair work to professional service technicians, if you don’t have adequate knowledge and... -
Page 27: Cleaning The Attachment
In case of vibrations, clean and defrost the parts from ice and packed snow. Unbalanced components may lead to the failure of the hydraulic motors or bearings. If the parts are damaged or the vibration continues after cleaning the parts, contact your nearest AVANT service. 7.5 Discharge chute rotation The gear rim of the discharge chute can be oiled slightly without opening the structure. -
Page 28: Lubrication
28 (32) 7.6 Lubrication A small amount of lubricant should be added to the lubrication point at the bearing regularly. Correct lubrication interval depends heavily on operating conditions but lubricant must be added at least after every 10 hours of use. Clean the end of the nipple before greasing and add only a small amount of grease at a time. -
Page 29: Warranty Terms
29 (32) 8. Warranty terms Avant Tecno Oy grants a warranty of one year (12 months) from the date of purchase for the attachment it manufactures. The warranty covers repair costs as follows: Work costs are covered, if the repair is not performed at the factory. - Page 30 SFS-EN ISO 12100, SFS-EN ISO 4413 Mallit / Modeller / Models Avant Hydraulitoiminen lumilinko; Avant-kuormaajan työlaite 1150 A434731 Hydraulisk snöfräs; arbetsredskap för Avant lastare Hydraulic Snow blower; attachment for Avant loaders 1500 A428062 25.9.2019 Ylöjärvi, Finland Risto Käkelä, Toimitusjohtaja / Verkställande direktör / Managing Director...
