Summary of Contents for AVANT A441007

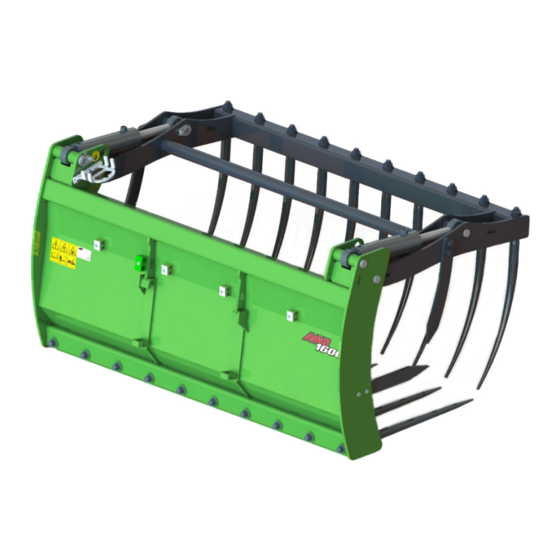

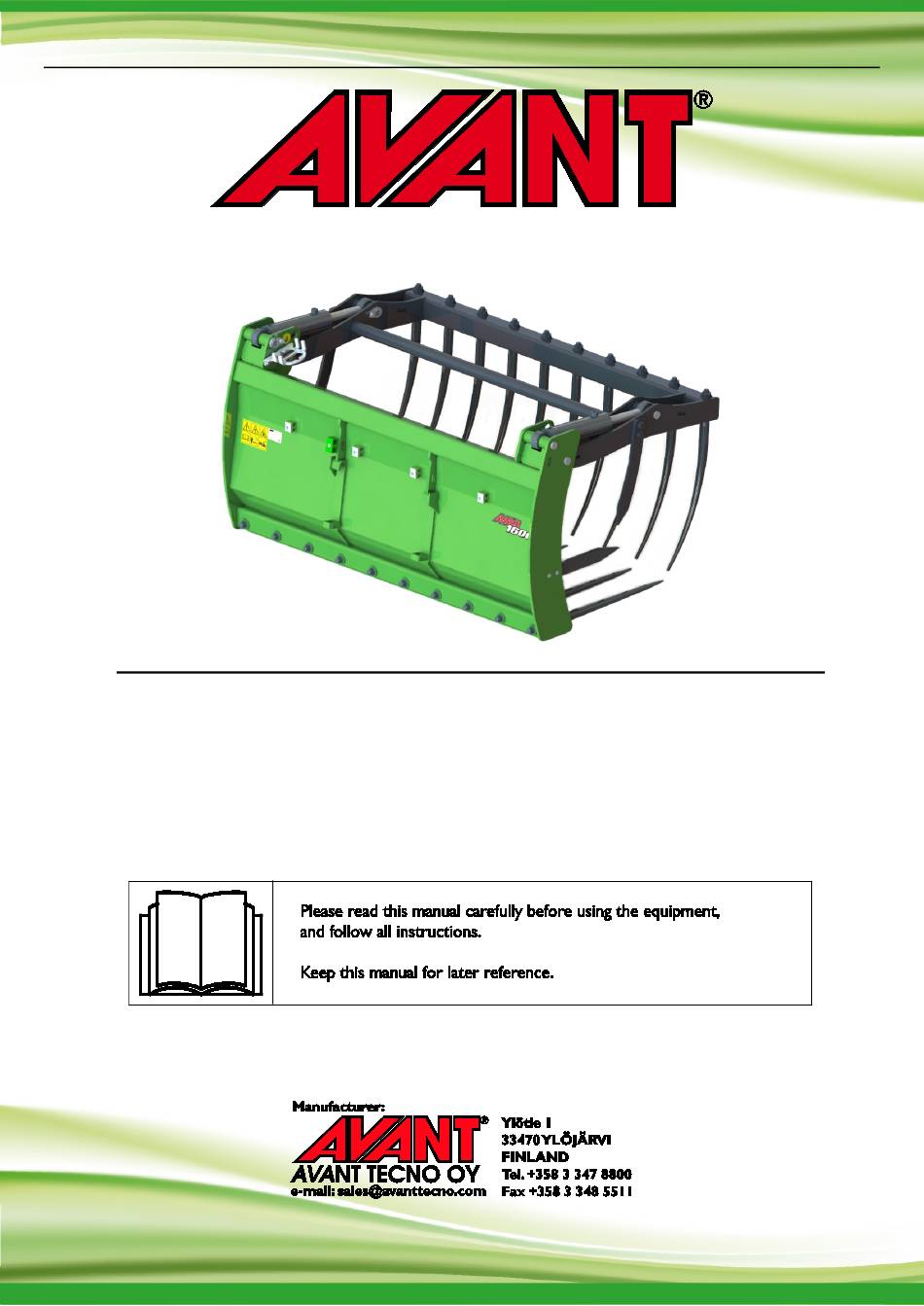

- Page 1 English XL Silage grab 2020 1 Operator's Manual for Attachment XL Silage grab Working width Product number 1300 mm A441007 1450 mm A440998 1600 mm A440586 A442207 2020 1 EN 2020-...
- Page 2 XL Silage grab 2020 1...
-
Page 3: Table Of Contents
XL Silage grab 2020 1 CONTENTS 1. FOREWORD ............................4 2. DESIGNED PURPOSE OF USE......................5 3. SAFETY INSTRUCTIONS FOR USING THE ATTACHMENT ............6 Personal protective equipment ..........................8 Safe shutdown procedure ............................8 4. TECHNICAL SPECIFICATIONS ....................... 9 Safety labels and main components of the attachment .................. -
Page 4: Foreword
If you sell or transfer the equipment, be sure to hand over this manual to the new owner. If the manual is lost or damaged, you can request a new one from your Avant dealer or from the manufacturer. -
Page 5: Designed Purpose Of Use
2. Designed purpose of use The AVANT XL Silage grabs are attachments that are suitable for use with AVANT multi purpose loaders that are shown in Table 1. The main function of the silage grabs is to move or distribute silage or similar loose materials. -
Page 6: Safety Instructions For Using The Attachment
6 (24) 3. Safety instructions for using the attachment Please bear in mind that safety is the result of several factors. The loader-attachment combination is highly powerful and improper or careless use or maintenance may cause serious personal injury or property damage. - Page 7 7 (24) Observe maximum load indicated in the operator’s manual of the loader. Be especially careful when the load sensor indicator is activated, if your loader is fitted with a load sensor system. Make sure that the surface can bear the total load. Also follow the correct tyre WARNING pressure settings.
-
Page 8: Personal Protective Equipment
8 (24) 3.1 Personal protective equipment Remember to wear proper personal protective equipment: The noise level at the driver's seat may exceed 85 dB(A) depending on loader model and operating cycle. Extended exposure to loud noise can cause hearing impairment. Wear hearing protection while working with the loader. ... -
Page 9: Technical Specifications
• Maximum input of hydraulic energy: 22,5 MPa (225 bar) Compatible AVANT loaders: See Table 1, Designed purpose of use 4.1 Safety labels and main components of the attachment Listed below are the labels and markings on the attachment. They must be visible and readable on the equipment. - Page 10 A442056 / Attachment identification plate A442032 / A440869 Table 4 - XL Silage grab - Main components Frame Avant quick coupling brackets Replaceable tines Removable side tines Grapple Hydraulic cylinder (2 pcs) Multi connector holder...
-
Page 11: Attaching The Attachment
Do not stay in the area between the attachment and the loader. Mount the attachment only on level surface. WARNING Never move or lift an attachment that has not been locked. Avant quick coupling system: Step 1: Lift the quick attach plate locking pins up and turn them backwards into the slot so that they are locked in the upper position. -
Page 12: Connecting And Disconnecting Hydraulic Hoses
5.1 Connecting and disconnecting hydraulic hoses On Avant loaders the hydraulic hoses are connected using the multi connector system. If you have an Avant 300-700 series loader with the conventional quick couplers and wish to change to the multi connector system, contact your Avant dealer or service point for instructions or installation services. - Page 13 13 (24) Keep all fittings as clean as possible; use the protective caps on both the attachment and the loader. Dirt, ice, etc. may make using the fittings significantly more difficult. Never leave the hoses hanging on the ground; place the couplings onto the holder on the attachment.
-
Page 14: Instructions For Use
14 (24) 6. Instructions for use Check the attachment and the operating environment once more before starting to work, and that all obstacles have been removed from the operating area. Quick inspection of the equipment and the operating area before use are parts of ensuring safety and the best performance of the equipment. -
Page 15: Checks Before Use
15 (24) 6.1 Checks before use Check the operation of the grapple before each work shift. Check that hydraulic hoses will not get chafed, and that the grapple joints are lubricated. Ensure that bystanders are at a safe distance when operating the equipment. Do not let anyone to ... -
Page 16: Operating The Xl Silage Grab
16 (24) 6.2 Operating the XL silage grab Risk of serious personal injuries - Ensure that there are no other persons near the operating area. Do not allow others closer than 2 metres form the grab, to the boom danger area, or directly in front or back of the loader. Move carefully and calmly near WARNING persons or farm animals. - Page 17 17 (24) Controlling the grapple Move auxiliary hydraulics control lever towards locking position electric buttons of the optional electric joystick) to lower the grapple. The lever should not be left locking position. Move the lever away from the locking position to lift the grapple.
-
Page 18: Material Handling
±360º (model A424406). Read the instructions provided with the tilt adapter and in the operator's manual of the loader. More information about the tilt adapters is available from your AVANT retailer or from the AVANT web pages at www.avanttecno.com. -
Page 19: Transport Position
19 (24) 6.5 Transport position Keep the loader stable. Always transport the silage grab as low and close to the ground as possible. CAUTION Keep the telescopic boom retracted and grapple completely lowered during drive. 6.6 Storing the attachment Uncouple and store the attachment on level ground. The best way to store the attachment is a place where it is protected from direct sunlight, rain, and extreme temperatures. -
Page 20: Maintenance And Service
Repair all leaks immediately after detecting them; a small leak can quickly grow into a big one. Operate the attachment only with type of hydraulic oil that is accepted for use in Avant loaders. Risk of high pressure fluid injection through skin - Release residual pressure before maintenance. -
Page 21: Inspection Of Metal Structures
Finding any fault means that the hydraulic hose or component must be replaced and the equipment must not be used until it is repaired. Spare parts are available from your nearest AVANT retailer or authorised service point. Leave the repair work to professional service technicians, if you don’t have adequate knowledge and experience about hydraulic assemblies and how to perform the repairing safely. -
Page 22: Warranty Terms
22 (24) 8. Warranty terms Avant Tecno Oy grants a warranty of one year (12 months) from the date of purchase for the attachment it manufactures. The warranty covers repair costs as follows: Work costs are covered, if the repair is not performed at the factory. - Page 23 Mallit / Modeller / Models Avant A441007 1300 mm Hydraulitoiminen rehupihti; Avant-kuormaajan työlaite Hydraulisk fodergrep; arbetsredskap för Avant lastare A440998 1450 mm Hydraulic silage grab; attachment for Avant loaders A440586 1600 mm 17.8.2020 Ylöjärvi, Finland Risto Käkelä, Toimitusjohtaja / Verkställande direktör / Managing Director...
