Summary of Contents for AVANT A454767
- Page 1 English Snow broom 2023 1 Operator's Manual for Attachment Snow broom Product number 1100 mm A454767 1500 mm A457611 2000 mm A457678 www.avanttecno.com A463017 2023 1 EN 2023-...
- Page 2 Snow broom 2023 1...
-
Page 3: Table Of Contents
Snow broom 2023 1 CONTENTS 1. FOREWORD ............................4 Warning symbols used in this manual ........................... 5 2. DESIGNED PURPOSE OF USE......................6 3. SAFETY INSTRUCTIONS ........................7 Personal protective equipment ..........................9 Safe shutdown procedure ............................10 4. TECHICAL SPECIFICATIONS ......................11 Safety labels and main components of the attachment .................. -
Page 4: Foreword
If you sell or transfer the equipment, be sure to hand over this manual to the new owner. If the manual is lost or damaged, you can request a new one from your Avant dealer or from the manufacturer. -
Page 5: Warning Symbols Used In This Manual
5 (34) Warning symbols used in this manual The following warning symbols are used throughout this manual. They indicate factors that must be taken into account to reduce the risk of personal injury or damage to property: WARNING SAFETY ALERT SYMBOL This symbol means: “Warning, be alert! Your safety is involved!”... -
Page 6: Designed Purpose Of Use

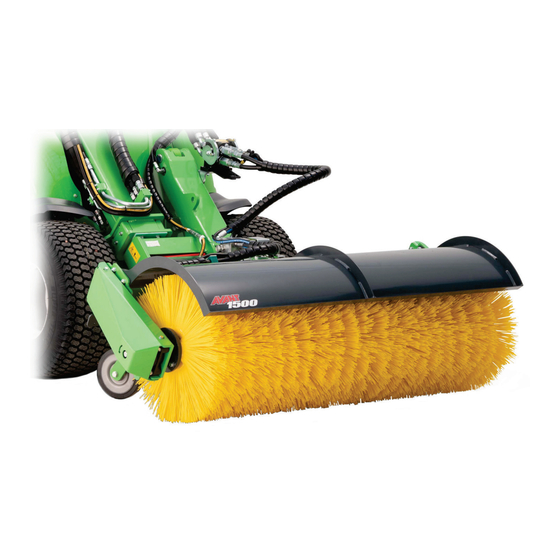

2. Designed purpose of use The AVANT Snow broom is an attachment that is suitable for use with AVANT compact loaders which are shown in Table 1. The strong and robust broom serves well also in professional use and is intended for sweeping of snow on sidewalks, yards, parking lots etc. -
Page 7: Safety Instructions
7 (34) 3. Safety instructions Please bear in mind that safety is the result of several factors. The loader-attachment combination is highly powerful and improper or careless use or maintenance may cause serious personal injury or property damage. Due to this, all operators must carefully familiarise themselves about correct use and the operator's manuals of both the loader and the attachment before starting operation. - Page 8 8 (34) Pay attention to the surroundings and any other persons and machines moving in the vicinity. Pay attention to the contours of the terrain and other hazards, such as branches and trees that can reach to the driver's area, loose rocks, and slippery surfaces.
-
Page 9: Personal Protective Equipment
9 (34) Entanglement and severing hazard - Never go near a running attachment. The powerful rotating shaft can cause serious injuries to anyone too close to it. Always stop the attachment following the safe stopping procedure before going near the attachment. If WARNING being near a running attachment is absolutely necessary to determine the condition of the attachment watching from a distance, or fault finding operation, never wear loose... -
Page 10: Safe Shutdown Procedure
10 (34) 3.2 Safe shutdown procedure Safe stopping of the attachment, before going near the attachment: Always stop the attachment following safe stopping procedure before leaving the driver's seat. Safe stopping procedure prevents all unintentional movements of the attachment. Note that the loader boom can move down even if the engine of the loader is turned off. -
Page 11: Techical Specifications
Sideways floating ±5º Recommended hydraulic flow: 20-35 l/min 25-40 l/min 25-50 l/min Maximum input hydraulic 50 l/min, 22,5 MPa 60 l/min, 22,5 MPa 70 l/min, 22,5 MPa energy: (225 bar) (225 bar) (225 bar) Compatible AVANT loaders: See Table 1... -
Page 12: Safety Labels And Main Components Of The Attachment
A46803 A46806 A425802 A452803 A452805 (A454767 only) (A457611 only) (A457678 only) Attachment identification plate To apply a new label: Clean the surface thoroughly to remove all grease. Allow it to dry completely. Peel off the protective film of the label and press firmly to apply. Take care not to touch the glue of the label. - Page 13 Hydraulic oil flow 40 l/min A452805 Hydraulic oil flow 50 l/min Identification plate Table 4 - Snow broom - Main components Frame with Avant quick coupling brackets Brush Hydraulic motor Storage support (2 pcs) Support wheel (2 pcs) Hydraulic cylinder...
-
Page 14: Lifting
14 (34) 4.2 Lifting Make sure that the attachment is properly secured against unintended movements during lifting operation. Use appropriate type of lifting accessories, lifting straps, chains or hooks, for example. Do not use lifting accessories if there are signs of damage, deformation, or otherwise unsafe conditions. -
Page 15: Assembling The Attachment
Do not stay in the area between the attachment and the loader. Mount the attachment only on level surface. WARNING Never move or lift an attachment that has not been locked. Avant quick coupling system: Step 1: Lift the locking pins of the quick coupling plate of the loader up, and turn them backwards into the slot, so that they are locked in the upper position. -
Page 16: Connecting And Disconnecting Hydraulic Hoses
5.1 Connecting and disconnecting hydraulic hoses On Avant loaders the hydraulic hoses are connected using the multi connector system. If you have an older model Avant 300-700 series loader with the conventional quick couplers, and you want to change to the multi connector system, contact your Avant dealer or service point for instructions or installation services. - Page 17 17 (34) Keep all fittings as clean as possible; use the protective caps on both the attachment and the loader. Dirt, ice, etc. may make using the fittings significantly more difficult. Never leave the hoses hanging on the ground; place the couplings onto the holder on the attachment.
-
Page 18: Electric Connection
18 (34) 5.2 Electric connection Electric functions of the attachment: As standard, the Snow broom is equipped with hydraulic side slewing. The turning system can be controlled with the standard electric harness that is supplied with the attachment, Opticontrol® system, or the Attachment control switch pack of the loader. - Page 19 19 (34) If your loader is equipped with the Opticontrol ®, the Attachment control switch pack, and the loader is manufactured after 2016: electric socket integrated multiconnector, electric harness attachment is connected when the multiconnector is coupled. Clean both multiconnectors before connecting the multiconnector.
-
Page 20: Using The Broom
20 (34) 6. Using the broom Check the attachment and the operating environment once more before starting to work, and that all obstacles have been removed from the operating area. Quick inspection of the equipment and the operating area before use are parts of ensuring safety and the best performance of the equipment. -
Page 21: Safety Distance
21 (34) 6.1 Safety distance The minimum safety distance from the attachment is 5 metres. Stop the attachment immediately if bystanders get within the safety distance. Do not let bystanders get any closer than 5 metres from the attachment. Rotating broom can throw material at very high speed, creating serious danger to the operator and... -
Page 22: Operator Qualification
22 (34) 6.3 Operator qualification Anyone who intends to use the attachment must: Know the intended use of the attachment. Know how to use the loader safely in different operating conditions. Read and always follow the instructions concerning the use of the attachment in this operator's ... -
Page 23: Operating The Broom
23 (34) 6.4 Operating the broom Before use Read all safety instructions. Starting to use the Snow broom 1. Lift the storage supports up. 2. To set the broom to its correct operating position, lower the broom lightly against the ground. 3. - Page 24 24 (34) Starting the broom Risk of injury from thrown objects and entanglement - Check surroundings before starting the broom. The broom can throw sand, rocks, or other objects at high speed. Check that there is no one in front of the broom. Always direct the broom away WARNING from people and anything that can get damaged, such as cars, buldings, or other fragile surfaces.
-
Page 25: Broom Slewing
25 (34) 6.4.1 Broom slewing The hydraulic slewing is available as standard. The broom can be turned to either side by 30 degrees. The slewing can be only used when the broom is rotating. The broom slewing can be used to push material aside, or to make it easier to operate near walls or other obstacles. -
Page 26: Broom Floating System
26 (34) 6.4.2 Broom floating system The 1500 and 2000 models are equipped with mechanical sideways floating system, which allows the broom to follow the surface of the terrain. The attachment floats automatically ± 5 degrees sideways for better handling and contact with the ground. -
Page 27: Support Wheels
27 (34) 6.4.4 Support wheels The height of the support wheels can be adjusted by using the plastic sleeves on the vertical axles of the wheels. It is not necessary to uncouple the attachment from the loader while adjusting the height. To adjust the height: 1. -
Page 28: Storage Supports
28 (34) 6.5.1 Storage supports Both storage supports must be lowered when disconnecting the broom, and both supports must be lifted before using the broom. To store the broom, lower it on an even surface, where it cannot move by accident. Set the outriggers (1) to lower position first and then lower the attachment on the pallets. -
Page 29: Maintenance And Service
Finding any fault means that the hydraulic hose or component must be replaced and the equipment must not be used until it is repaired. Spare parts are available from your nearest AVANT retailer or authorised service point. Leave the repair work to professional service technicians, if you don’t have adequate knowledge and... -
Page 30: Cleaning And Lubricating The Attachment
30 (34) 7.2 Cleaning and lubricating the attachment Clean the broom as soon as possible after use, so that it is easier to remove all dirt. A pressure washer and mild detergent can be used. Avoid using solvents or spraying directly at the bristles or hydraulic parts at high pressure. -
Page 31: Brush
31 (34) 7.3 Brush The material of the brush bristles is nylon and in normal operating conditions the brush will last long before need for replacement. As the diameter of the brush decreases, its circumferential velocity decreases as well, and at some point it becomes insufficient for throwing material efficiently. The brush consists of several parallel discs connected on a shaft. -
Page 32: Warranty Terms
32 (34) 8. Warranty terms Avant Tecno Oy grants a warranty of one year (12 months) from the date of purchase for the attachment it manufactures. The warranty covers repair costs as follows: Work costs are covered, if the repair is not performed at the factory. - Page 33 SFS-EN ISO 12100, SFS-EN ISO 4413 Mallit / Modeller / Models Avant Hydraulitoiminen lumiharja; Avant-kuormaajan työlaite 1100 A454767 Hydraulisk snöborste; arbetsredskap för Avant lastare 1500 A457611 Hydraulic Snow broom; attachment for Avant loaders 2000 A457678 29.9.2023 Ylöjärvi, Finland Jani Käkelä, Toimitusjohtaja / Verkställande direktör /...
