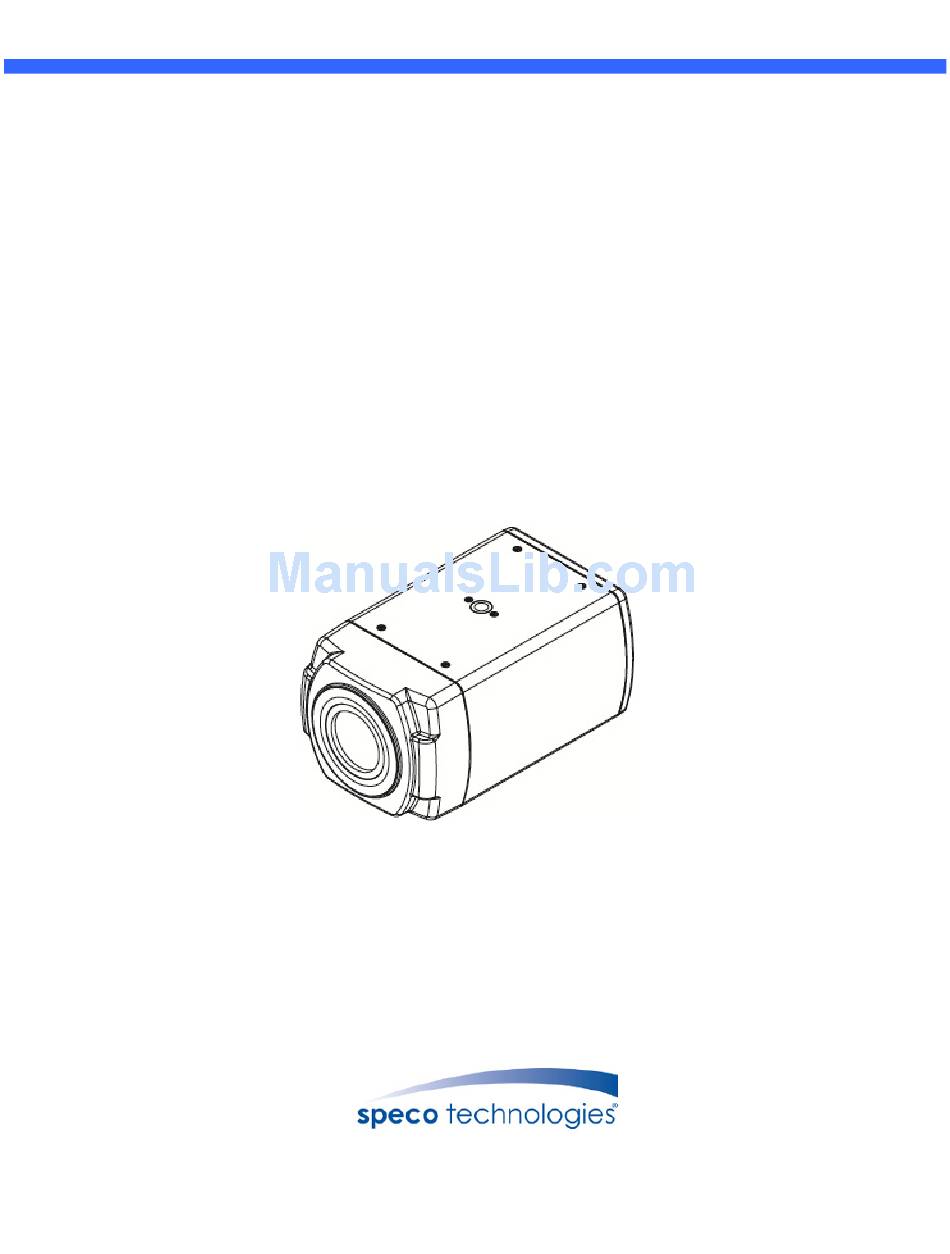

- Page 1 O2T7 User’s Manual Network Camera Manual (O2T7)
- Page 2 O2T7 User’s Manual D i r e c t i o n s D i r e c t i o n s D i r e c t i o n s D i r e c t i o n s Be careful not to cause any physical damage by dropping or throwing the camera.
- Page 3 O2T7 User’s Manual Caution Any changes or modifications in construction of this device which are not explicitly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Revision History Date Revision Details May 10, 2017 First manual revision creation.
-
Page 4: Table Of Contents
Contents Contents .................................. 4 Introduction ..............................5 1.1. Overview ..............................5 1.2. Specifications ............................6 1.3. Applications of O2T7 ..........................7 Product Description ............................8 2.1. Contents ..............................8 2.2. Product Preview............................8 2.3. Physical description ..........................9 2.4. Functional Description ..........................11 2.5. -
Page 5: Introduction
1. Introduction 1.1. Overview The O2T7 is a 2 megapixel, triple-codec (H.265, H.264, MJPEG) IP camera built with embedded software and hardware technology. It enables real time transmission of synchronized video of up to 1080p and audio data. Remote clients can connect to device for real time video/audio data through various client solutions running on PCs and smartphones. -
Page 6: Specifications
O2T7 User’s Manual 1.2. Specifications LENS Lens Type C&CS Mount Lens CAMERA Image Sensor 1/2.8” 2 Megapixel Sony CMOS Minimum Illumination COLOR : 0.05 lux F1.4 / BW : 0.0025 lux F1.4 Scanning Mode Progressive Scan Dynamic Range 108dB (true WDR) -
Page 7: Applications Of O2T7
Max. 3W Approval FCC, CE Specifications are subject to change without notice. 1.3. Applications of O2T7 Security surveillance (buildings, stores, manufacturing facilities, parking lots, banks, government facilities, military, etc.) Remote monitoring (hospitals, education, traffic, public areas, etc.) Teleconference (Bi-directional audio conference). Remote Learning, Internet broadcasting Weather and environmental observation Rev 1.0 (May. -
Page 8: Product Description
O2T7 User’s Manual 2. Product Description 2.1. Contents The product package contains the following the following: Contents Description Image Remarks Main Body O2T7 4X25 4X25 Tapping Screw 2EA, Tools and Mounting BH M5X10 Tapping screw BH M5X10 Tapping screw 1EA Screws 1/4”... -
Page 9: Physical Description
O2T7 User’s Manual 2.3. Physical description 2.3.1. External View Figure 2-1. External view of O2T7 2.3.2. Dimensions Figure 2-2. Dimensions... - Page 10 O2T7 User’s Manual 2.3.3. Connector information 1. Network Port 2. BNC Video Out 3. Power In 4. Ground 5. Audio In/Out 6. Alarm In/Out Figure 2-3. Connector information...
-
Page 11: Functional Description
O2T7 User’s Manual 2.4. Functional Description Power Power input for supplying 12V 1A DC power. A DC power. Caution: If the camera is powered by PoE, do not plug in DC Jack with active DC power into DC power is powered by PoE, do not plug in DC Jack with active DC power into DC power is powered by PoE, do not plug in DC Jack with active DC power into DC power connector. -
Page 12: Accessories For Installation
A switch provided for returning the IP camera to factory default state. Unscrew the cover to access the switch. Press the switch about 5 seconds while power is applied. Factory default switch Figure 2-5. Factory Default Switch 2.5. Accessories for installation Figure 2-6. Accessories for installation of O2T7... -
Page 13: On Site Installation
O2T7 User’s Manual On Site Installation Use cables and conduits that are suitable for the installation. Close attention should be paid to the installation so that no moisture is allowed to penetrate into the unit through the cables or conduits during the lifetime of the product. Products that have internal parts exposed to moisture due to improper installation are not covered by warranty. -
Page 14: Getting Started
Brief information for the initial operation of O2T7 is provided in this chapter. 4.1. PC System Requirements Audio/Video streaming data received from O2T7 can be displayed or stored in a PC running client programs. Minimum requirements of the PC are described below:... -
Page 15: Quick Installation Guide
1) Prepare a PC to run programs for the installation and video connection 2) In the case of using PoE, connect the PC and O2T7 to the network using one of the following ways. If your LAN Switch does not support standard PoE, connect O2T7 as shown in dotted line in Figure 4-1. - Page 16 O2T7 User’s Manual 2. Install IP Scanner IP Scanner is a utility to discover IP cameras on the local network. to discover IP cameras on the local network. The camera is set to DHCP mode out of the box. The camera is set to DHCP mode out of the box.
- Page 17 1) Connection through Web Viewer The web viewer offers the simplest way simplest way to connect to the O2T7. For video connection, enter the IP address of For video connection, enter the IP address of O2T7 in the Internet Explorer address bar...
- Page 18 O2T7 User’s Manual...
-
Page 19: Troubleshooting
O2T7 User’s Manual 5. Troubleshooting 5.1. No power is applied In case of Standard PoE (Power over Ethernet) Power supply through standard PoE is possible only when the following conditions are met. 1. Standard PoE is supported on the product. -
Page 20: Cannot Connect To The Camera
O2T7 User’s Manual 5.2. Cannot connect to the camera Check the status of the network connection through PING test. Try the following on your PC: Start > Run > Cmd > Ping IP address (Ex : Ping 172.16.42.51) If “Reply from ~”... -
Page 21: Technical Assistance
O2T7 User’s Manual 5.3. Technical Assistance If you need any technical assistance, please contact If you need any technical assistance, please contact Speco’s technical support. Please provide the following lease provide the following information. Model name 1 . 1 . 1 . 1 .
