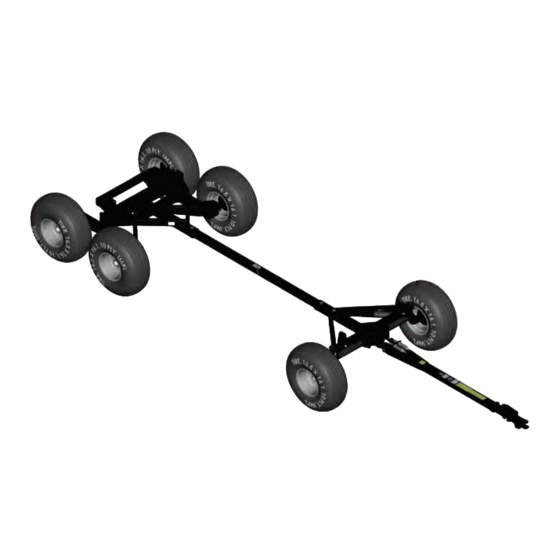

- Page 1 OPERATOR’S MANUAL HS617 RUNNING GEAR Part #HS101731 Rev. #00 HSMFG0324 Starting Ser. #421TG17001...
-
Page 2: Table Of Contents
CONTENTS Warranty..............1-2 Manufacturer’s Statement . -
Page 3: Warranty
WARRANTY H&S Manufacturing Co., Inc. Warranty H&S Manufacturing Co., Inc. (“H&S”) warrants this product to be free from defect in material and workmanship. Except as noted below, this warranty term is twelve (12) months on parts and labor, and twenty-four (24) months on parts only from the date of delivery of the product to the original purchaser by an authorized H&S dealer. -
Page 4: Manufacturer's Statement
WARRANTY For these warranty terms to be in effect the selling authorized H&S dealer and/or the customer must submit the warranty registration to H&S. THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE OF THIS WARRANTY. H&S and the companies affiliated with it make no warranties, representations, or promises, express or implied, as to the performance or freedom from defect of its products other than those set forth above and NO IMPLIED WARRANTY OF MERCHANTABILITY, FITNESS OR FITNESS FOR A PARTICULAR PURPOSE IS MADE. -
Page 5: Warranty Registration
WARRANTY REGISTRATION • Date of Purchase: __________________________ • Purchaser Name: ________________________________________________ • Street Address: _________________________________________________ • City: __________________________________________________________ • State: __________________________________ Zip: ____________________ • Phone Number: _________________________________________________ • E-mail Address: _________________________________________________ • Product: _______________________________________________________ • Model Number: _________________________________________________ • Serial Number: __________________________________________________ •... - Page 6 Intentionally Left Blank...
-
Page 7: Dealer Pre-Delivery Checklist
DEALER PRE-DELIVERY CHECKLIST AFTER COMPLETION, DEALER SHOULD REMOVE AND RETAIN FOR RECORDS After the Running Gear has been completely set up, check to be certain it is in correct operating order before delivering to the customer. The following is a list of points to inspect. Check off each item as you have made the proper adjustments and found the item operating satisfactorily. - Page 8 Intentionally Left Blank...
-
Page 9: Dealer Delivery Checklist
DEALER DELIVERY CHECKLIST AFTER COMPLETION, DEALER SHOULD REMOVE AND RETAIN FOR RECORDS This checklist that follows is an important reminder of valuable information that should be passed on to the customer at the time this Running Gear is delivered. Check off each item as you explain it to the customer. This delivery checklist, when properly filled out and signed, assures the customer that the pre-delivery service was satisfactorily performed. -
Page 10: Safety Information - Warning - Owner Must Read And Understand
SAFETY INFORMATION YOUR SAFETY ALERT! IS INVOLVED. THIS SYMBOL IS USED THROUGHOUT THIS BOOK WHENEVER YOUR PERSONAL SAFETY IS INVOLVED. TAKE TIME TO BE CAREFUL. REMEMBER: THE CAREFUL OPERATOR IS THE BEST OPERATOR. MOST ACCIDENTS ARE CAUSED BY HUMAN ERROR. CERTAIN PRECAUTIONS MUST BE OBSERVED TO PREVENT THE POSSIBILITY OF INJURY OR DAMAGE. - Page 11 SAFETY INFORMATION Keep signs in good condition. Immediately replace any missing or damaged signs. RECOGNIZE SAFETY INFORMATION This is the safety alert symbol. When you see this symbol on your machine or in this manual, be alert to the potential for personal injury. Follow recommended precautions and safe operating practices. UNDERSTAND SIGNAL WORDS A single word - DANGER, WARNING, or CAUTION - is used with the safety alert symbol.
- Page 12 SAFETY INFORMATION FOLLOW SAFETY INSTRUCTIONS Carefully read all safety messages in this manual and all safety signs on the machine. Follow recommended safety precautions and safety operating practices. Keep safety signs in good condition. Replace missing or damaged safety signs. RUN-AWAY / BREAK AWAY Shift to lower gear before going down steep grades.
- Page 13 SAFETY INFORMATION MOUNT ATTACHMENTS SAFELY CAUTION: When mounting equipment to the Running Gear, refer to the manufacturer’s mounting recommendations for that particular equipment. WARNING: Help prevent serious injury of death resulting from tractor or Running Gear rollover. Travel uphill or downhill when working on inclines or slopes, avoid traveling across the grade.
- Page 14 SAFETY INFORMATION TRACTOR: This operator’s manual uses the term “Tractor” when identifying the power or the towing source. TO PREVENT SERIOUS INJURY OR DEATH BEFORE YOU ATTEMPT TO OPERATE THIS EQUIPMENT, READ AND STUDY THE FOLLOWING INFORMATION. IN ADDITION, MAKE SURE THAT EVERY INDIVIDUAL WHO OPERATES OR WORKS WITH THIS EQUIPMENT, WHETHER FAMILY MEMBER OR EMPLOYEE, IS FAMILIAR WITH THESE SAFETY PRECAUTIONS.
-
Page 15: Cap Screw Torque Values
-13-... -
Page 16: Set-Up & Assembly
SET-UP & ASSEMBLY Note: Determine right and left side of the Running Gear by viewing it from the rear. If instructions or parts lists call for hardened bolts, refer to Cap Screw Torque Values page to identify. 1. Check the Running Gear for proper assembly and adjustment. 2. - Page 17 SET-UP & ASSEMBLY TIRE INFLATION Inflate tires to manufacture’s recommended pressure, making sure all tires have equal pressure. Inadequate or unequal tire pressure can cause improper trailing and premature tire failure. Tire Sizes & Capacities Chart Size Capacity @ 30 MPH 9.5L x 15 –...
-
Page 18: Transporting
TRANSPORTING TOWING ALWAYS USE A SAFETY PIN WITH A LOCKING DEVICE. Follow state and local regulations when towing farm equipment on public highways. Never tow the chassis on a public highway at a speed greater than 20 mph (32 kph). SAFETY CHAIN To prevent break-away, always use a safety chain when attaching to the towing vehicle. -
Page 19: Operation
OPERATION GENERAL INFORMATION After receiving your Running Gear, check the entire unit carefully before first operation. Tighten bolts that might have come loose. Lubricate as explained in the Lubrication Chapter in this manual. WHEEL BOLTS Torque the wheel bolts to specifications below. After the Running Gear has been in use for a short period of time, re-torque again. -
Page 20: Adjustments
ADJUSTMENTS WHEEL BEARINGS IF WHEEL BEARINGS BECOME LOOSE, ADJUST THEM IMMEDIATELY. Block wheels to prevent rolling, jack up chassis until wheels turn freely. Remove hub cap. Remove cotter pin (B) from adjusting nut and spindle. Tighten hub nut (A) until there is a slight drag on hub when wheel is turning. Check cotter pin hole location on spindle, back nut off one notch on nut, re-insert cotter pin. - Page 21 ADJUSTMENTS WHEEL TOE-IN Front wheel toe-in has been preset at the factory. If adjustments become necessary, use the following procedure: Place the hitch pole in the exact forward position. Check the tightness of the pole pin (A), steering pin (B), and center tie rod bolt (C). Retighten them if necessary.
-
Page 22: Service
SERVICE Follow the Service Chart below to achieve the best performance from your Running Gear. FREQUENTLY: * Check wheel bearings, making sure of proper adjustment. * Check lug nuts. Be sure all are tightened to specifications prior to operation. * Check tire pressure. Make sure all tires are inflated equally to proper pressure. * Lubricate all points identified in this manual. -
Page 23: Decal List
DECAL LOCATION Your H&S Running Gear was manufactured with operator safety in mind. Located on the Running Gear are various decals to aid in operation, and warn of danger or caution areas. Pay close attention to all the decals on your chassis. DO NOT REMOVE ANY TO THESE DECALS. -
Page 24: Decal Lubrication
LUBRICATION Become familiar with all lubrication points and establish a routine to ensure complete lubrication of the Running Gear. GENERAL INFORMATION Lubricating properly and often enough will prolong the life of your Industrial Running Gear. Grease daily during normal use and before and after storage and after power washing. Use a good grade of Lithium-base grease. - Page 25 LUBRICATION 093020 093020 093020 -23-...
- Page 26 DECAL LOCATION 1495D 1495A 91604 1495C DCSERIAL 32312 -24-...
- Page 27 DECAL LOCATION 84045 54033 84044 8699 -25-...
- Page 28 DECAL LOCATION 8704 -26-...
-
Page 29: Service Notes
SERVICE NOTES -27-... - Page 30 SERVICE NOTES -28-...
- Page 32 H&S MFG. CO. products approved for the FEMA SEAL OF QUALITY...
