H&S HDX Series Operator's Manual And Parts List

Rake
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
HDX SERIES
WARNING
UNSAFE OPERATION OR MAINTENANCE OF THIS EQUIPMENT CAN RESULT IN
SERIOUS INJURY OR DEATH
OPERA T T T T T OR'S MANU
OPERA
OPERA
OPERA
OPERA
H&S MANUFACTURING CO.,INC.
P.O. BOX 768 (715) 387-3414 FAX (715) 384-5463
RAKE
OR'S MANU
OR'S MANU
OR'S MANU
OR'S MANU AL
AND
AND
AND
AND
AND
P P P P P AR
AR TS LIST
AR
AR
TS LIST
TS LIST
TS LIST
AR
TS LIST
Manufactured By
MARSHFIELD, WISCONSIN 54449
READ AND UNDERSTAND THIS MANUAL
BEFORE OPERATING THIS EQUIPMENT
AL
AL
AL
AL
HSMFG22007

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HDX Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for H&S HDX Series

Summary of Contents for H&S HDX Series

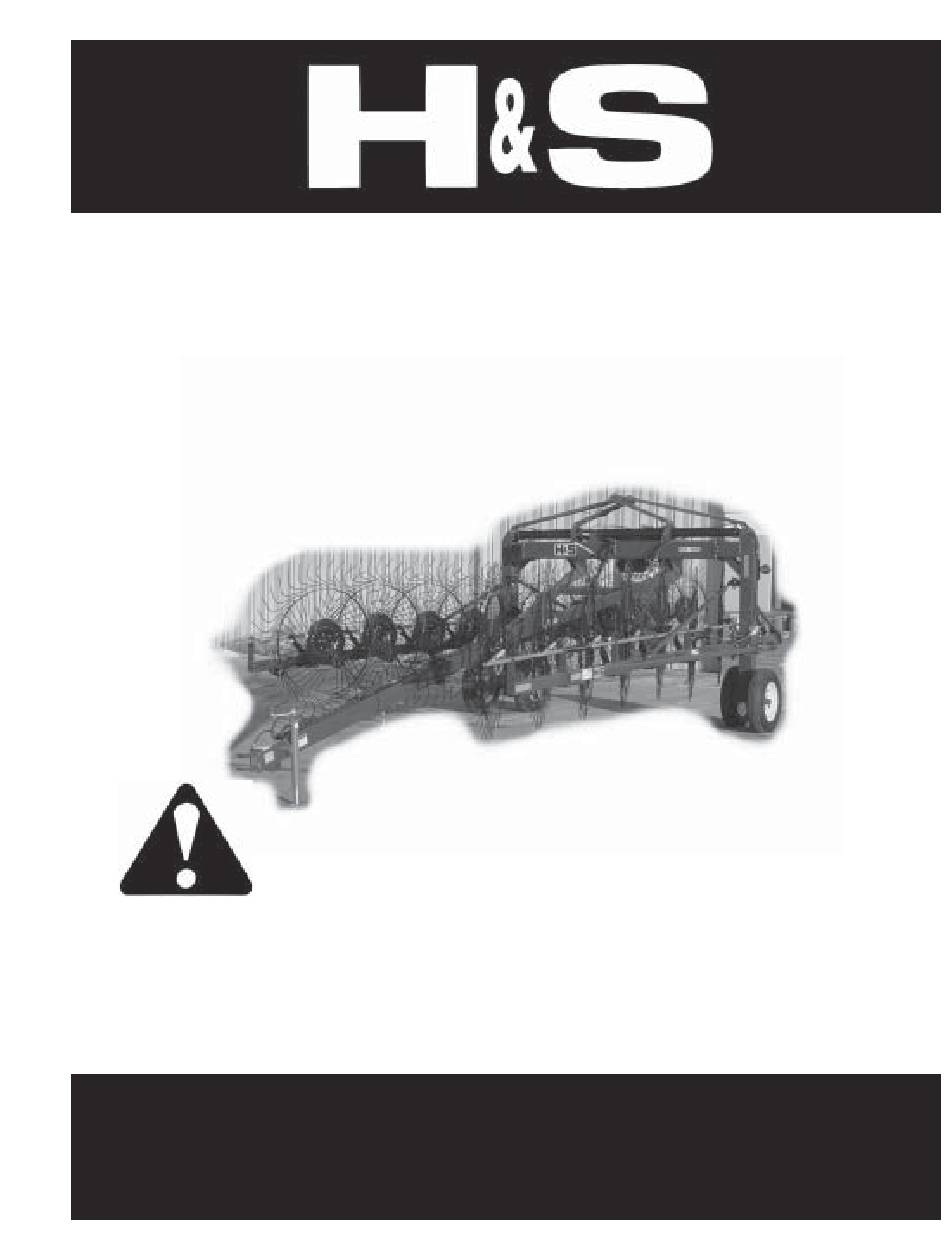

  • Page 1 HDX SERIES RAKE READ AND UNDERSTAND THIS MANUAL WARNING BEFORE OPERATING THIS EQUIPMENT UNSAFE OPERATION OR MAINTENANCE OF THIS EQUIPMENT CAN RESULT IN SERIOUS INJURY OR DEATH OPERA OPERA T T T T T OR’S MANU OPERA OR’S MANU OR’S MANU...

  • Page 2: Table Of Contents

    H & S HDX SERIES RAKE PARTS AND OPERATOR’S MANUAL CONTENTS Warranty & Warranty Registration Card..........1-2 Dealer Pre-Delivery &...

  • Page 3: Warranty & Warranty Registration Card

    WARRANTY H & S WARRANTY H & S Manufacturing Co., Inc. (“H & S”) warrants this product to be free from defect in material and workmanship. Except as noted below, this warranty term is twelve (12) months from the date of delivery of the product to the original purchaser by an authorized H &...
  • Page 4 IMPORTANT! Tear on dotted line, provide the information requested on the card. The H&S Warranty is valid “only” after this card is received and recorded at H&S Mfg. Co. Mail at once. No postage is required in the U.S.A.

  • Page 5: Dealer Pre-Delivery & Delivery Checklist

    DEALER PRE-DELIVERY CHECK LIST After the HDX Series Rake has been completely set-up, check to be certain it is in correct operating order before delivering to the customer. The following is a list of points to inspect. Check off each item as you have made the proper adjustments and found the item operating satisfactorily.

  • Page 7: Be Alert Symbol

    YOUR SAFETY ALERT! IS INVOLVED. THIS SYMBOL IS USED THROUGHOUT THIS BOOK WHENEVER YOUR PERSONAL SAFETY IS INVOLVED. TAKE TIME TO BE CAREFUL. REMEMBER: THE CAREFUL OPERATOR IS THE BEST OPERATOR. MOST ACCIDENTS ARE CAUSED BY HUMAN ERROR. CERTAIN PRECAUTIONS MUST BE OBSERVED TO PREVENT THE POSSIBILITY OF INJURY OR DAMAGE.

  • Page 8: Explanation Of Safety Signs

    RECOGNIZE SAFETY INFORMATION This is the safety-alert symbol. When you see this symbol on your machine or in this manual, be alert to the potential for personal injury. Follow recommended precautions and safe operating practices. UNDERSTAND SIGNAL WORDS A signal word- DANGER, WARNING, or CAUTION - is used with the safety-alert symbol.

  • Page 10: Warning - Owner Must Read And Understand

    TRACTORS This operators manual uses the term “Tractor” when identifying the the power source. W A R N I N G TO PREVENT SERIOUS INJURY OR DEATH BEFORE YOU ATTEMPT TO OPERATE THIS EQUIPMENT, READ AND STUDY THE FOLLOWING INFORMATION. IN ADDITION, MAKE SURE THAT EVERY INDIVIDUAL WHO OPERATES OR WORKS WITH THIS EQUIPMENT, WHETHER FAMILY MEMBER OR EMPLOYEE, IS FAMILIAR WITH THESE SAFTEY PRECAUTIONS.

  • Page 12: Operation

    Jack Storage Position TRANSPORT LOCKS RAKE BEAM LOCKS When transporting the standard HDX Series Rake the beam locking pin must be in the transport hole (A). The balance of the holes give you a wide variety of raking widths. -10-...
  • Page 13 OPERATION (Continued) RAKE BEAM LOCKS (OPTIONAL BEAM ANGLE KIT) If equipped with hydraulic beam angle kit, operational mode is with ball valve in open position (B). For transport position, ball valve must be in closed position as shown (C). RAKE WHEEL LOCKS Located at the rear of the lift pipe, is a hair pin which is used to secure the rake wheels in the up position for transport (D).
  • Page 14 OPERATION (Continued) CONTROL BOX The optional Hydraulic Beam Angle Kit requires the use of a control box. When rake beam angling is needed, hold the switch for either the right or left beam. Use the same hydraulic valve that opens and closes the center frame. A solenoid valve will divert the oil to either function the operator chooses.

  • Page 15: Adjustments

    ADJUSTMENTS RAKE BEAM Rake beams should be adjusted so they are level to slightly up in the front. They can be adjusted by using the ratchet jack located near the center of the rake. This adjustment is important to keep rake wheel ground pressure even along the rake beam.

  • Page 16: Lubrication Guide

    LUBRICATION GUIDE GREASE FITTINGS There are four grease fittings on the HDX Series Rake. If lubricated properly andoften enough, it willprolong the life of your HDX Series Rake. Grease daily during normal use and before and after storage and after power washing. Use a good grade of high quality grease. Make sure that grease comes out around the shaft on sleeve type bearings.

  • Page 17: Decal Location & Identification

    DECAL LOCATION Your H & S HDX Series Rake was manufactured with operator safety in mind. Located on the HDX Series Rake are various decals to aid in operation, and warn of caution areas. Pay close attention to all decals.

  • Page 18: Optional Equipment

    The optional two wheel extension is added to the front left and right side of the rake.This converts an X14 to an X16, and an X17 to an X19 HDX Series Rake. This will increase raking width by 3’6”. Three Wheel Extension...

  • Page 19: Trouble Shooting

    TROUBLE SHOOTING WARNING MAKE SURE THAT THE TRACTOR IS SHUT OFF AND THE RAKE CAN NOT MOVE BEFORE SERVICING THE HDX SERIES RAKE. MAINTENANCE AND REPAIR SERVICE WORK TO BE PERFORMED BY A QUALIFIED SERVICE PERSON ONLY. TROUBLE... POSSIBLE CAUSE...

  • Page 20: Service Records

    SERVICE / MAINTENANCE RECORD DATE DESCRIPTION NOTES -18-...

  • Page 21: Instructions For Ordering Parts - About Improvements

    INSTRUCTIONS FOR ORDERING PARTS All service parts should be ordered through your authorized H & S dealer. They will be able to give you faster service if you will provide them with the following Model & Serial number is located on the inside right pole mount, under center frame. All reference to left or right apply to the machine as viewed from the rear.
  • Page 22 FIGURE 1 -20-...
  • Page 23 FIGURE 1 HDX SERIES RAKE MAIN FRAME ITEM PART NO. DESCRIPTION XR78 Main Frame XR79 Pole Top XR80 Left Axle Upright XR81 Right Axle Upright XR82 Long Hose Carriage XR83 Short Hose Carriage XR84 Hose Carriage Clamp XR52 Tandem Pivot Pin...
  • Page 24 FIGURE 2 -22-...
  • Page 25 FIGURE 2 HDX SERIES RAKE RAKE BEAMS ITEM PART NO. DESCRIPTION XR90 Right Rake Beam XR91 Left Rake Beam XR92 HDX Long Stabilizer XR93 HDX Short Stabilizer XR22 Lift Pipe Stop HD116 Turnbuckle End XR94 Main Lift Pipe HD154 Acme Rod...
  • Page 26 FIGURE 3 HDX HYDRAULICS ITEM PART NO. DESCRIPTION HD136 Hyd. Cylinder 3-12” X 60” 16SV171 Hyd. Cylinder 2” X 10” XR99 Hyd Hose 3/8” X 295” 1/2”MP & 1/2” MP BFR554 Flow Valve XR100 Flow Divider/Counterbalance Valve 1/2” Female Tee XR116 Hyd.
  • Page 27 FIGURE 4 HDX Hydraulic Cylinders OPTIONAL BEAM ANGLE KIT RAKE WHEEL LIFT WIDTH CYLINDER 2” X 8” 2” X 10” 3-1/2”X60” ITEM # PART# PART # PART# DESCRIPTION 23N142A “ 16SV157A Clevis Cap 23N143A “ HD189 Rod Cap 23N144 “ HD198 Piston T134A...
  • Page 28 FIGURE 5 HDX SERIES RAKE OPTIONAL 2 WHEEL EXTENSION KIT ITEM PART NO. DESCRIPTION XR111 Pole Extension XR112 Left Front Beam Extension XR113 Right Front Beam Extension XR114 Lift Pipe Extension XR41 Extension Lift Pipe Connector BFR657 Rake Wheel Hub 17G141 3/8”...
  • Page 29 FIGURE6 HDX SERIES Hydraulic Beam Angle Option ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION XR44 Mounting Plate XR110 HDX Pole Cord XR45 1/4” X 3” Socket Head WM284 Tractor Supply Cord (5’6”) Capscrew 16SV316 Control Box 1/4” Lock Washer...
  • Page 30 Figure 7 HDX RAKE OPTIONAL 3 WHEEL EXTENSION -28-...
  • Page 31 Figure 7 HDX Rake Optional 3 Wheel Extension ITEM # PART NUMBER DESCRIPTION XR97 Y-Rake Extension XR98 Forward Brace XR92 Stabilizer XR103 Y-Extension Lift Pipe XR41 Extension Lift Pipe Connector XR29 Stop Pin DWM324 Safety Snap Pin BFR426 Rake Pressure Handle BFR137 Hair Pin HD154...
  • Page 32 Figure 8 HDX SERIES OPTIONAL RAKE LIGHTING ITEM # PART NUMBER DESCRPITION XR108 HDX Pole Light Cord XR109 HDX Frame Light Cord HD148 Light Bracket S441 Light Module DWM130 Work Light DWM129 Yellow Hazard Light S310 Red Tail Light S308...
  • Page 33 Warranty: See Warranty on Page #1 NOTE: Determine right or left side of HDX Series Rake by viewing it from the rear. If instructions or parts call for hardened bolts see page 9 to identify. H&S MANUF H&S MANUF A A A A A CTURING CO H&S MANUF...
  • Page 34 H&S MFG H&S MFG ..CO H&S MFG CO ..H&S MFG H&S MFG products approved for the FEMA FEMA FEMA FEMA FEMA SEAL OF Q SEAL OF Q U U U U U ALITY SEAL OF Q ALITY ALITY...
