Summary of Contents for Patriot Lighting CF35002

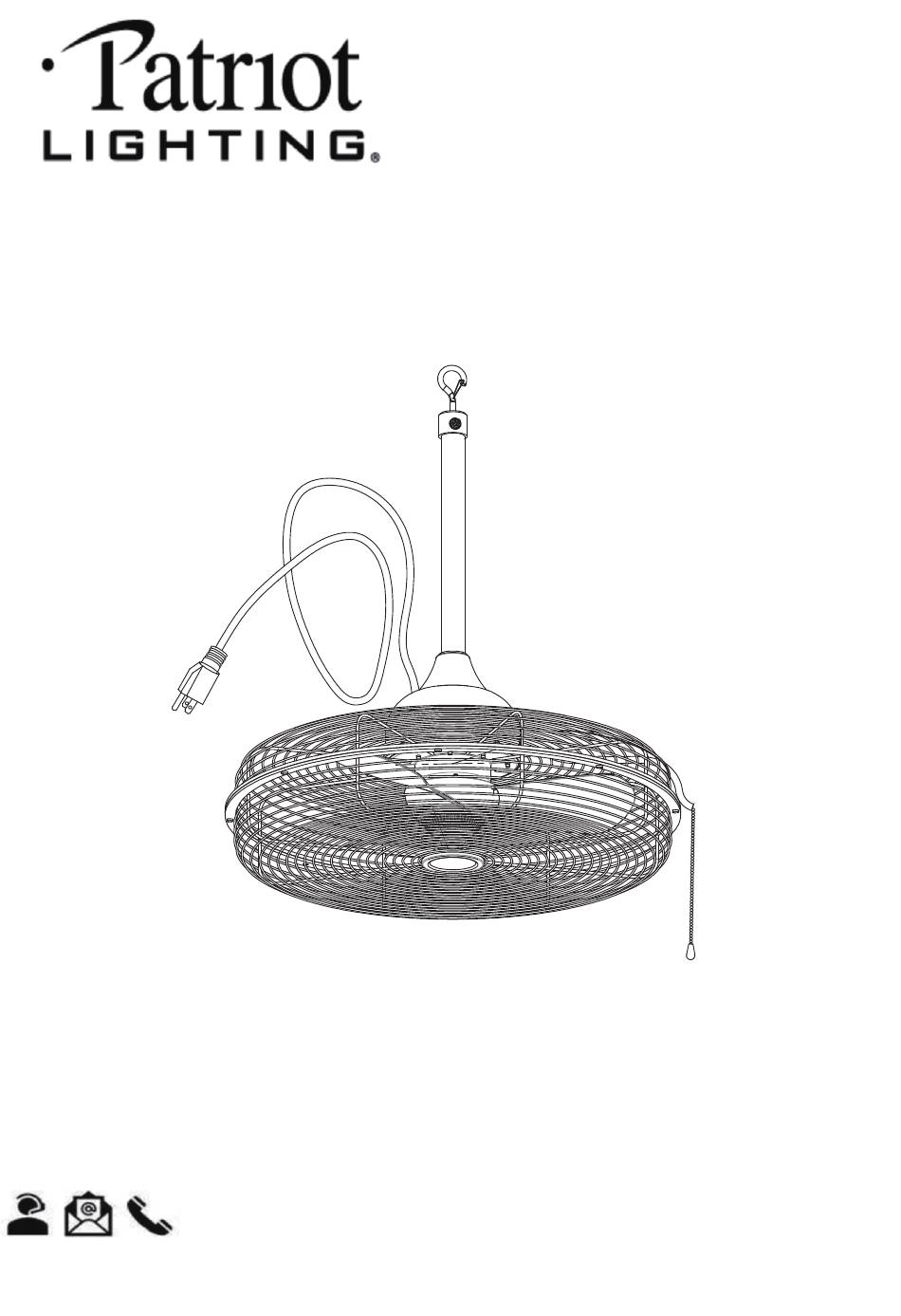

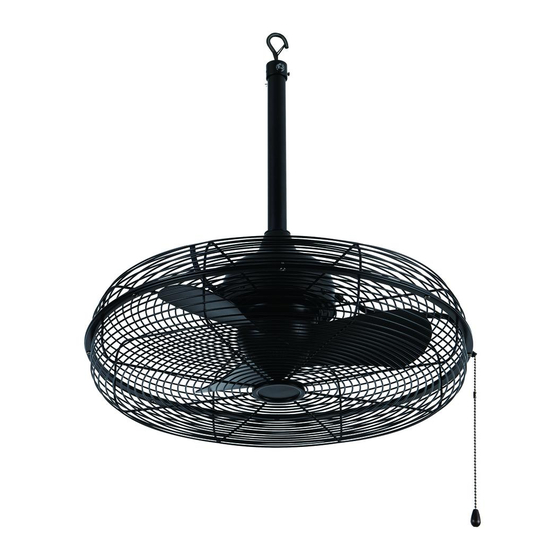

- Page 1 SKU Number: 355-3310 Model Number: CF35002 20” Indoor Outdoor Ceiling Fan Questions, problems, missing parts? Please visit our website at www.ewccelite.com or email us at customer-service@ewccglobal.com.cn,or call us at 1-888-722-5089.
- Page 2 Package Conten Part Description Quantity Hanger Bracket Assembly Coupling Cover Motor Body Coupling Cross Pin Lock Pin Coupling Screw Transmitter & Holder 23A 12V Battery Plastic Anchor & Wall Screw Cable Tie Pull Chain(Preassembled) Power Cord(Preassembled) Wall Screw...
-
Page 3: Pre-Installation
Pre-installation Read And Save These Instruction This fan is applicable only for gazebos or pagodas where a reliable mounting bracket is provided. Ensure the hanging structure can support a minimum weight of 65 lbs. lf you are not sure the hanging structure can support the weight, do not attempt to install this fan as it may fall and cause damage to the fan or personal injury. - Page 4 Assembly Instructions IMPORTANT: Risk of electrical shock, turn off circuit breaker and wall switch before assembly. To avoid the damage of the wire and plug, do not over-pull. 1. Choose the desired mounting method: A. Standard Mounting: Note: For a ceiling higher than 8 ft., you can purchase an extension downrod.
- Page 5 Operating Instructions Setting the Airflow Speed 1. Pull Chain There are four settings for the long pull chain switch (I). Turn the fan on or off as well as select a preferred speed by pulling the long chain switch (I) at the bottom of the fan. 1st time pulling- Turn on the fan/Low Speed 2nd time pulling- Middle Speed 3rd time pulling- High Speed...
-
Page 6: Troubleshooting
Limited Lifetime Warrantyce Ceiling Fan Warranty This Limited Lifetime Warranty includes motor and motor-related parts only, which will be replaced or repaired as determined by Patriot Lighting during the period in which this warranty is in effect, as further defined below. - Page 7 If your Patriot Lighting Ceiling Fan motor fails at anytime during the lifetime of the original purchaser due to defects in material or workmanship, we will provide a replacement part free of charge.
