Summary of Contents for Patriot Lighting PIPER GLEN 20857

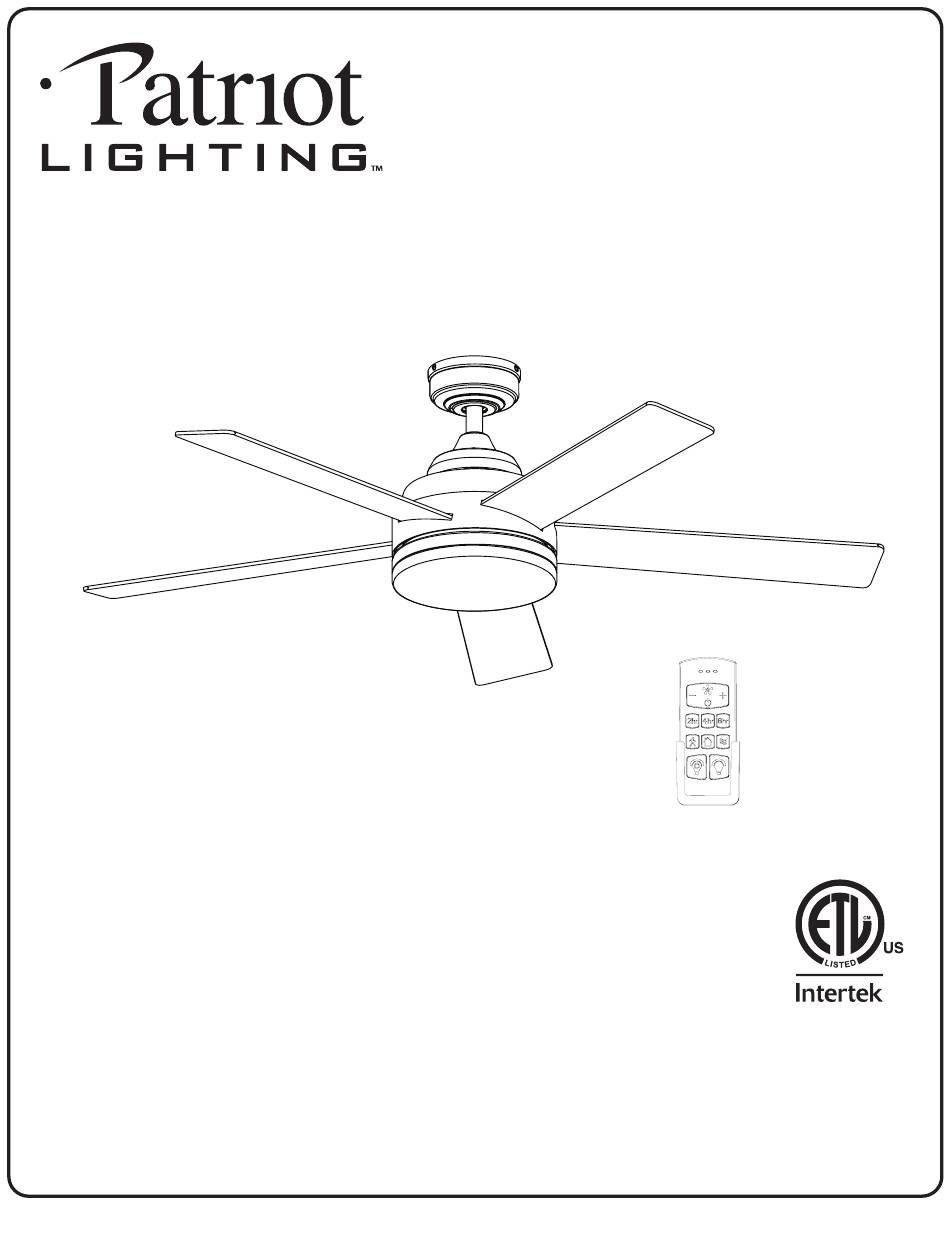

- Page 1 52” PIPER GLEN CEILING FAN Owner’s Manual Model #20857 SKU # 355-2107 If a problem cannot be remedied or you are experiencing difficulty in installation, please contact the Service Department: 1-877-459-3267, 8 a.m. - 5 p.m. Central Time, Monday - Friday. 10190 •...
- Page 2 PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: PACKAGE CONTENTS 1. Mounting Bracket 11. Fitter Plate Screw (x4) 2. Canopy 12. Light Pan 3. Mounting Bracket Screw 13. Light Pan Screw (x3) (x4) 14.
-
Page 3: Mounting Options
DIMENSION REFERENCE A. 14 in. B. 11.57 in. C. 9.06 in. D. 5.8 in. MOUNTING OPTIONS Two Mounting Options Downrod Mount Angled Ceiling Mount (Up to 10 degrees) Choose one of the following mounting options:. Downrod Mount is best suited for ceilings 8 ft. or higher. For taller ceilings you may want to use a longer downrod (not included). - Page 4 SAFETY INSTRUCTIONS READ ALL SAFETY INFORMATION AND INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN INSTALLING THE FAN AND SAVE INSTRUCTIONS. CAUTION: This fan is intended for indoor locations. It is not suitable for damp or outdoor locations. To reduce the risk of personal injury, do not bend the blade brackets when installing the brackets, balancing the blades or cleaning fan.
- Page 5 SAFETY INSTRUCTIONS WARNING: To avoid risk of electric shock, be sure to shut off power at the main fuse or circuit breaker box before installing or servicing this fixture. Turning off the electrical power by using the light switch is not sufficient to prevent electrical shock.
- Page 6 ASSEMBLY INSTRUCTIONS 1. Turn OFF the electrical power at the main fuse or cir- cuit breaker. DANGER: Failure to disconnect the power supply prior to installation may result in serious injury or death. 2. Loosen all four mounting bracket screws located on Mounting Bracket Screw the mounting bracket and completely remove the two screws from the round holes in the canopy.
- Page 7 ASSEMBLY INSTRUCTIONS 5. Slide the downrod into the yoke of the motor assembly, align the holes, then reinstall the downrod pin and downrod clip. Secure with the two set screws and slide Yoke Cover Set Screw the yoke cover down until it rests on top of the motor Downrod assembly.
- Page 8 ASSEMBLY INSTRUCTIONS Mounting Bracket Screw 9. Raise the canopy, ensure the two mounting bracket screws are aligned with the J-shaped slots in the canopy. Then turn the canopy in a clockwise direction until the Round mounting bracket screws are completely engaged in Hole the J-shaped slots.
- Page 9 ASSEMBLY INSTRUCTIONS 13. Attach the bowl to the light kit by twisting the bowl firmly in a clockwise direction until it is secure. CAUTION: Avoid cross-threading the bowl during installation. Improper installation could cause the bowl Light Kit to be difficult to remove or fall, which could cause serious injury.
- Page 10 OPERATING INSTRUCTIONS 1. To operate the fan using the remote, press and release LED Indicator the following buttons: LED Indicator - Indicates the three speeds of the fan. It Fan Power should illuminate when any remote button is pressed. If not, replace the 1.5 V, AAA batteries.
-
Page 11: Troubleshooting
TROUBLESHOOTING If you have difficulty operating your new ceiling fan, it may be the result of incorrect assembly, installation or wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults, please check the Troubleshooting section below. If a problem cannot be remedied or you are experiencing difficulty in installation, please contact the Service Department: 1-877-459-3267, 8 a.m. -
Page 12: Limited Lifetime Warranty
Model No: 20857 - Matte Black (SKU: 355-2107) Set forth below, the manufacturer warrants the fan motor for this Patriot Lighting ceiling fan to be free from defects in workmanship and material for the life of the product. Also, subject to the limitations below, the manufacturer warrants all ceiling fan parts (“ceiling fan parts”...
