Summary of Contents for Patriot Lighting GANNON 37559-MNDB
- Page 1 Sku Number: 355-0717 56” GANNON Ceiling Fan Model Number: 37559-MNDB Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-833-695-2045, 8:30 a.m. - 5 p.m., EST, Monday - Friday.
-
Page 2: Safety Information
SAFETY INFORMATION Please read and understand this entire manual before attemptingto assemble, operate or install the product. All set screws must be checked and retightened where necessary before installation. To reduce the risk of personal injury, do not bend the blade brackets when installing, balancing the blades, or cleaning the fan. Do not insert foreign objects in between rotating fan blades. -
Page 3: Limited Lifetime Warranty
The limited lifetime warranty covers this ceiling fan, for residential use by the original purchaser, against defects in material or workmanship as follows: If your Patriot Lighting ceiling fan motor fails at any time due defects in material or workmanship, we will provide a replacement part free of charge. -
Page 4: Pre-Installation
PRE-INSTALLATION PREPARATION To avoid damaging the product, assemble it on a soft, non-abrasive surface, such as carpet or cardboard. Inspect each part for defects such as the wire insulation for any cuts, abrasions, or exposed copper that may have occurred during shipping. If there is a defect in the wire, do not continue the assembly process. - Page 5 EXPLODED VIEW DETAIL Hanger Bracket Fan Motor Assembly Fan Blade Dual Mount Drawing Downrod Mount Slope Ceiling Mount (Up to 23 degrees)
-
Page 6: Installation Instructions
INSTALLATION INSTRUCTIONS IMPORTANT: BEFORE YOU BEGIN INSTALLING THE FAN, CAREFULLY READ ALL INFORMATION ON PAGE 2 “SAFETY INFORMATION” AS WELL AS THE FOLLOWING "INSTALLATION INSTRUCTIONS". IF IN DOUBT, CONSULT A QUALIFIED ELECTRICIAN. SAVE ALL INSTRUCTIONS. THE INSTALLATION HAS TO BE IN ACCORDANCE WITH THE NATIONAL ELECTRICAL CODE, ANSI/NFPA 70-1999 AND LOCAL CODES. - Page 7 INSTALLATION INSTRUCTIONS Make wire connections: 1) The motor grey wire to the grey " TO MOTOR ” wire from receiver with a wire connector. 2) The motor red wire to the red " TO MOTOR ” wire from receiver with a wire connector.
- Page 8 INSTALLATION INSTRUCTIONS Install the wall plug onto the wall, then attach the remote control Press and hold this button to enter the learning function holder with the two remote control holder mounting screws. Install a CR2032 battery into the remote control. To prevent damage Transmitter to the remote control, remove the battery if not used for long periods of time.
-
Page 9: Care And Maintenance
CARE AND MAINTENANCE WARNING: Make sure the power is off before cleaning your fan. Because of the fan’s natural movement, some connections may become loose. Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure. It is not necessary to remove the fan from the ceiling. Clean your fan periodically to help maintain its new appearance over the years.
Need help?
Do you have a question about the GANNON 37559-MNDB and is the answer not in the manual?
Questions and answers

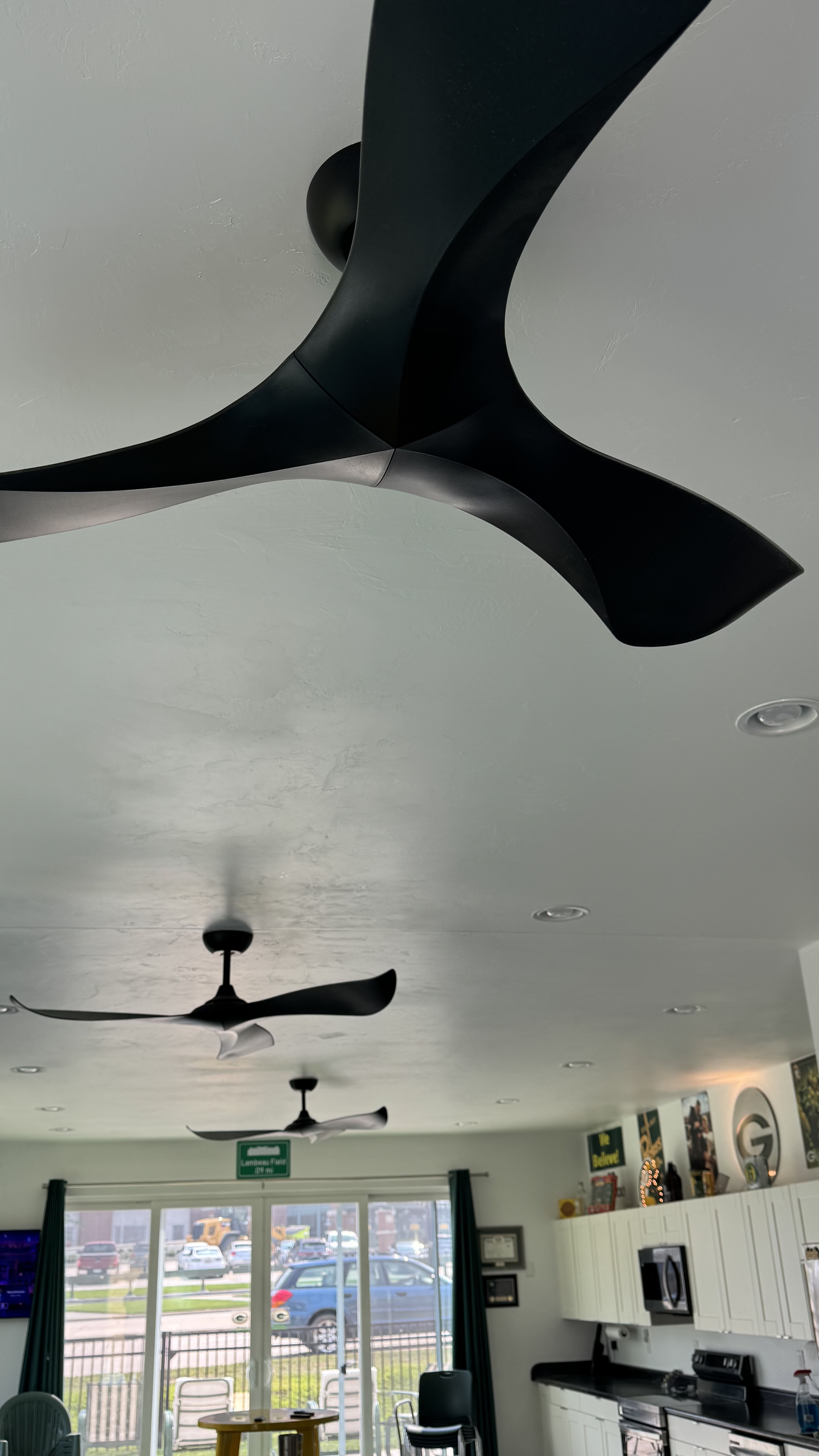

I have three of these fans in my garage. None of them will turn on. 2 of the fans are on 1 switch and the third fan is on another switch. I have already replaced the batteries
How many amps does this **** use
can i replace the 6 inch rod for a 36 inch down rod?
Is the reverse motor control on the remote?
