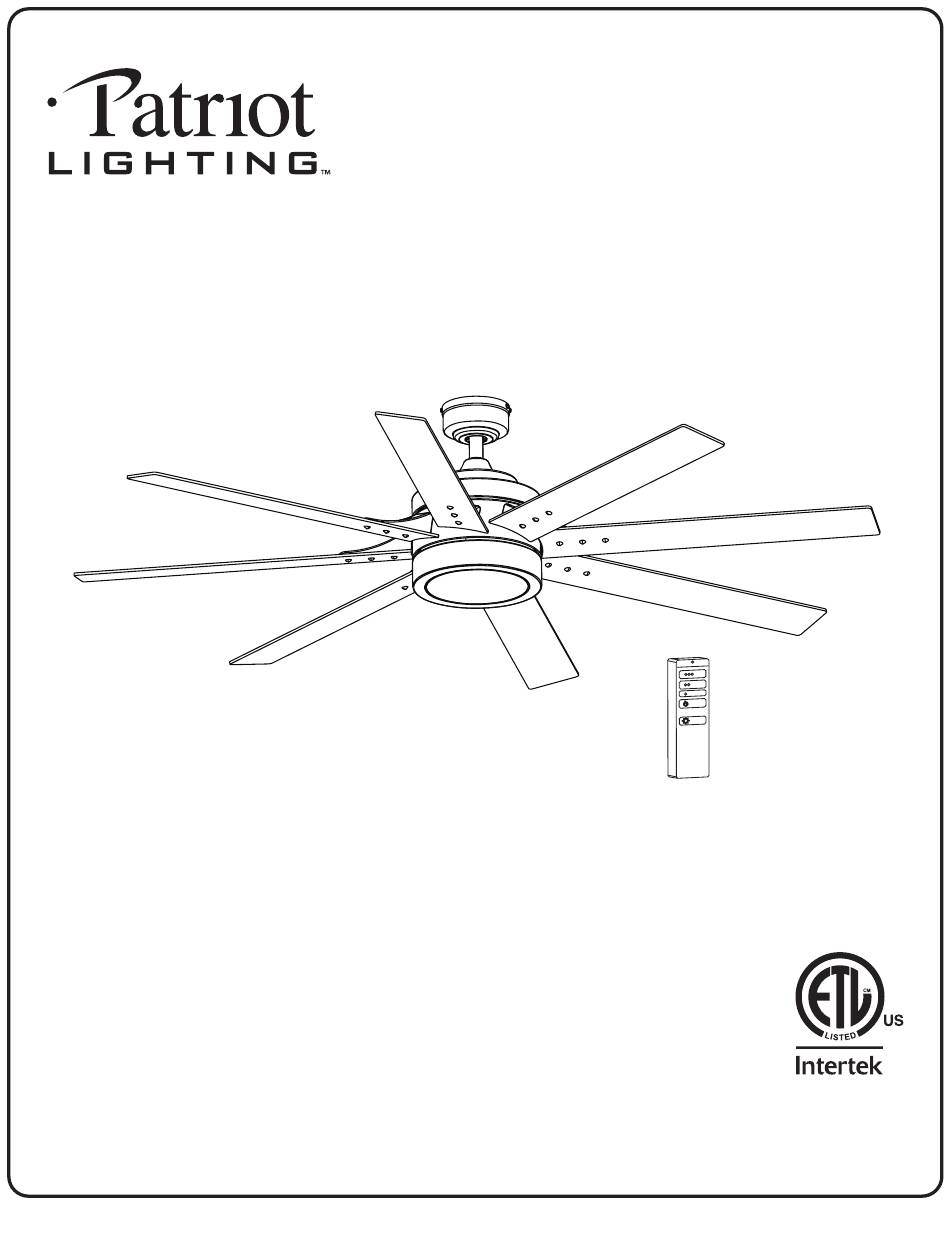

- Page 1 62” GRAND HAVEN II CEILING FAN Owner’s Manual Model #20697 SKU #355-0713 If a problem cannot be remedied or you are experiencing difficulty in installation, please contact the Service Department: 1-877-459-3267, 8 a.m. - 5 p.m. Central Time, Monday - Friday.
- Page 2 PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: PACKAGE CONTENTS 1. Canopy 11. Fitter Plate 2. Canopy Cover 12. Fitter Plate Screw (x3) 3. Mounting Bracket 13. Light Kit 4. Mounting Bracket 14. Lens Cover Screw (x4) 15.
-
Page 3: Mounting Options
DIMENSION REFERENCE A. 14.68 in. B. 12.15 in. C. 9.82 in. D. 5.13 in. MOUNTING OPTIONS Dual Mounting Options Downrod Mount Angled Ceiling Mount (Up to 10 degrees) Choose one of the following mounting options: Downrod Mount is best suited for ceilings 8 ft. or higher. For taller ceilings you may want to use a longer downrod (not included). - Page 4 SAFETY INSTRUCTIONS READ ALL SAFETY INFORMATION AND INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN INSTALLING THE FAN AND SAVE INSTRUCTIONS. CAUTION: All set screws of the fan must be checked and retightened where necessary before installation. To reduce the risk of personal injury, do not bend the blade brackets when installing the brackets, balancing the blades or cleaning fan.
- Page 5 ASSEMBLY INSTRUCTIONS 1.Turn OFF the electrical power at the main fuse or circuit breaker. DANGER: Failure to disconnect the power supply prior to installation may result in serious injury or death. Mounting 2. Loosen all four mounting bracket screws located on the Bracket Screw mounting bracket and completely remove the two screws from the round holes in the canopy.
- Page 6 ASSEMBLY INSTRUCTIONS 5. Remove the downrod clip and downrod pin from the downrod. Then, loosen but don’t remove the two set Downrod screws in the yoke. Clip Downrod Set Screw Yoke 6. Feed the wires coming from the yoke through the yoke cover, canopy and downrod.
- Page 7 ASSEMBLY INSTRUCTIONS Mounting 9. Insert the receiver in the mounting bracket with Bracket Receiver antenna end first and flat side facing up. Note: The receiver rests directly on the downrod. 10. Use wire connectors to connect power supply wires to the receiver and the fan according to the wiring diagram and the following instructions: Black (hot/power)
- Page 8 ASSEMBLY INSTRUCTIONS 13. Slide the end of the blade arm through one of the slots Slot in the side of the motor assembly. Then, use the motor Blade Arm screws to secure the blade arms to the underside of the motor assembly.
- Page 9 ASSEMBLY INSTRUCTIONS Wall Bracket 17. Install wall bracket for remote control (optional) - Use the two mounting screws to attach the wall bracket to the wall. Wall Bracket Screws Note: A slot on the back of the remote control allows it to Slot be stored on the wall bracket when not in use.
- Page 10 OPERATING INSTRUCTIONS 1. Using a ceiling fan will allow you to raise your thermostat setting in summer and lower your thermostat Reverse Switch setting in winter without feeling a difference in your comfort. In warmer weather, push the reverse switch left which will result in downward airflow creating a wind chill effect.
-
Page 11: Troubleshooting
TROUBLESHOOTING If you have difficulty operating your new ceiling fan, it may be the result of incorrect assembly, installation or wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults, please check the Troubleshooting section below. If a problem cannot be remedied or you are experiencing difficulty in installation, please contact the Service Department: 1-877-459-3267, 8 a.m. -
Page 12: Limited Lifetime Warranty
If your Patriot Lighting Ceiling Fan motor fails at any time during the lifetime of the original purchaser due to defects in material or workmanship, we will provide a replacement part free of charge.
Need help?
Do you have a question about the GRAND HAVEN II and is the answer not in the manual?
Questions and answers
the ceiling box that I am connecting to also has a red wire, what do I connect it to, or do I just cap it off?
Connect the red wire (AC IN L) from the receiver to the black (hot/power) supply wire in the ceiling box.
